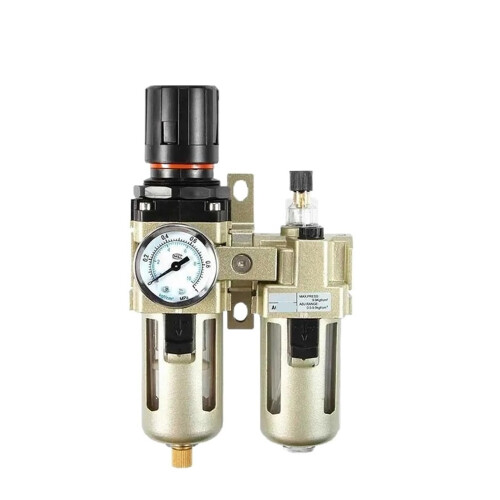

Pneumatic Air Filter Regulator Lubricator AC3010 FRL Unit with Automatic Drain for Compressed Systems

Pneumatic Air Filter Regulator Lubricator AC3010 FRL Unit with Automatic Drain for Compressed Systems Description

The AC201002D, AC301002, and AC301003 FRL air source treatment units provide a complete air treatment solution for pneumatic systems. They combine filtration, pressure regulation, lubrication, and an automatic drain in a single compact module to deliver clean, conditioned air to downstream tools and actuators. These units are designed to protect equipment, stabilize performance, and reduce maintenance in industrial workflows. Key benefits Protect downstream equipment by removing dust, particles, oil, and moisture from compressed air through integrated filtration. Ensure stable, controllable air pressure with an adjustable regulator for reliable cylinder and valve operation. Improve tool and actuator life with onboard lubrication tailored to pneumatic components. Reduce maintenance effort with an automatic drain that vents condensate automatically. Simplify installation with a compact, modular design that fits standard pneumatic lines and fittings. Built for durability in demanding environments with corrosionresistant construction and robust internal components. Key attributes Functionality: Integrated FRL (filtration, regulation, lubrication) with automatic drain to compressed air before it reaches downstream equipment. Compatibility: Models AC201002D, AC301002, and AC301003 share core FRL functionality; port sizes and exact configurations vary by model. Suitable for standard pneumatic systems requiring inline air treatment. Size and porting: Port sizes and physical dimensions are model dependent; refer to the specific datasheet for each model to confirm connections and fitment. Material: Durable body construction with materials chosen for industrial use and corrosion resistance. Performance: Delivers conditioned air with consistent pressure and lubrication, while automatically removing condensate to minimize moisturerelated issues. Maintenance: Designed for straightforward maintenance, with routine filter replacement and simple calibration of the regulator. Use cases and applications Automotive or electronics assembly lines that utilize pneumatic grippers, actuators, and conveyors, requiring clean, regulated, and lubricated air to maintain precision and repeatability. Robotic cells or CNC machining environments where stable pressure and dry air improve cutting, clamping, and tool life, while reducing downtime due to moisture or contamination. General factory air systems in packaging, bottling, or food processing facilities where condensate management and reliable air quality protect downstream equipment and processes. Notes For exact port sizes, dimensions, and installation considerations, consult the product datasheet for the specific model (AC201002D, AC301002, or AC301003). This FRL unit is intended for standard compressed air systems and should be selected based on the required pressure range, filtration level, and lubrication needs of the application. This description reflects the product family's core features, model variants, and practical applications, without altering the intended specifications and functionality.
