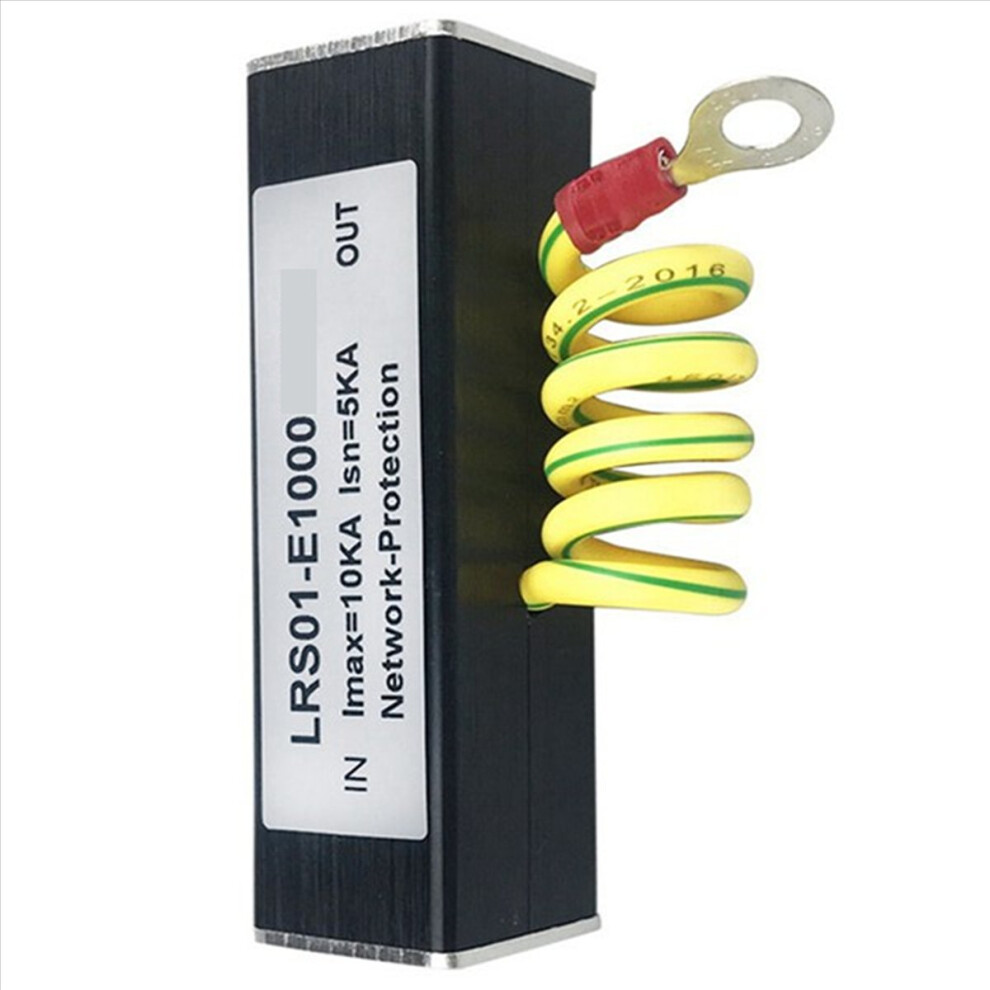

POE 1000M Network Protector POE 1000M Monitor Camera Surge Protector

POE 1000M Network Protector POE 1000M Monitor Camera Surge Protector Description

Item Description
POE 1000M Network -Protector POE 1000M monitor Camera Surge Protector RJ45 Gigabit Ethernet Protection device Arrester
1000M RJ45 Ethernet Cat5e/6 surge protector with POE support. It simply installs in-line on an RJ45 Cat5e/6 cable. The arrestor has two RJ45 female jacks, so the in-line installation is a very easy and straight forward.
It protects any Ethernet devices like switches, routers, laptops/PCs,IP Camera etc from damaging surges caused by- or static electricity. Moreover, because of PoE feature it ALLOWS PoE enabled devices to remain powered while still protected against damaging -strikes or voltage spikes.

Material: plastic + metal
Color as shown
Features
Fast energy absorption on over-voltage
Low resistance and minimal capacitance - minimal influence on data link

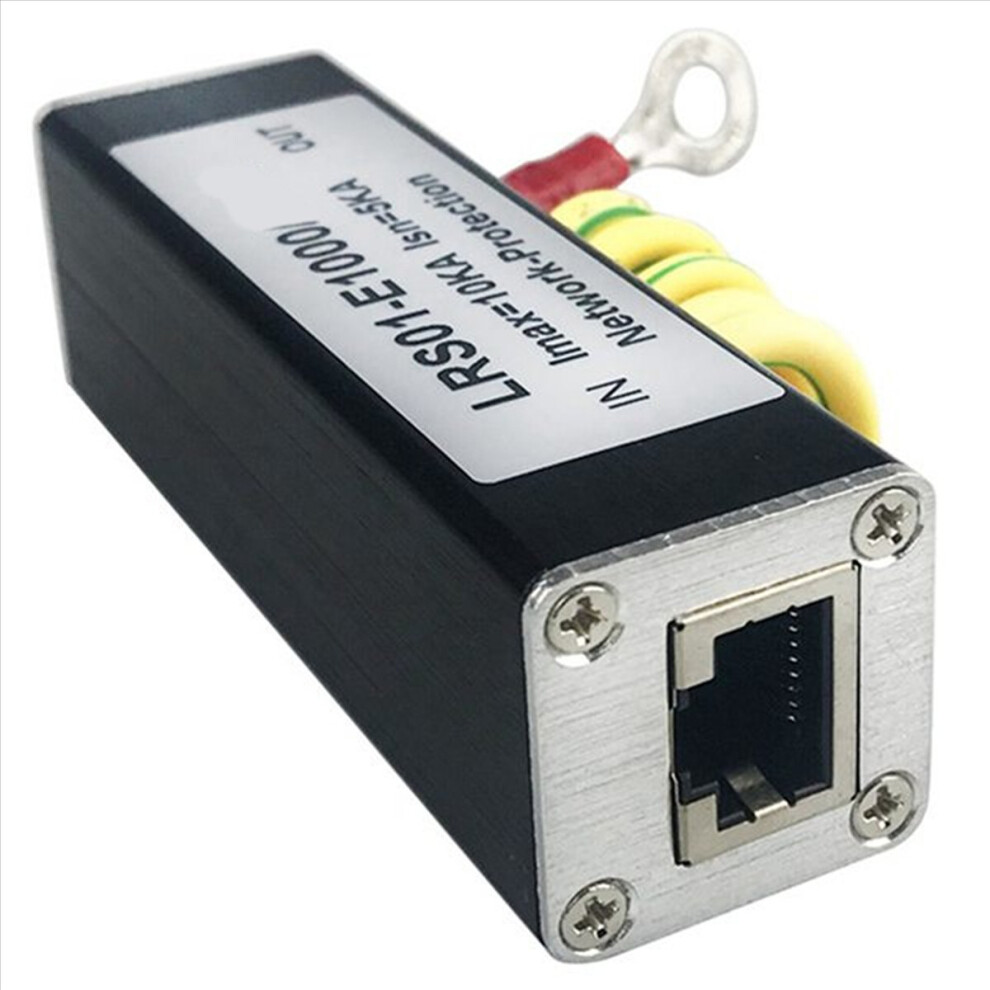

Easy in-line installation: two RJ45 female connectors
Specification
Product Name: Gigabit POE Network -Protector
Protection object: POE network switch, POE camera, terminal with POE power supply function
Interface: RJ45
Response time Less than 1ns
Rated operating voltage: 48V
Transfer rate: 1000Mbps
Continuous operating voltage: 57V
Working temperature: -30 ~ 70 degrees Celsius
Operating humidity: 30%-90%
Please notes:
Two things are crucial and should NOT be missed when using the Ethernet surge protector.
Correct positioning: IN jack on the unprotected part of cable and OUT jack on the protected side of cable.
Reversed installation still allow network traffic and operation but there be no-/surge protection at all!
proper grounding: please note the yellow/green ground wire. This wire must be connected to proper electrical ground in the building.
Ask a qualified electrician about such grounding or search the Internet for information.
Without proper grounding the surge protector be unable to drain away the excess voltage and be ineffective!

Package Contents:

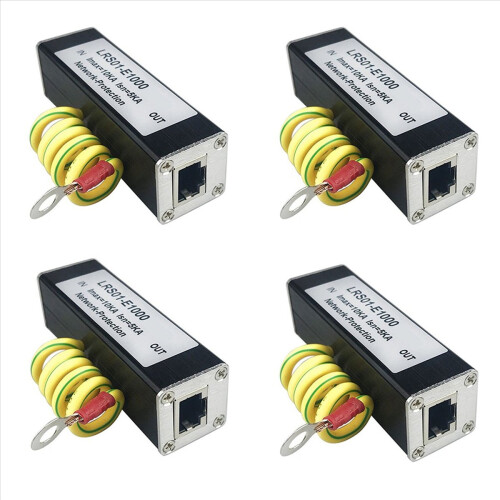

4 x POE Network -Surge Protection Device

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
