POE Networks Arrester IP Camera Thunder Surge

POE Networks Arrester IP Camera Thunder Surge Description

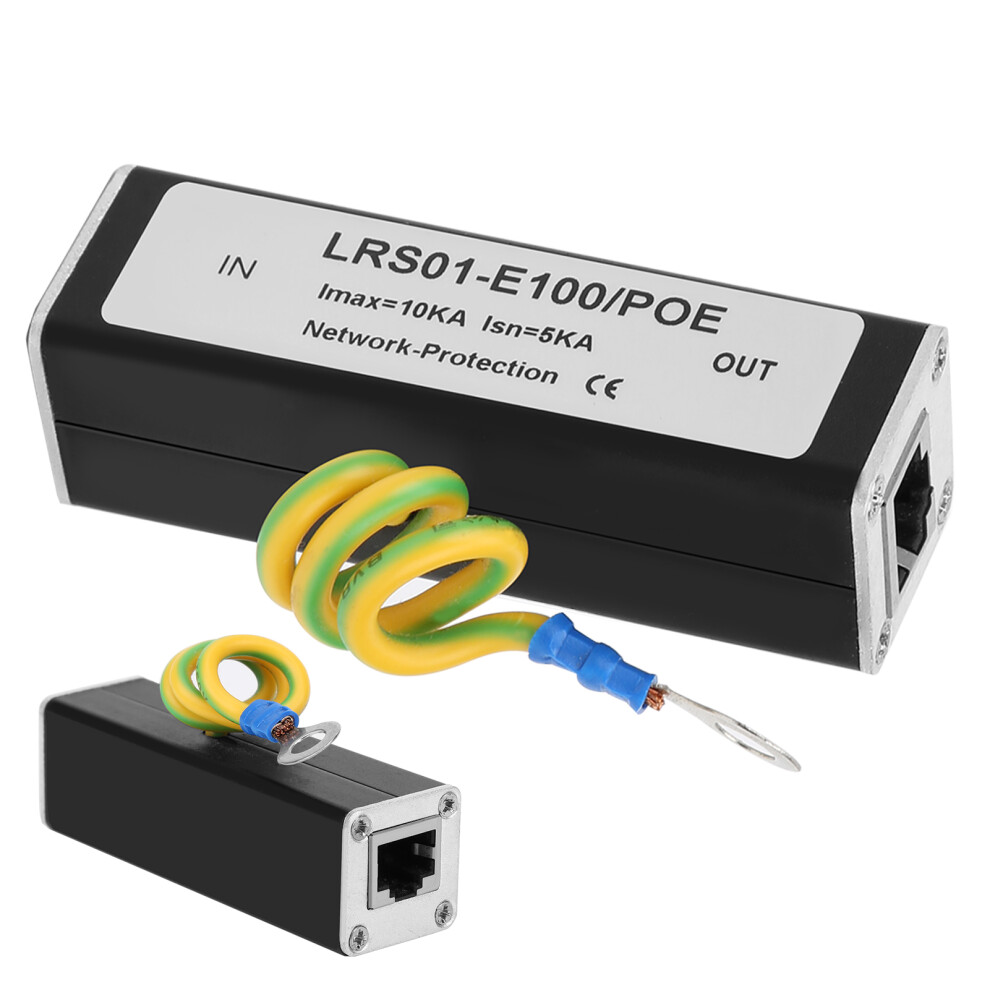

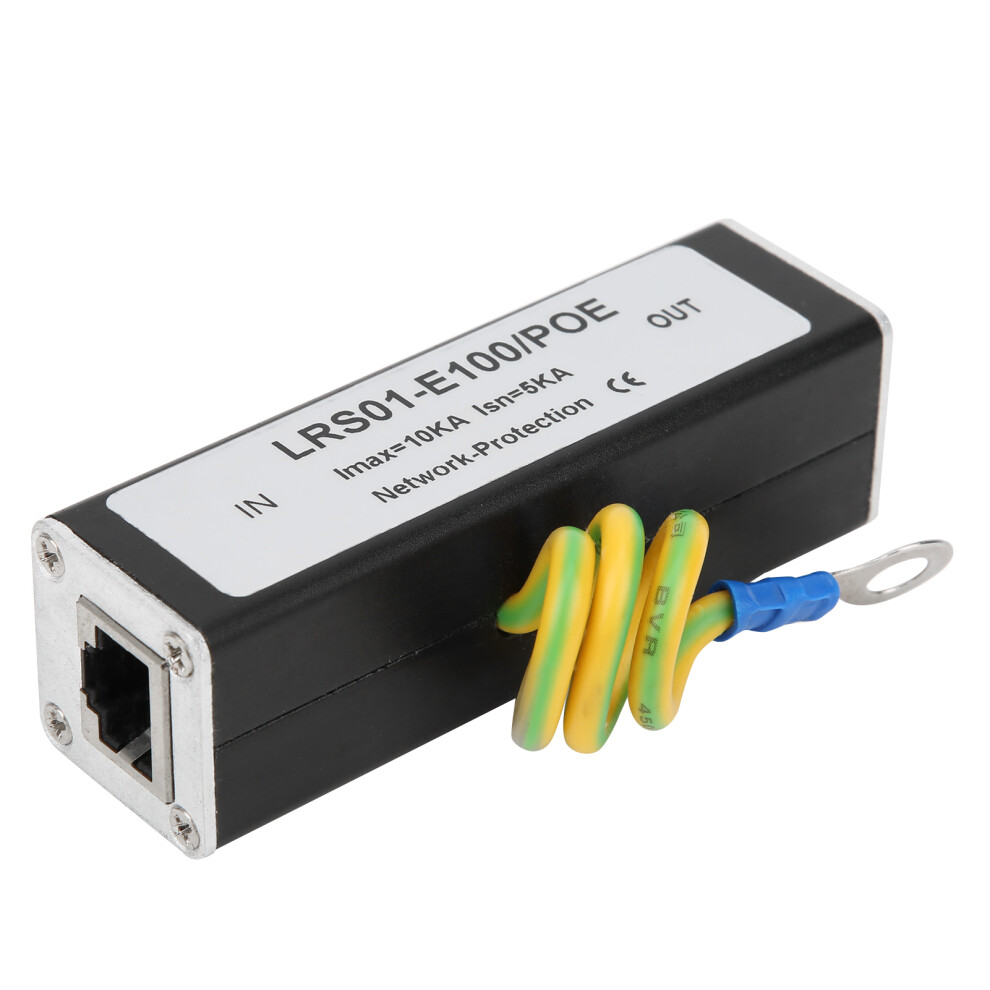

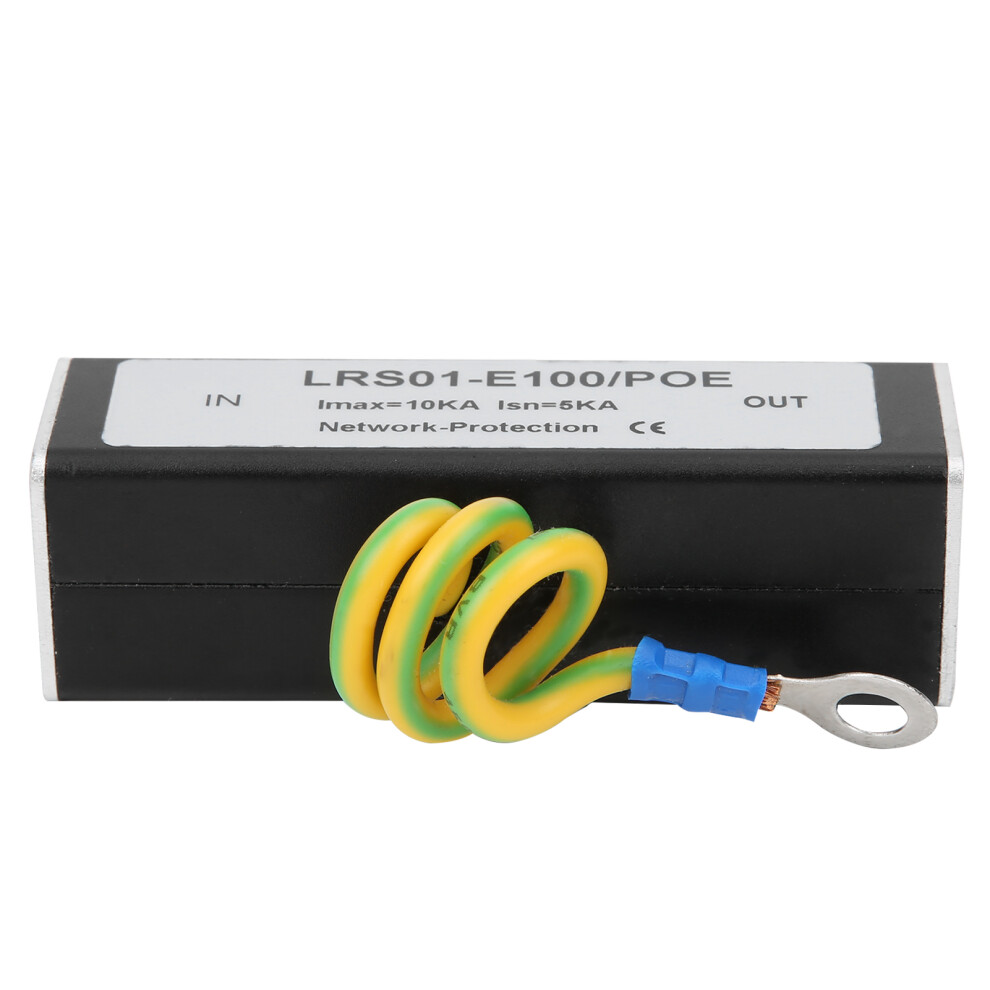

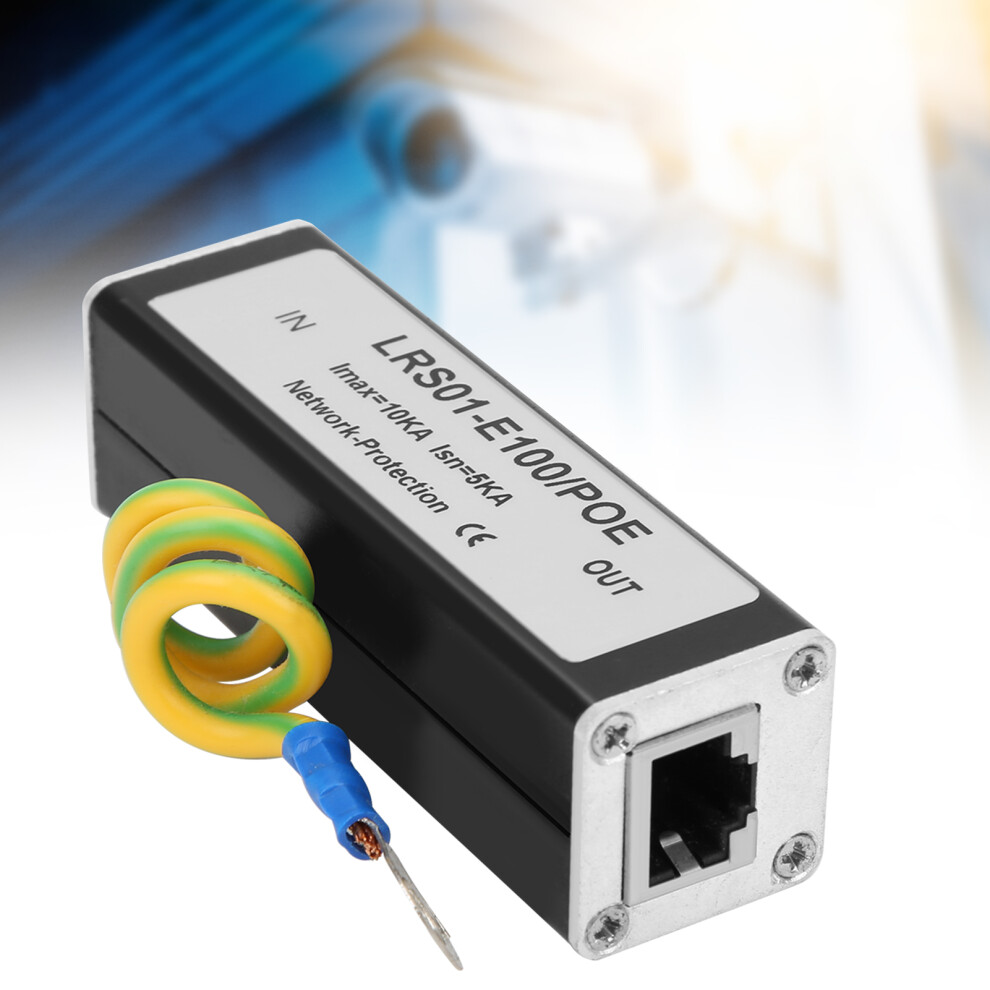

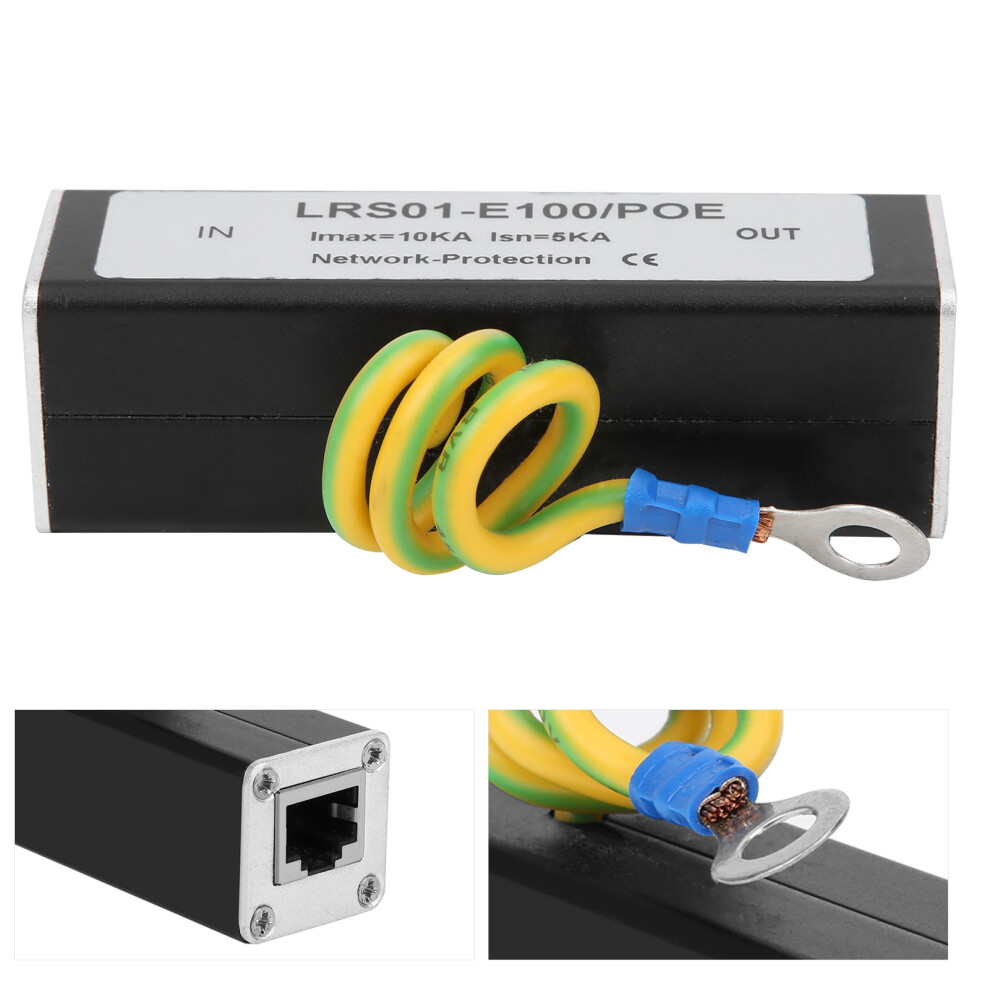

POE Networks Arrester IP Camera Thunder Surge Protector Quick Response Security Application

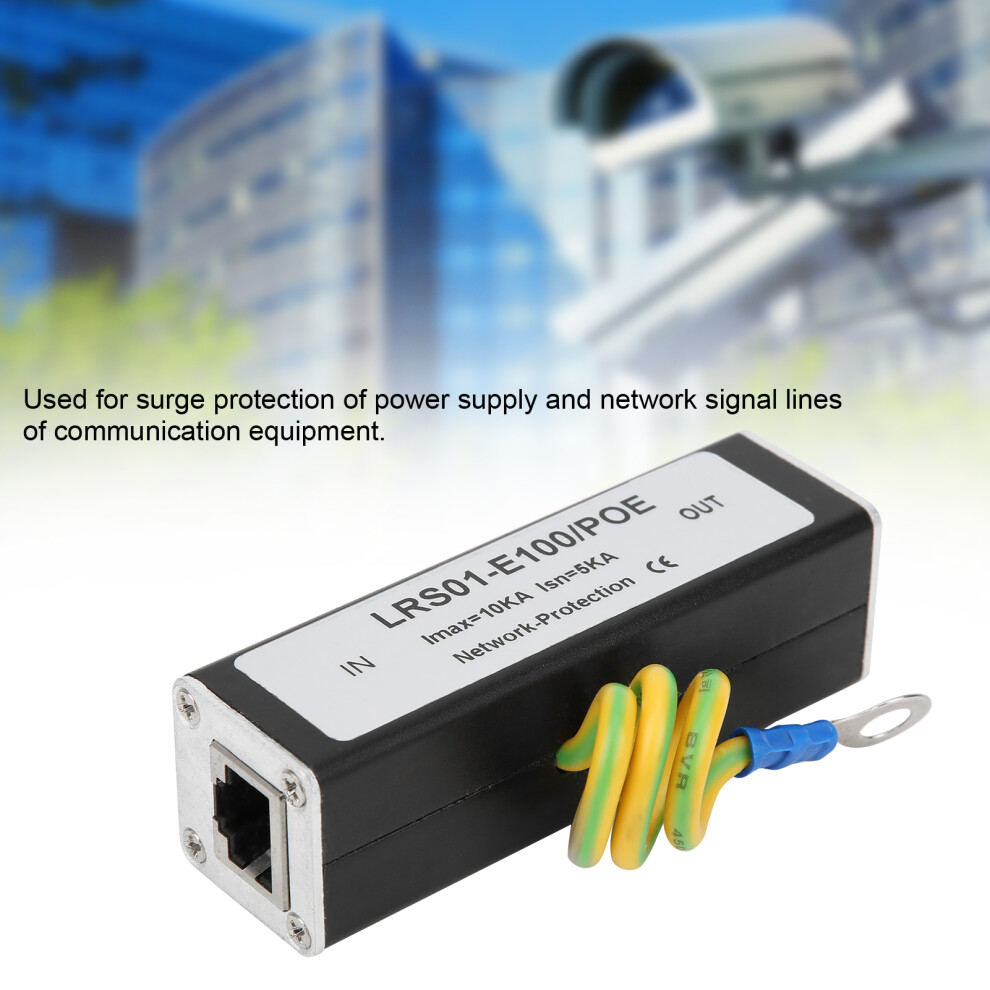

1、Used for surge protection of power supply and network signal lines of communication equipment such as servers, wireless AP, network cameras and network switches powered by POE network cables. 2、Adopt power + networks multi‑level protect circuit. The core components are international brand products with excellent performance. 3、Small insertion loss, superior transmission performance. Low residual pressure level and good protection effect. 4、Professional manufacturing technology, rapid response, stable performance and reliable work. 5、Integrated designed, small size, easy to install and use, no maintenance.

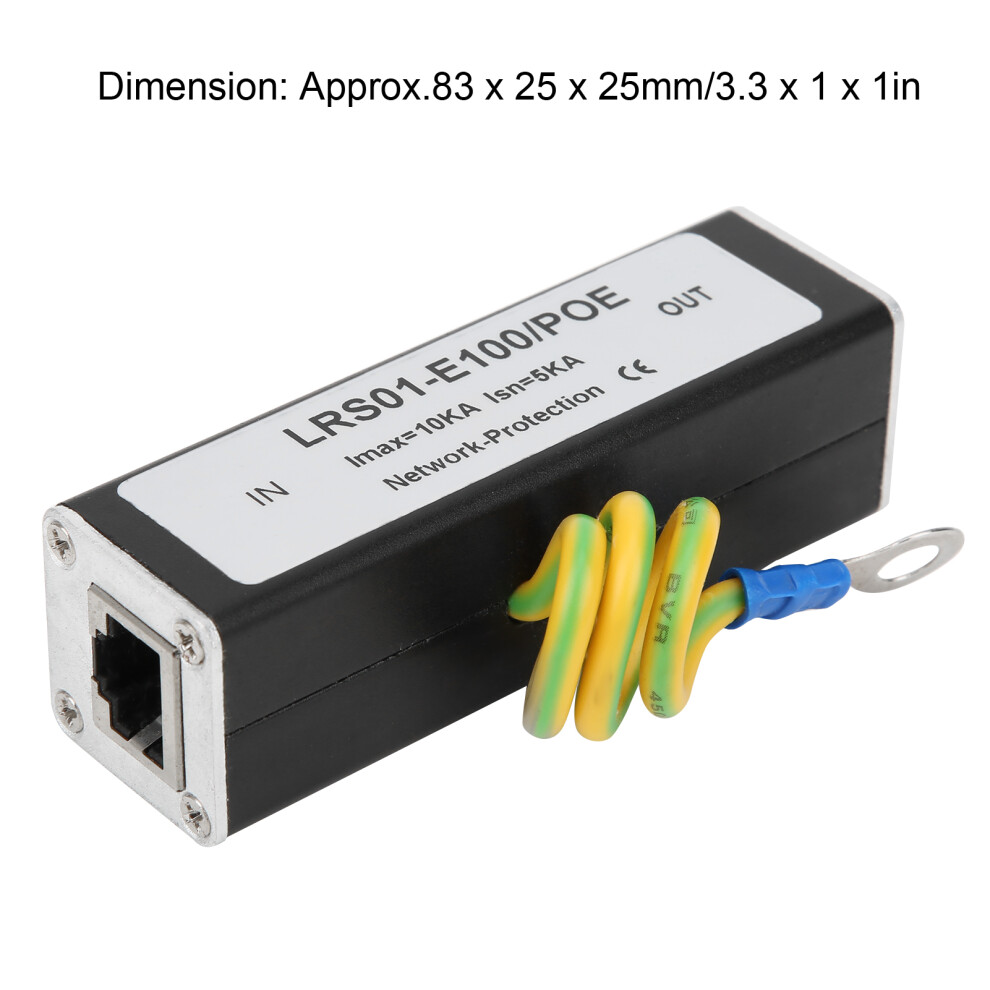

Condition: 100% Brand New Item Type: POE Surge Protector Material: Aluminum Alloy + Flame Retardant PC Color: As picture shown Line Category Power Supply Networks Nominal Working Voltage Un DC48V 5V Maximum Continuous Operating Voltage Uc 60V 8V Nominal Discharge Current In(8/20µs) 5kA 5KA/line Maximum Discharge Current Imax(8/20µs) 10kA 10KA Protection Level Up Line-Line110V Line-Line20V Line-to-Earth300V Line-to-Earth90V Adapt to Data Transmission Rate --- 100Mbps Insertion Loss --- 0.5dB Joint Form --- RJ45:1,2,3,6,4,5,7,8 Shell Aluminum Alloy / Flame Retardant PC Dimension(Approx.) 83 x 25 x 25mm/3.3 x 1 x 1in Installation Method Screw Fixation Applicable Environment Temperature: -40-+85, Relative Humidity: 95％(25) Shell Protection Level IP20



1 x POE Arrester
