Poly 40W Solar Panel Kit 1

Poly 40W Solar Panel Kit 1 Description

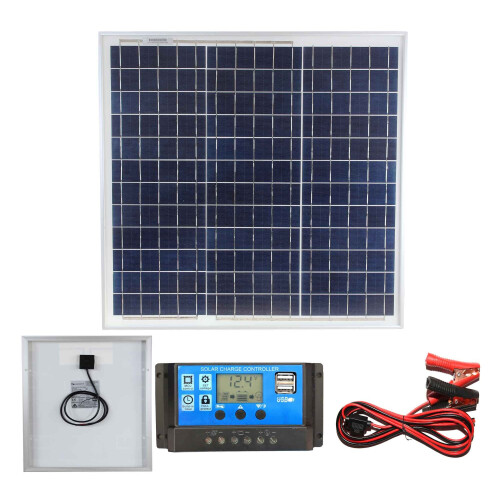

Solar Kit Contents

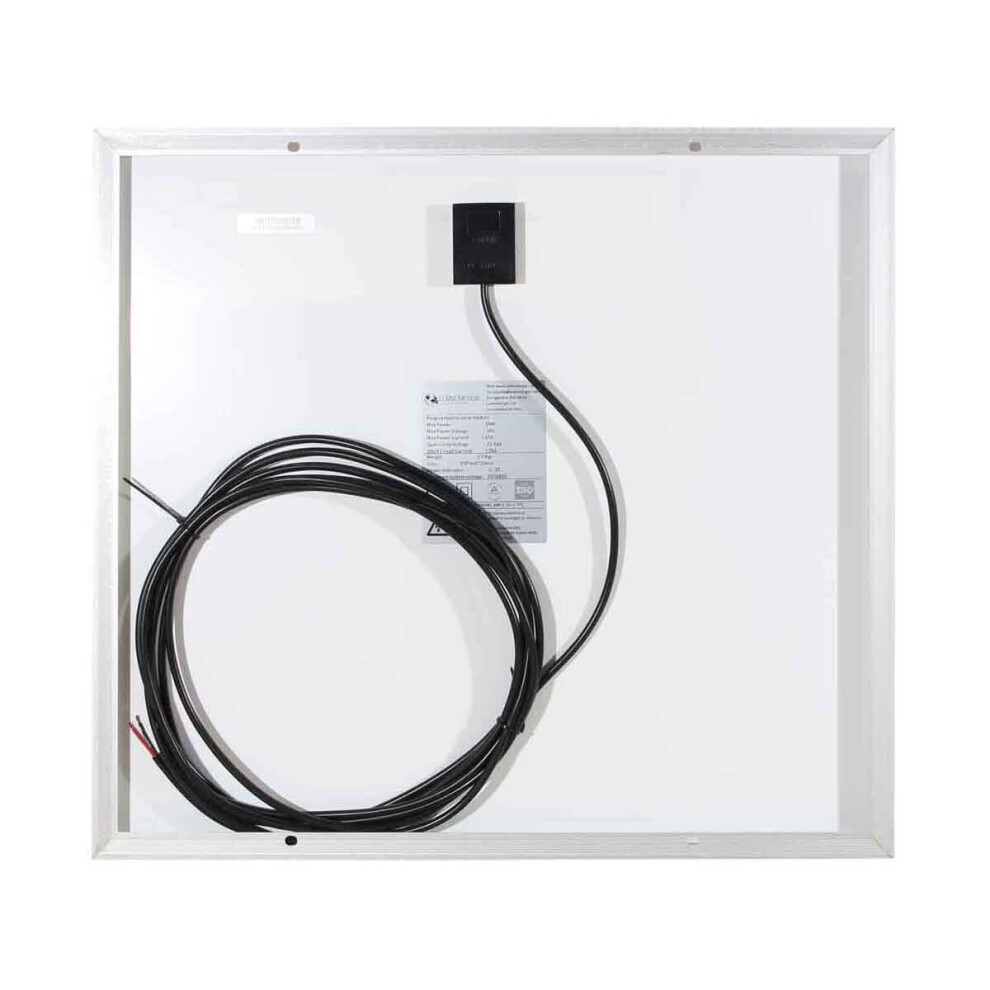

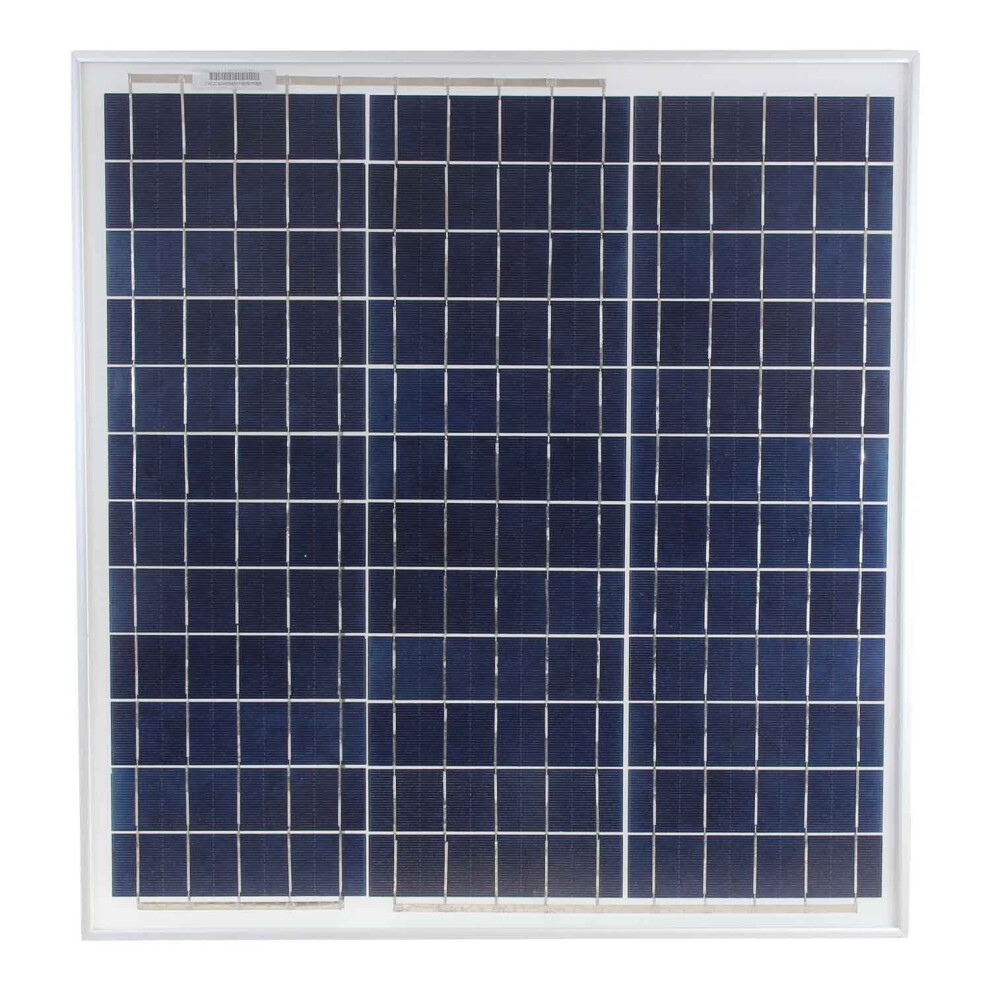

• 40 Watt Polycrystalline Solar Panel with 1M cable attached
• 2 Metre battery connection cable with crocodile clips
• 10A PWM Solar Charge Controller including USB output

Solar Panel Technical Specification

• Maximum Power (Pmax): 40W
• Maximum Power Voltage (VMP): 17.60V
• Maximum Power Current (IMP): 2.27A
• Open Circuit Voltage (VOC): 21.50V
• Short Circuit Current (ISC): 2.50A
• Weight: 3KG
• Size: 540*510*25mm
• Power Tolerance: +/-3%
• Maximum System Voltage: DC600V

In the event that the solar panel is in shade for a prolonged period, our solar panels either have one or two built-in bypass diodes which will enable the panel to continue generating.

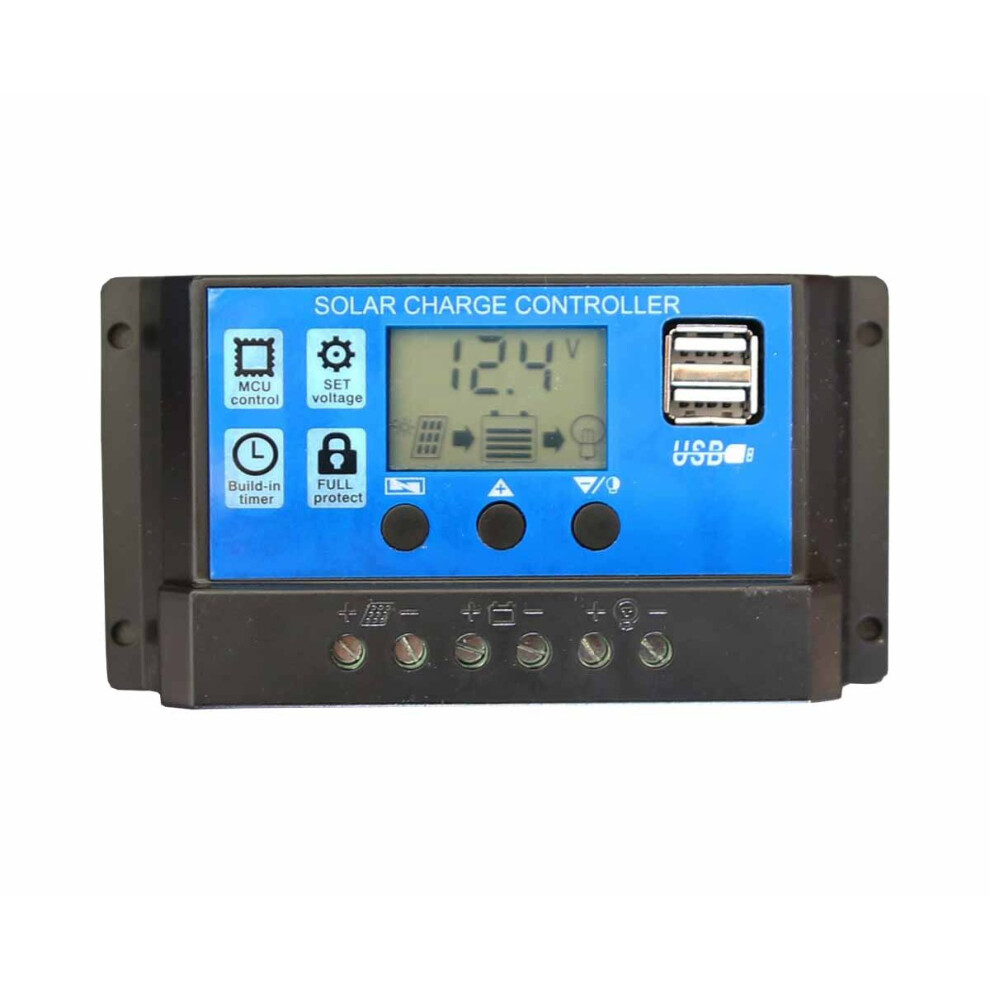

Solar Panel Battery Charge Regulator Controller 12V / 24V Auto Switching

Solar charge controllers are required to regulate the power output from the solar panels to ensure effective charge of a typical 12V or 24V lead acid battery without overload. PWM (Pulse Wave Modulation) solar charge controller provide a cost-effective solar charger for the solar panel outputs in our range. Optimised charge control which helps to prolong the life of the battery. 3-6% more effective than non-PWM charge controllers. LED indicator light to show battery state. Uses industrial grade microcontroller chip to work in a wide range of temperatures and humidity.

Warning: The Connection Order Below must be followed

1, Battery Cable, 2 Load Cable, 3, Solar Panel Cable

Do not install the charge controller in a sealed enclosure where battery gases can accumulate.

These charge controllers can be used with one or more 12V batteries where additional storage capacity may be needed.

Solar Charge Controller – Technical

• 10A max Rated Discharge Current and Rated Charge Current.
• Suitable for 12V or 24V systems, auto detecting & auto switching
• Only suitable for lead acid batteries: Sealed wet lead acid, AGM, GEL. This controller is not suitable for nickel metal hydride, lithium ion or other batteries.
• Maximum solar input;
