Portable Class A Circuitry MiniWhip VLF LF HF Active Antenna Module Shortwave SSR RX Receiving

Portable Class A Circuitry MiniWhip VLF LF HF Active Antenna Module Shortwave SSR RX Receiving Description

Features:
- New version, using modern BF998 and BCX54 semi conductors.
- Real class-A circuitry, clean reception without IMD.
- One coax connection.
- Broadband R/C coupling to the receiver, no transformer.

Technical Specifications:
Frequency range: 10 KHz - 30 MHz;
Power: 12 - 15 volts at 150 mA;
Second order output intercept point: > + 70 dBm;
Third order output intercept point: > + 30 dBm;
Maximum output power: in excess of - 15 dBm;

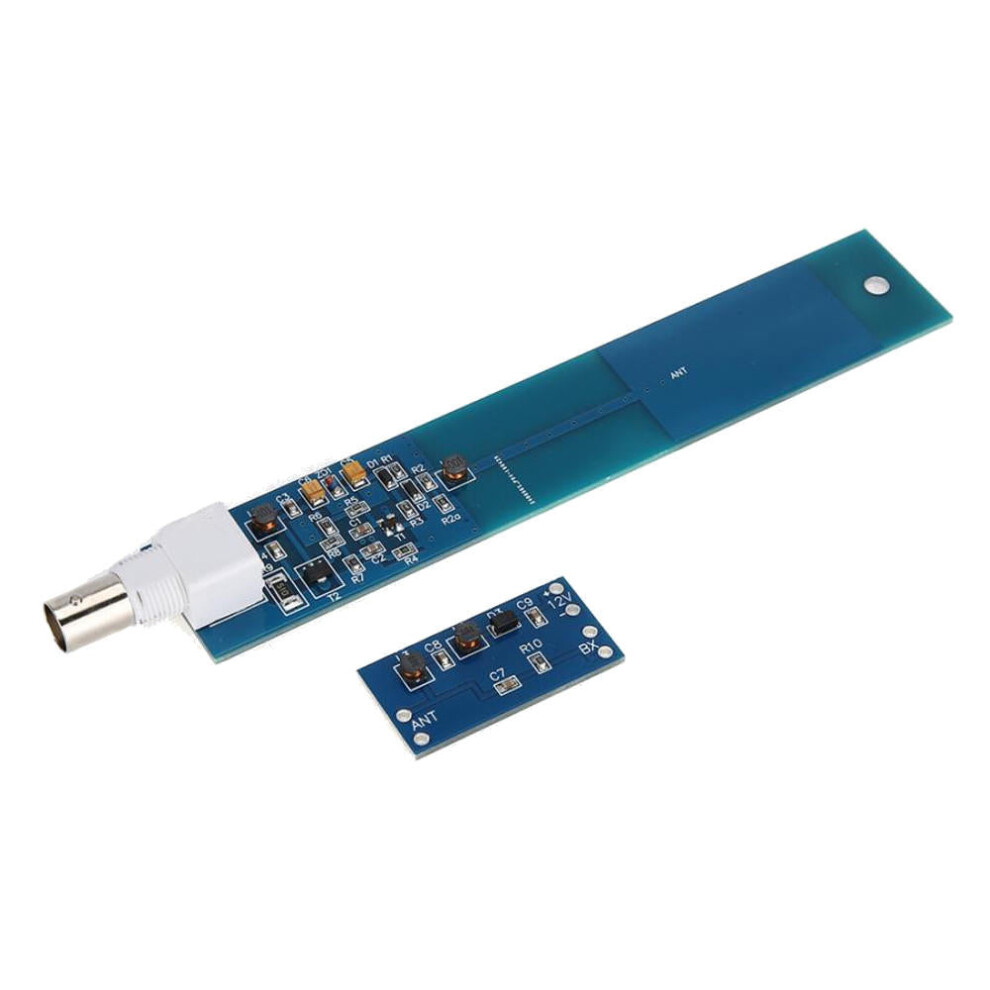

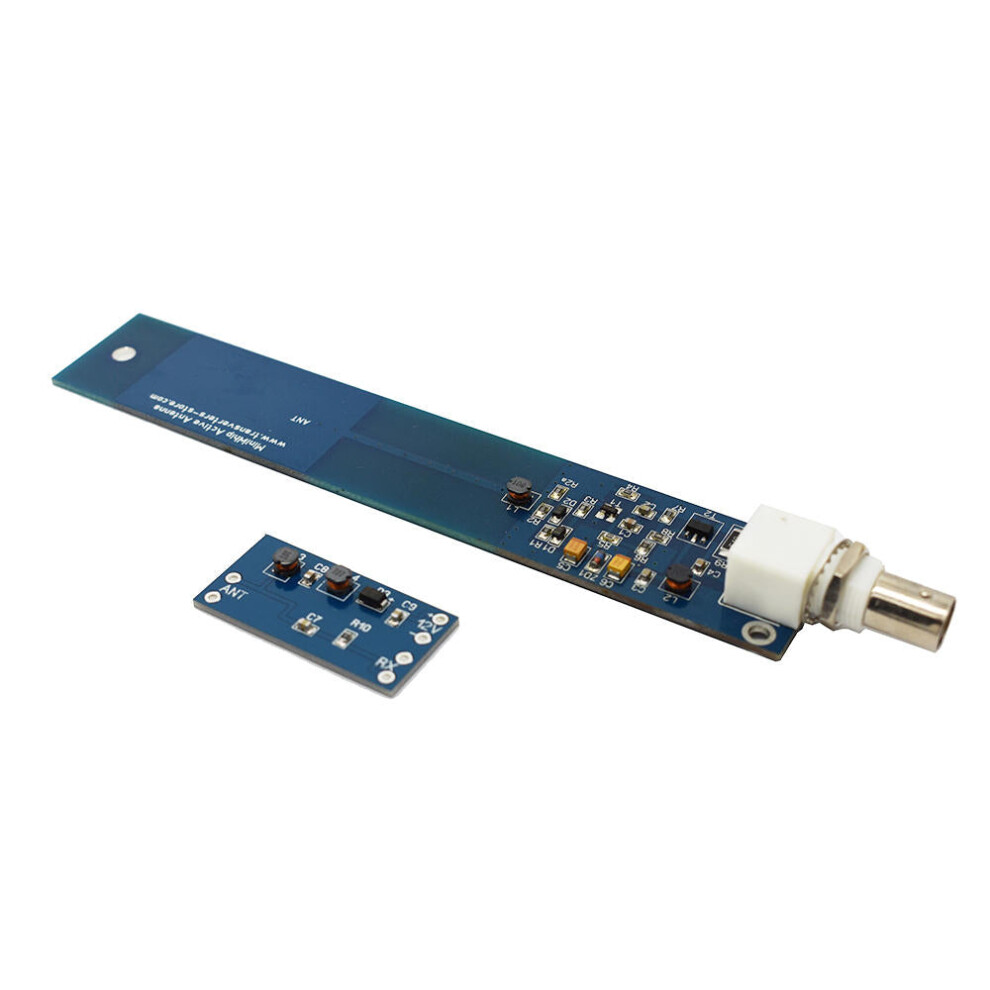

PCB Size: 155 x 27mm;
Connector: BNC;
Feed line: 50 - 100 ohm coaxial cable up to 100 meter long;

To note please:
Each antenna performs as good as its installation permits it to. Any active antenna is not working good inside the house! It should be mounted outside and as high as possible. Place this Mini Whip antenna PCB inside a suitable enclosure of your choice and mount outside the house. Probably for the enclosure you can use a piece of the PVC tube which available in various diameters in a local store. Do not use metal enclosure! It won't work there!

Package Includes:
1 x Board
