Portable Digital Coating Thickness Meter CTG-20 0-1400μm with Data Storage

Portable Digital Coating Thickness Meter CTG-20 0-1400μm with Data Storage Description

Coating Thickness Meter for Used Car Buyers, Portable Digital Paint Thickness Meter with Data Storage, Auto Shutdown CTG-20 Thickness Meter

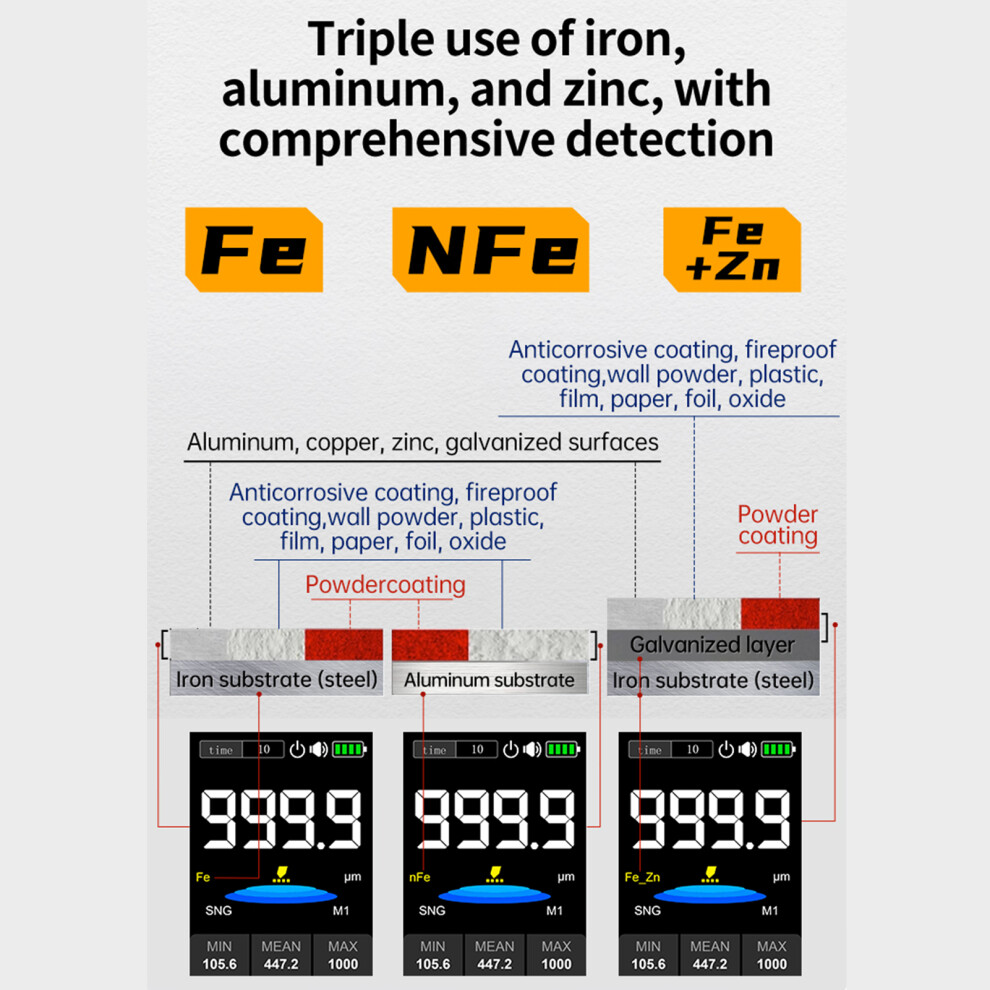

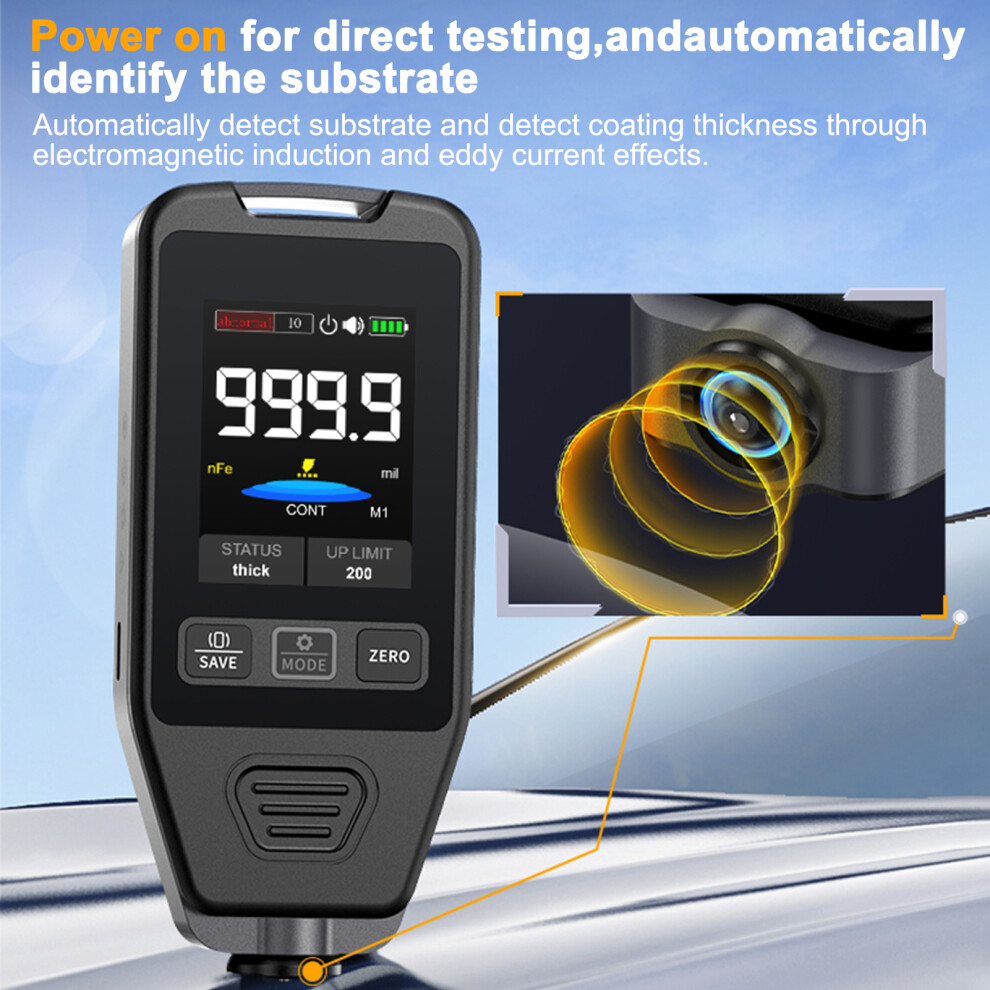

This product is a coating thickness meter used to measure the thickness of electroplated coatings or coatings on metal materials. It has the ability to measure the thickness of non magnetic coating (such as paint) on magnetic materials such as steel/iron, as well as the thickness of coating (such as paint) on non magnetic materials such as aluminum. Equipped with an accurate probe and a built-in rechargeable battery. Automatically detect substrate properties and detect coating thickness through electromagnetic induction and eddy current effects. This instrument can non-destructive measure the thickness of the coating, with fast speed and superior accuracy. Widely used in manufacturing, industrial sector, automotive and other testing fields.

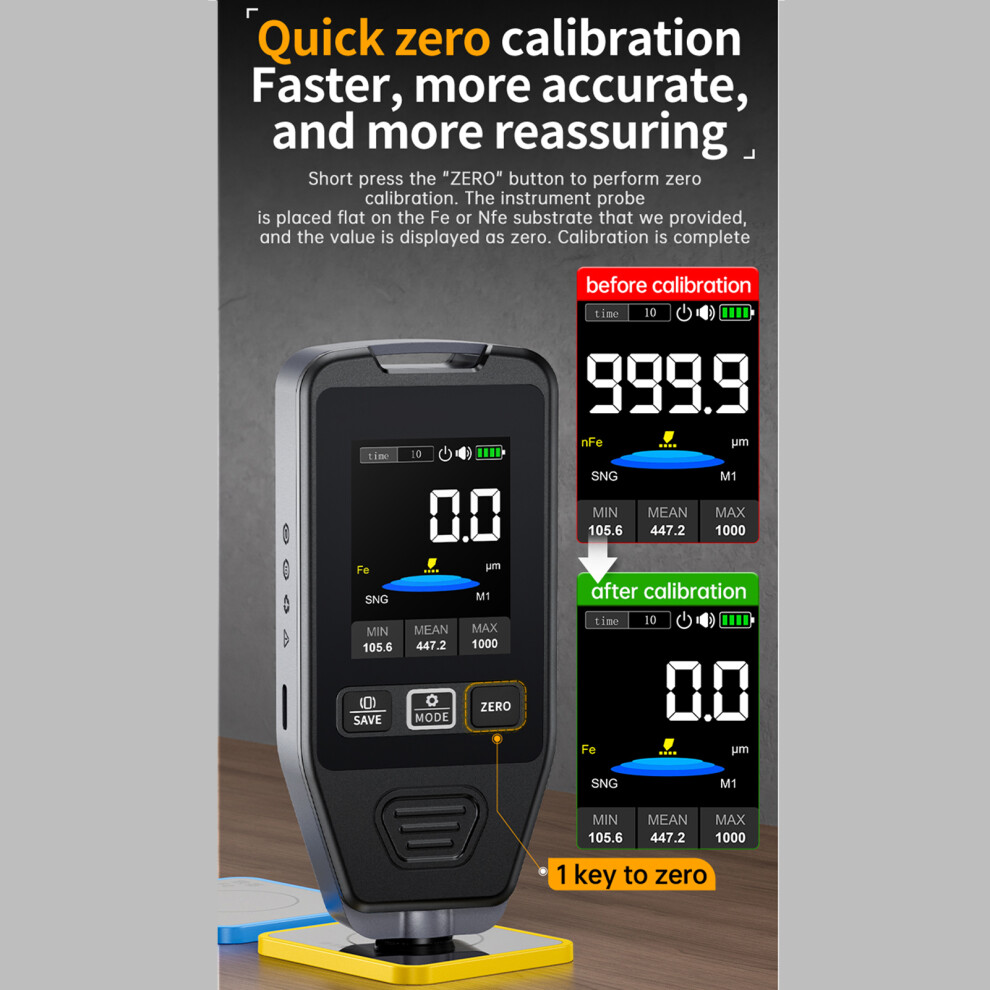

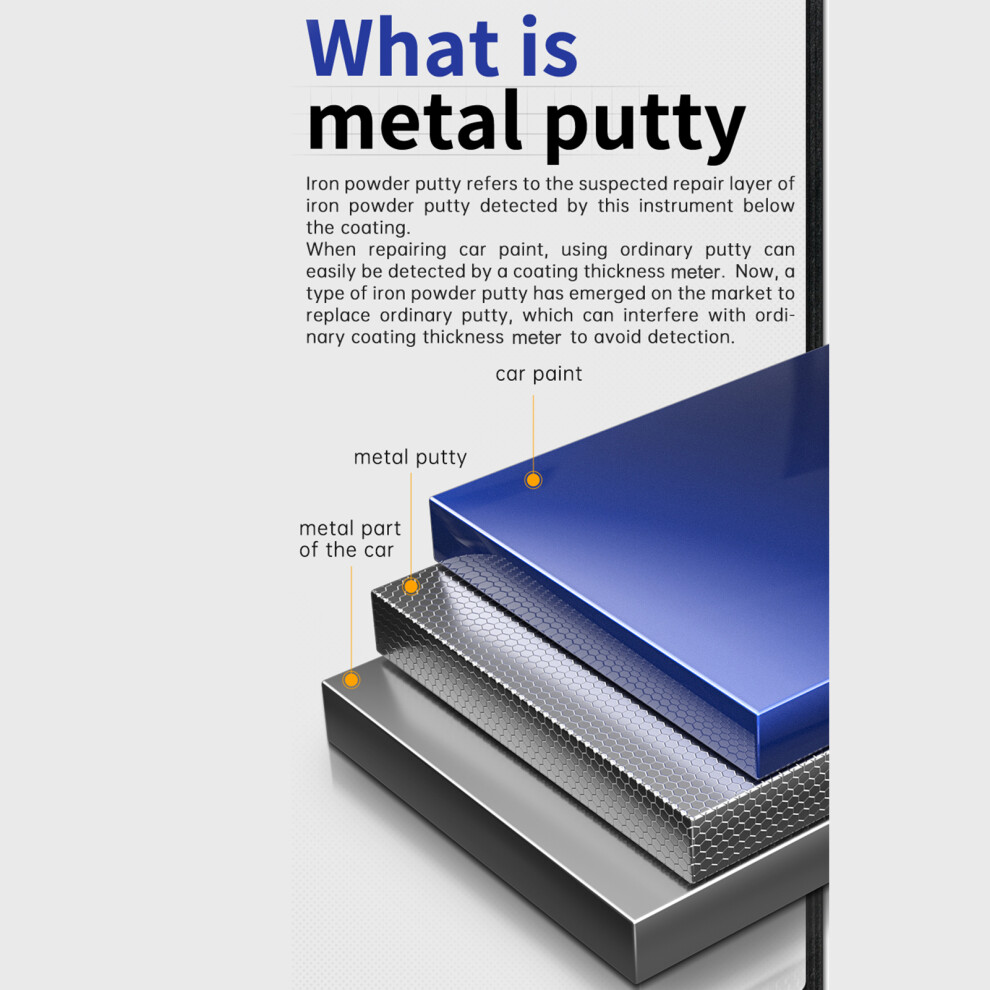

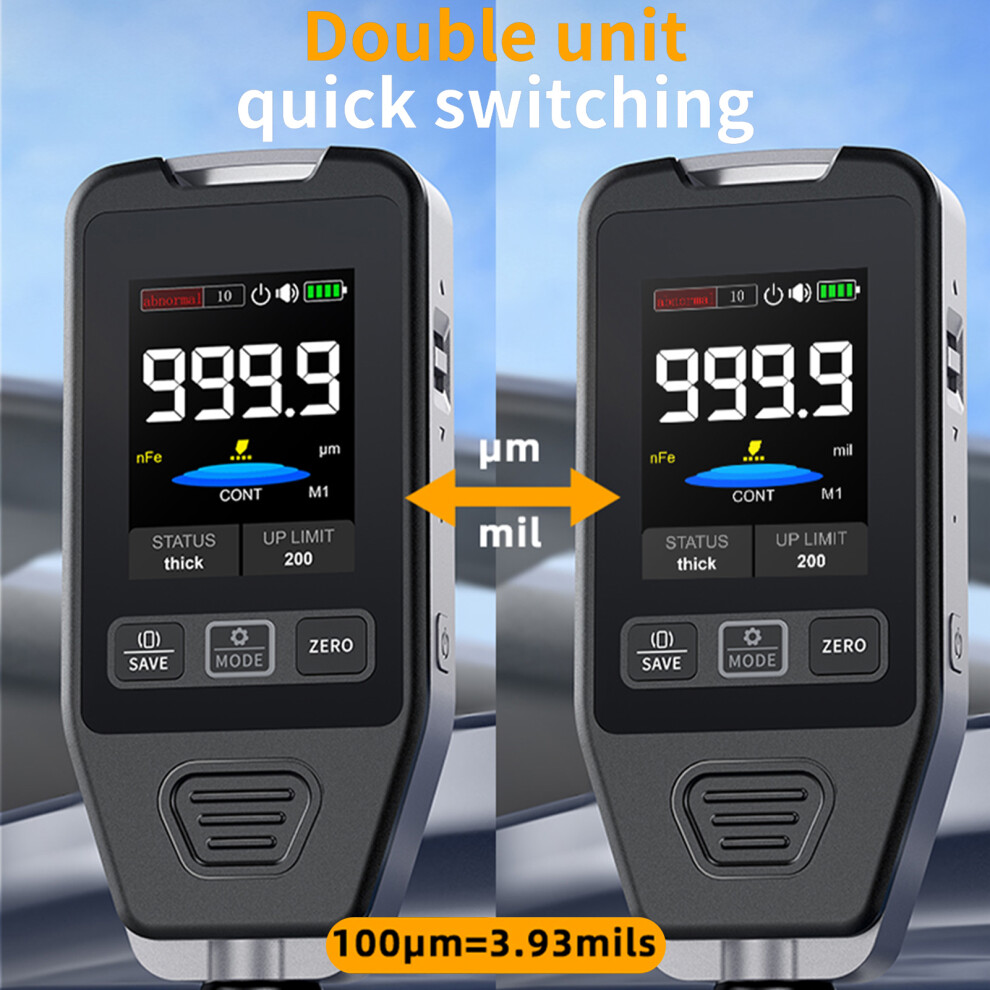

Specifications:Item Type: Coating Thickness MeterMaterial: ABSMeasuring Range: 0-1400μmAccuracy: 3%+2μmResolution Ratio: 0.1μmCalibration: Zero point calibration; Multi-point calibrationUnit: μm, milMini Convex Curvature Radius: 5mm/0.2inMini Concave Curvature Radius: 25mm/0.98inMini Measurement Area Diameter: 20mm/0.79inWork Environment: No strong magnetic fieldWork Temperature: -10 -+50 Humidity: 20% -90% RHBattery: 600mAh battery (built-in)Data Storage: SupportPutty Powder Test: SupportRotatable Screen: SupportAuto Power Off: SupportProduct Size: Approx. 11.5*4.8*1.8cm/4.53*1.89*0.71inPackage Size: Approx. 18*9*5cm/7.09*3.54*1.97inPackage Weight: 183g/0.4lb
