Portable Optical Power Meter Accuracy Fiber Tester with LED

Portable Optical Power Meter Accuracy Fiber Tester with LED Description

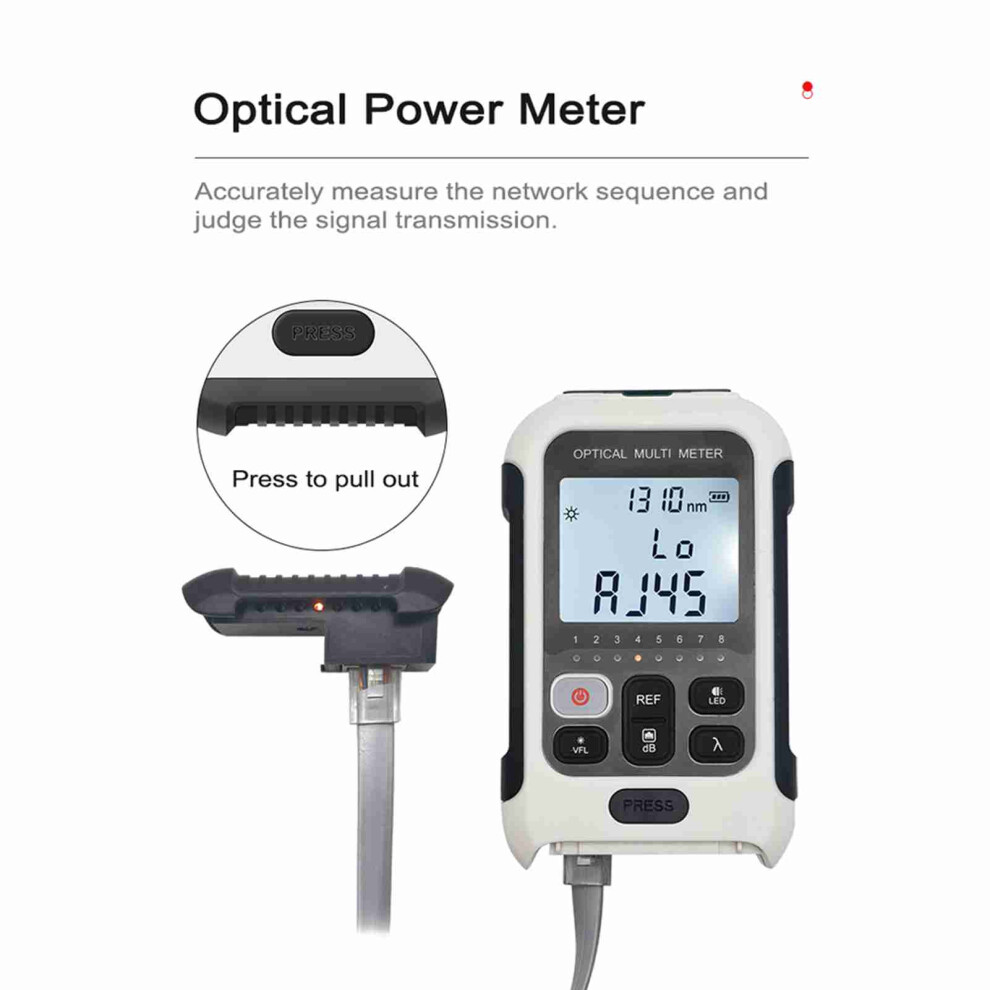

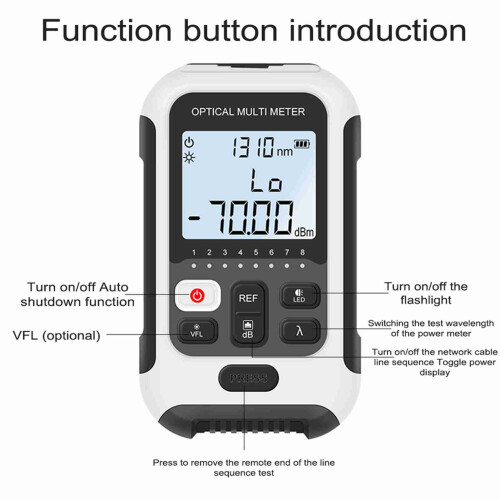

1、Accurately measure the network sequence and judge the signal transmission. 2、Portable and light weight for easy carrying. 3、With a LED light for dark environment operation. 4、After switching wavelengths, switch on the machine and keep the same wavelength as before the last shutdown. 5、Backlight function, dark environment can see the screen. 6、External soft rubber cladding for fall and collision preventions.

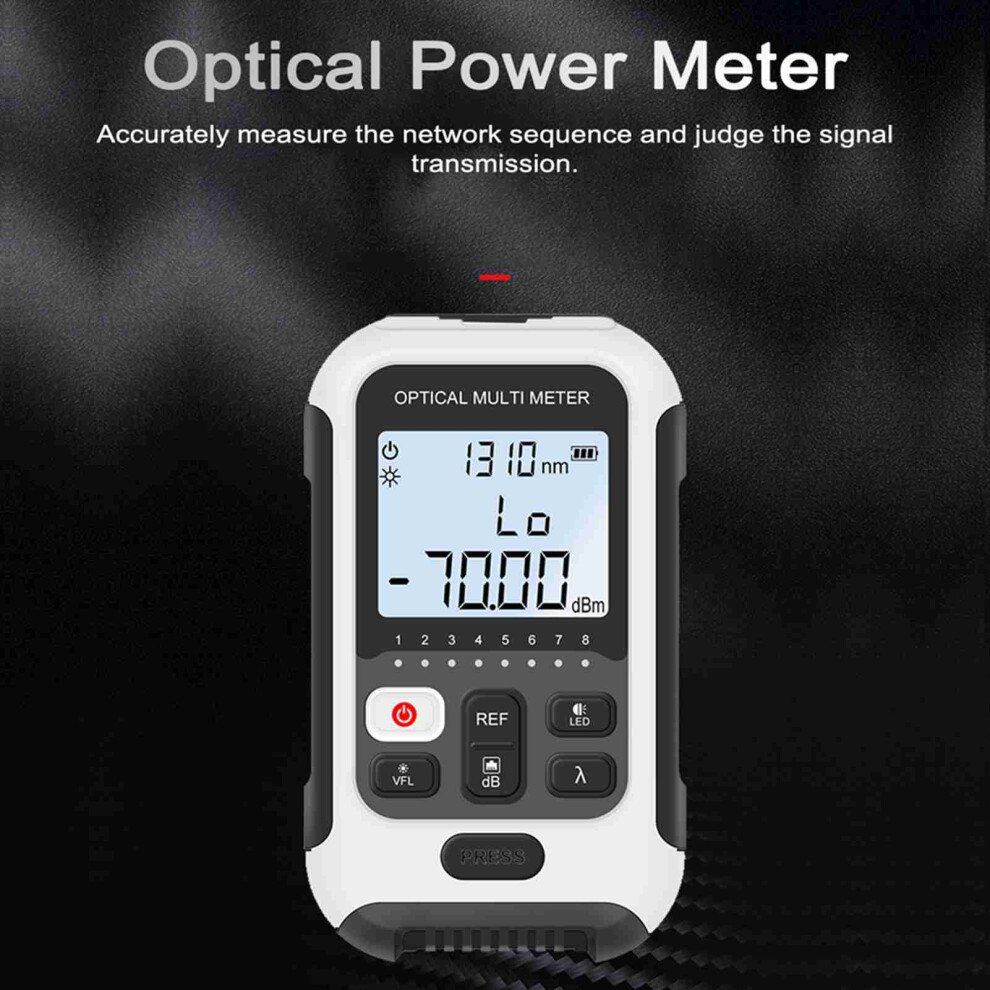

This type of handheld optical power meter is a compact and an easy to use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
Features:
Accurately measure the network sequence and judge the transmit.

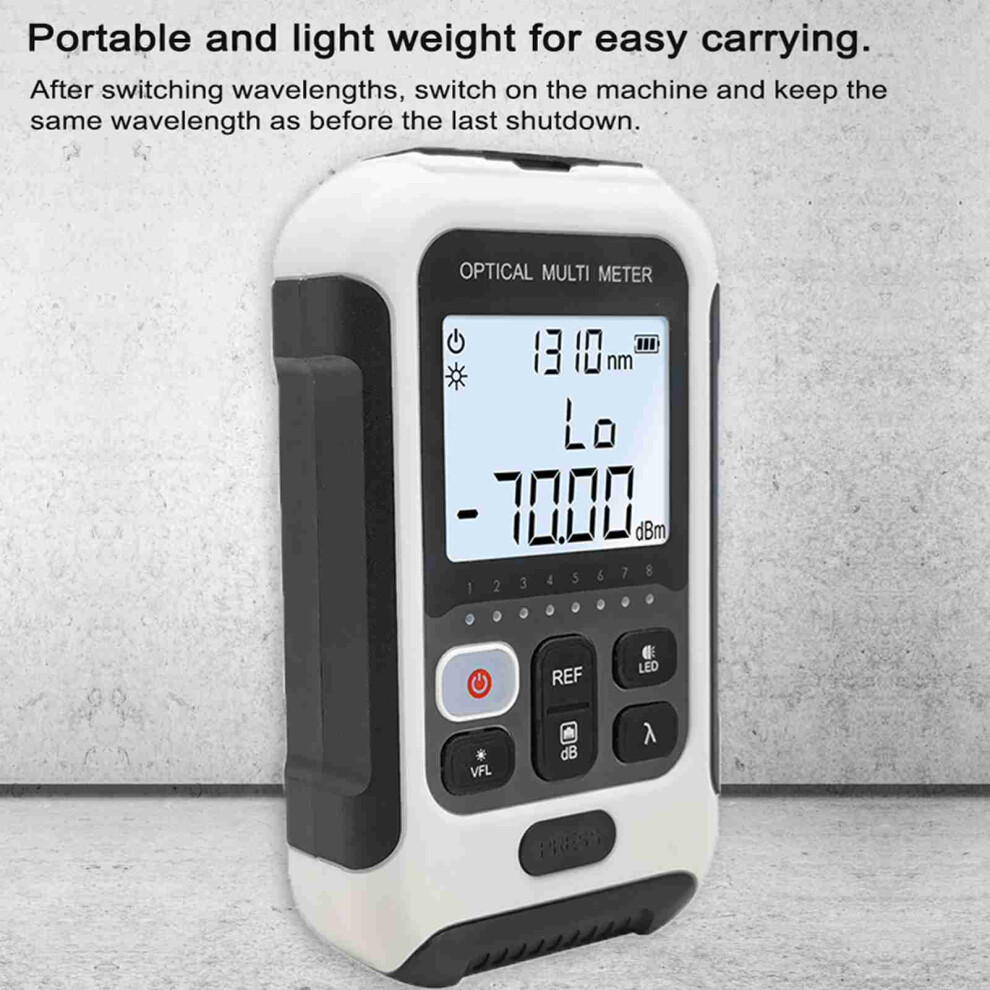

Portable and light weight for easy carrying.
With a LED light for dark environment operation.

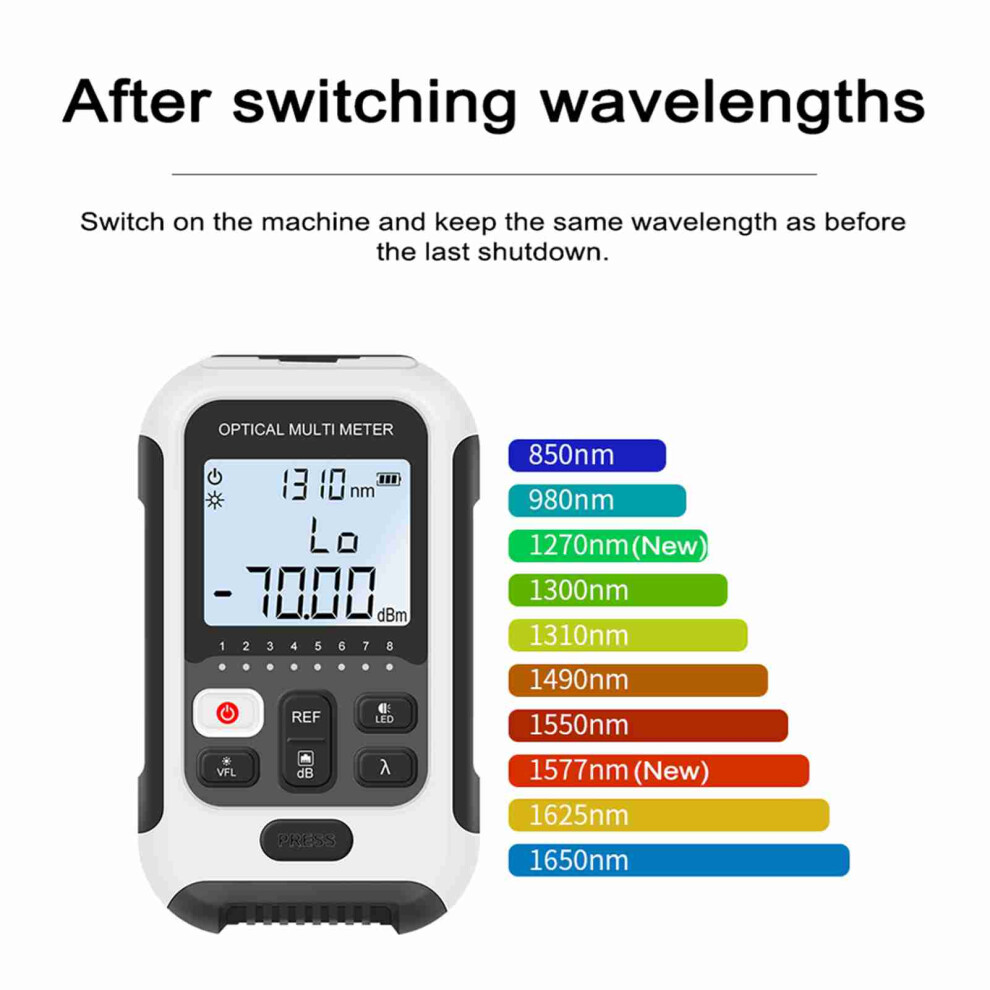

After switching wavelengths, switch on the machine and keep the same wavelength as before the last shutdown.
Backlight function, dark environment can see the screen.
External soft rubber cladding for fall and collision preventions.
Specifications:
Power test range: Type A -70 to 10dBm
Color: white+black
Wavelength range: 800-1700nm
Accurancy: 5％
Standard wavelength: 850nm/980nm/1270nm/1300nm/1310nm/1490nm/1550nm/1577nm/1625nm/1650nm
Display resolution: linear display 0.1%, logarithmic display 0.01dBm
Identified frequencies: 270Hz, 300Hz, 1kHz, 2kHz
Automatic shutdown time: 10min
Battery: 2 * AA battery, 3.7V, 700mAh (not included)
Item size: 120 * 71 * 28mm / 4.7 * 2.8 * 1.1in
Item weight: 130g / 4.6ounce
Package size: 130 * 85 * 33mm / 5.1 * 3.3 * 1.3in
Package weight: 280g / 9.9ounce
1 * Optical Power Meter
1 * English User Manual
1 * Rope
