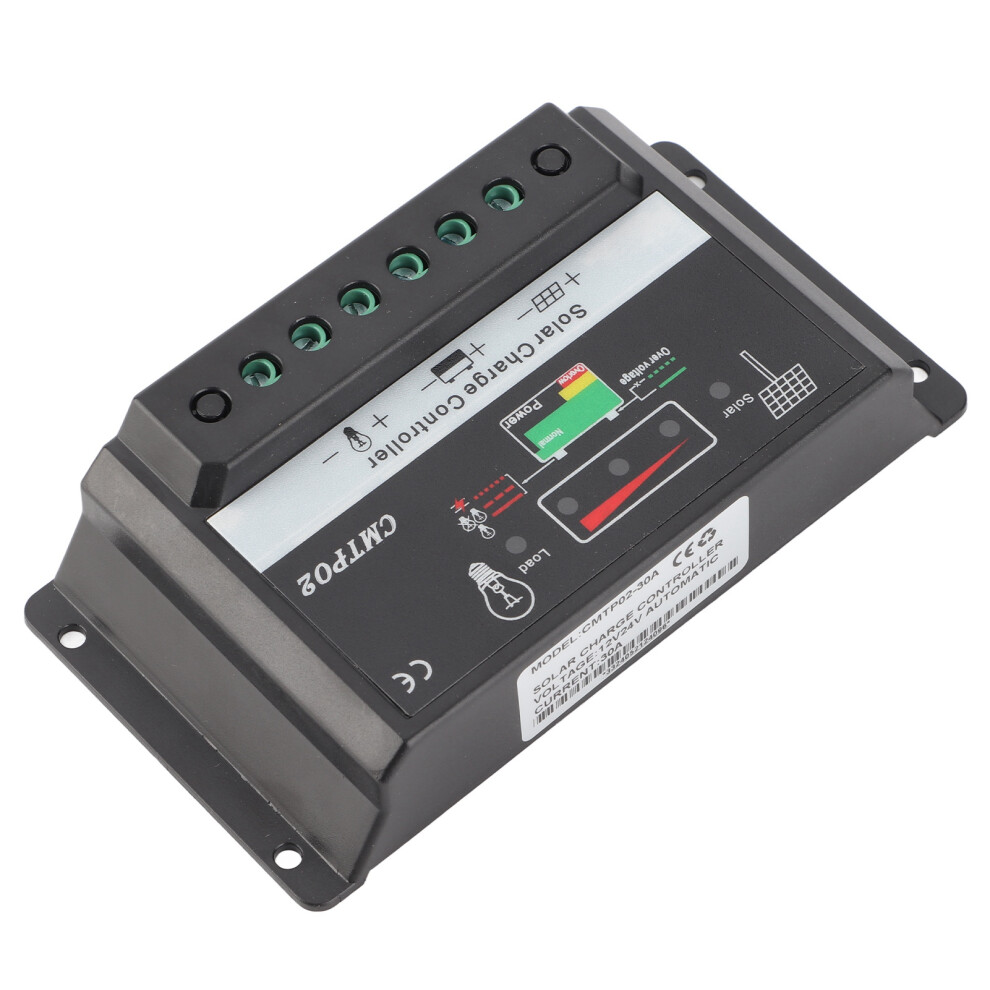

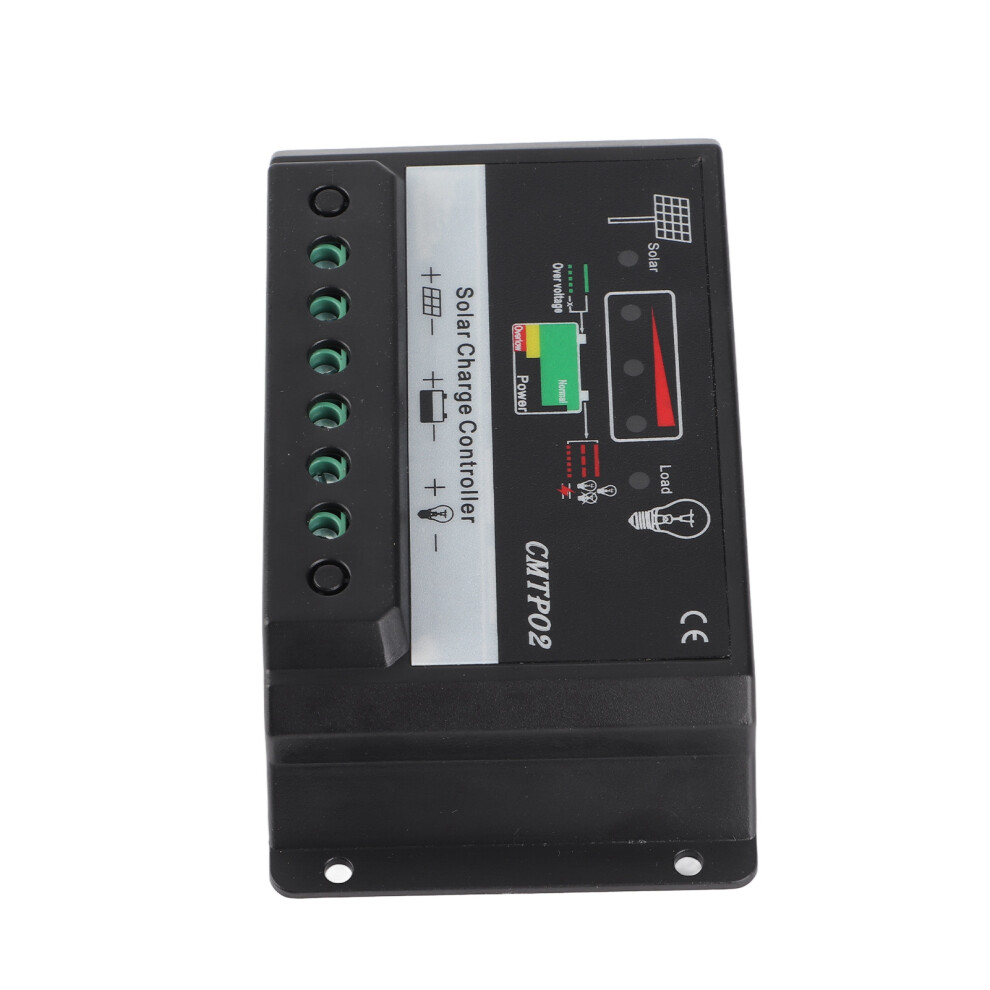

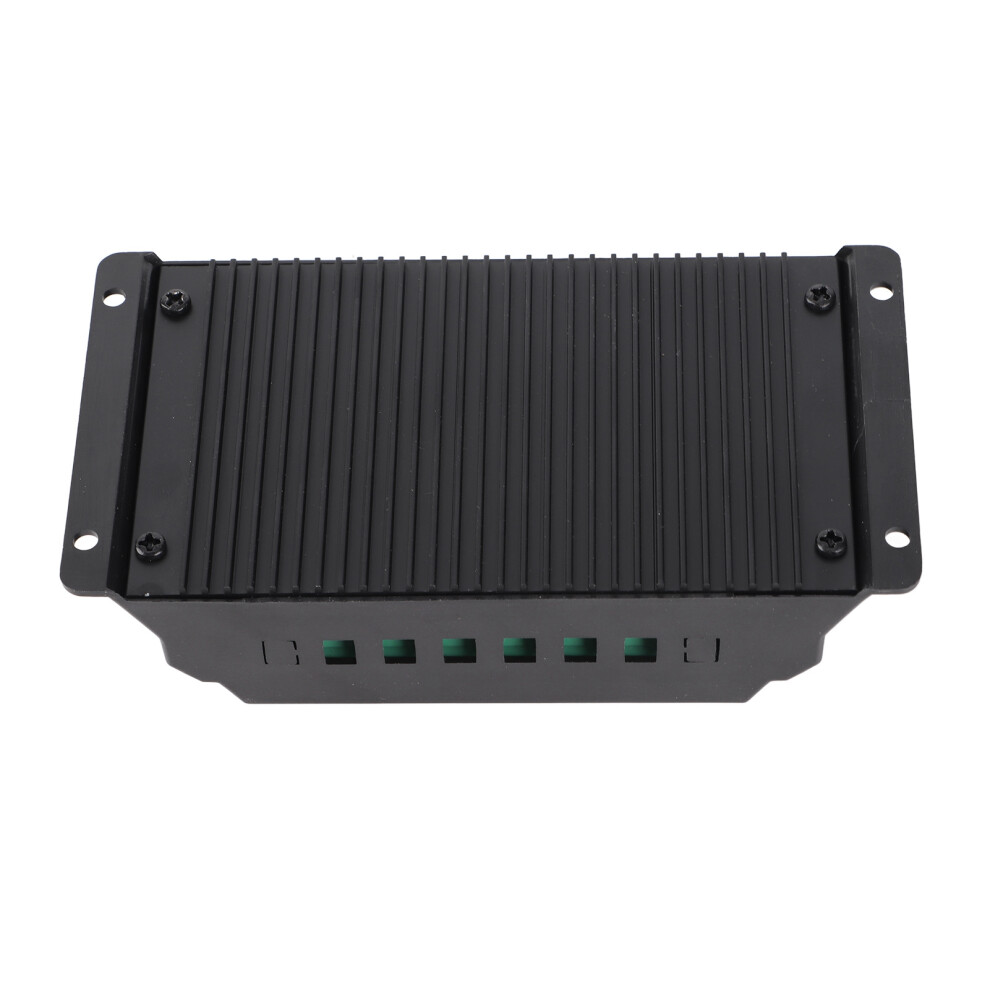

Portable Solar Charge Controller 30A 12/24V ABS Black 13.2x7x3cm

Portable Solar Charge Controller 30A 12/24V ABS Black 13.2x7x3cm Description

Portable Safety 30A 12/24V Solar Panel Battery Regulator Charge Charging Controller
Features:

This solar charge controller is great for household power generation system.


Made of ABS material, not easy to aging, safe and durable, constructed with four holes for convenient installation.



Safety systems provides overcharge protection, short circuit protection, over-load protection and lightning protection.


Specifications:
Condition:
Material: ABS
Color: Black
Maximum Load Current: 30A
Length1m Charging Loop Drop: <250mV
Length1m Discharge Circuit Drop: <50mV
Fully Charge Cut-off: 1.37~14.4V / 27.4~28.8V (data under no load condition)
Temperature Compensation: -3 mV / / battery
No Load Loss: 10mV (10A / 15A);  20mV (20A / 30A)
Efficiency: 95%~97%
Maximum Wire Area: 2.5mm² (10A / 15A); 4mm² (20A); 6 mm² (30 A)
Ambient Temperature: -25~55
Size(L x W x H): approx. 13.2 x 7 x 3cm / 5.20 x 2.76 x 1.18inch
Weight: approx. 135g
Package Included:
1 x Solar Charge Controller

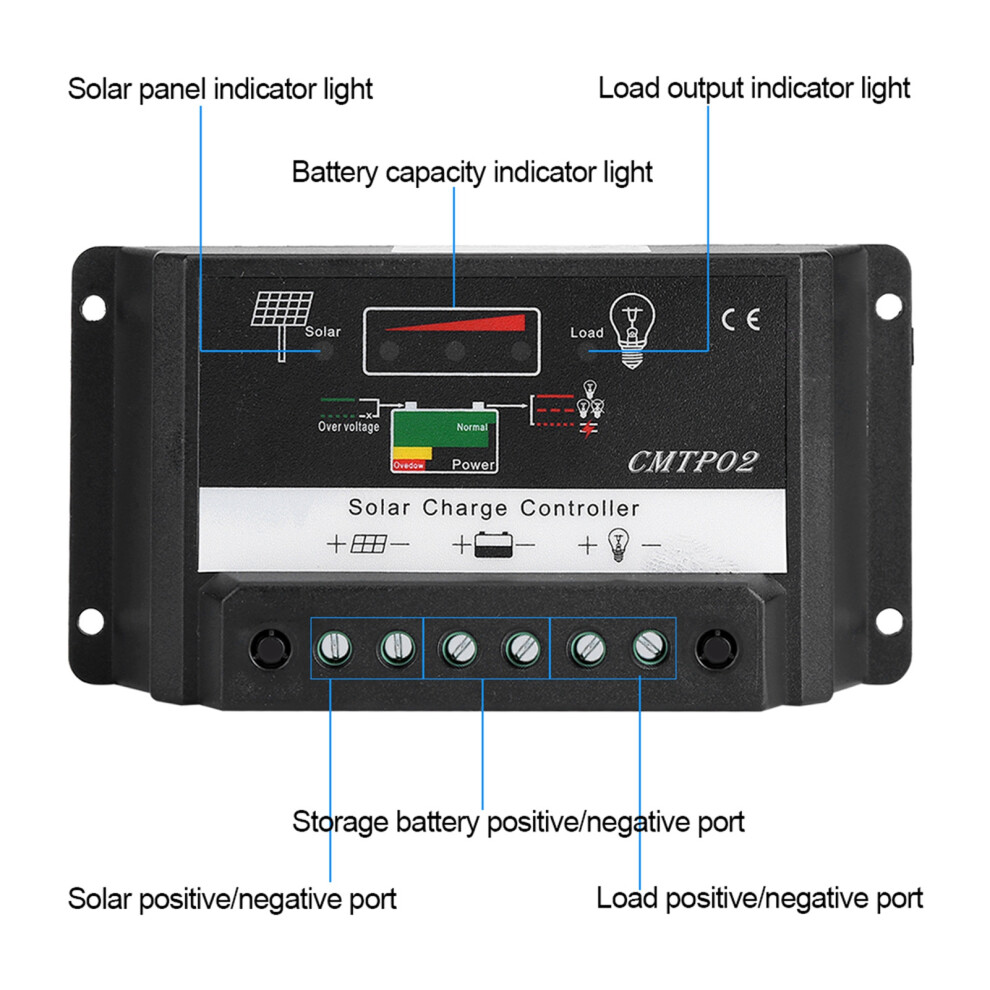

Wiring Instruction:

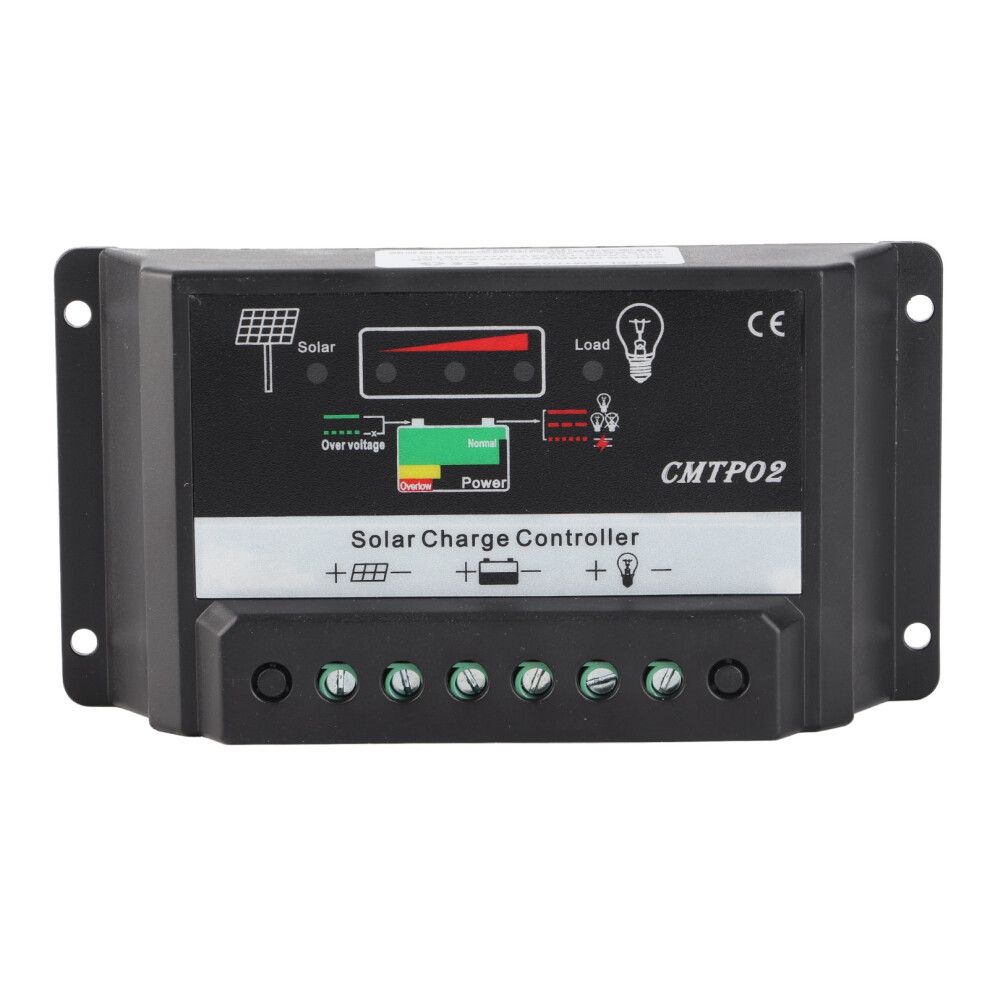

1. Storage battery "+", "-": the 3rd, 4th terminal(from the left)
load indicator light flashes once and will light up after 15 seconds, which shows correct
connection, otherwise it will cause damage to controller.
2. Solar panel  "+", "-": the 1st, 2nd terminal(from the left)
3. Load "+", "-": the 5th, 6th terminal(from the left)
Indicator Light Instruction:
1. Charge indicator light: light up showing it's at powerful charging status; flash showing it's at
floating charging status; doesn't light showing that charging is finished.
2. Load indicator light: light up showing there is output, load can normally work; otherwise the
load can't work.
Note:
2. Rated current of solar panel and load can not more than the rated current of controller(30A).
3. Do not directly use solar panel battery to power load.
4. Do not use light to charge solar panel, because it is insufficient when charging by light bulb.
