Potentiometer Variable Resistor 100R-2M-500K?? RM065/63 Kit 240PCS 24 Values

Potentiometer Variable Resistor 100R-2M-500K?? RM065/63 Kit 240PCS 24 Values Description

Specification:

Electrical Performance

Resistance Error:??10%,??20%,??30%

Residual resistance value:Maximum 5% of the marked resistance value,maximum 30??

Linearity:Straight line(B)

Power:0.1W

Operating voltage:no more than 50/50V MAX

Rotation Time:Maximum 15% change in resistance value after 100 rotations without load

Load life:Add rated power for 3 hours,the maximum change of resistance value is ??15%

Mechanical Properties

Rotation angle:200???20??

Torque:60~300g.cm

Mechanical strength:Resistor body 1KG minimum,pressure will not break

Climatic Characteristics

Operating temperature:-5??~40??

Temperature Characteristics:70 ?? Torch 5 hours,resistance value change within ??5~30%

Humidity characteristics: plus rated power:350 hours of work at a temperature of 40 ??,relative humidity of 90%,resistance value change does not exceed 20%

Welding conditions

Welding temperature:250??C

Welding time:2 seconds

10PCS*RM065 101(100R??)

10PCS*RM065 102(1K??)

10PCS*RM065 103 (10K??)

10PCS*RM065 104 (100K??)

10PCS*RM065 105(1M??)

10PCS*RM065 201(200R??)

10PCS*RM065 202(2K??)

10PCS*RM065 203(20K??)

10PCS*RM065 204(200K??)

10PCS*RM065 205(2M??)

10PCS*RM065 221(220R??)

10PCS*RM065 302(3K??)

10PCS*RM065 304(300K??)

10PCS*RM065 473(47K??)

10PCS*RM065 501(500??)

10PCS*RM065 502(5K??)

10PCS*RM065 503(50K??)

10PCS*RM065 504(500K??)

10PCS*RM063 102(1K??)

10PCS*RM063 103(10K??)

10PCS*RM063 105(1M??)

10PCS*RM063 201(200R??)

10PCS*RM063 503(50K??)

10PCS*RM063 504(500K??)

Package Includes:

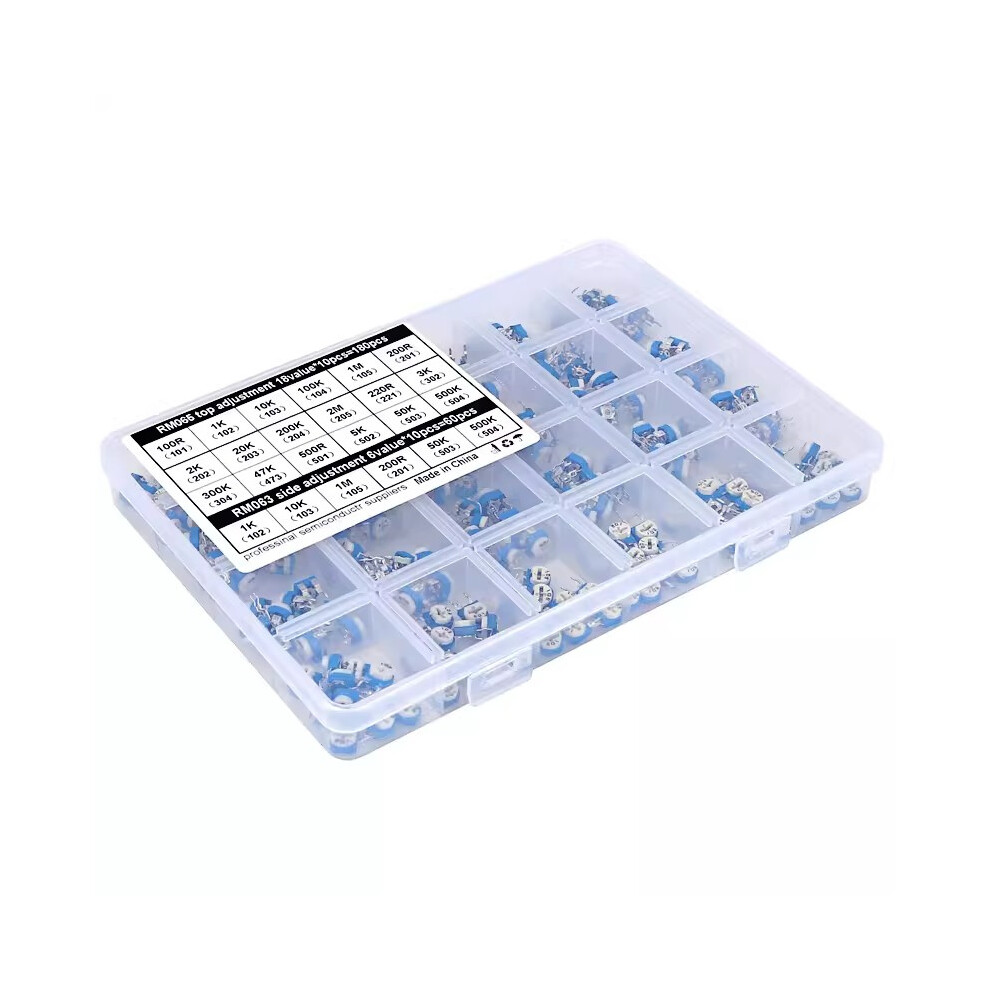

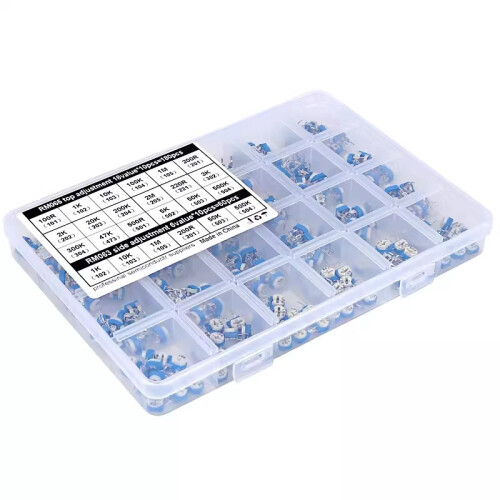

1 Set*240PCS 24 Values RM063/65 Blue and White Potentiometer Kit

Note:

Only include the above package products

Please allow 0-1cm error due to manual measurement

Please make sure you don't mind before bidding

Due to the difference between different monitors

Pictures may not reflect the actual color of the item.Thank
