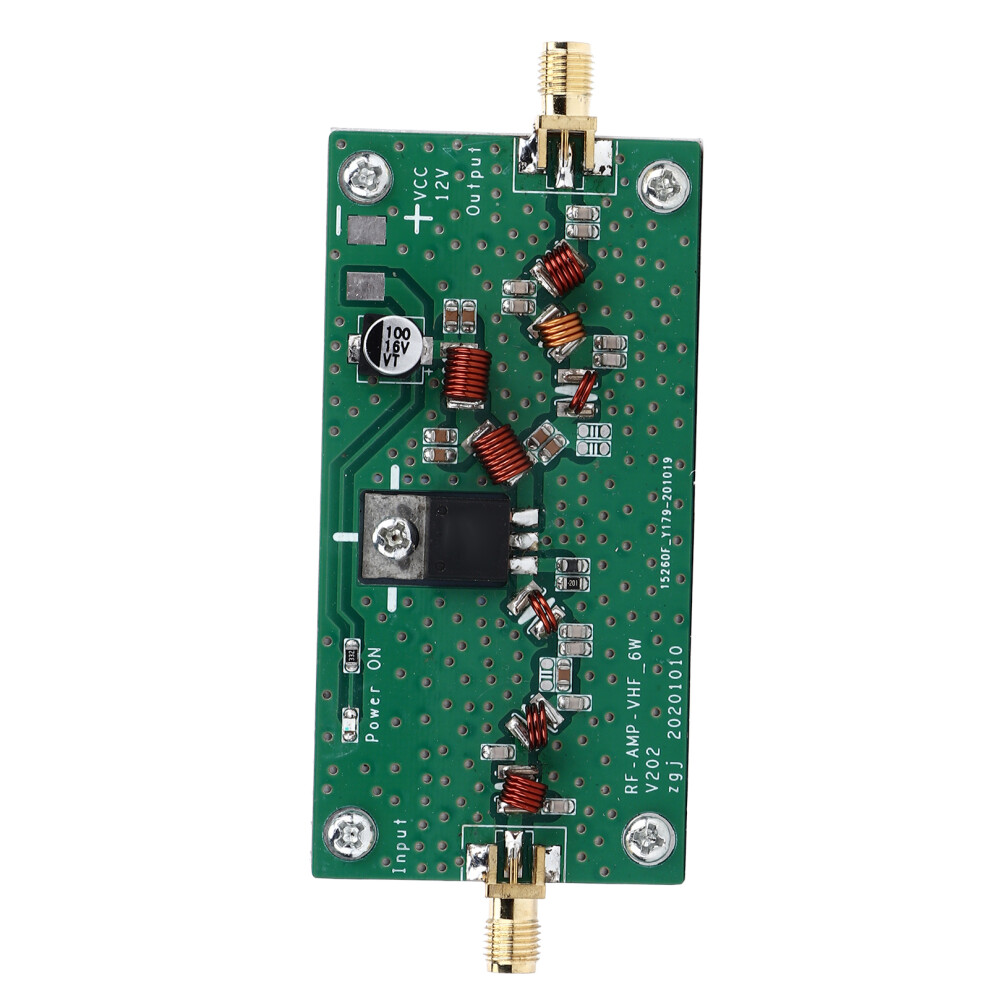

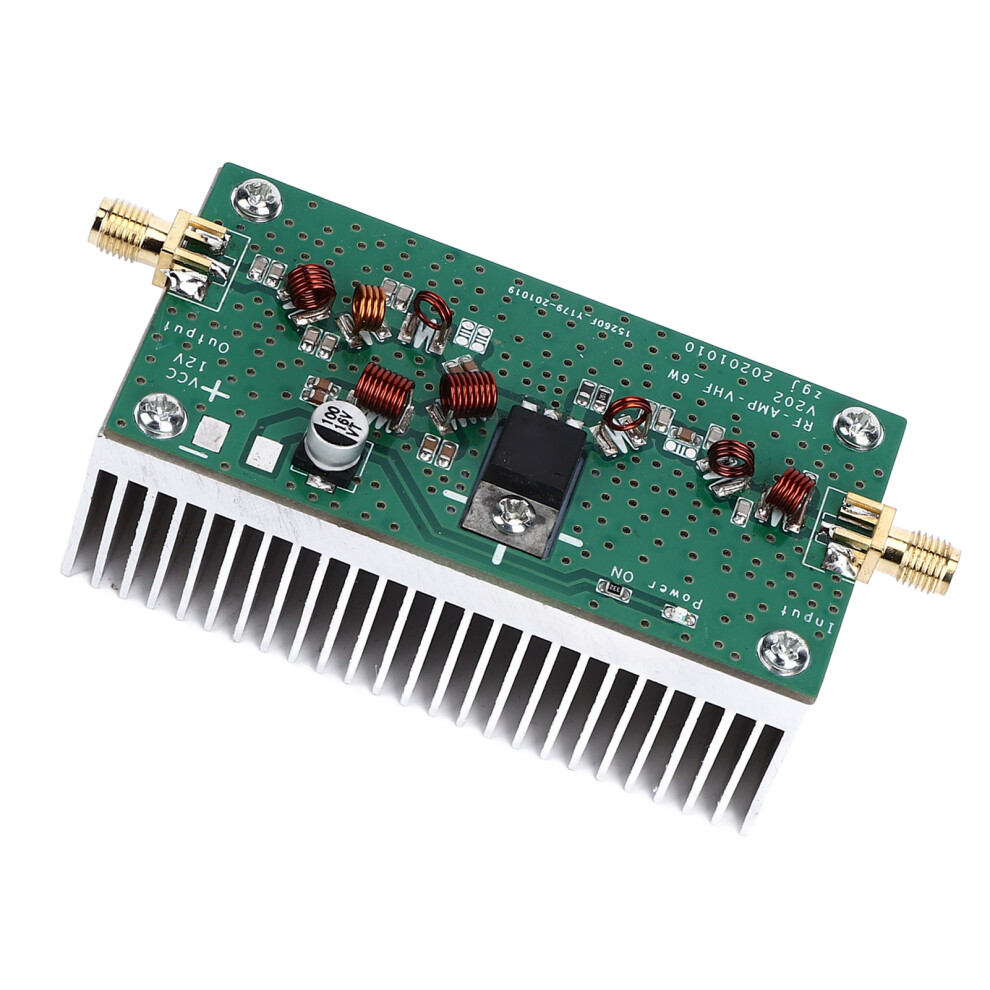

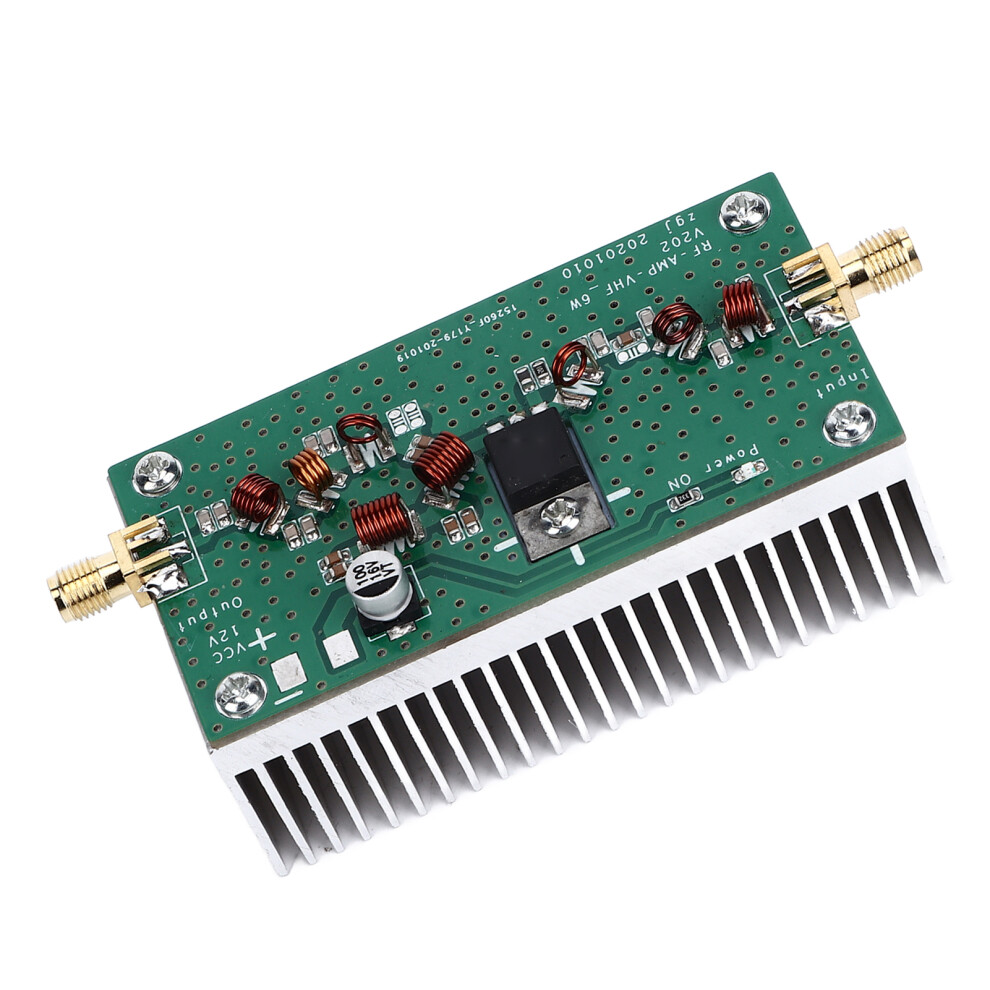

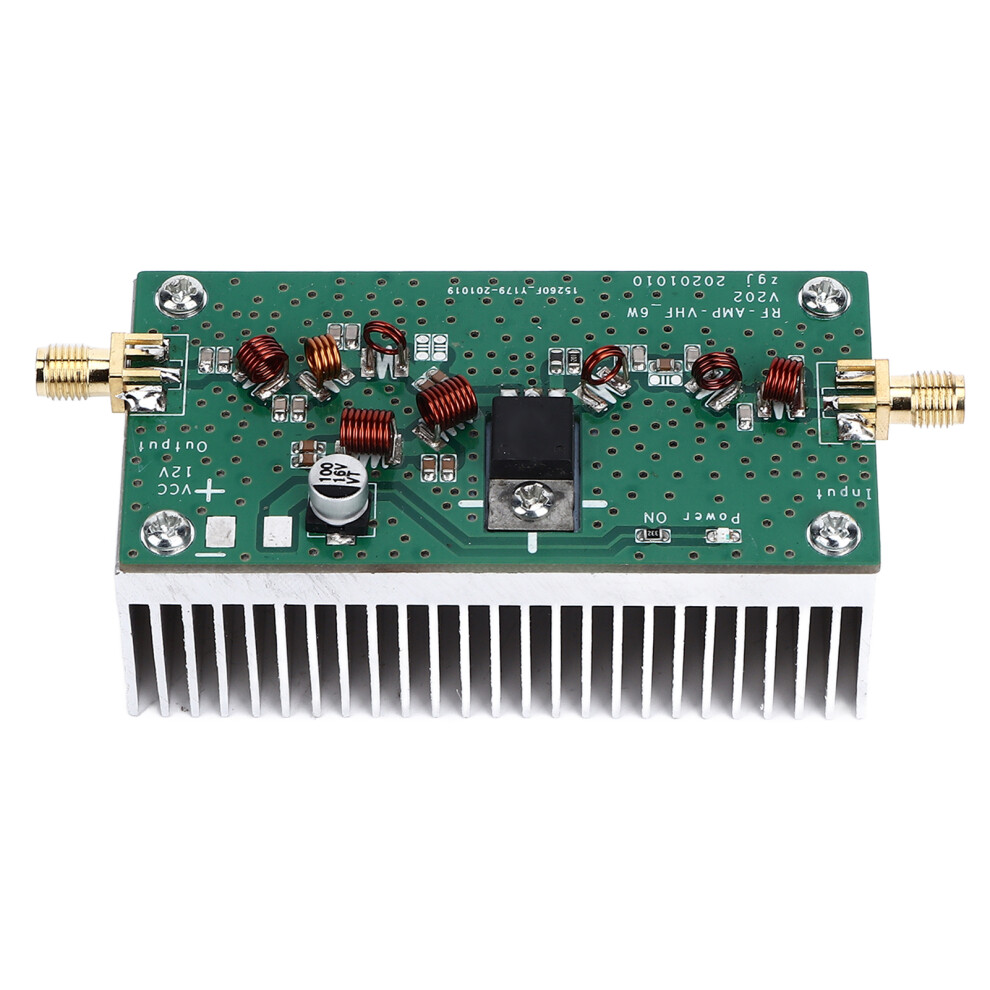

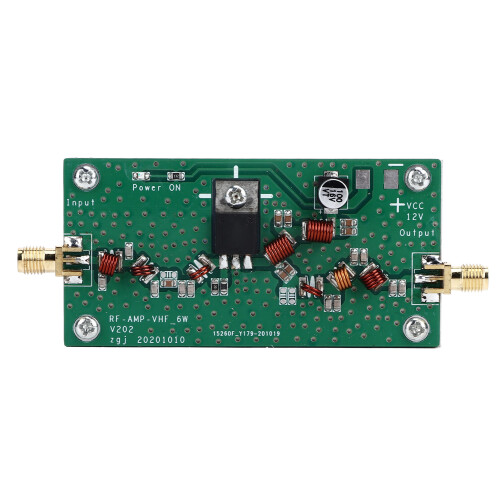

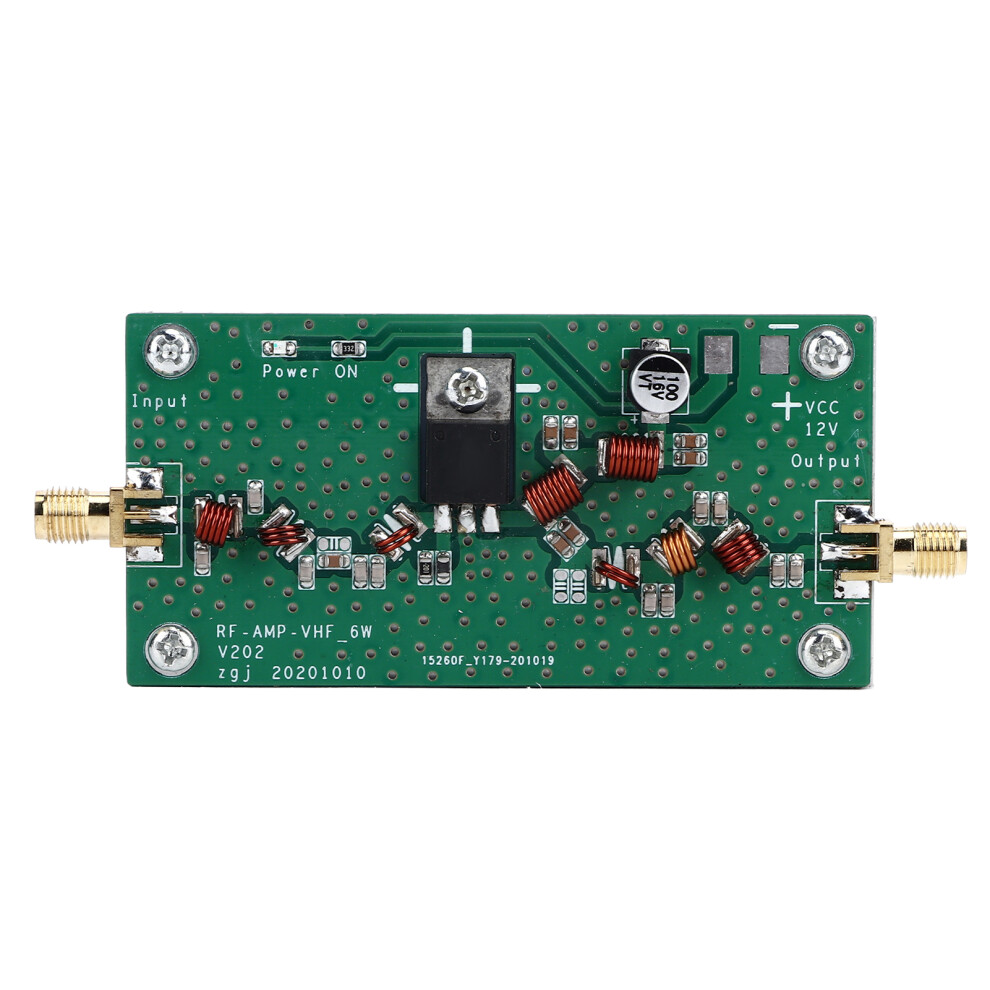

Power Amplifier Module PCBA FM 12V 6W 88-108MHz

Power Amplifier Module PCBA FM 12V 6W 88-108MHz Description

1、RF Amplifier: The is power amplifier, which has a wide frequency range, high gain, low noise figure RF amplifier 2、Application: This power amplifier can be used in various RF receiving front ends to increase the communication distance 3、Wide Uses: Suitable for major mobile communication base station infrastructure applications, such as wireless communication transceiver cards, tower top amplifiers (TMA), combiners, repeaters and remote, digital wireless broadband terminal equipment 4、Basic Specifications: The operating frequency range is 88‑108MHz, the input is 0.3~0.5W, and the output is 6W 5、Voltage Current: The supply voltage is 12V (15V Maximum), the working current is 1-1.5A, and the size is 8x4cm
Item Type: Power Amplifier Module
Model: XR-107
Material: PCBA
Operating Frequency Range: 88-108MHz
Input: 0.3~0.5W
Output: 6W
Input Output Impedance: 50 ohms
Input Output Terminal: SMA-K Female (Male Thread Inner Hole)
Typical Gain: 10dB
Maximum Gain: 11dB
Working Current: 1-1.5A
Size: Approx. 8 x 4cm / 3.15 x 1.57in (Excluding protrusions)
1 x Power Amplifier Module
