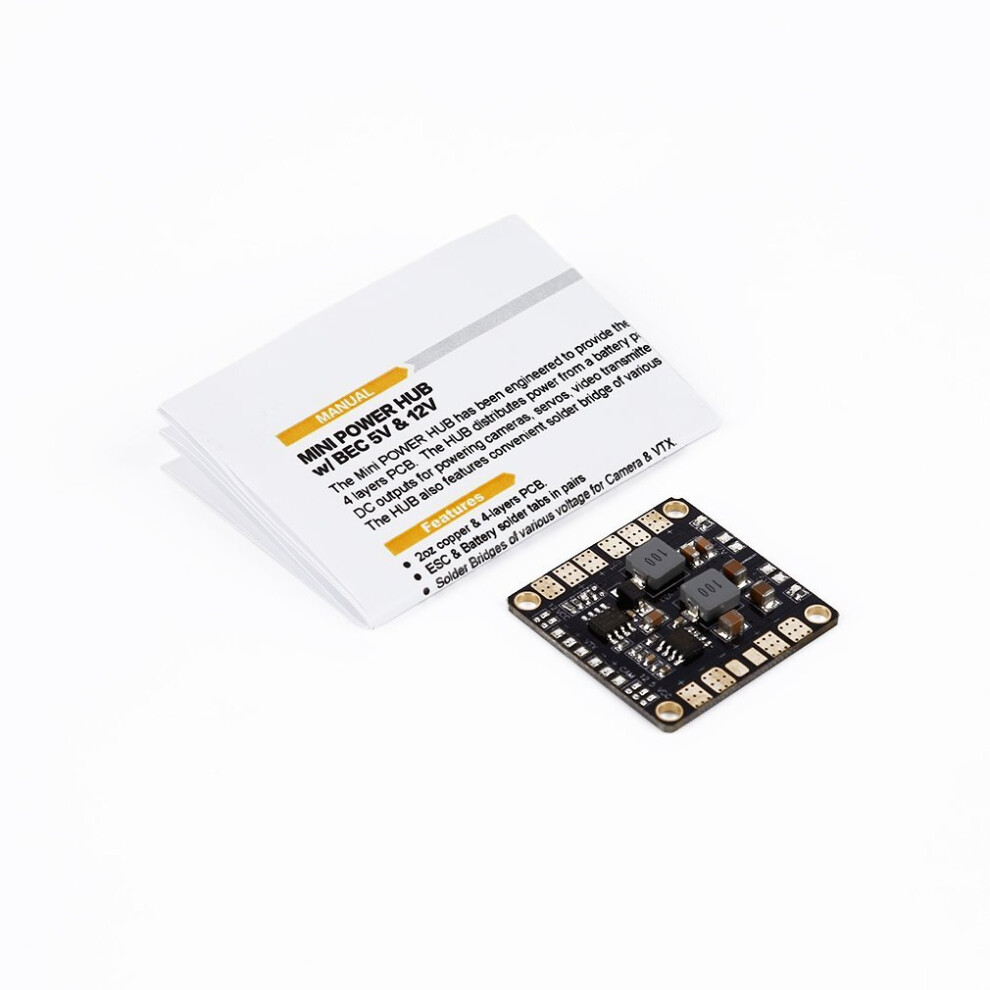

Power Distribution Board PDB 4-Layers PCB With 2 BEC 5V 12V For Mini 250

Power Distribution Board PDB 4-Layers PCB With 2 BEC 5V 12V For Mini 250 Description

Features:
100% Brand new and high quality!
Power Distribution Board PDB 4-Layers PCB With 2 BEC 5V 12V For Mini 250
2oz copper & 4-layers PCB.
ESC & Battery solder tabs in pairs
Solder Bridges of various voltage for Camera & VTX.
DC/DC synchronous buck regulator, Efficiency is up to 95%.
TVS(Transient Voltage Suppressor) protection for DC/DC chip.
5V & 12V Output LED indicators & Short circuit tolerant

Specifications:
Input voltage range (2S-6S operation): 7.2 - 26VDC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
4 ESC outputs
ESC outputs:
Continuous current: 20A per output
Peak current (10 seconds/minute): 30A per output
BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation, within 10%)
BEC 12V output:
The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters,etc.
Voltage: 12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s/minute)
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation, within 10%)
CAM & VTX voltage bridge
3S operation. choose ''VCC'' for 12V camera & 12V VTX, VCC=Battery Voltage.
4~6S operation, choose ''12'' for 12V camera & 12V VTX
3~6S operation, choose ''5'' for 5V camera
Video pass through from the CAM pad to the ''VTX'' pad

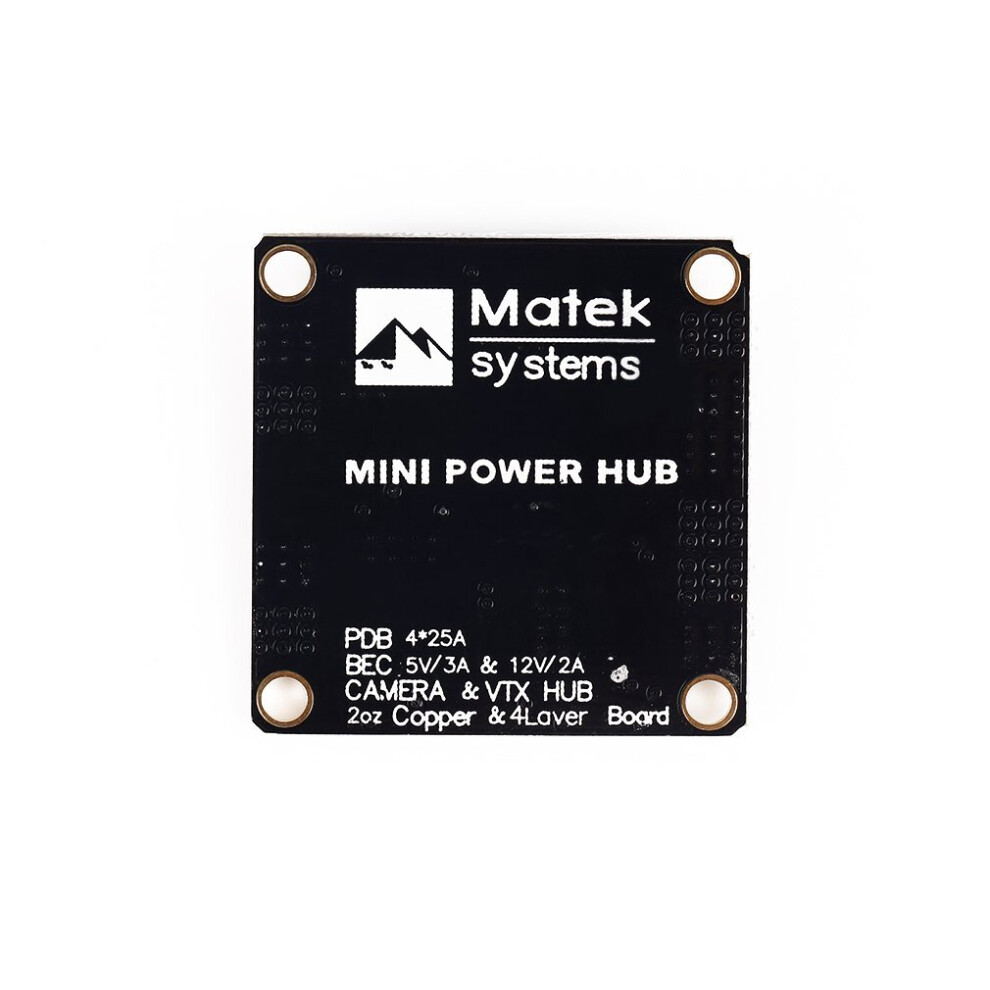

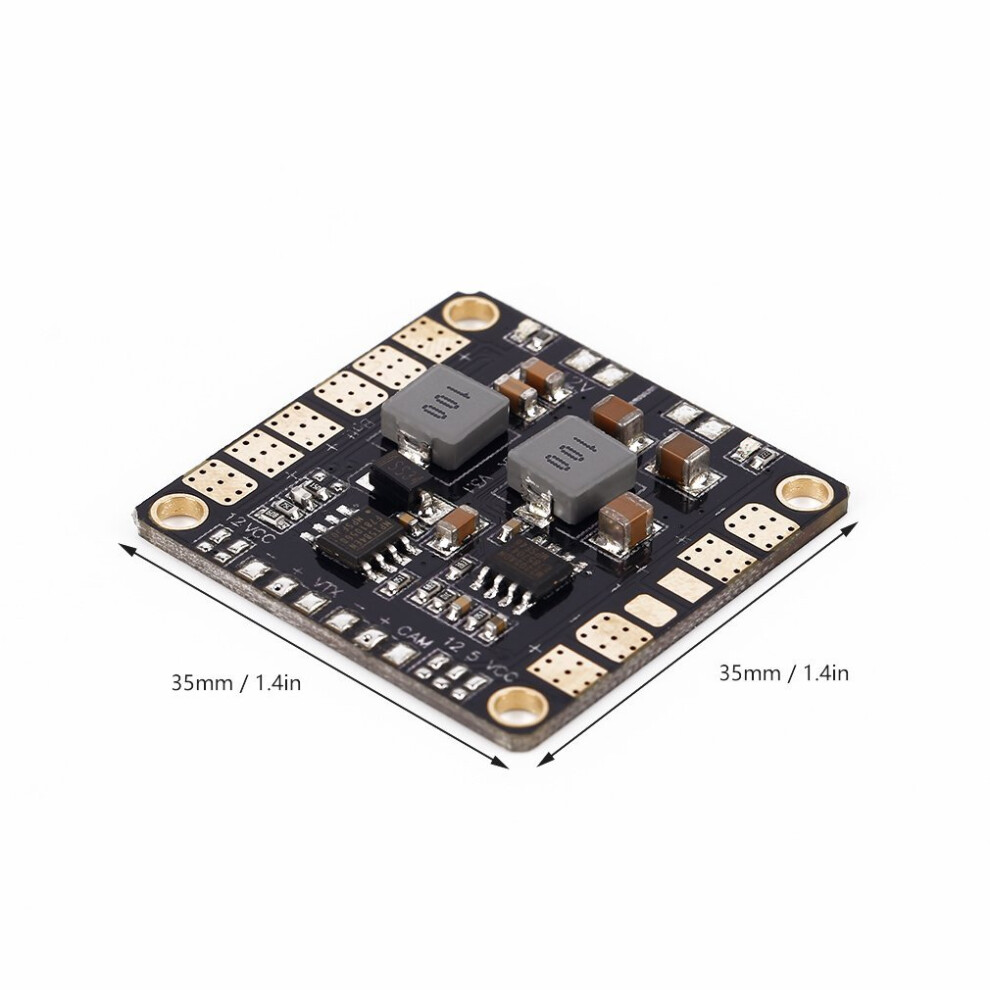

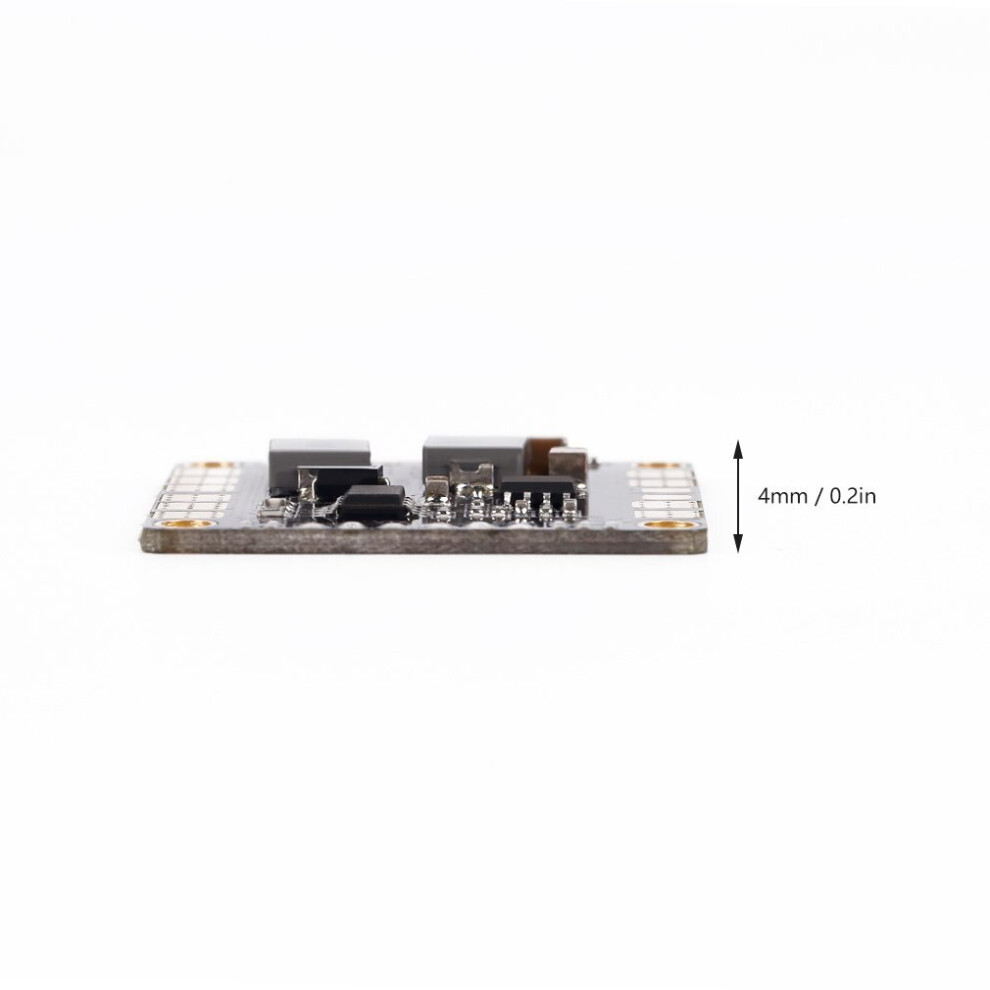

Dimensions: 35 x 35 x 4mm/1.4 x 1.4 x 0.2 inch
Weight: 11g
Mounting holes 30.5mm square spacing

Package includes:
1 x Power Distribution Board
