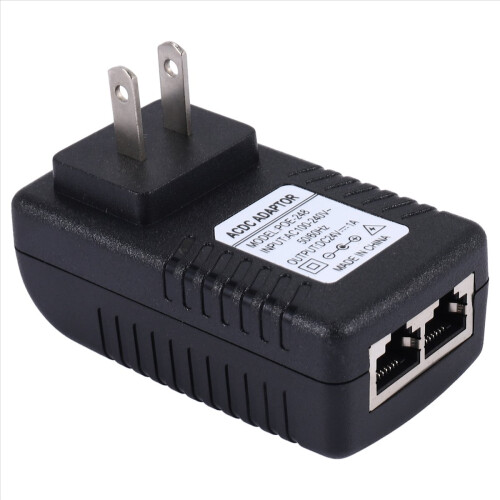

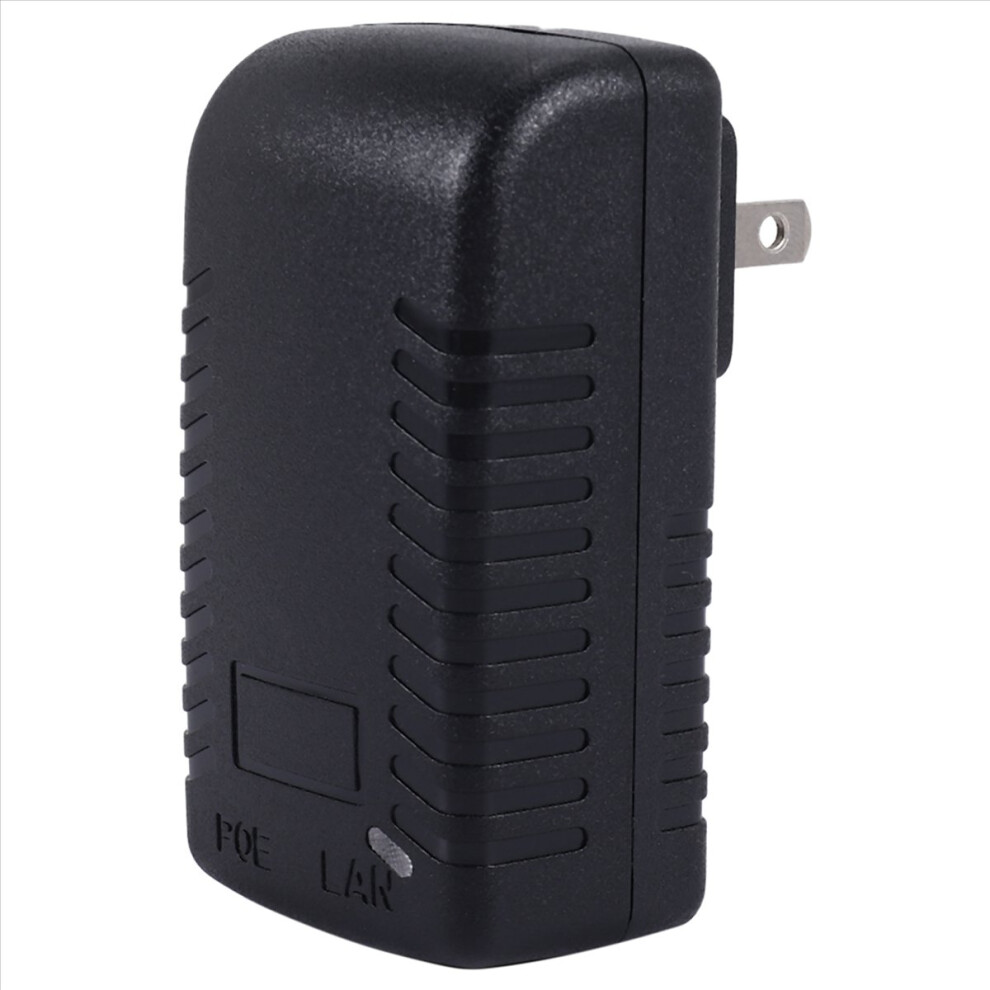

Power Supply Ethernet POE Injector Adapter for IP

Power Supply Ethernet POE Injector Adapter for IP Description

POE technology to the safety of the existing structured at the same time to the normal operation of the existing network, minimizing costs.
POE is also known as the power supply system based on local area network (POL, Power over LAN) or Active Ethernet.

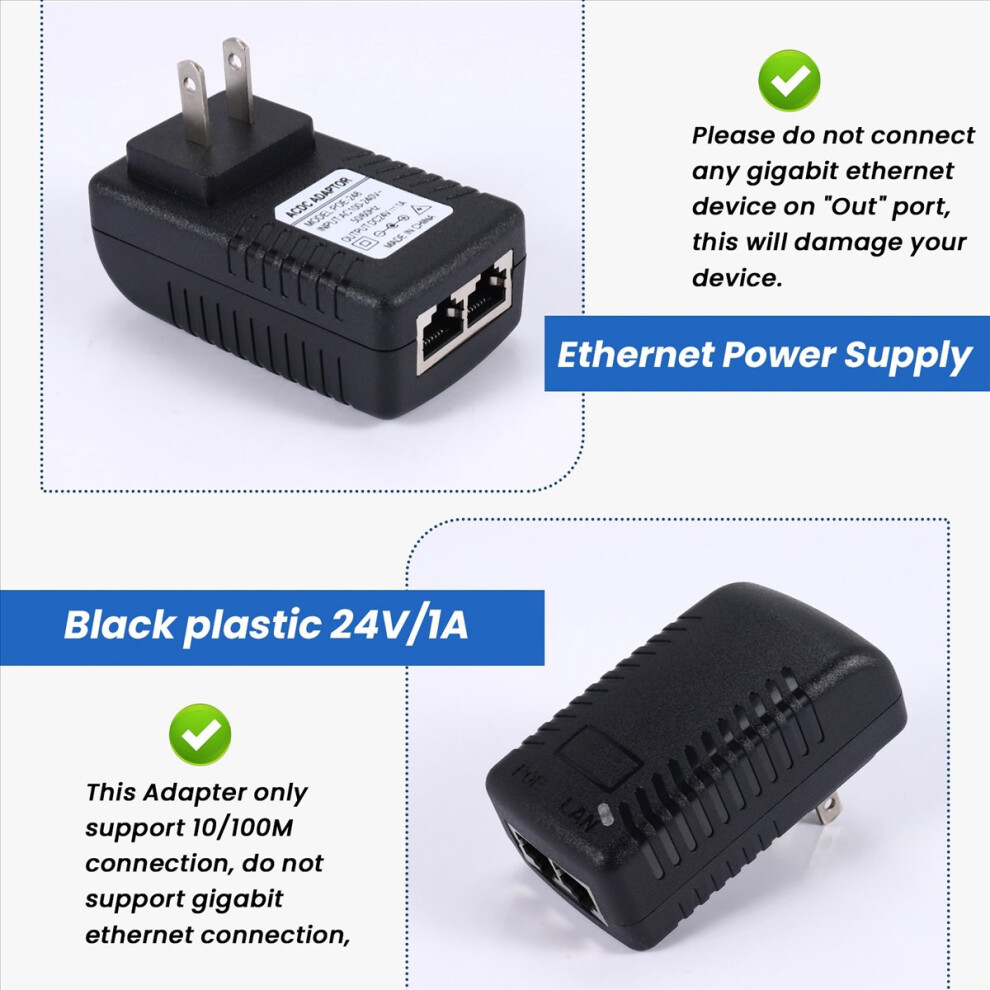

This Adapter only support 10/100M connection, do not support gigabit ethernet connection, because Data & Power Out port using 8 pin as power transfer, Please do not connect any gigabit ethernet device on "Out" port, this damage your device.
It supplies power NO MATTER WHAT, so don' plug the "Data and Power Out" side into anything that isn' ready for it.

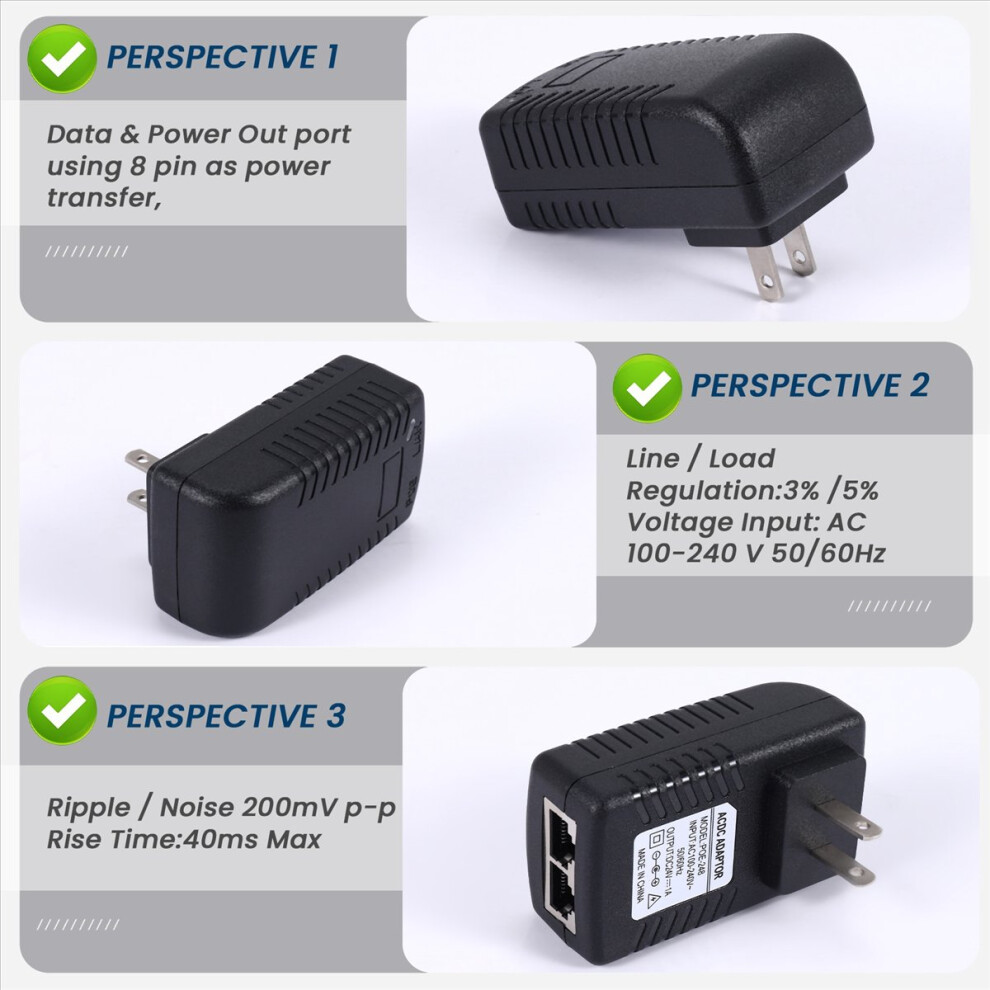

Line / Load Regulation:3% /5%
Voltage Input: AC 100-240 V 50/60Hz
Ripple / Noise 200mV p-p
Rise Time:40ms Max
Efficiency:Min 80%
Turn-On Delay: 2s Max
NOTE:Output: 48V DC 500mA - Please do not order if your unit requires more than 500 MilliAmps
Output: 24V DC 1A-Please do not order if your unit requires more than 1A
POE (Power Over Ethernet) refers to the existing Ethernet infrastructure Cat.

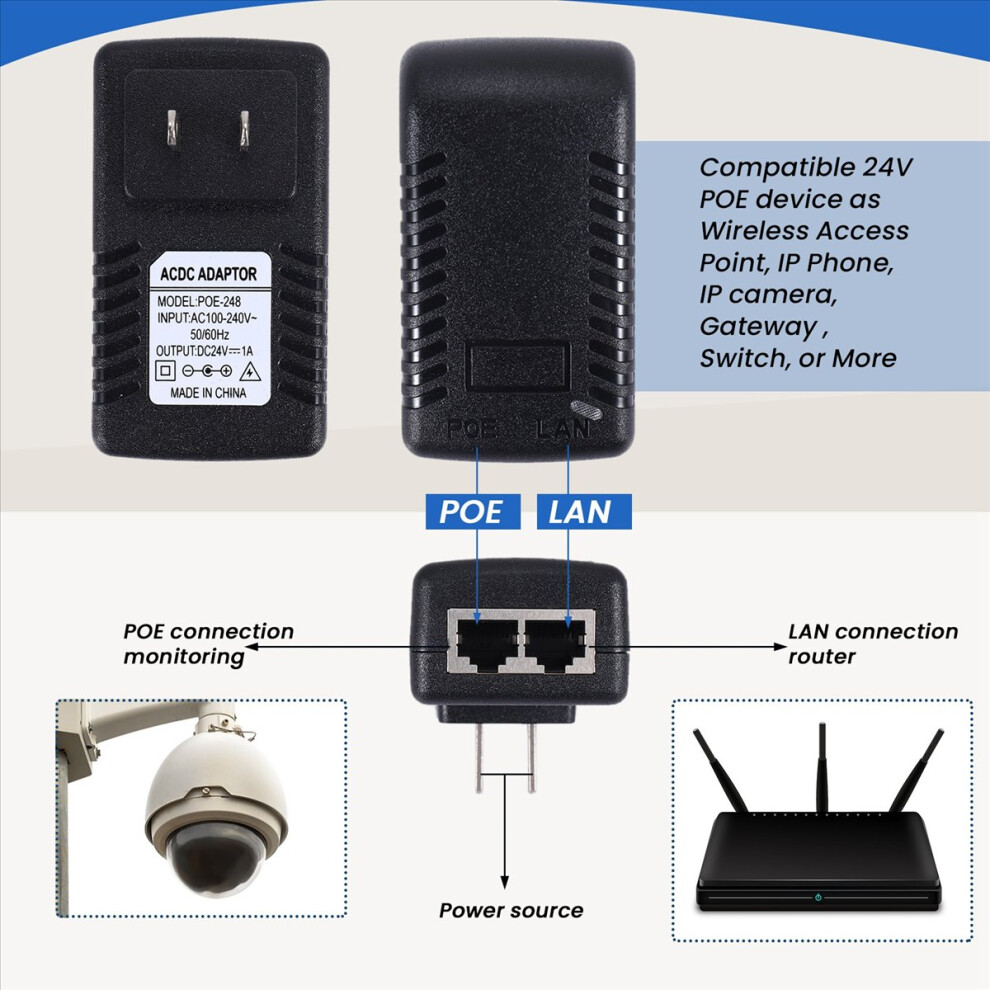

Compatible 24V POE device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More
Protections Auto Recover Over-Voltage, Short Circuit, Over-Current
Safety and EMC Standards UL 60950, CE
Environmental Standards RoHs
Operating Temperature -10 to +40C (14 to +104F)

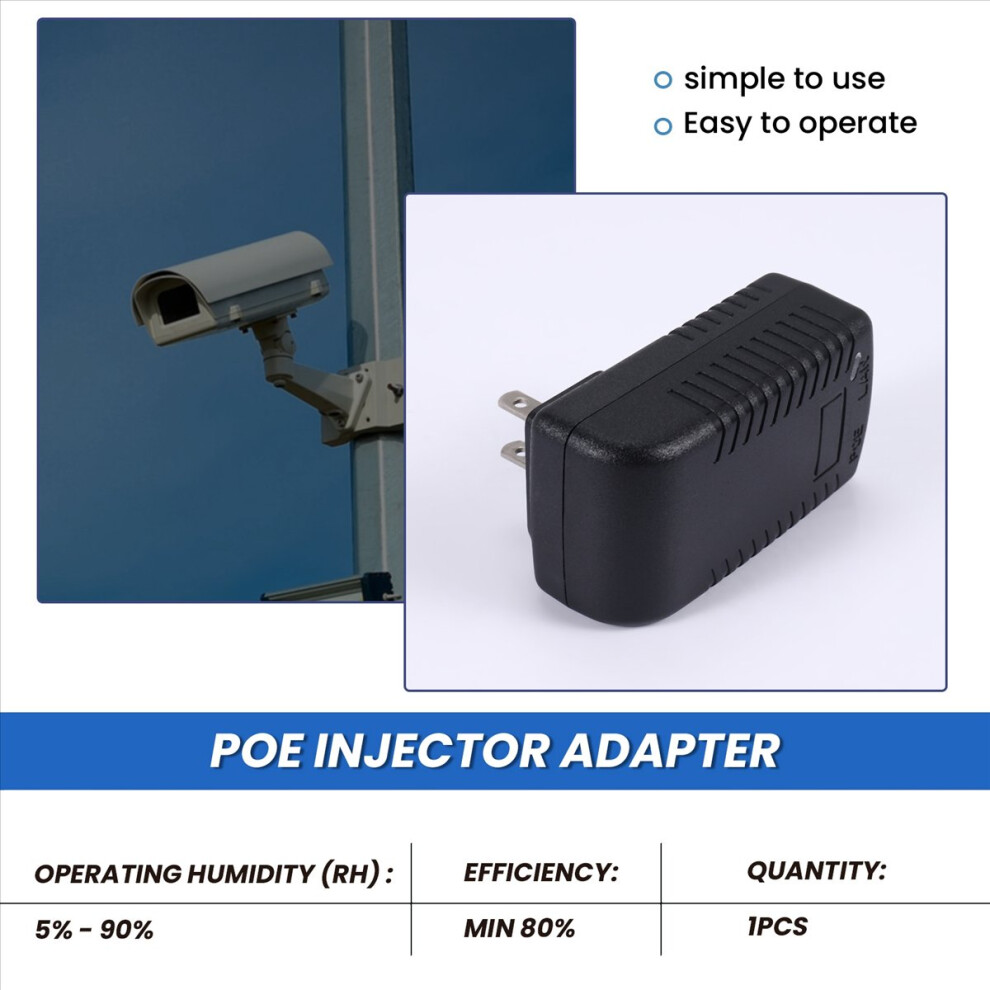

Operating Humidity (RH) 5% - 90%
Storage Temperature -20 to +85C (-4 to +185F)
Network Connector Type RJ45 Shielded
POE Type Passive POE ( Pins 4,5 V+, Pins 7,8 V-)
Plug Type: US Plug, it applies to Canada, India, Japan, Mexico, Thailand, , the , the Philippines and so on.

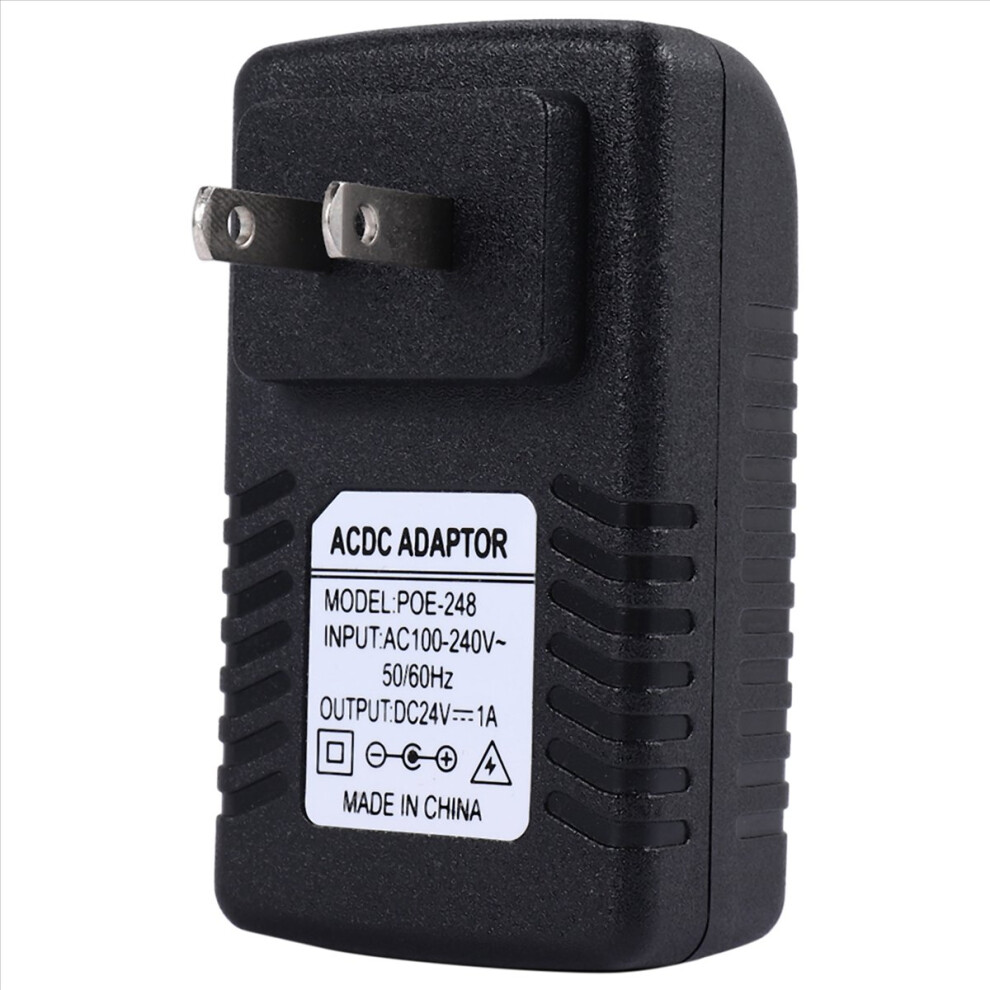

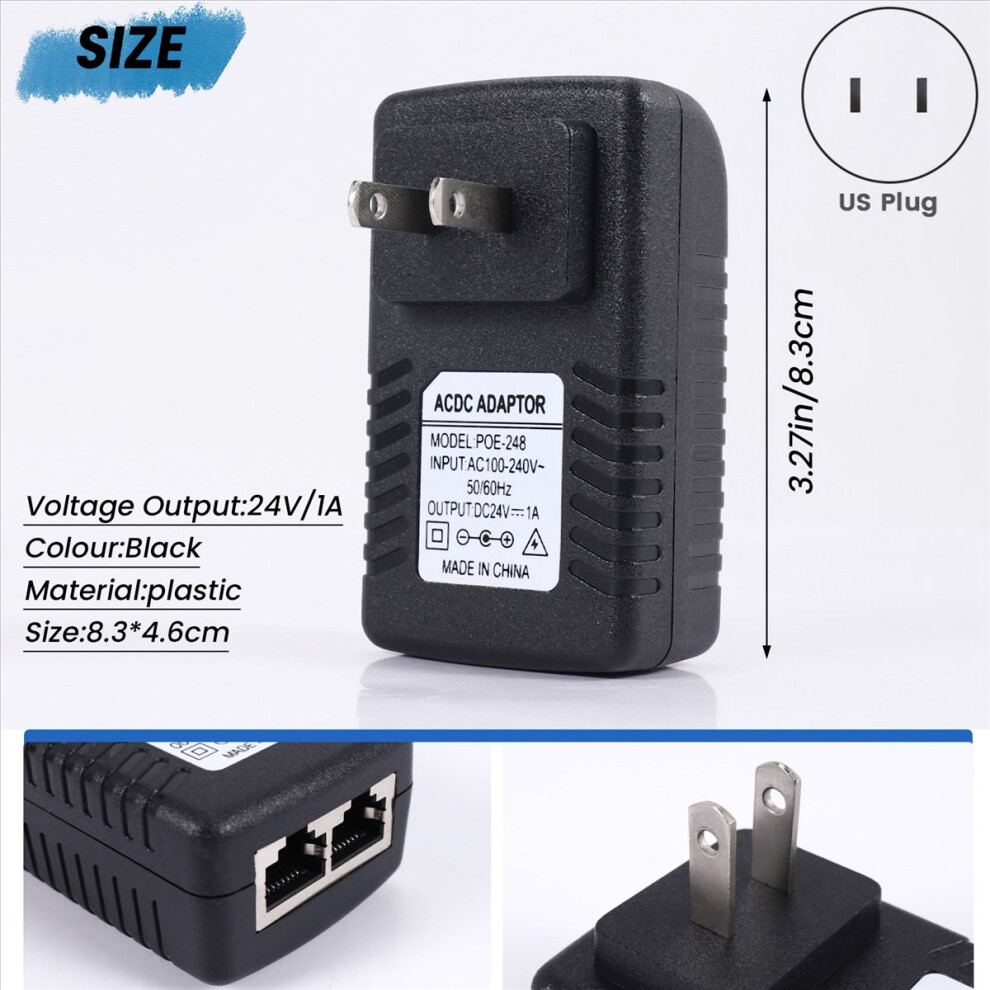

Voltage Output:24V/1A
Colour:Black
Material:plastic
Size:8.3*4.6cm

Package Contents:
1 * Power Supply
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
