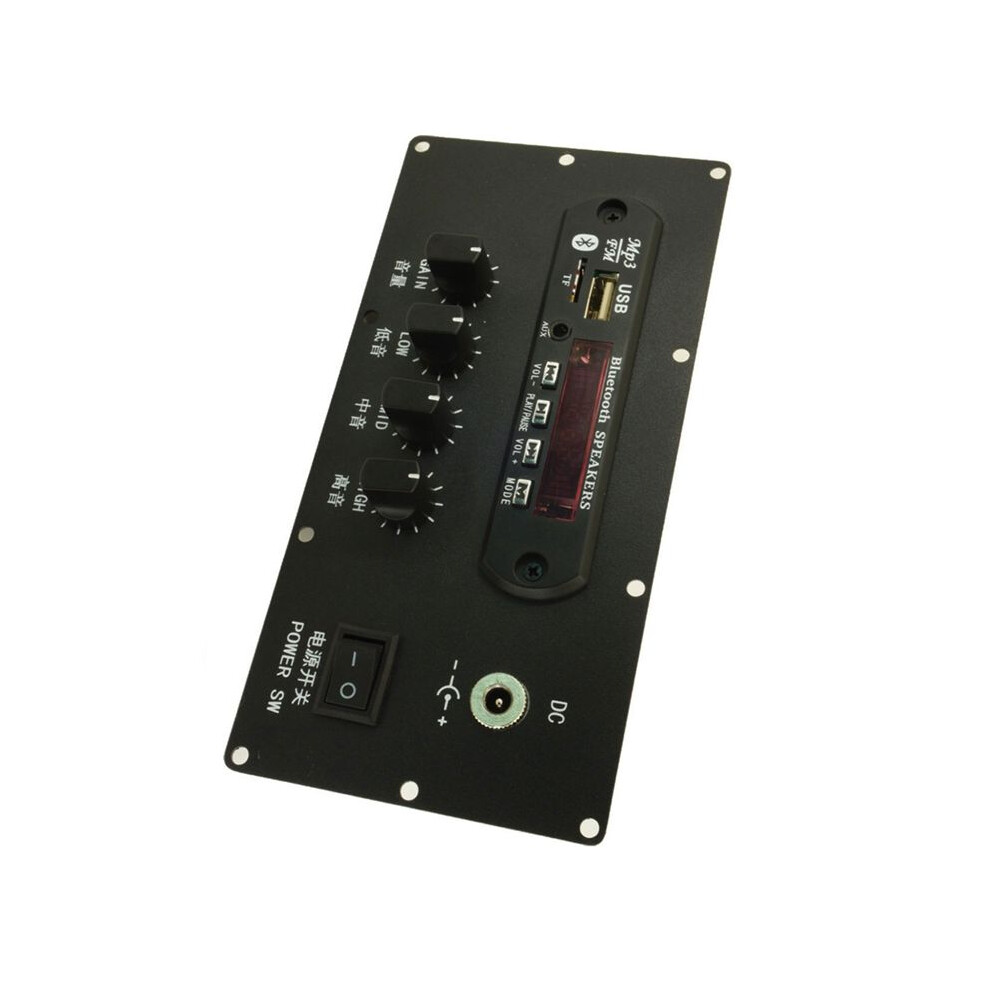

Preamplifier Tone Board Speaker MP3 Audio Modification Amplifier Board Control Panel DC9-29V Power Supply
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£16.20
£43.05
62% off!
+£5.46 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£5.46) | Wed 2nd - Tue 8th Sep
Sold by: CollBea
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary

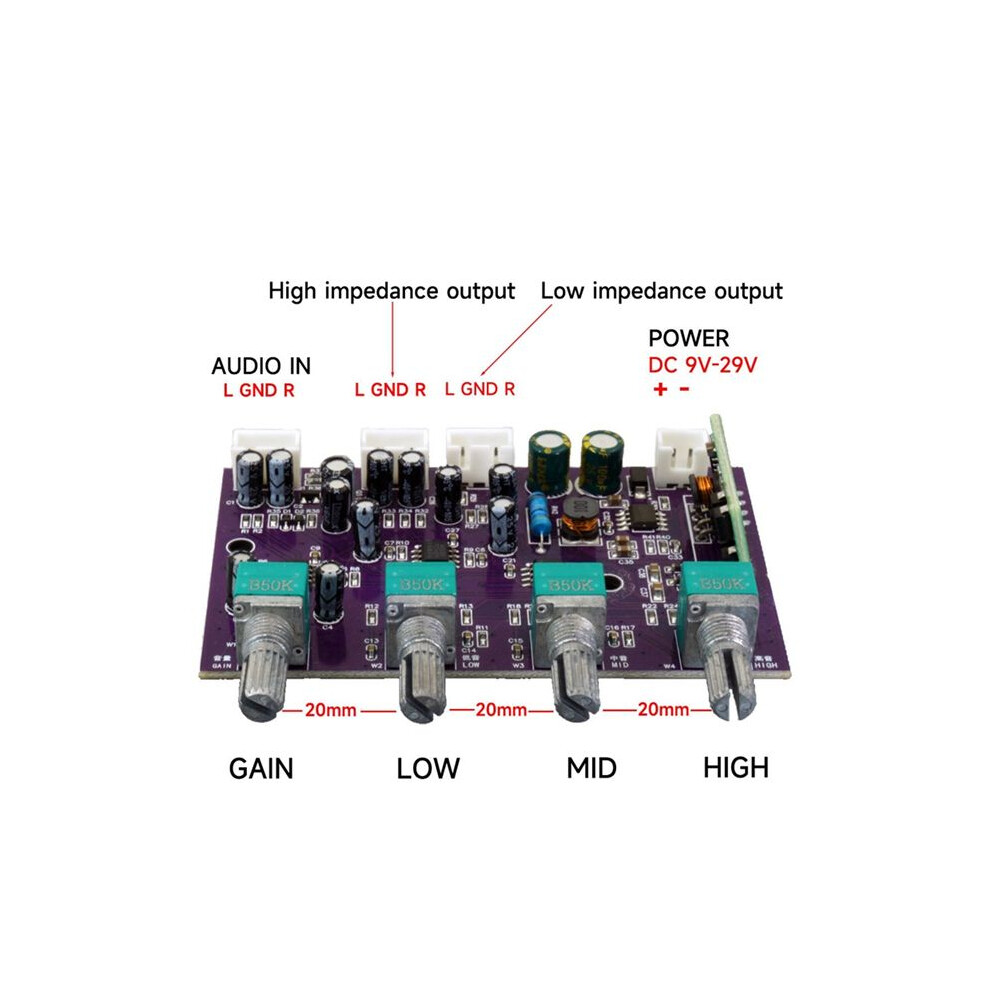

- This circuit uses three TI NE5532 operational amplifiers, with one stage for gain, one stage for buffering, and one stage for equalization processing.
- It is equipped with a mute circuit for power on/off, which basically eliminates impact noise during power up and down.
- Reverse connection protection for positive and negative power supply poles is provided.
- It features wide voltage regulation and can operate within DC9-29V.
- A built-in boost module can convert a single power supply into a ±14.5V dual power supply to power the circuit, offering a large sound dynamic range and strong driving force, capable of driving high-power rear stages. The output is designed with two impedance interfaces for easy connection to different power amplifiers.
Preamplifier Tone Board Speaker MP3 Audio Modification Amplifier Board Control Panel DC9-29V Power Supply Description
This circuit uses three TI NE5532 operational amplifiers, with one stage for gain, one stage for buffering, and one stage for equalization processing.
It is equipped with a mute circuit for power /off, which basically eliminates impact noise during and down.
Reverse connection protection for positive and negative power supply poles is provided.
It features wide voltage regulation and can operate within DC9-29V.

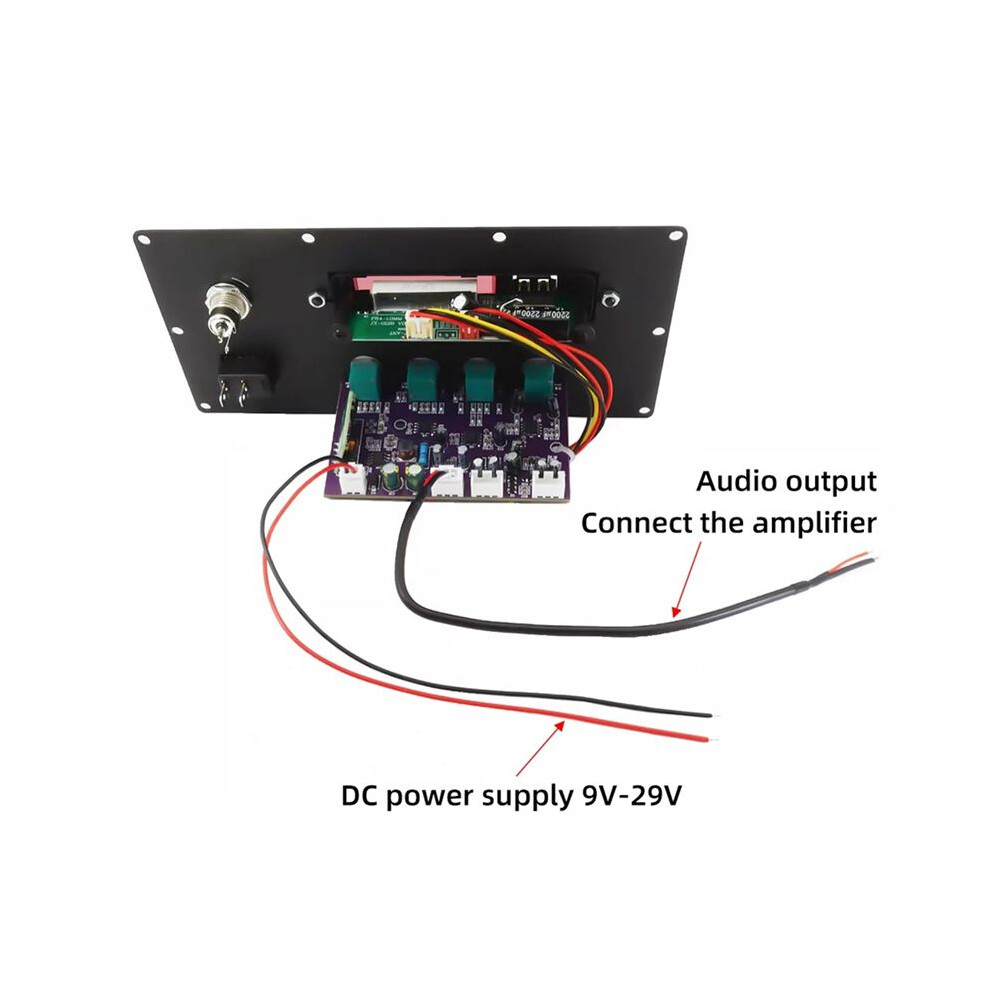

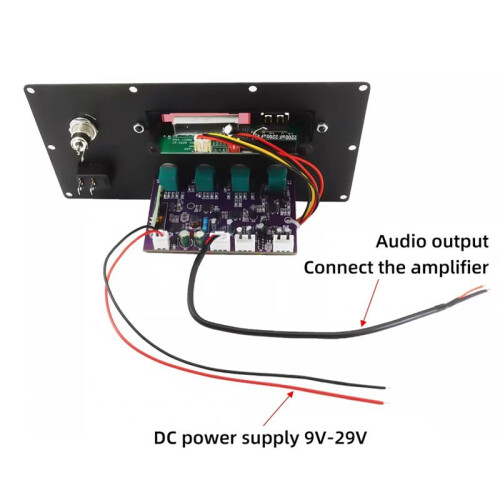

A built-in boost module can convert a single power supply into a 14.5V dual power supply to power the circuit, offering a large sound dynamic range and strong driving force, capable of driving high-power rear stages. The output is designed with two impedance interfaces for easy connection to different power amplifiers.
The low-impedance interface can be connected to pure rear-stage power amplifiers.
The high-impedance interface can be directly connected in parallel to the input terminals of combined power amplifiers with preamps or other audio devices.
Static Power Consumption: Approximately 1W
Frequency Response: 20Hz-20kHz
Amplification Gain: 14dB

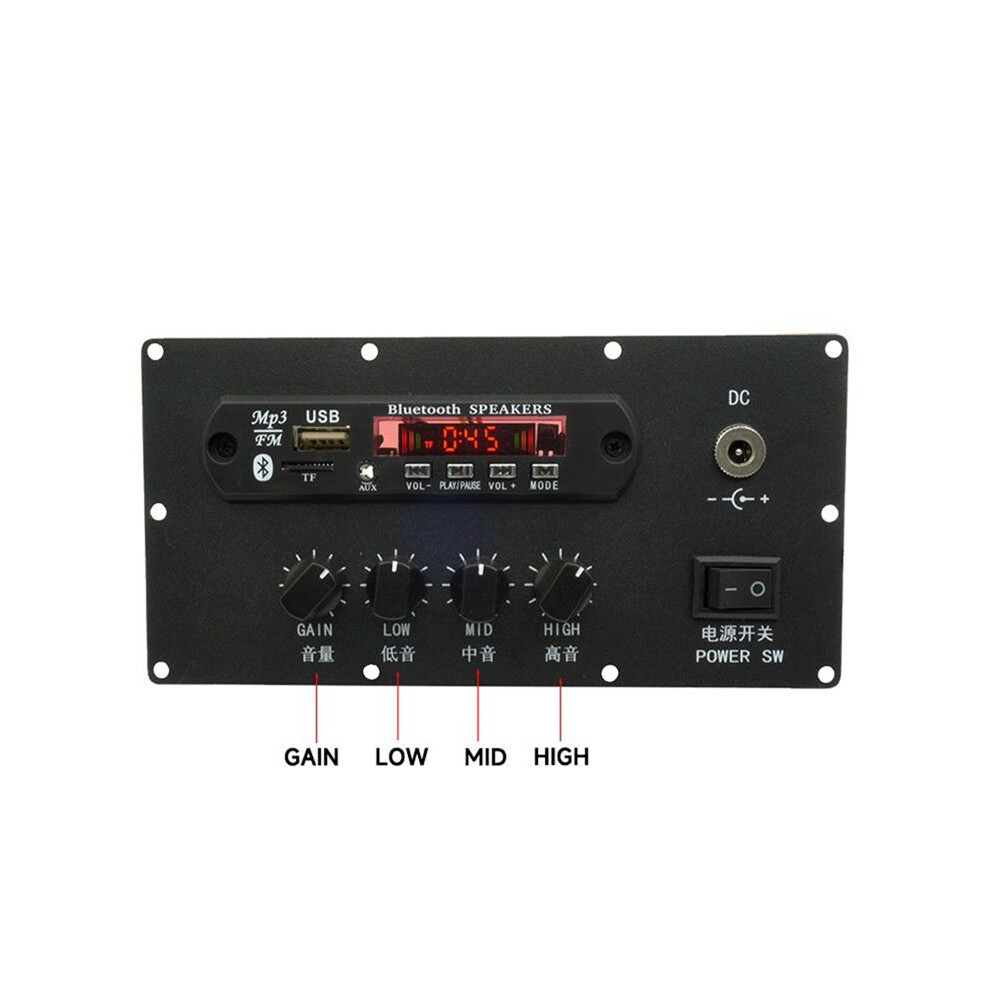

Tone Adjustment Range: 15dB
Input Impedance: 50kΩ
High-Impedance Output Impedance: 10kΩ, Output Amplitude: 0.7Vrms
Low-Impedance Output Impedance: 600Ω, Output Amplitude: 3.5Vrms
Reception Version: 5.3
Supports: U disk/TF card/ input
Player Supported Formats: MP3/WMA/WAV/APE/FLAC
FM Radio Support: 87.5MHz-108MHz
Power Supply: 2 x AAA batteries(Not included batteries)
Color: Black
Material: Plastic+Metal
Package Contents:
1 * Tone board
1 * remote control
Details
| OPC | PRKY75N |
|---|---|
| Codes | 4713858132071 (EAN) |
Product Data
| Height | 9cm |
|---|---|
| Width | 9cm |
| Length | 20cm |
| Weight | 0.293kg |
| Colour | Black |
| Material | Plastic+Metal |
