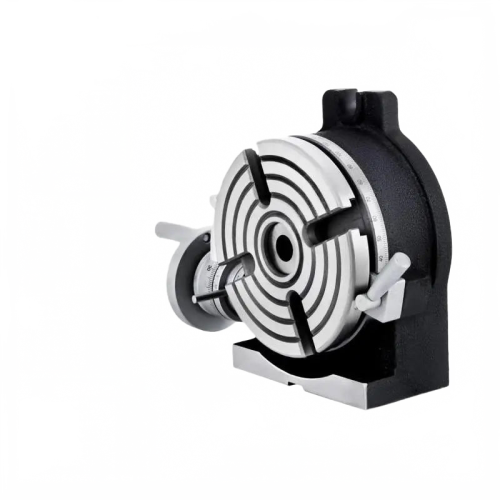

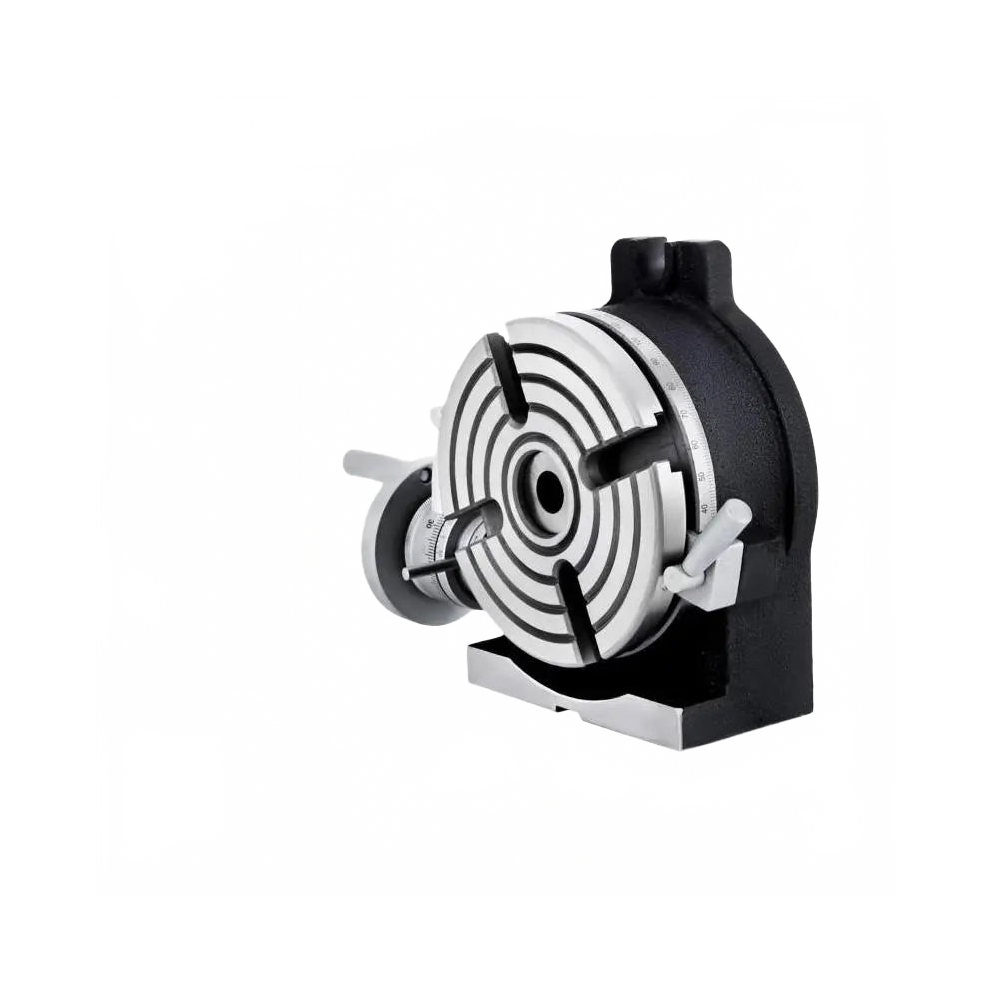

Precision 150mm Rotary Table with Adjustable Dividing Plate & Index System for Milling Machines

Precision 150mm Rotary Table with Adjustable Dividing Plate & Index System for Milling Machines Description

This precision rotary table features a 150mm (5.9 inches) clamping diameter, providing a stable platform for milling operations. Equipped with four grooves measuring 11mm (0.43 inches) in width, it ensures secure mounting and accurate positioning. The circular accuracy of 0.04mm and parallelism of mounting surface at 0.04mm guarantee high-precision work. The table includes an adjustable dividing plate and an index system, facilitating precise angular divisions for complex machining tasks. Its worm gear transmission ratio of 90/1 offers smooth and controlled rotation. With basic dimensions of 180 x 170mm horizontally and 205 x 80mm vertically, and a height of 80mm, this device is compact yet robust. Weighing approximately 11.1kg (24.47 lbs), it is constructed to meet CE certification standards and is suitable for professional milling applications. The worktable features a scale for easy measurement, supporting loads up to 40kg (88.18 lbs) horizontally and 20kg (44.09 lbs) vertically, making it ideal for precise and demanding machining tasks.
