Precision AD8317 RF Power Controller 1M-10GHz for Amplifier Applications

Precision AD8317 RF Power Controller 1M-10GHz for Amplifier Applications Description

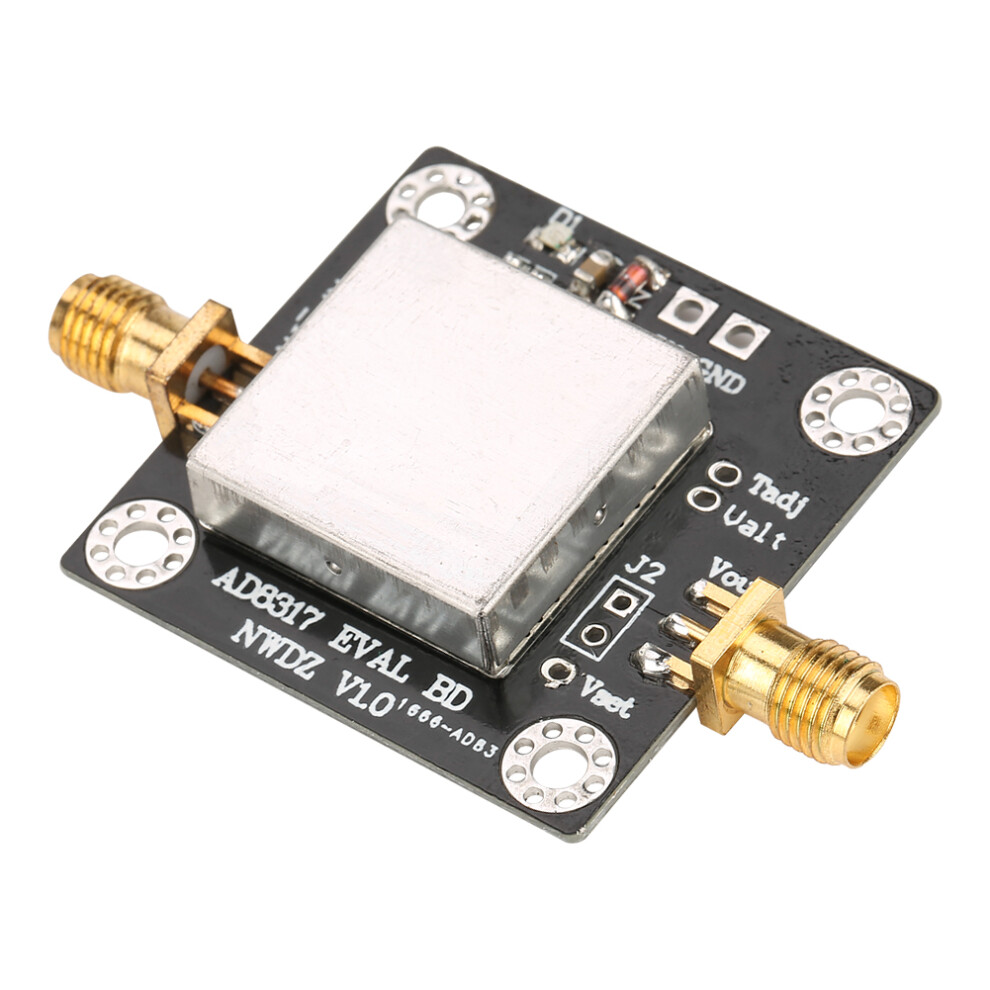

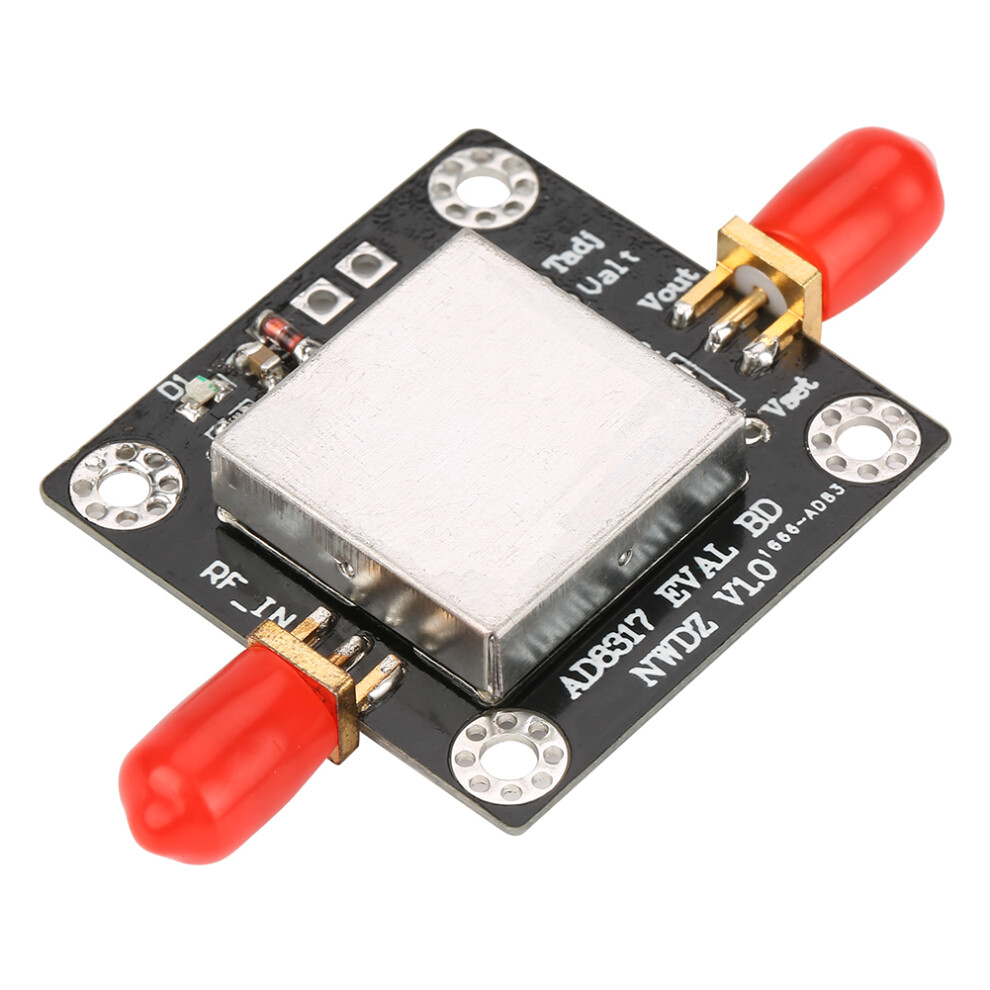

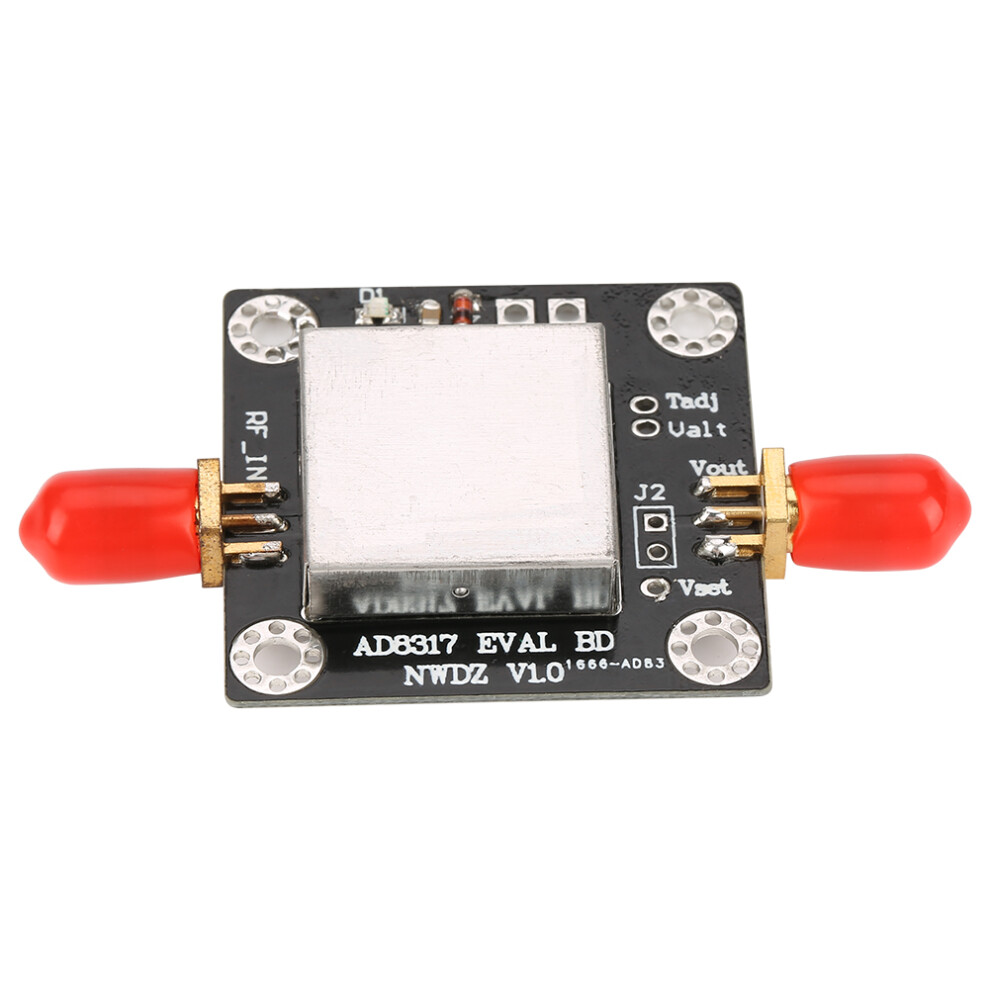

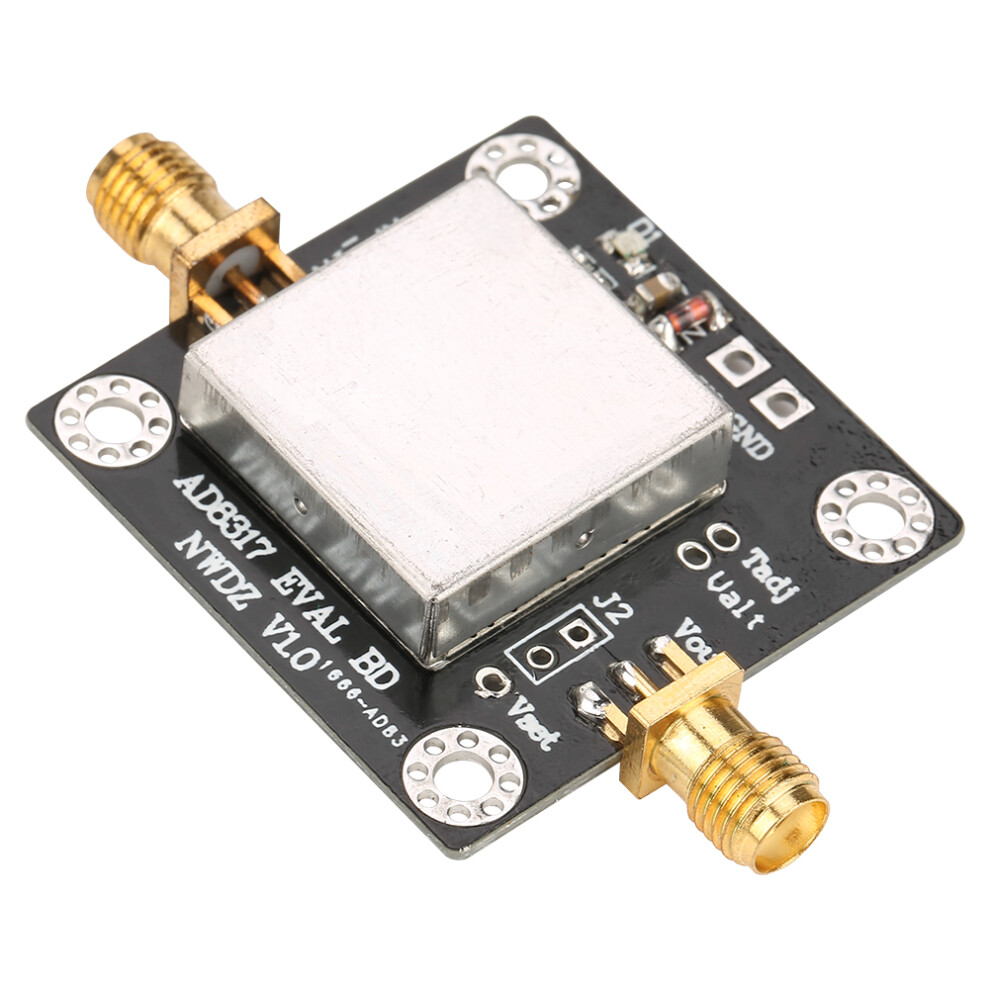

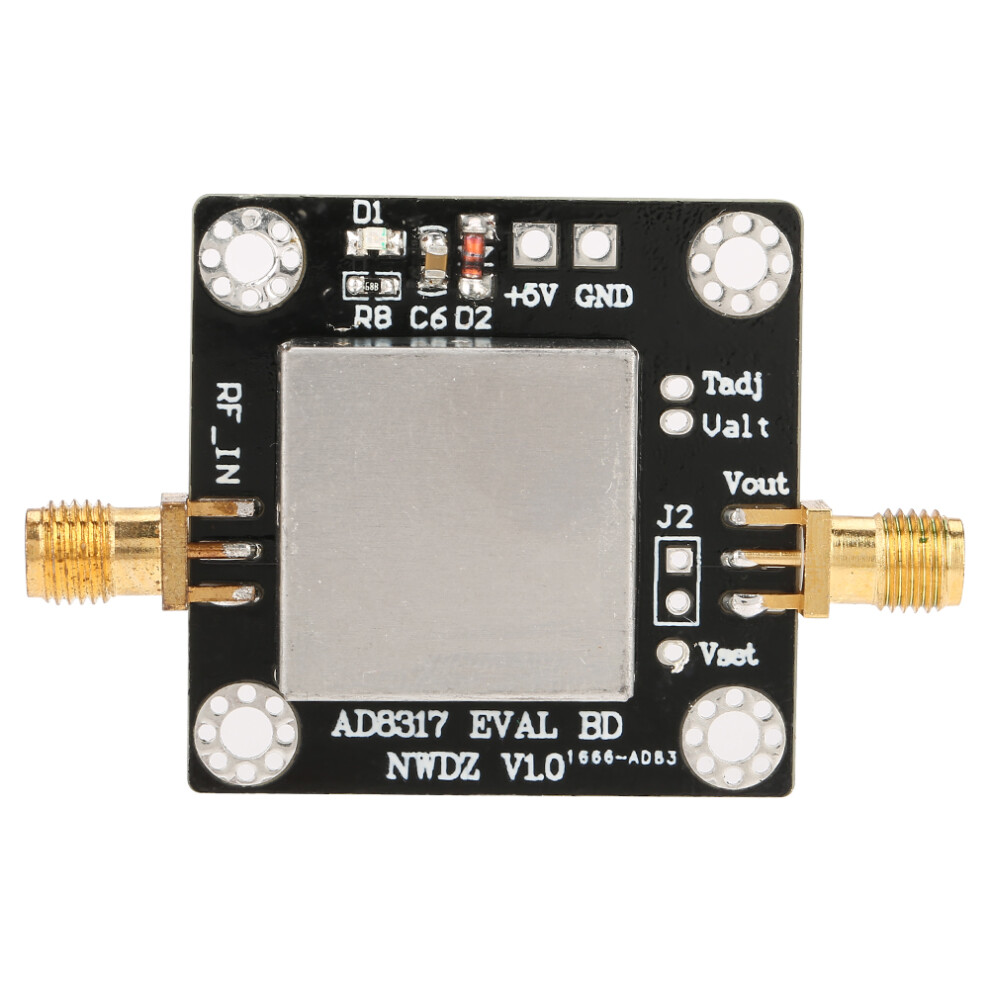

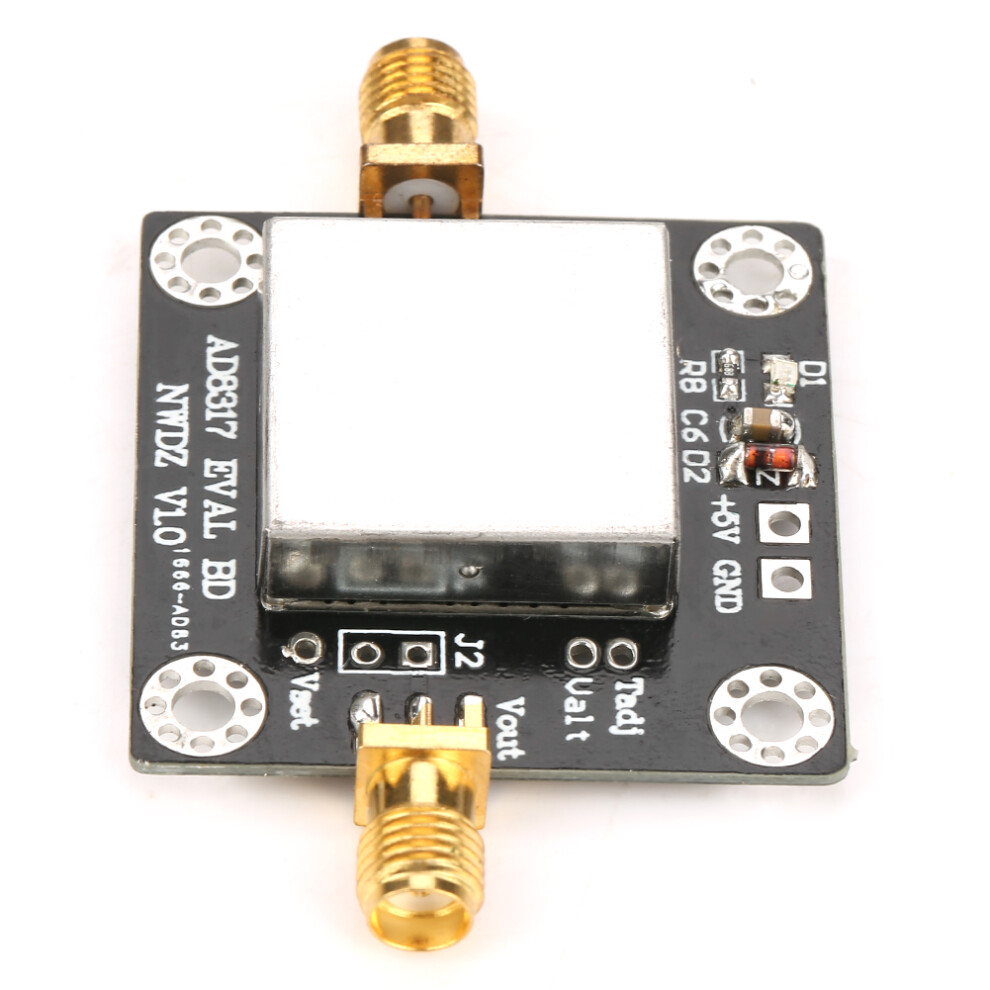

AD8317 1M-10GHz 60dB RF Power Meter Logarithmic Detector Controller for Amplifier

Features:

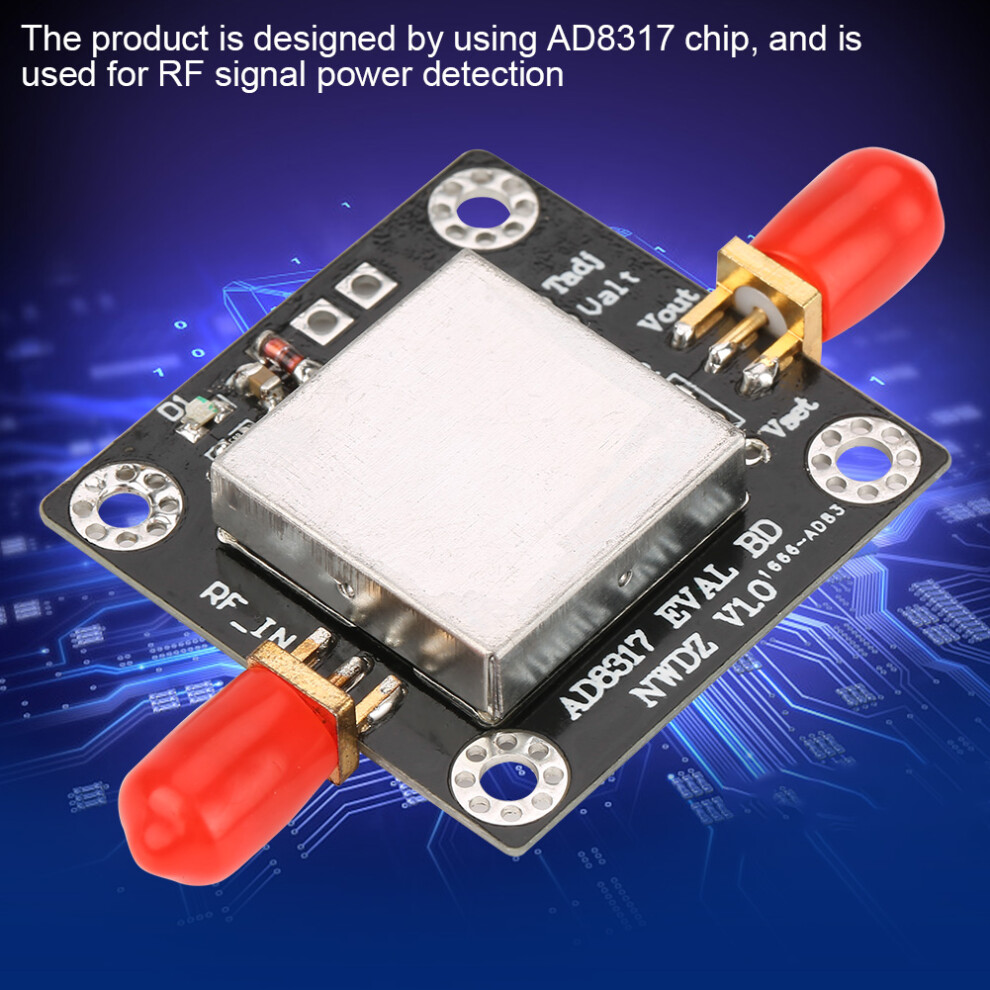

The product is designed by using AD8317 chip, and is used for RF signal power detection.


Can detect power in -55dBm to 0dBm of an RF signal, so that the RF signal is converted to DC voltage output.



The greater the amplitude or power of the
RF signal, the higher the output voltage, and the output voltage is
directly proportional to the logarithm of the input signal amplitude, thus expanding the dynamic range of the detected signal, which ranges reach 55dB.


It can be widely used in radio frequency signal detection, signal power measurement, environmental field strength detection.


It can also be used as part of automatic gain control and automatic level control.


Application: RF transmitter PA set point control and level monitoring; Power monitoring in a radio line transmitter; RSSI measurements in base stations, WLAN, WiMAX, and radar





Specification:


Input impedance: 50 Ohms

Output impedance: 50 Ohms (video impedance)

Working frequency Freq: 1MHz ~ 10GHz

Output voltage range: 1.6 ~ 0.4v (corresponding to -55 ~ 0 dBm)

Input/output ratio: 22mv /dBm

Input dynamic range: -60 ~ +5dBm (high linear dynamic range: -55 ~ 0 dBm)

Power supply voltage: +3.3~5V.DC @20mA

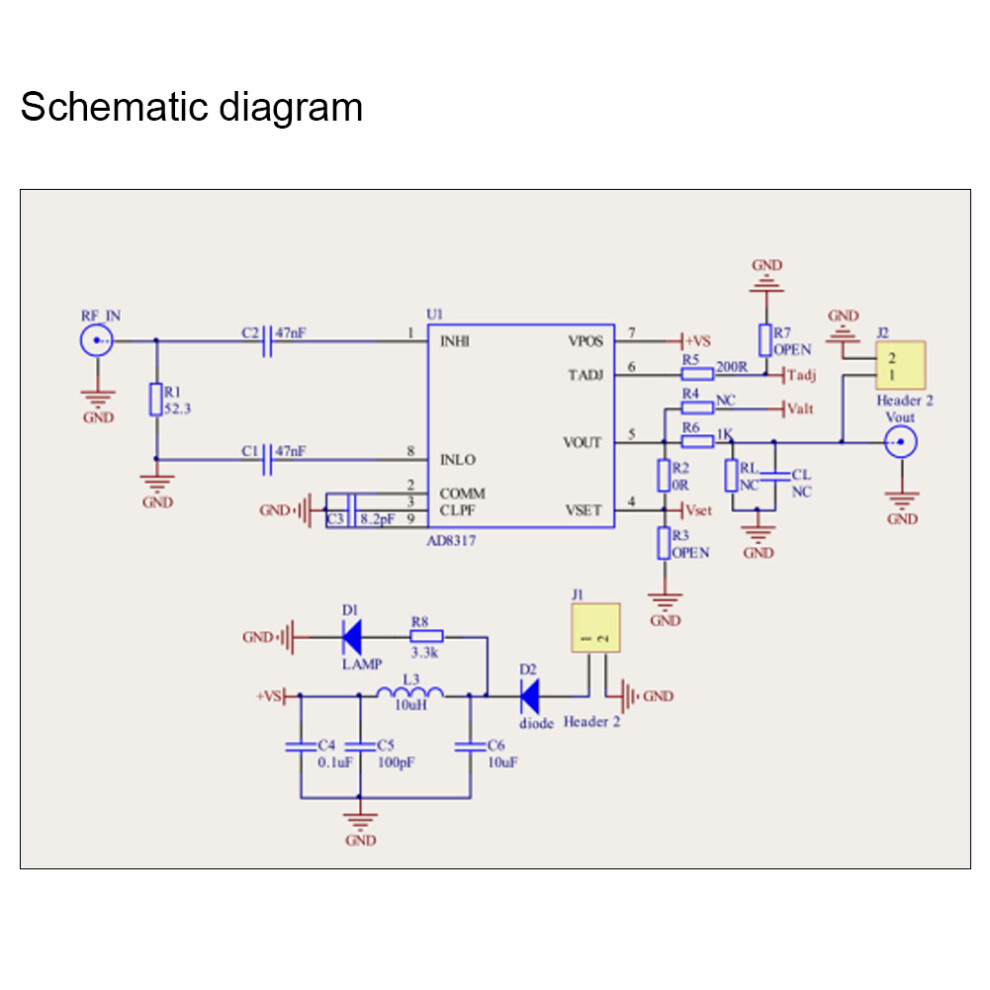

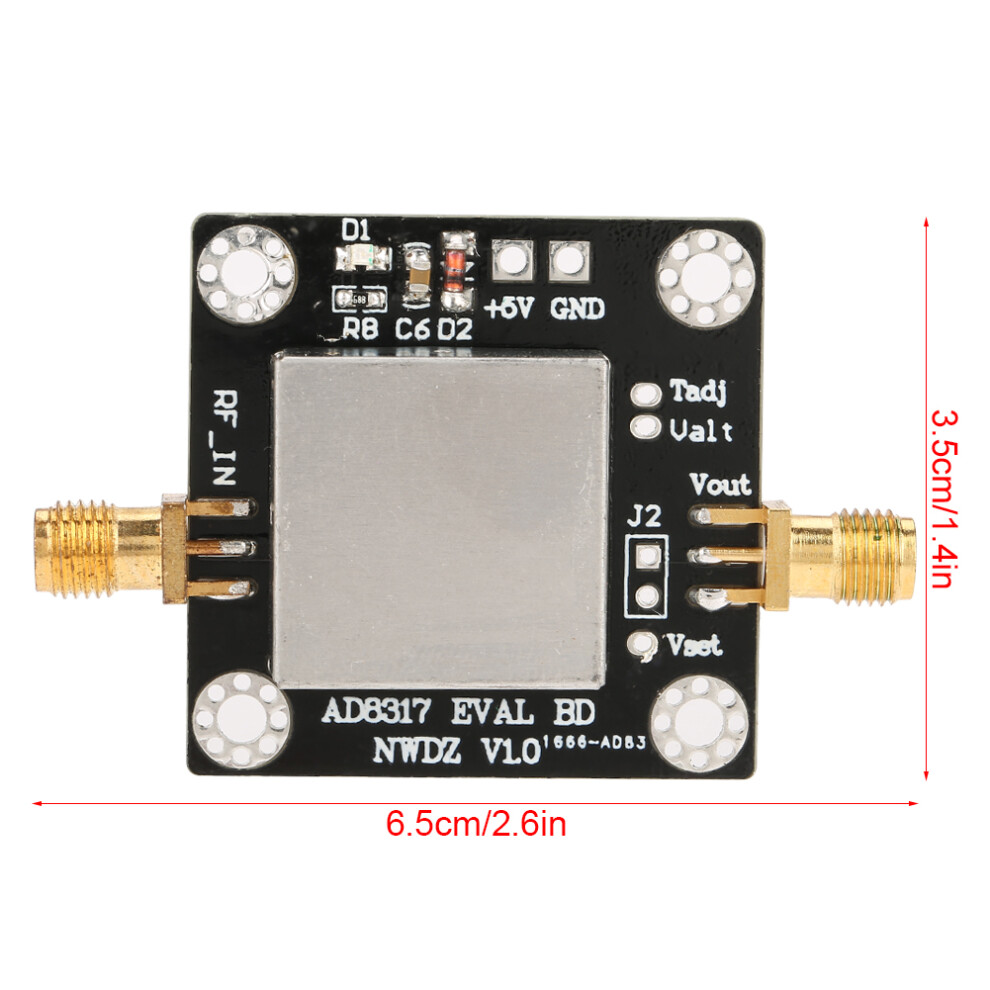

Size: 6.5*3.5cm/2.6*1.4in


Weight: Approx.9g/0.3oz






Package list:


1 x Logarithmic Power Meter
