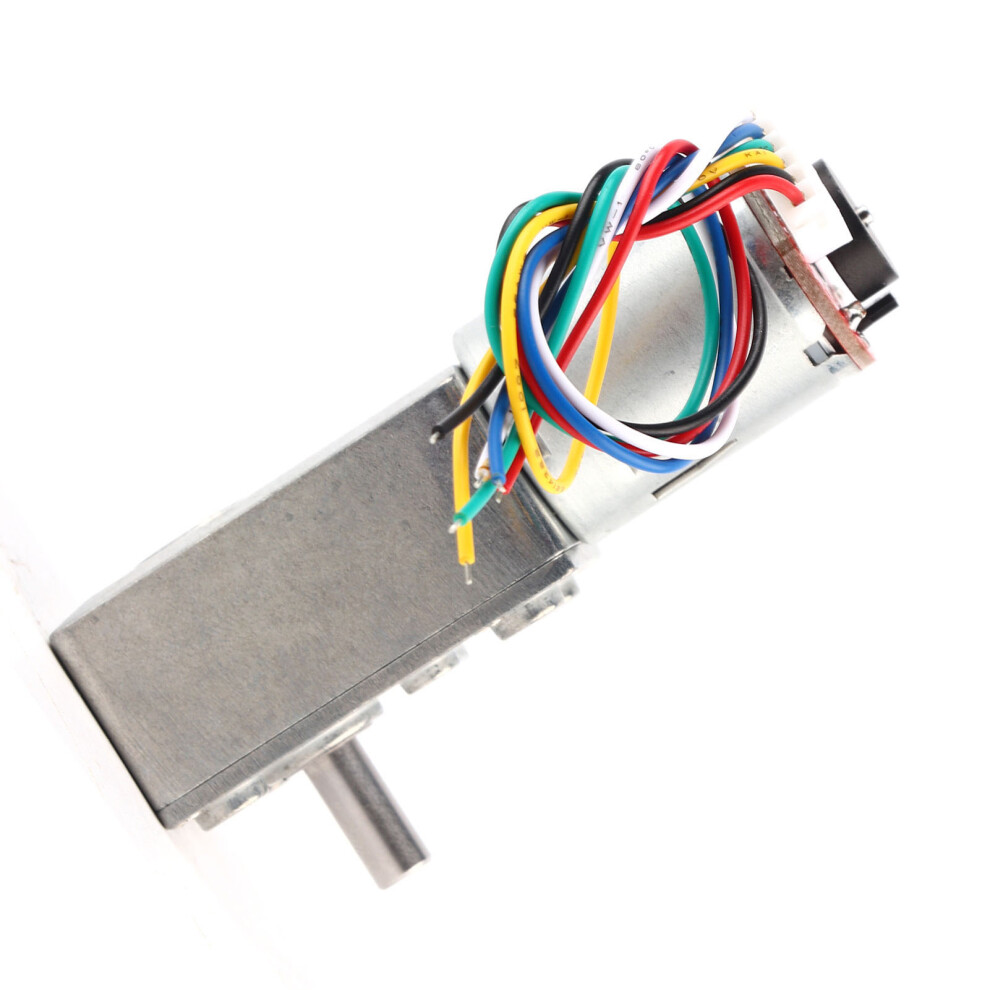

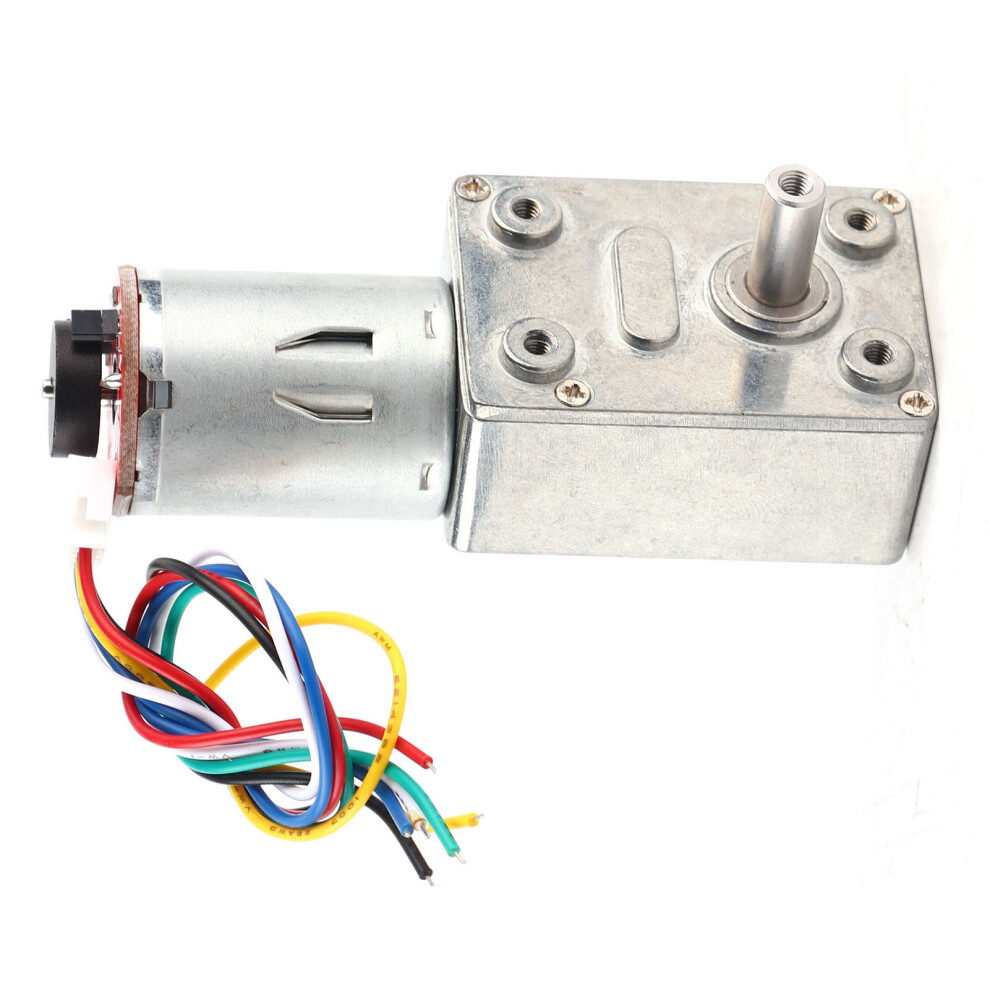

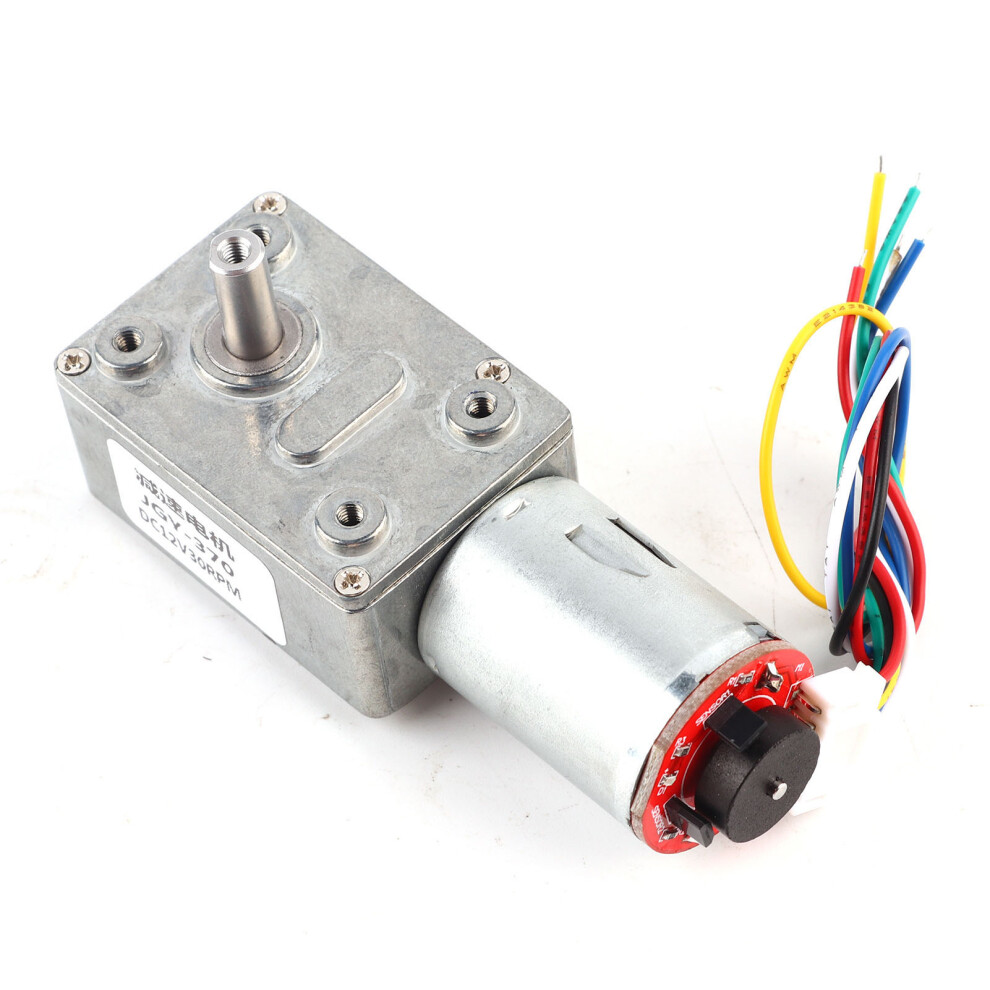

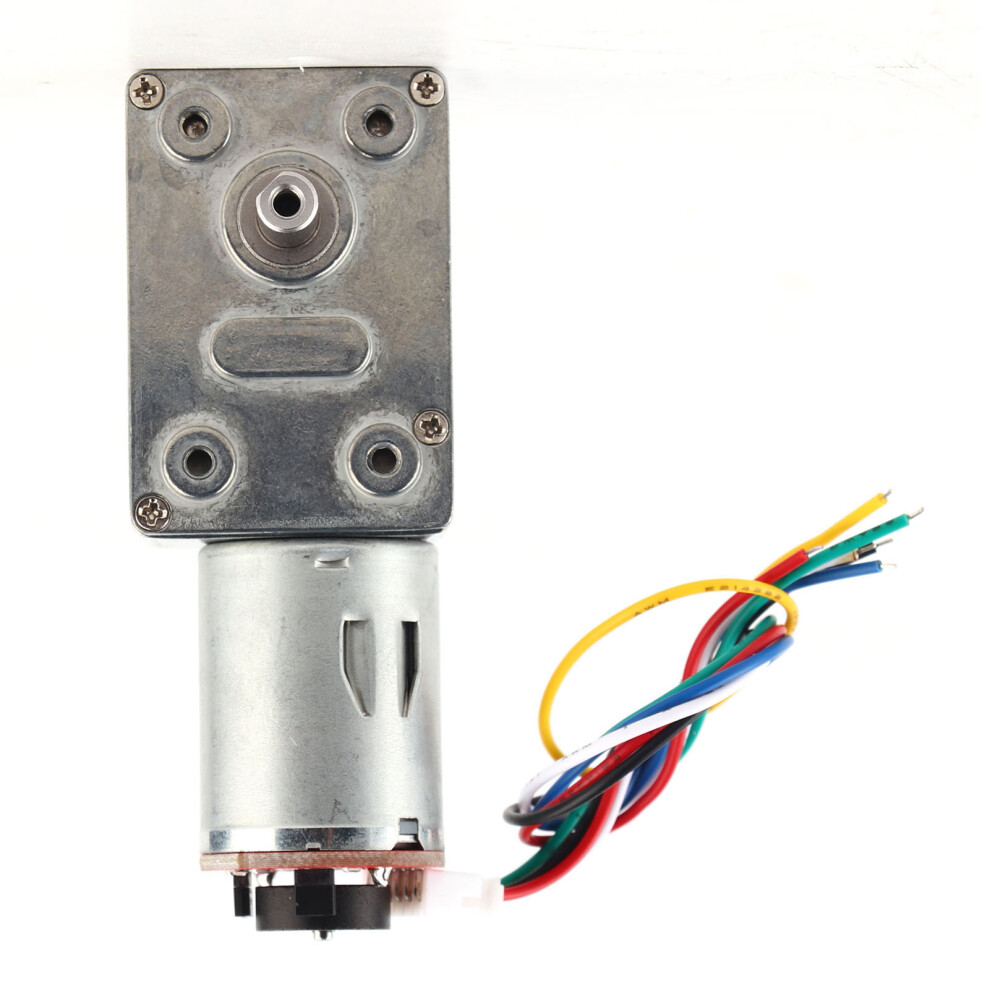

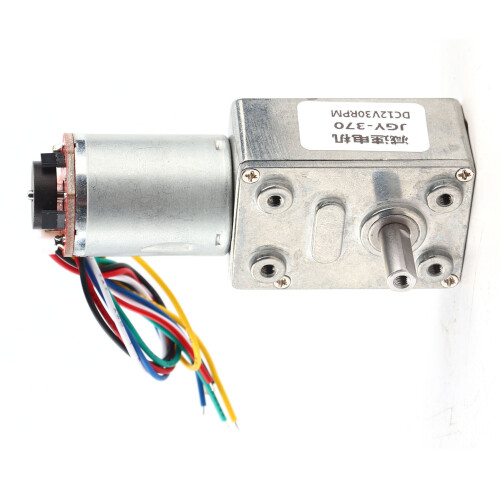

Precision Geared Motor 30RPM with Encoder & Self Locking Metal Enclosure

Precision Geared Motor 30RPM with Encoder & Self Locking Metal Enclosure Description

Geared Motor High Torque Reduction Motor with Encoder Srong Self locking(30RPM)

Description:

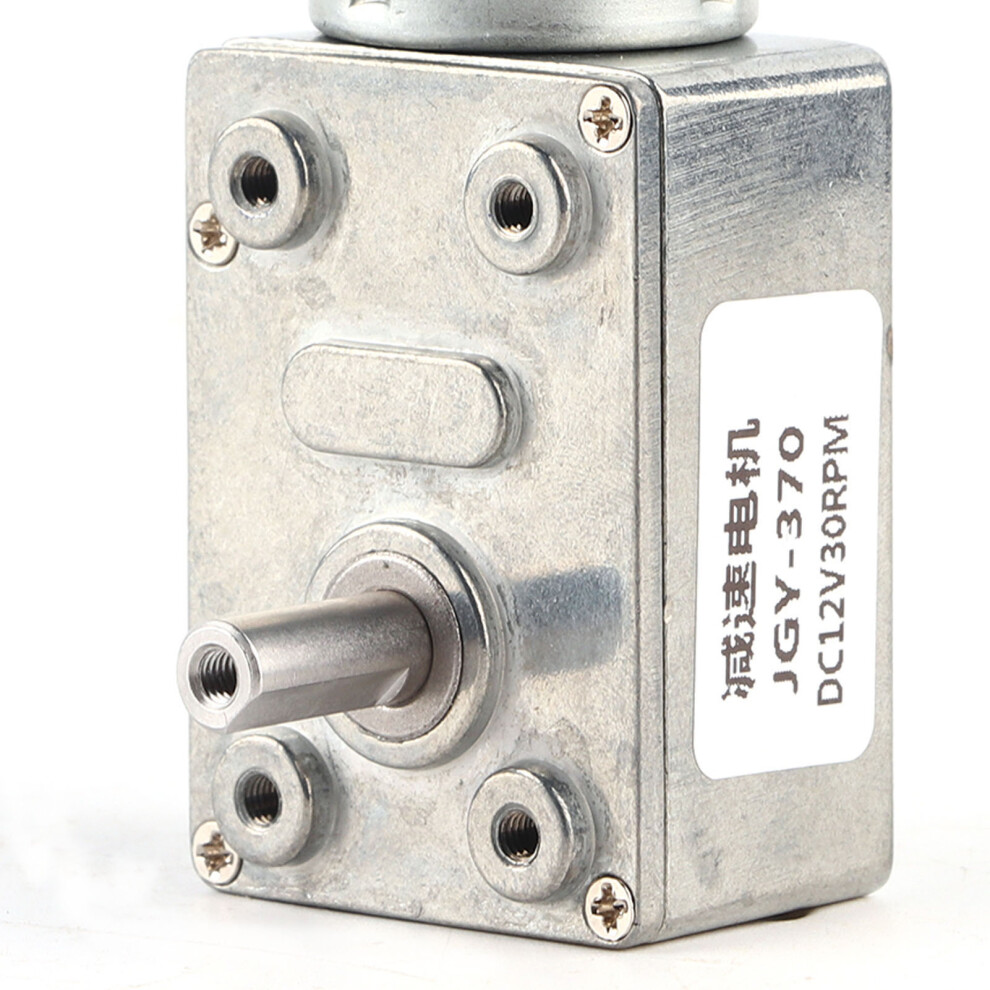

Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of the requirement occasion.

Features:

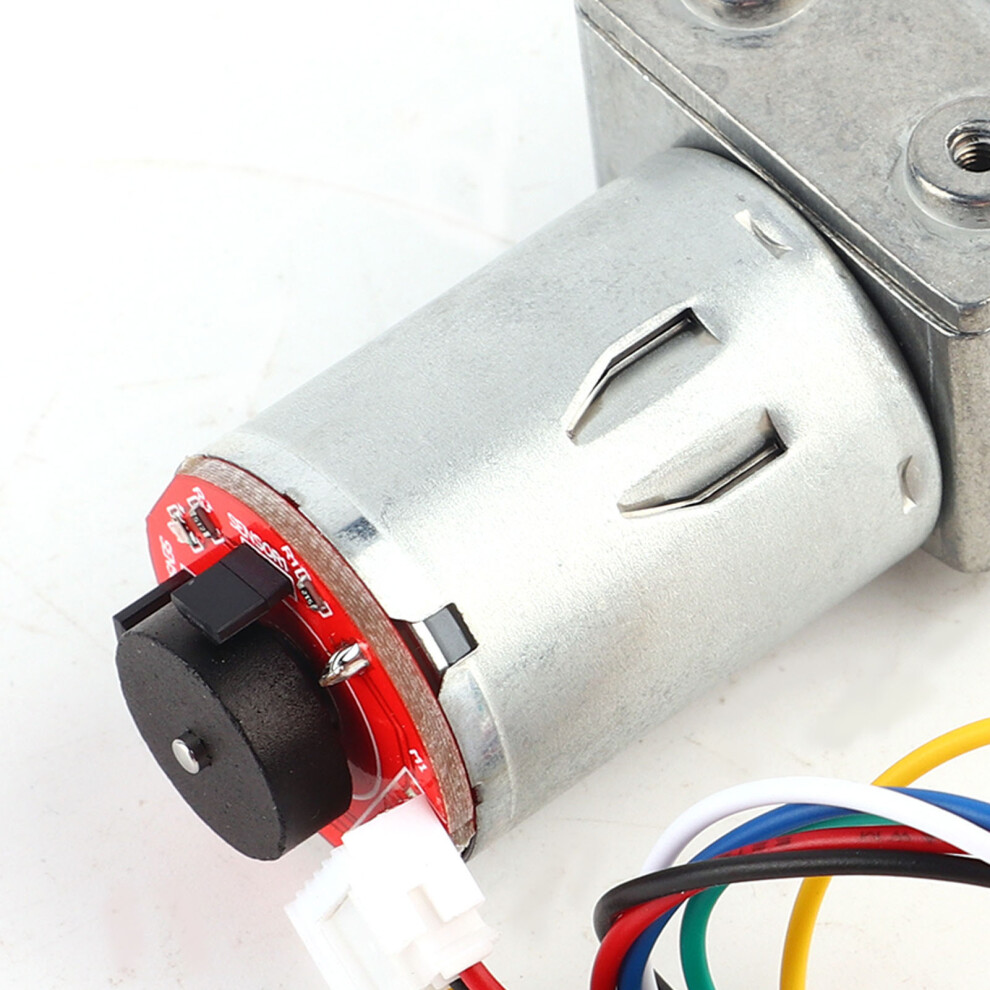

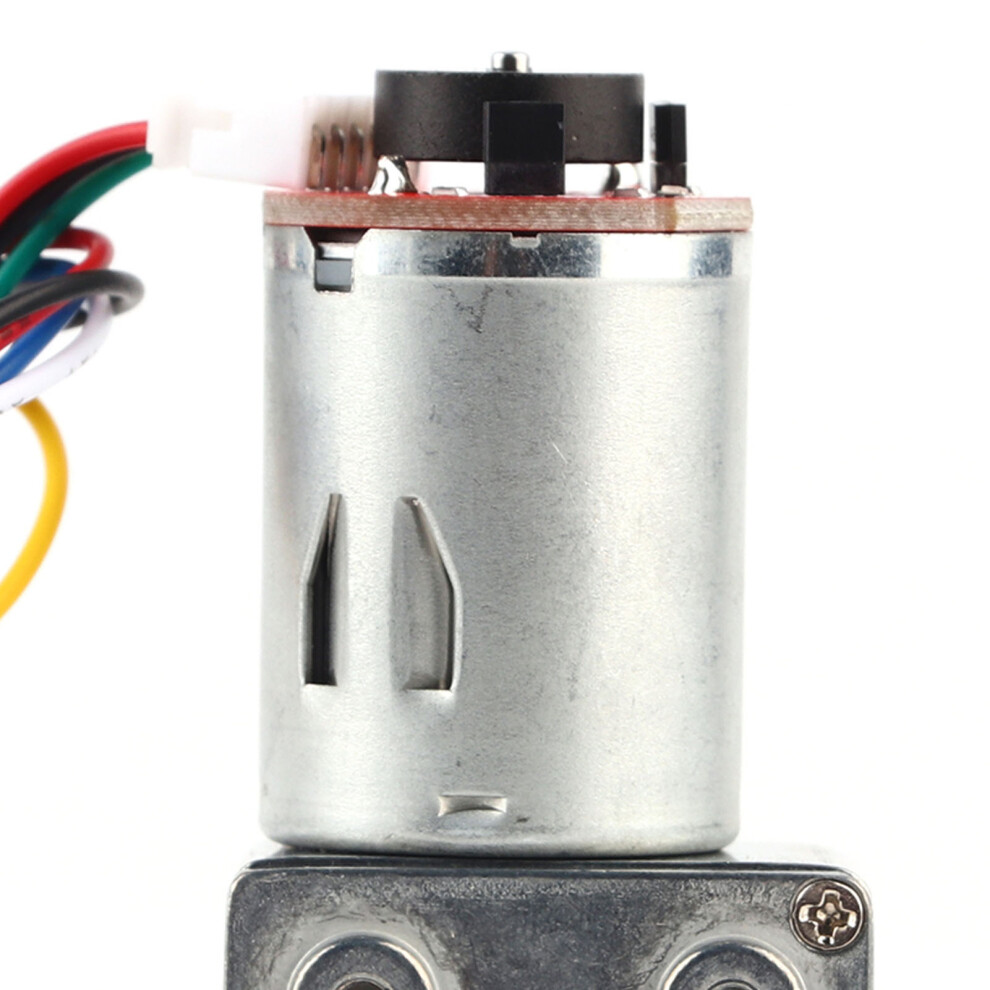

Two-phase reduction gear motor with encoder.


Using precious metals carbon brush.


Long service life, low noise, large torque.


Stable and reliable performance.


Can rotate and reversal, work more accurate.


Specifications:
Rated Voltage: 12V
No-loading Revolving Speed: 100rpm / 40rpm / 30rpm / 20rpm / 10rpm(optional)




Speed(rpm)


10


20


30


40


100




Rated Torque(kg.cm)


22.5


12


7.4


5.6


1.5




Max.Torque(kg.cm)


25


25


25


24


6.4




Reduction Ratio


600


340


200


150


40




No-load
Current(MA)


60




Rated
Current(A)


0.6




Stall
Current(A)


1.3




Weight: 165g(approx.)

Wiring Methods:
Red: Motor power + (exchange can control rotating and reversing)
Black: Coding power- negative (3.3-5V) polarity cannot be wrong
Yellow: Signal feedback
Green:Signal feedback
Blue:Coding power + positive(3.3-5V)polarity cannot be wrong
White:Motor power - (exchange can control rotating and reversing)
Package Includes:
1 x Motor
1 x Wiring Harness
