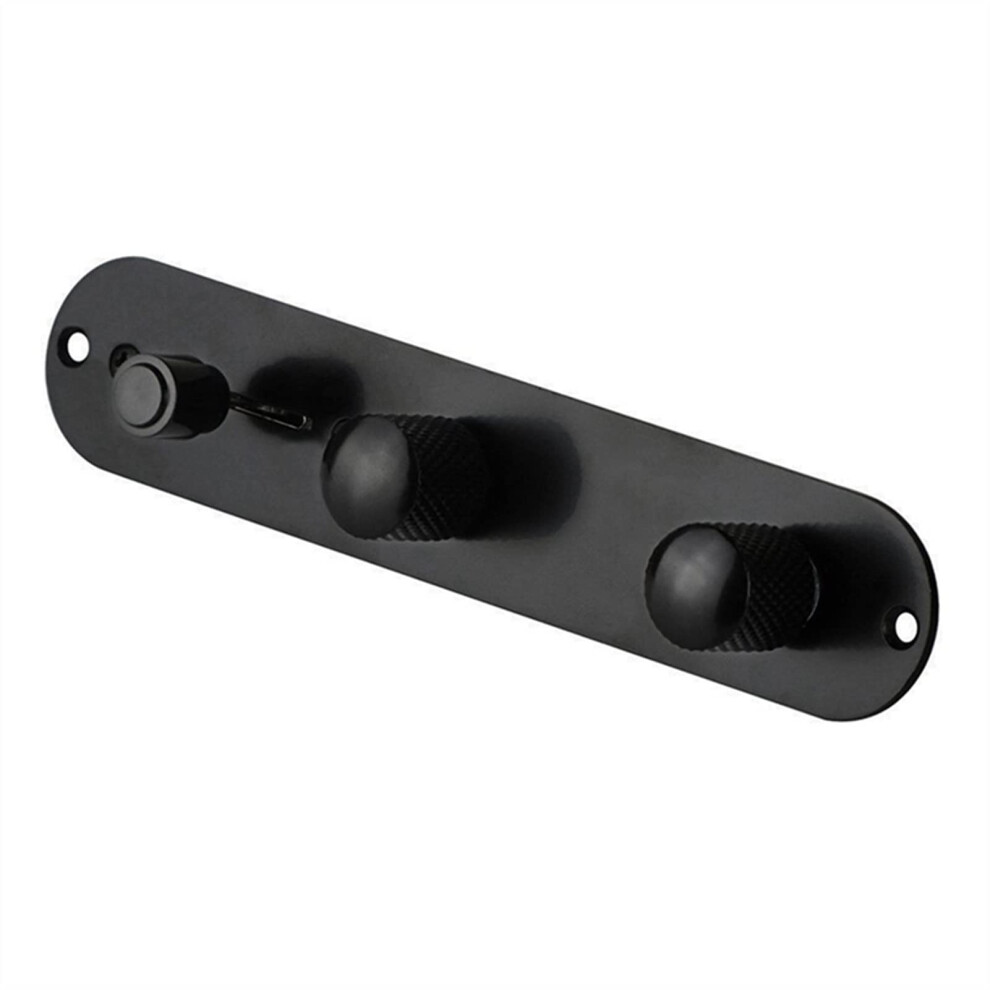

Prewired Control Plate Kit with 3Way Switch and Output Jack for Telecaster Quick Installation

Prewired Control Plate Kit with 3Way Switch and Output Jack for Telecaster Quick Installation Description

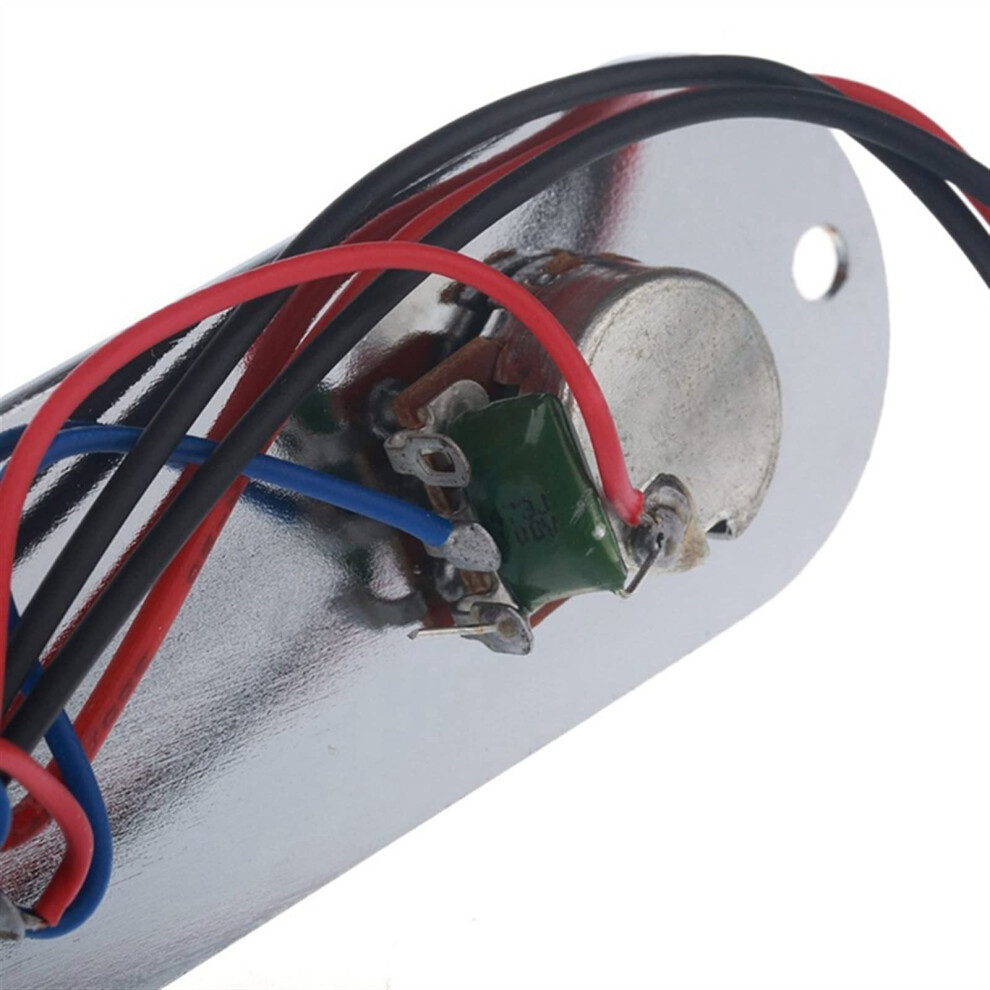

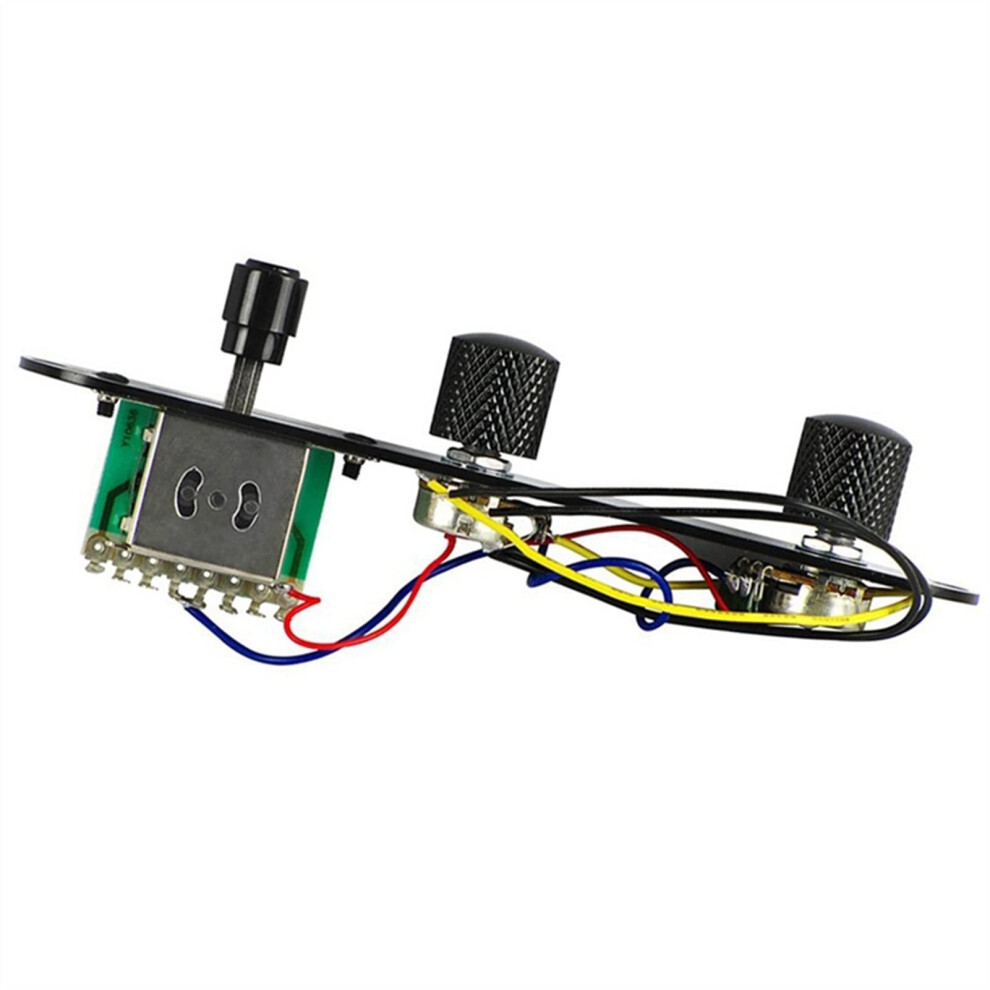

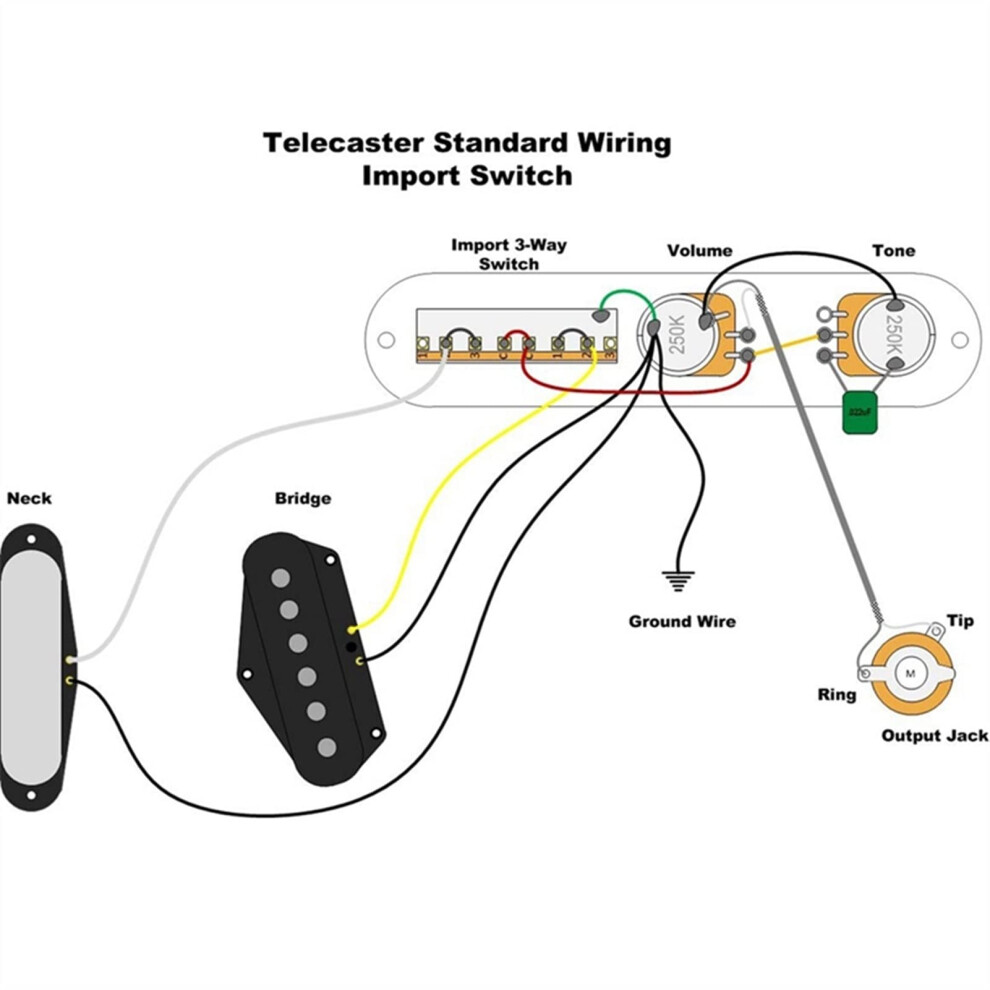

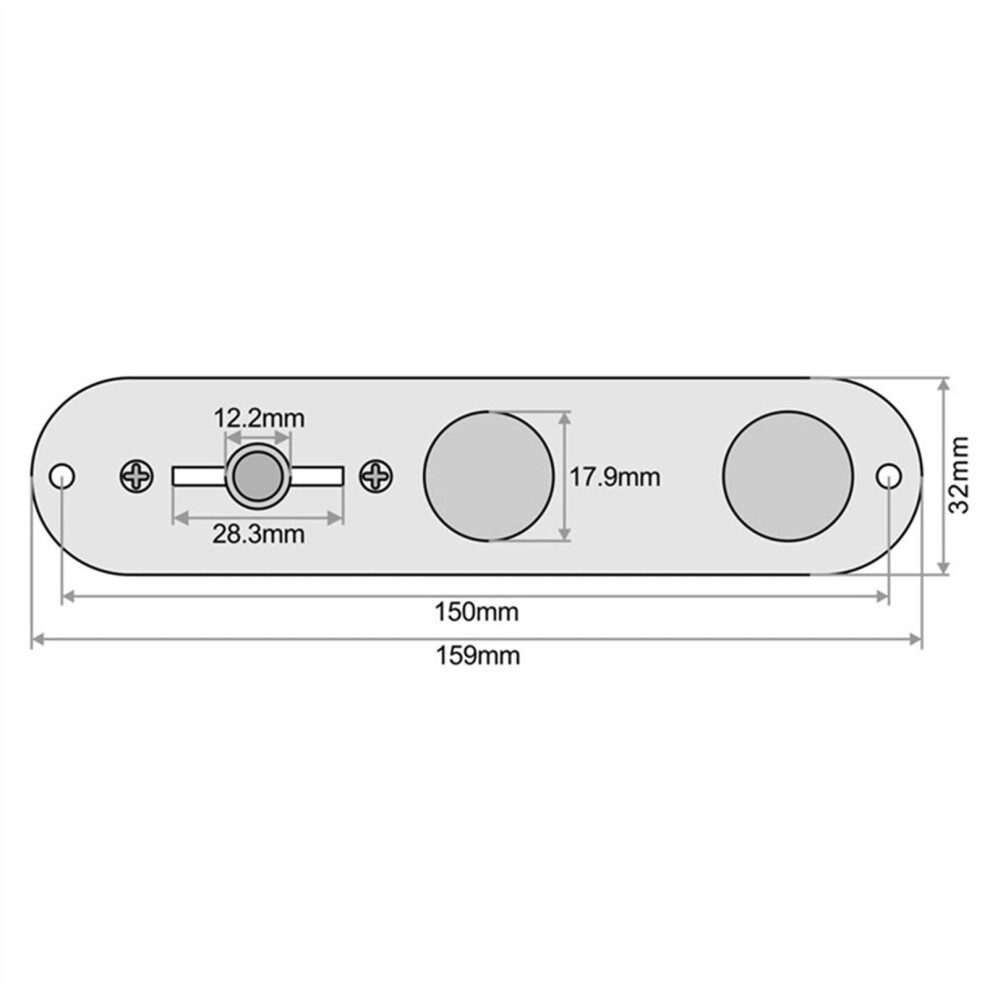

Prewired Wiring Harness Kit Control Plate 3Way Converter for TL with Output Electric Guitar Circuit Board This prewired harness converts and organizes the control wiring for TL style guitars into a single, readytoinstall assembly. It combines a 3way switching converter with an integrated output circuit board, reducing installation time and minimizing soldering errors. The kit is designed to fit standard TL control plates and control cavities for straightforward replacement or upgrade. Key benefits Quick installation: prewired connections reduce the need for custom soldering and shorten setup time. Reliable switching: integrated 3way converter and output board simplify signal routing for consistent performance. Neat, compact design: all components mounted on a small circuit board to fit TL control plates and maintain a clean cavity layout. Reduced error risk: factorywired harness lowers the chance of wiring mistakes that can cause noise or malfunction. Versatile use: suitable for repairs, upgrades, and builds on TL style electric guitars. What it does Provides a preassembled control plate harness with a 3way switching converter for common TL wiring configurations. Routes pickup signals through a compact output circuit board that connects to the guitar output jack and controls. Replaces or upgrades existing control plate wiring without major modifications to the cavity or control plate. Compatibility and fit Designed for TL style guitars and standard TL control plates and cavities. Works where a 3way pickup selector and conventional TL control plate layout are required. Construction and performance Assembled on a compact circuit board for stable mounting and organized wiring. Prewired leads sized for typical electric guitar connections to the selector, pots, and output jack. Intended to deliver consistent switching behavior and maintain signal integrity when installed correctly. Practical use scenarios: a damaged or noisy wiring harness in a TL style guitar to restore reliable switching and output. Upgrade: Install the kit during an electronics upgrade to reduce installation time and achieve a cleaner wiring layout. build or custom assembly: Use the prewired control plate to streamline the assembly process for a TL style guitar, reducing the need for onsite soldering. Contents and installation notes Prewired control plate harness with integrated 3way converter and output circuit board. Designed for direct fit to standard TL control plates; basic soldering to the pickup leads and output jack may be required. Follow standard guitar wiring safety practices and verify fit before final assembly. This kit provides a practical, timesaving solution for anyone working on TL style guitars who needs a neat, reliable control plate wiring assembly with a builtin 3way converter and output board.
