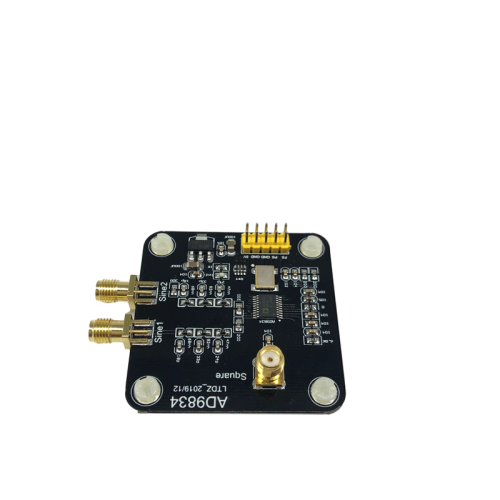

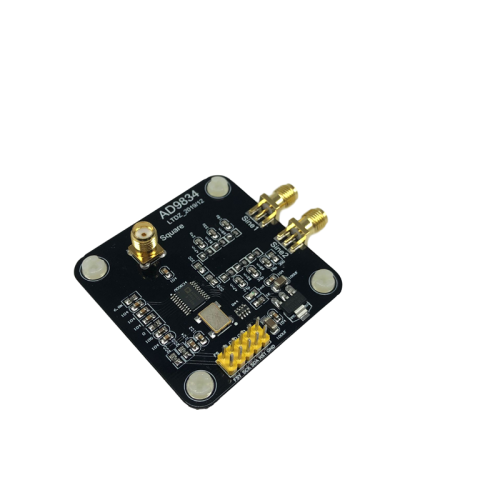

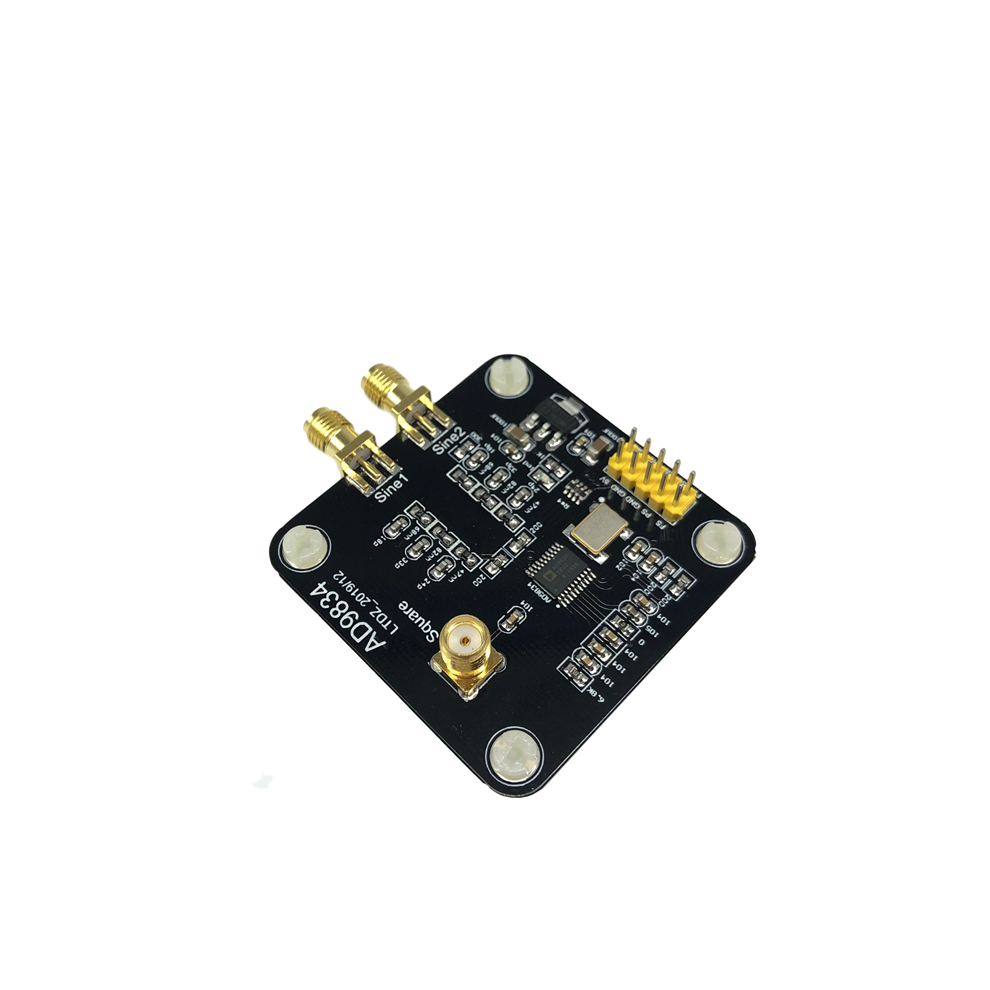

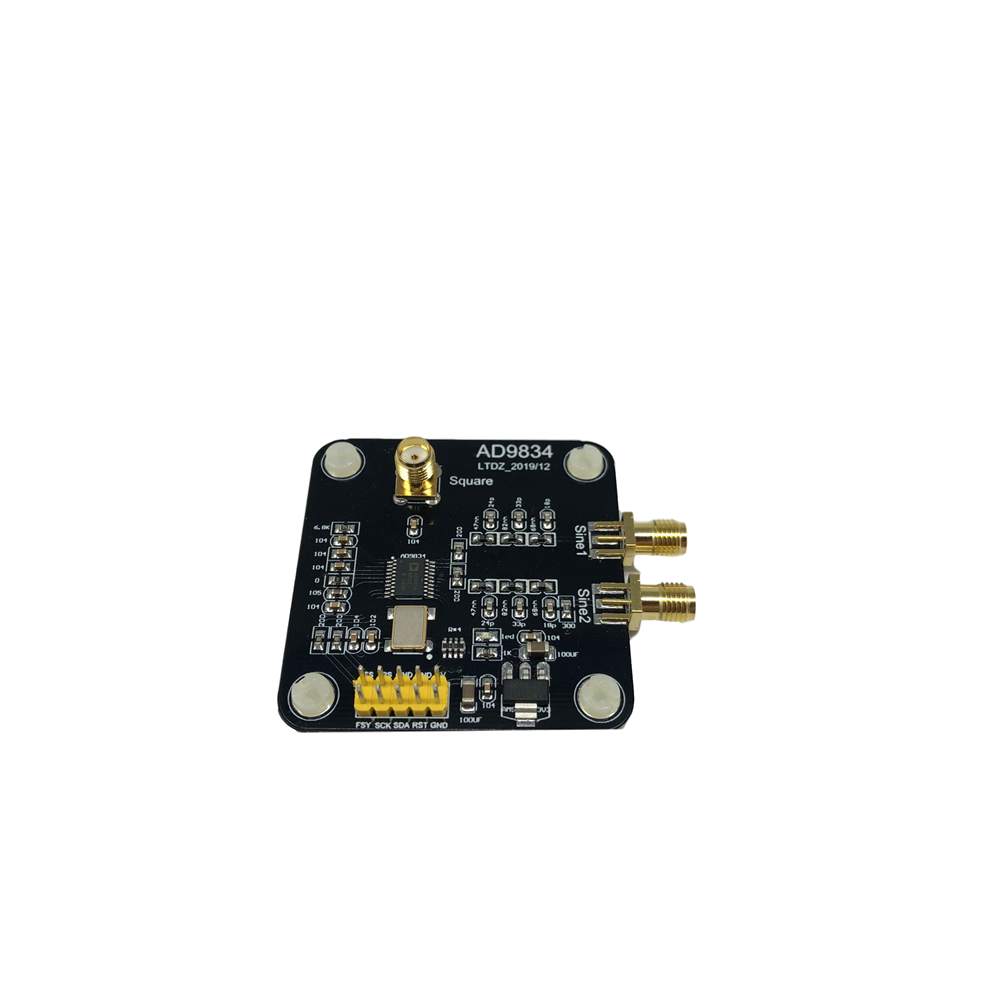

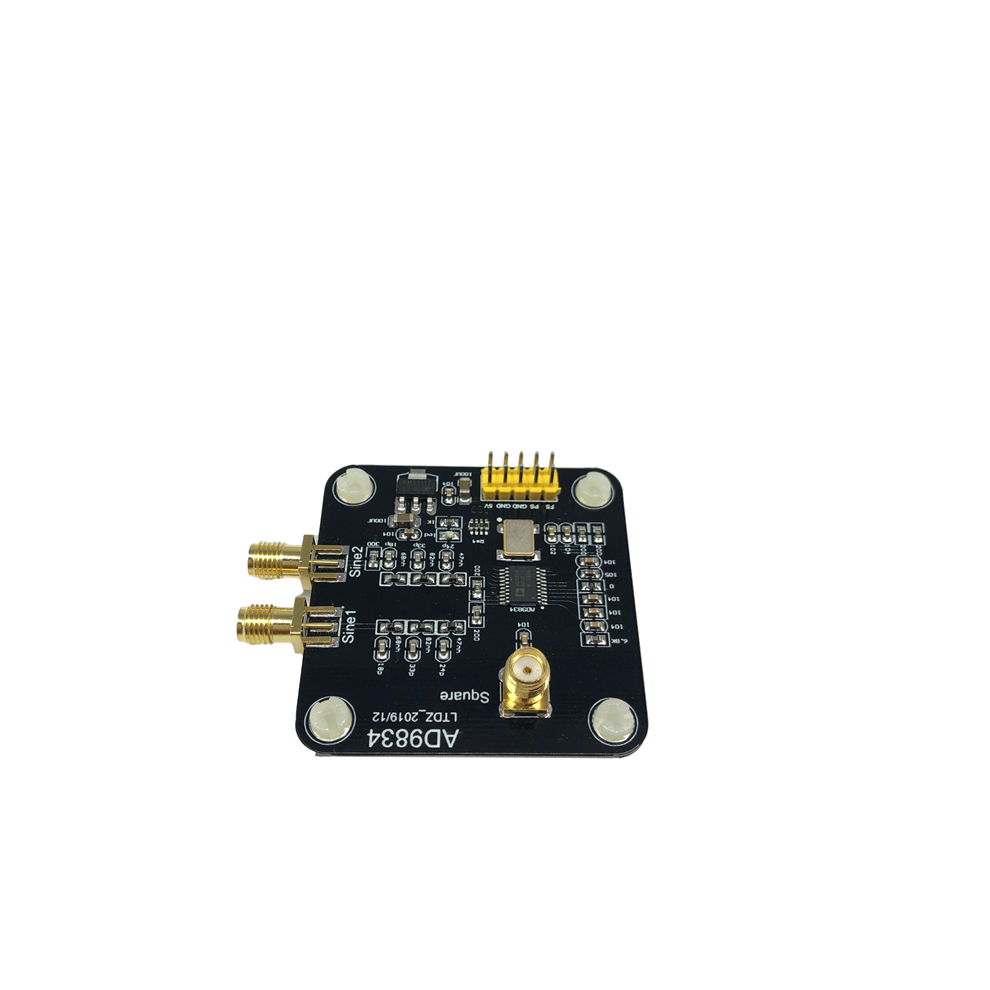

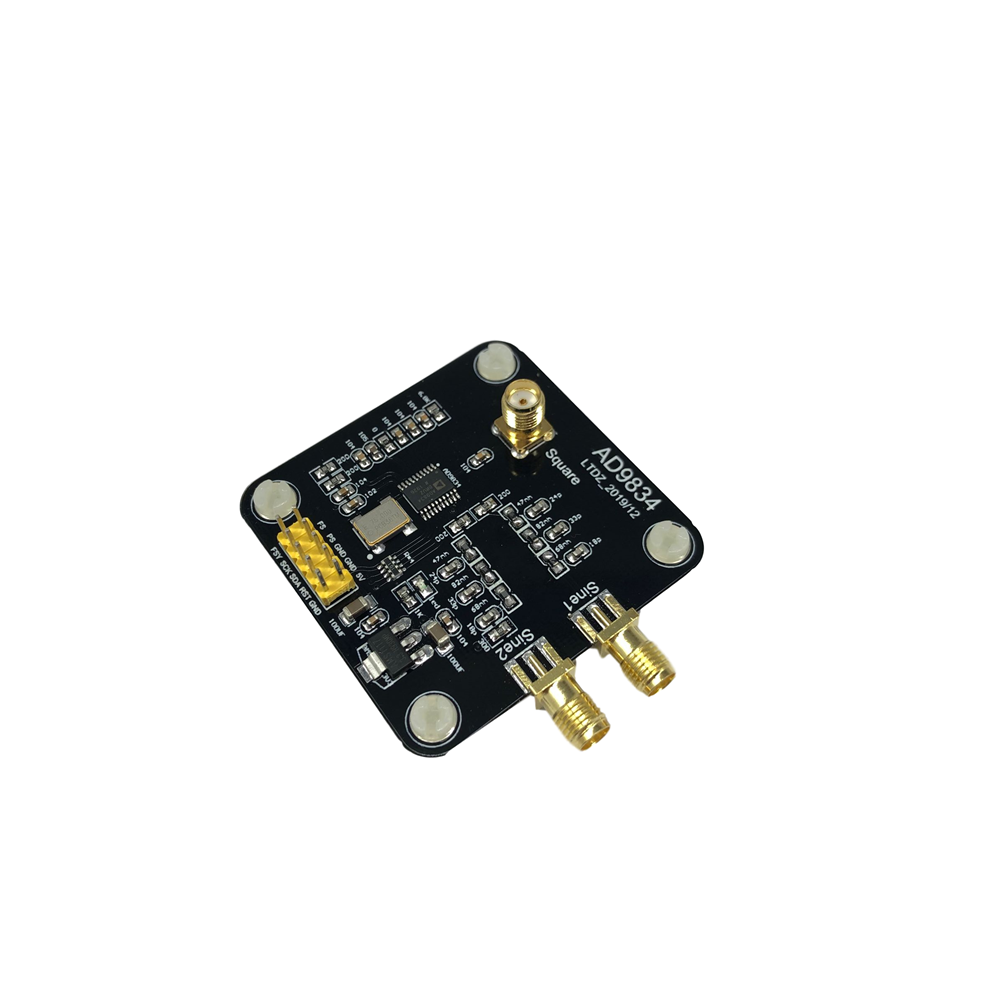

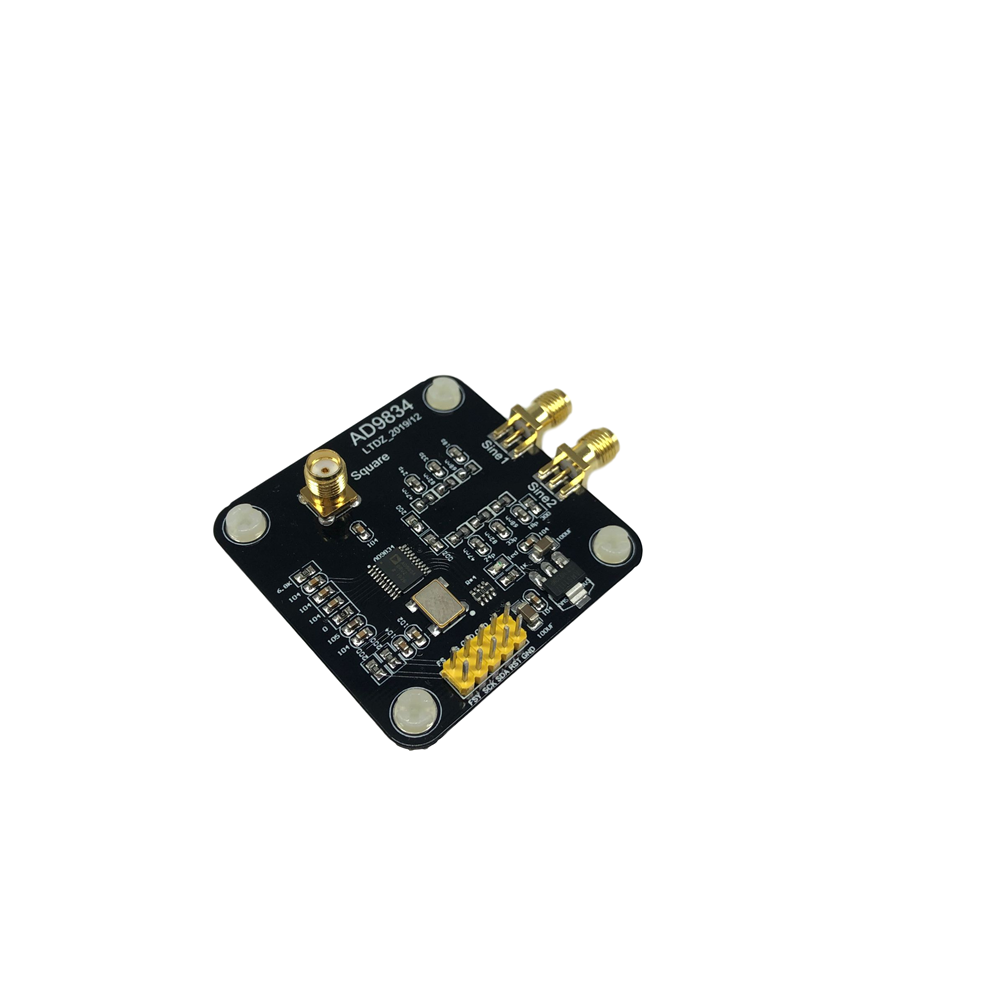

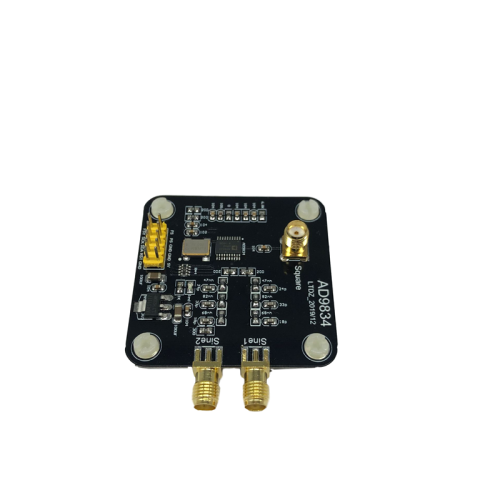

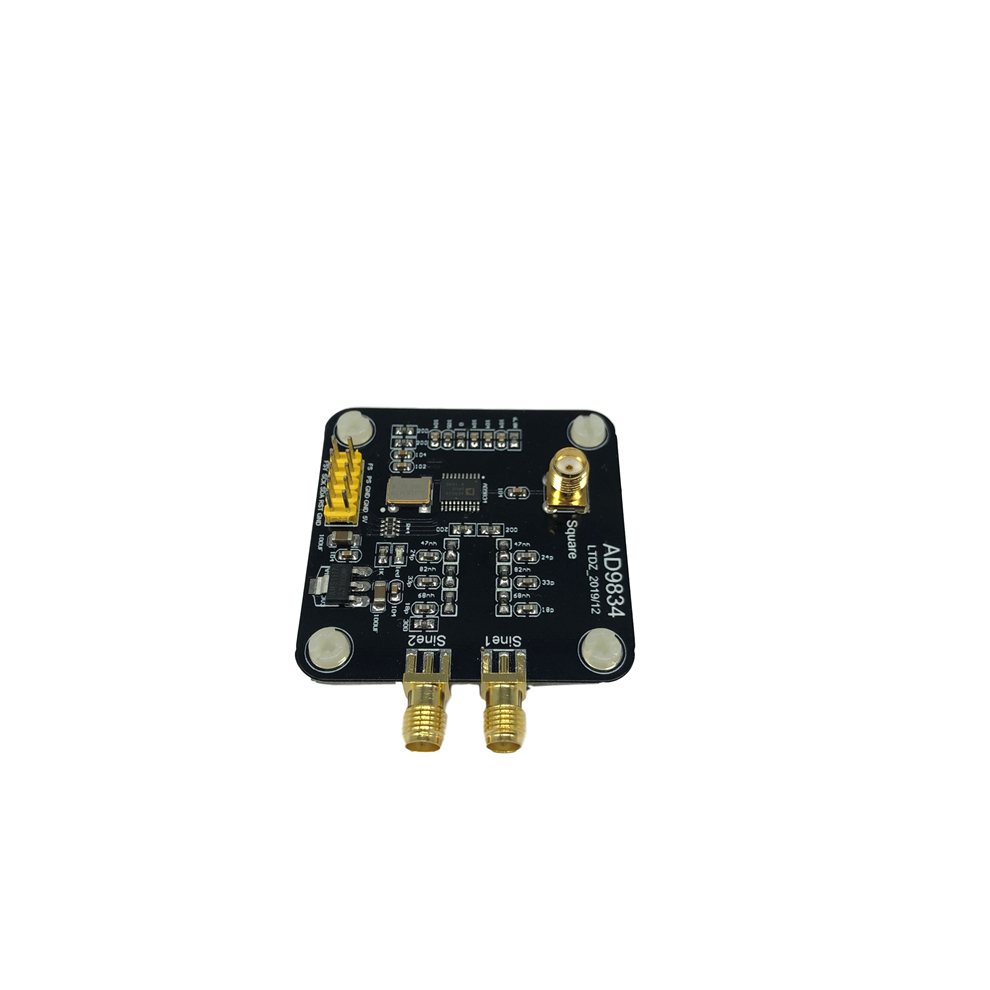

Professional DDS Signal Generator Module AD9834 Sine Triangle Wave Output

Professional DDS Signal Generator Module AD9834 Sine Triangle Wave Output Description

Feature:
DDS device with low power (only 20mW at 3V supply voltage), higher performance.
Sinusoidal / triangular shapes can be produced.
With phase modulation and FM function.
You can write data through a three-line serial interface.
Independent analog and digital parts, can be used with different power supplies.
Includes a control pin (SLEEP) to support shutdown mode control from the outside.
It can be widely used in the application of frequency excitation / wave generation, low-power RF / communication system, liquid and air flow measurement, sensor and medical equipment.

Specification:
Supply voltage: 5V
Power consumption: 20mW
Narrow-band rail output:> 72dB
Output frequency: up to 37.5 MHz
Wave output: sine / triangle waveforms
Comparator: On-chip comparator
Interface: Three-wire serial peripheral interface
Extended temperature range: -40??C ~ +105??C
Power saving options: Yes
Power consumption: 20MW (3V)

Package included:
1 * Signal generator

Notes:
1. Please allow minor errors due to manual measurement.
2. The test image is for reference only, please in kind prevail.
