Programmable Digital Time Switch Relay Timer Contr

Programmable Digital Time Switch Relay Timer Contr Description

Perfect for household use in DB Boards 3500 Watt / 16 Amps
24 hours / a week programmable
Built-in rechargeable Battery for backup the memory when power failure
Auto time error correction +/- 30 sec, weekly
Repeat programs with 17 on/off settings, and setting on/off manually

Technical Data:
Model:TM919A-2 220V AC
Temp.range: -20C+50C
Power consumption 4.5 VA (MAX)
Display: LCD
Switching contact: 1 changeover switch
Programs:16 on/off each day or week
Hysteresis 2 sec/day (25C)
Mini interval: 1min
Capacity: 16(8) 250V AC
Black-out: 60 days
Timer range: 1min~168hr
Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25C
Colour:White
Material:Plastic

Package Contents:

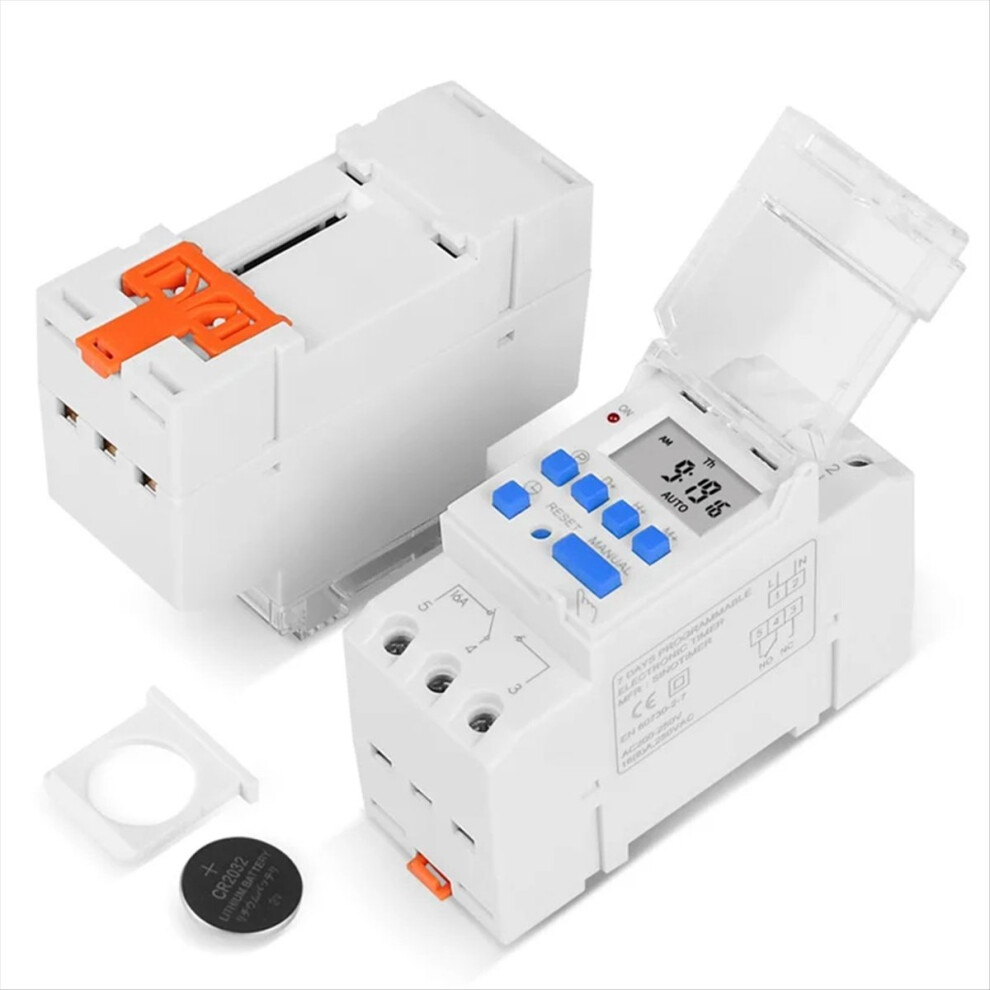

1x Timer Switch TM919A

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
