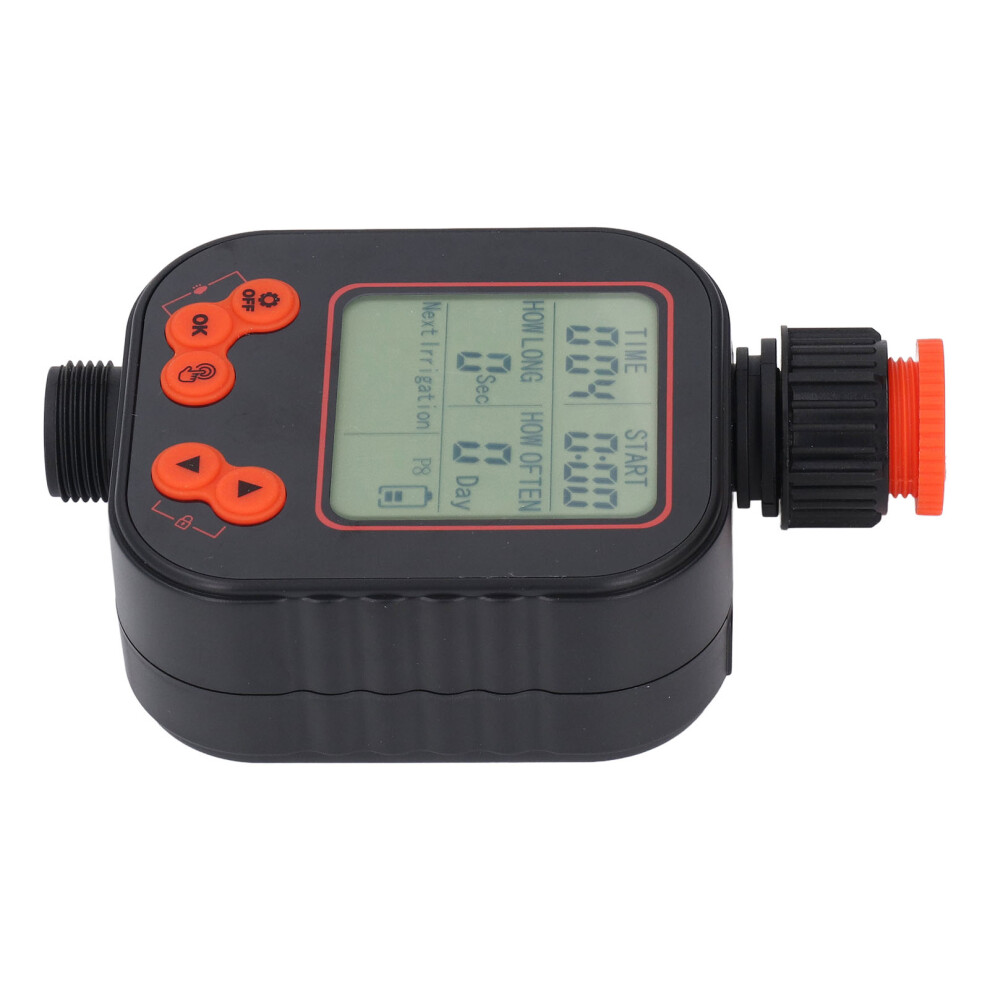

Programmable LCD Water Timer with Rain Sensor G3/4 Female Thread, 150x92x47mm

Programmable LCD Water Timer with Rain Sensor G3/4 Female Thread, 150x92x47mm Description

Automatic Watering Timer G3/4 Female Thread Programmable LCD Display Digital Irrigation Water Timer with Rain Sensor for Faucet
Item Type: Watering Timer
Material: ABS
Product Size: Approx. 150 x 92 x 47mm / 5.9 x 3.6 x 1.9in
Gross Weight: Approx. 318g/11.2oz
Controller Thread: Female G3/4
Adapter Thread: G3/4 Male Thread to G1/2 Female Thread
Use: Cooling, watering, landscaping. This product is suitable for courtyard, balcony, home green wall, three dimensional greening micro sprinkler, drip pipe, seepage irrigation automatic control products.
1. Battery (without battery delivery): Use 2 AA alkaline dry batteries.
2. 8 timer control programs can be set.
3. Can set the maximum opening time 599 minutes, interval 1 to 30 days.
4. Use large LCD display.
5. With unlimited duration of the temporary open function.
Remarks: Suitable for water pressure 1-8kg, flow rate 500-1700L/H, suitable for water temperature 1-50.
Setting Steps:
1. For initial setup, press the Menu Off key to enter the Current Time setting. Use the UP or DOWN key to set the hour, press OK, then use the UP or DOWN key to set the minutes. Press OK again to confirm and finish setting.
2. Automatically enter the Watering Start setting. Use the UP or DOWN key to set the hour, press OK Set, then use the UP or DOWN key to set the minutes. Press OK Set again to confirm and finish setting.
3. Automatically enter the Watering Duration setting. Set the watering time from 1 second to 599 minutes (maximum 9 hours 59 minutes) using the UP or DOWN key. Press OK to confirm the setting.
4. Automatically enter the Interval Days setting. Set the watering frequency from 1 day to 30 days using the UP or DOWN key. Press OK to confirm the setting.
5. For manual watering, press Manual, then use the UP or DOWN key to set the watering duration. Press OK to confirm. To stop manual watering, press Menu Off to switch back to automatic mode.
6. In the full screen without setting state (the relevant settings without flashing), press "UP" or "DOWN" to view "P1" to "P8" 8 timing procedures at any time press "Confirm" to set the timing. Press "UP" or "DOWN" to view "P1" to "P8" 8 timer programme at any time, press "Confirm" to set the timer. At the same time long press the "UP" and "DOWN" key, can close/open the child lock function, the lock icon appears, that is, the child lock function has been opened, the icon disappears, that is, the child lock function has been closed; at the same time long press the "UP" and "DOWN" key, can close/open the child lock function; at the same time long press the "UP" and "DOWN" keys at the same time, you can turn off/on the rain function, the rain icon appears to indicate that the rain function is on, and the rain icon disappears to indicate that the rain function is off.
