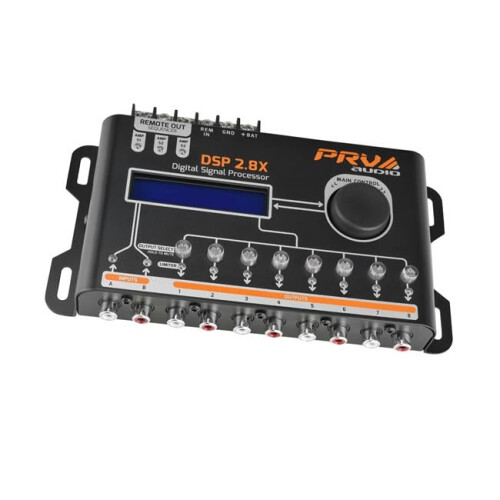

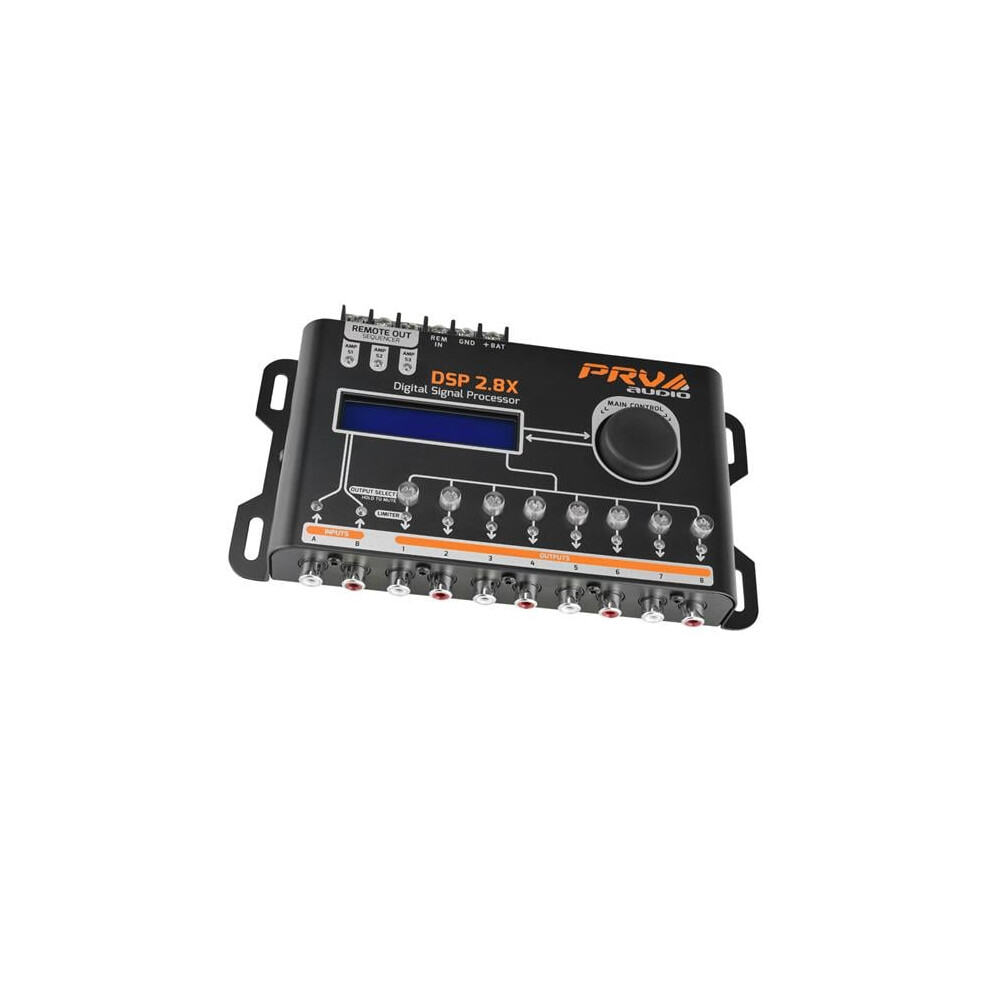

PRV Audio DSP2.8X 8 Channel Digital Signal Processor

PRV Audio DSP2.8X 8 Channel Digital Signal Processor Description

Bringing innovation and technology to the Automotive Sound market, PRV Audio launches the DSP2.8X Digital Signal Processor, capable of making various Real-time signal adjustments, from crossover filters, graphic and parametric equalization, alignment, phase inversion, limiter, audio generator, among others. Enhancing Your Audio System.

Through an LCD display and intuitive interface, it allows real-time audio adjustments. The DSP 2.8X features 2 audio inputs (A and B) and 8 independent outputs and allows you to choose the audio source (A, B or A + B) for each output. It has an integrated equalization system, with 15-band graphic equalizer, manual tuning, or through 12 presets (Flat, Loudness, Bass Boost, Mid Bass, Treble Boost, Powerful, Electronic, Rock, Hip Hop, Pop, Vocal and Pancado).

Features

• 8 Channel Digital Signal Processor
• Graphic input equalizer (15 bands and equalization presets)
• Parametric input equalizer (frequency, gain, Q factor)
• Parametric equalizer per output (frequency, gain, Q factor)
• Routing between inputs and outputs
• High precision crossover with Butterworth and Linkwitz-Riley filters and attenuations up to 48dB/8th
• High precision alignment/delay
• Phase inversion
• Limiter with Threshold, Attack and Release adjustment
• Independent gain and mute per output and master volume
• Working memory with automatic saving of settings
• Allows you to save and load the settings made by the user
• Security password to block parameter modification
• Frequency generator, frequency sweep and pink noise generator
• Screen saver with rotating text
• Outputs for remote activation with configurable sequencing

Specifications

• Number of processors (DSPs): 1
• Input Channels: 2
• Output Channels: 8
• Output Gain: Yes
• Master Level: 0 ~ 100%
• Graphic Equalizer: 15 Band
• Graphic Equalizer Presets: 12
• Parametric Equalizer Output: 1
• Routing: A,B / A+B
• Crossover Butterworth (dB/8 ): 12/18/24/36/48
• Limiter: Yes
• Delay: 0 to 8 ms (275 cm)
• Frequency Generator: 10Hz - 22kHz, Level -60 at 0dB
• Display: LCD 16x2 Characters
• Security Password: Yes
• Frequency Response(+/-3dB): 10Hz @ 22.5kHz @ -1dB
• Latency: 1.08ms
• Signal to Noise: >90dB
• Channel Separation: > 80 dB
• Maximum Input Voltage: 5,6 Vpp (+8,2 dBu)
• Supply Voltage: 10V to 15V DC
