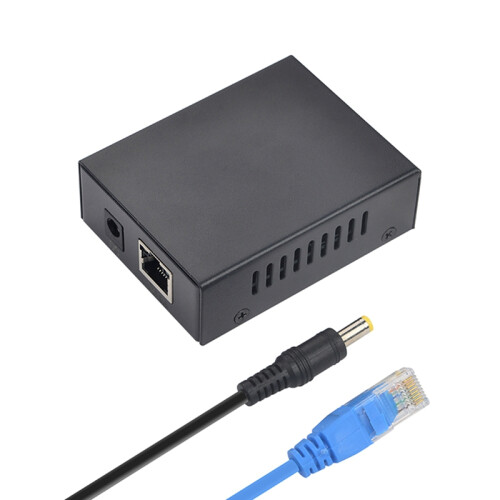

PS1248G Metal Shell 60w DC Input 4-Pair 1000Mbps Standard 12V 4A 48W

PS1248G Metal Shell 60w DC Input 4-Pair 1000Mbps Standard 12V 4A 48W Description

PS1248G 4Pairs High-Power active splitters enable data terminals that were not originally designed to accept power from the Ethernet, to be powered by Power over Ethernet midspans. The PDAS- PS1248-4P High Power splitter can power devices such as WiMAX CPEs, small WiMAX base-stations, 802.11n Access-Points, Thin- Clients, PTZ (Pan/Tilt/Zoom) IP Cameras, Video-Phones and more
High Power Splitter Solution
Many contemporary terminals are designed and deployed without the ability to accept power via their LAN input.
Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Moreover, such devices might only accept voltage levels lower than the PoE standard minimum voltage (44v in IEEE802.3af / 50v in 802.3at). Using the PS1248-4P high power splitter, these terminals immediately become PoE-ready without any modification required on their side.
The splitter is identified as a powered device (PD) in front of the powering Midspan and after being detected and powered, it physically splits the data and power streams, arriving over a single cable, into wo separate cords (LAN & DC) which go directly to the data terminal. Voltage regulation is also performed to the level required by the terminal

Technical Specifications

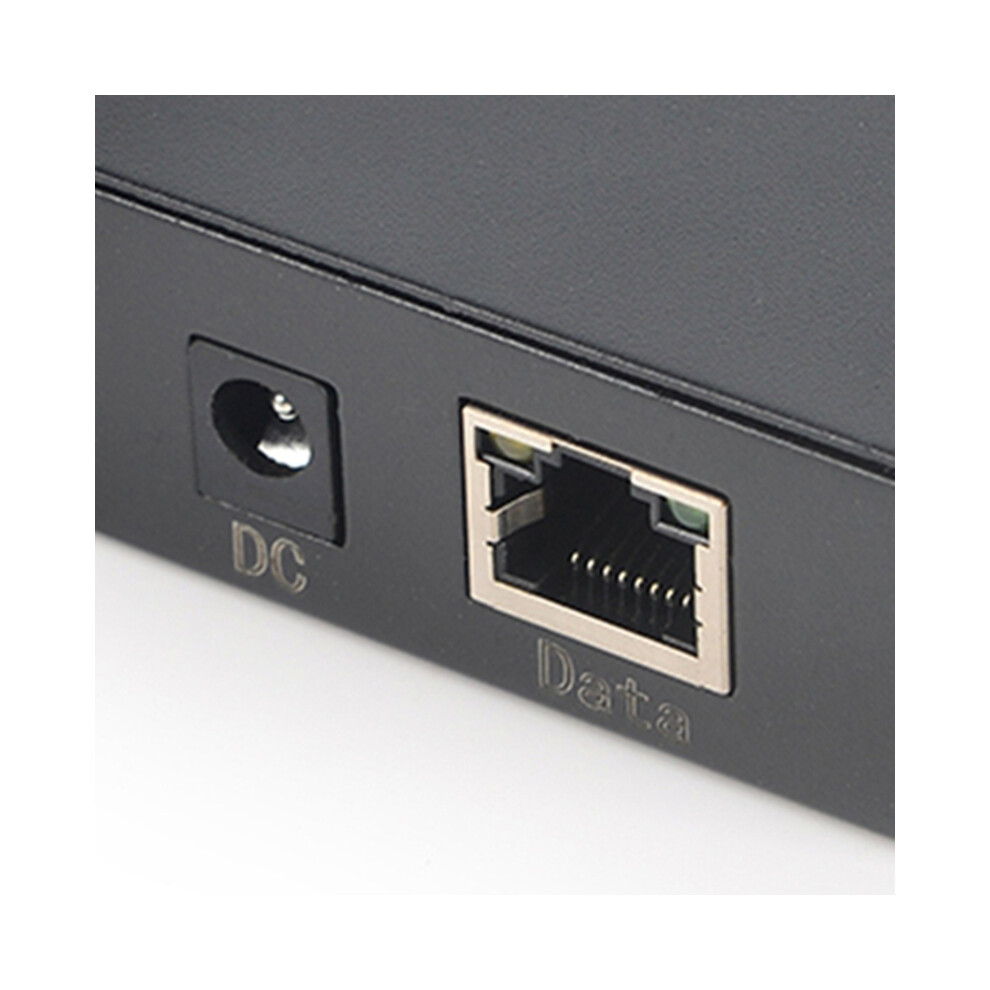

Connectors: 2 x RJ-45, shielded, EIA 568A and 568B DC Jacks On unit: 5.5X2.1mm
Data Rate: 10/100/1000
Electrical Pin Assignment & Polarity: 3/6 (+),1/2 (-) and 4/5 (+),7/8 (-)
Input voltage: 44 - 57
Input power: 60W max
Output power: 51W max
Output Current: 4.2A@12V
Indicators :Output Power Indicators: Green LED Environmental Operating Temp: -20 to 40C
Storage Temp: -30 to 70C
Operating Humidity: 10% to 90%, non-condensing
Storage Humidity: 5% to 95%, non-condensing
Electromagnetic Emissions FCC Part 15 Class A & Immunity EN60950
Color: Black
Material: Aluminum Alloy

Package Contents:
1 x Gigabit PoE Splitter (Due to different product batches, the appearance , which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
