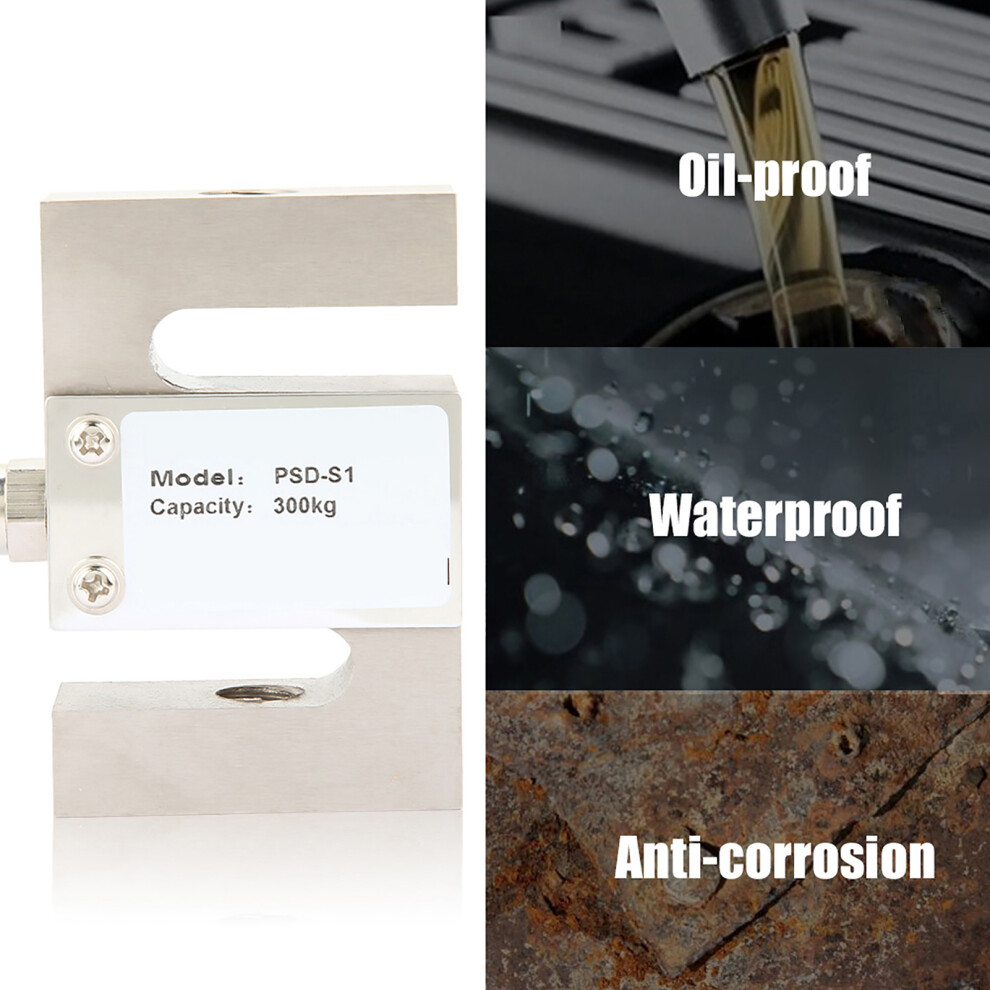

PSD-S1 High Precision Load Cell Scale Sensor 300KG Waterproof IP67

PSD-S1 High Precision Load Cell Scale Sensor 300KG Waterproof IP67 Description

S TYPE High Precision Load Cell Scale Sensor Weighting Sensor With Cable 300KG
Features:

.


Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.


S beam design. Precise and stable. Easy installation.


Suitable for mixing station, batching machine, asphalt station, etc.


Safe and anti-explosive product, can be used in bad environment and hazardous areas.

Specifications:
Model:PSD-S1
Material: metal
Type: weighting
Physical properties of materials: conductors
Process: film
Output signal: analog
Protection grade: IP67
Linearity: 0.02（%F.S.）
Delaying: 0.02（%F.S.）
Repeatability: 0.01（%F.S.）
Sensitivity: 2.0mv/v
Drifting: 0.02%F.S
Input impedance: 3505Ω
Output impedance: 3505Ω
Application: Mixing station, batching machine, asphalt station, etc.
Measuring range(Optional): 50kg, 100kg, 300kg, 2000kg
Quantity: 1PC
Weight: 502g(load cell 50kg), 551g(load cell 100kg), 575g(load cell 300kg), 712g(load cell 2000kg)
Wire connecting method:
Input: Red wire(+), Black wire(-)
Output: Green wire(+), White wire(-)
Yellow wire(GND)
Package Included:
1 x Weighting Sensor
Note:Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
