PTC08 Serial Camera Serial Port Camera Module RS232

PTC08 Serial Camera Serial Port Camera Module RS232 Description

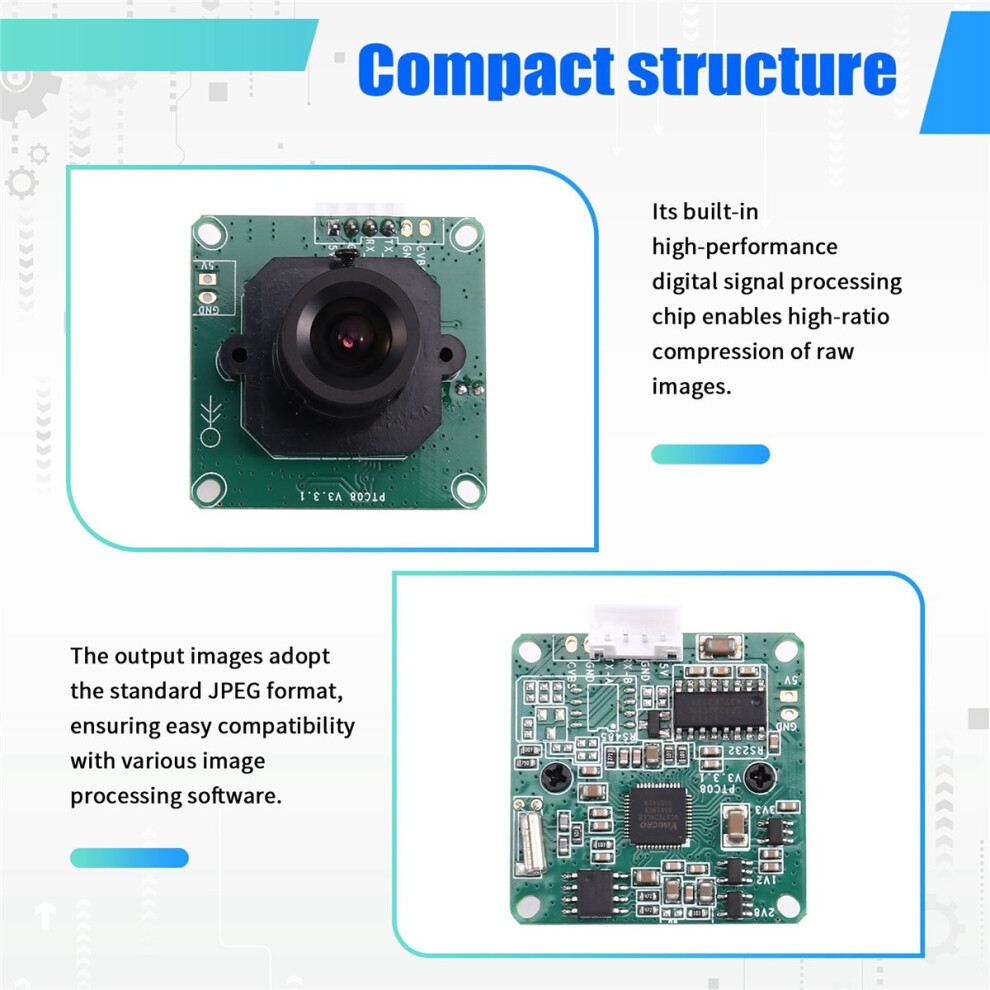

PTC08 is an industrial-grade image acquisition and processing module that integrates image capture, control, data compression, and serial transmission. Its built-in high-performance digital signal processing chip enables high-ratio compression of raw images. The output images adopt the standard JPEG format, ensuring easy compatibility with various image processing software.
The module features a standard three-wire -232 communication interface and a simple image transmission protocol, allowing seamless connectivity with computers and embedded systems. Additionally, it includes a reserved infrared fill-light interface, which supports external infrared light panels for clear imaging under various lighting conditions.

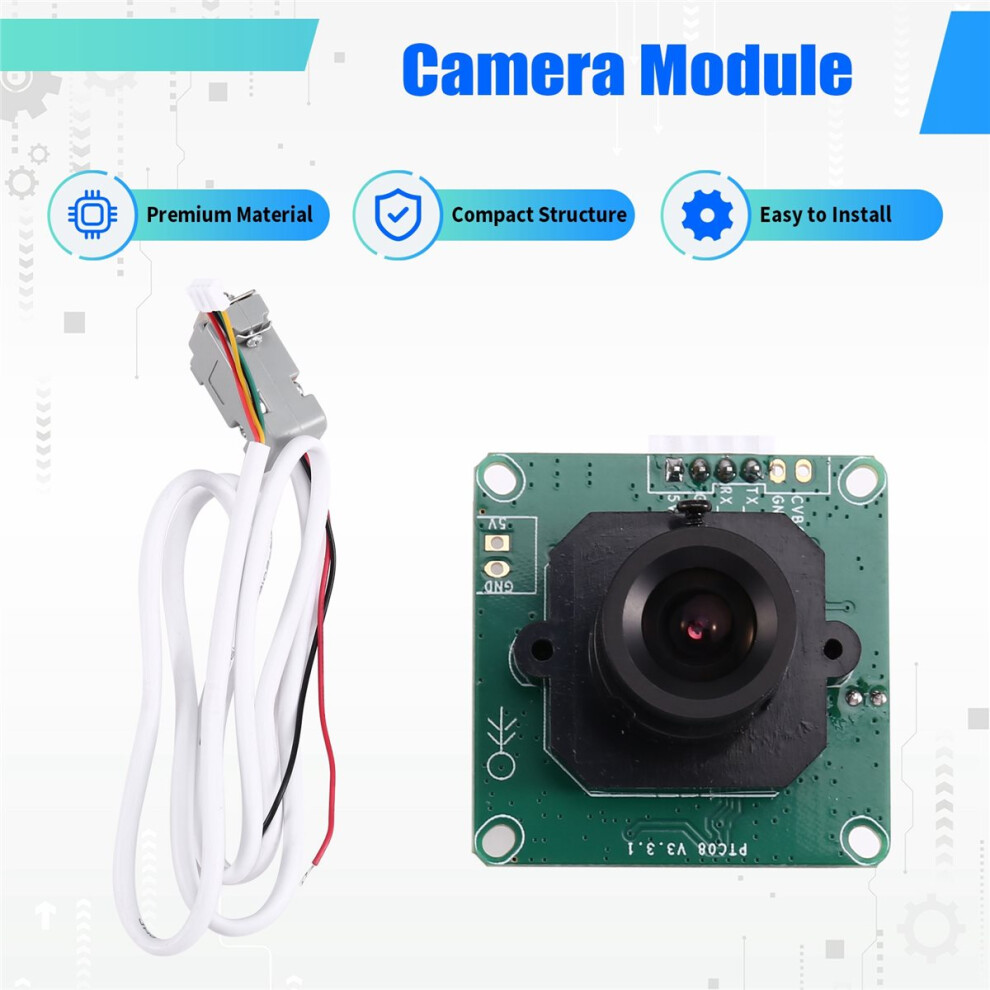

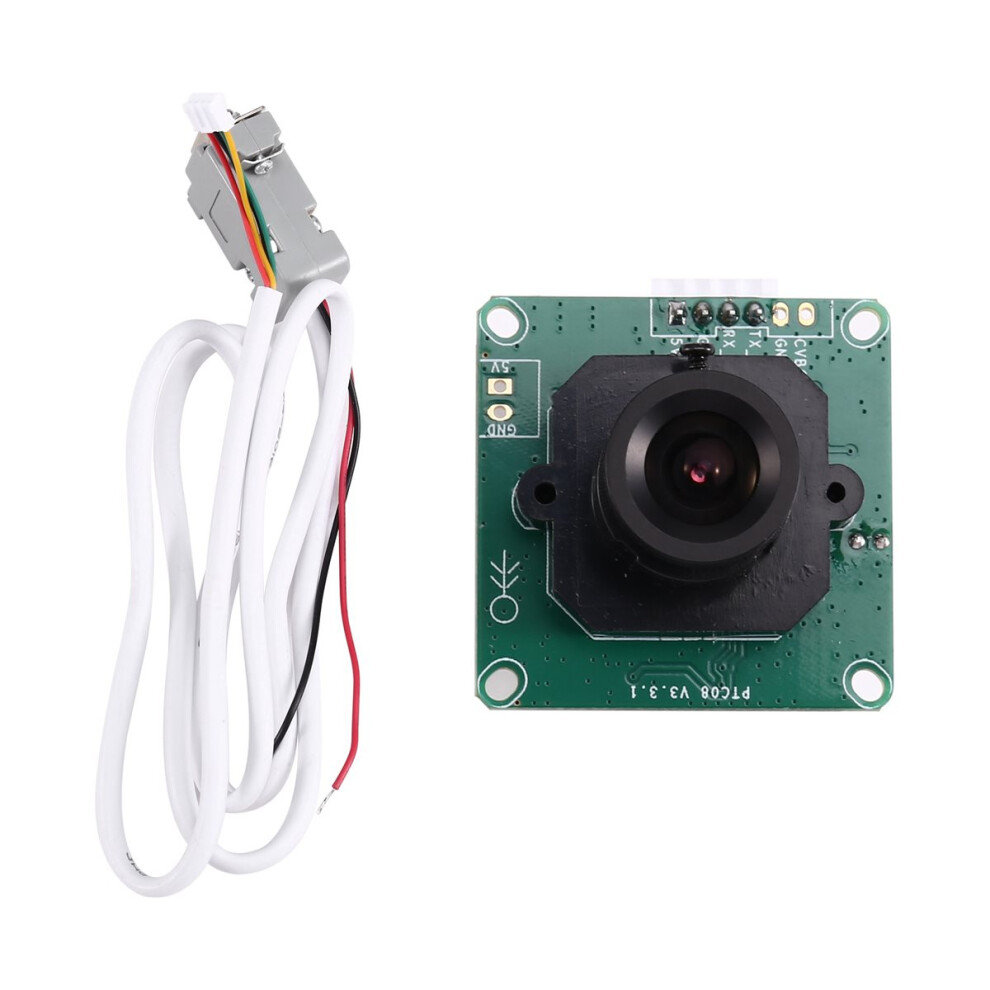

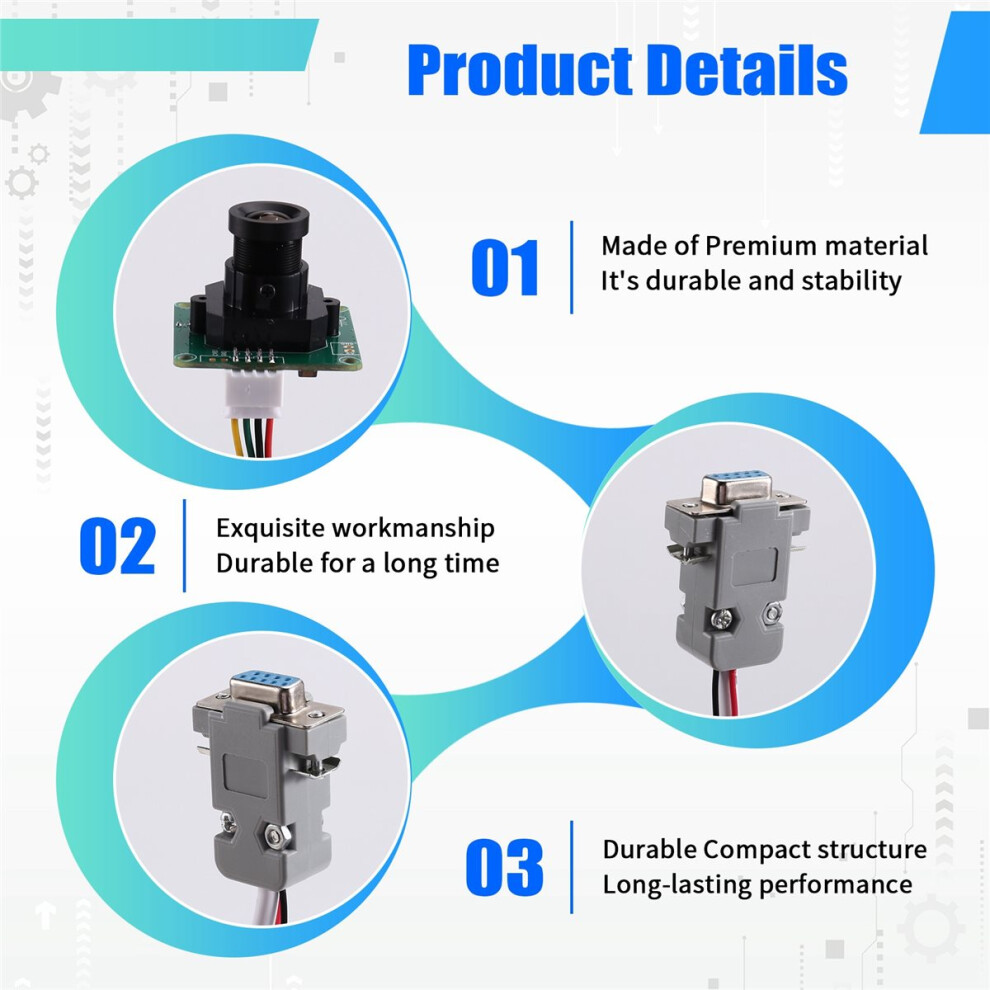

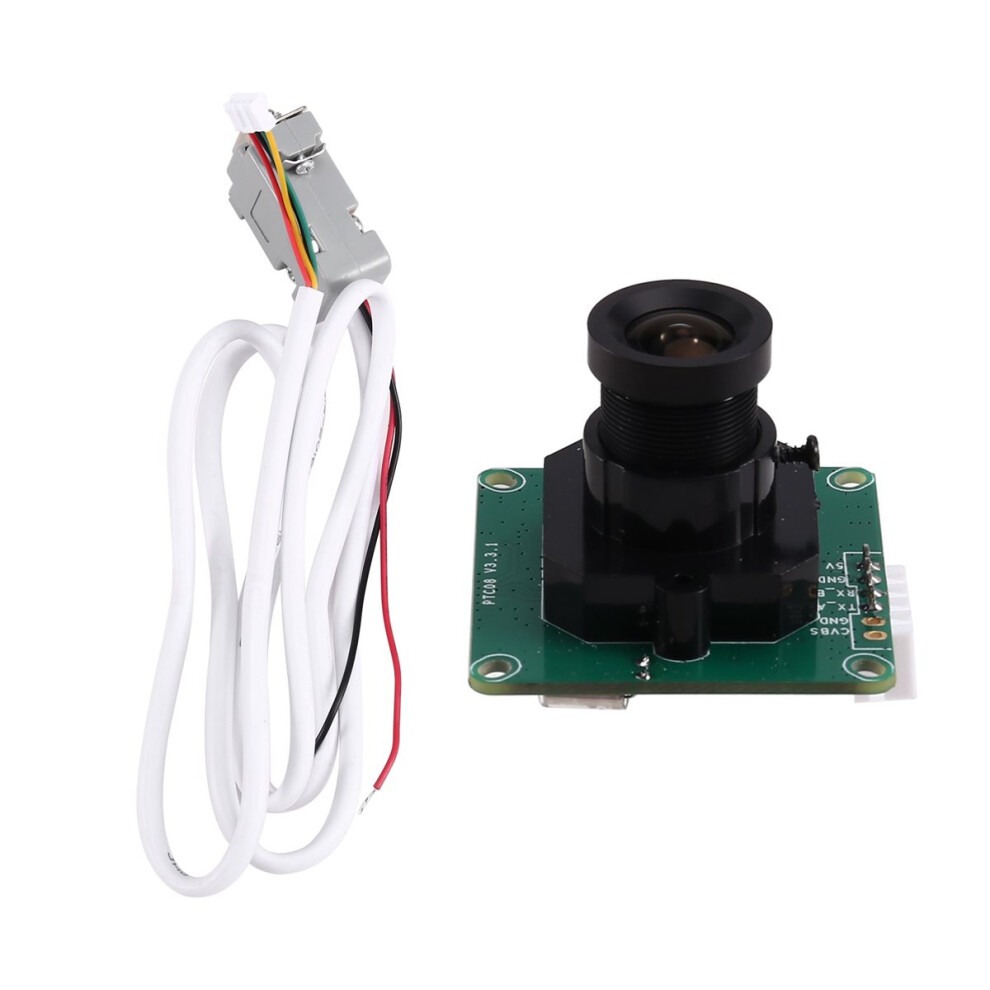

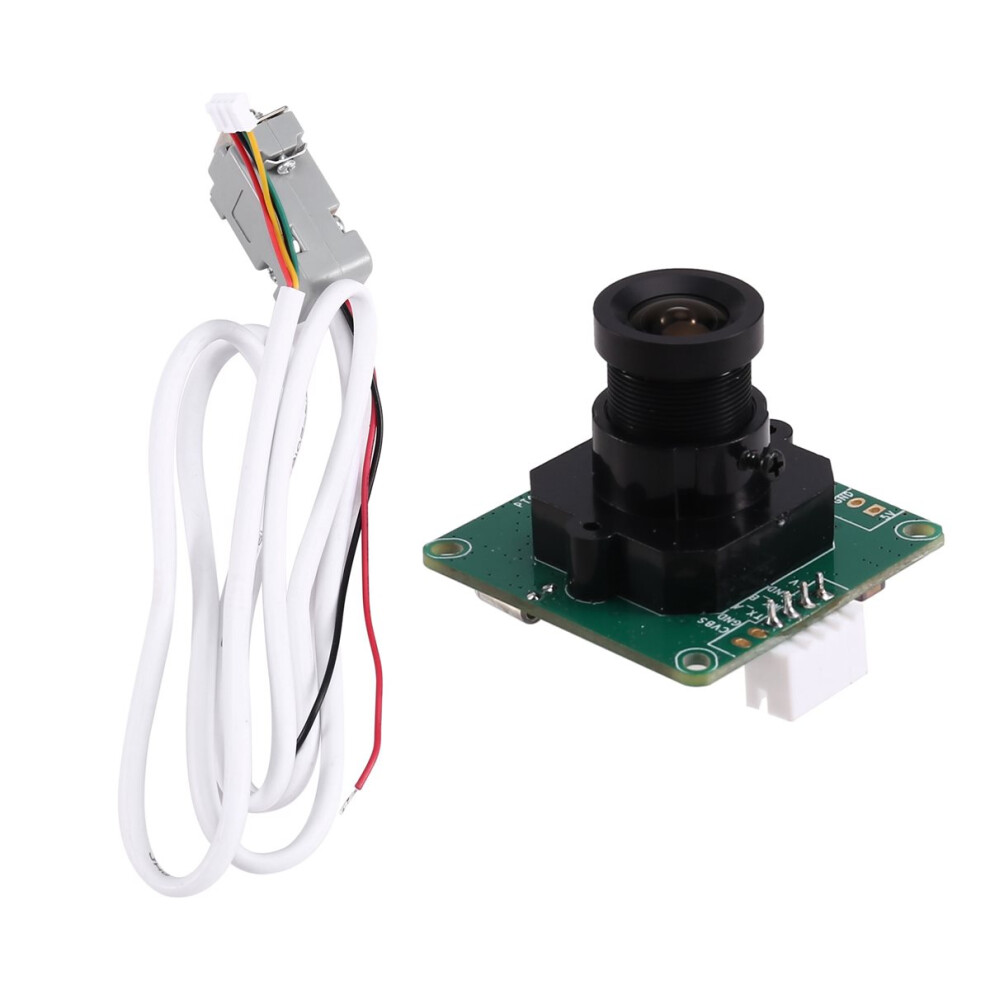

The PTC08 Serial Camera Module consists of two main parts: the module body and the serial connection cable. These two components are linked via a 4-pin 2.0mm pitch standard connector, which allows for easy plugging and unplugging.
Module board size: 32mm x 32mm
Image sensor type: CMOS 1/4 inch
Image pixel: 300,000
Pixel size: 5.6um x 5.6um
Output format: standard JPEG/M-JPEG.
White balance: automatic
Exposure: automatic
Gain: automatic
Shutter: electronic rotary shutter
Signal to noise ratio: 45DB
Dynamic range: 60DB
Maximum analog gain: 16DB
Frame rate: 640*480 30fps
Scanning mode: scanning
Monitoring distance: about 10 meters. Max. 15m, adjustable
Image size: VGA(640x480), QVGA(320x240)
Serial port rate: 38400 by default and 115200 by maximum.
Operating current: 75MA
Working voltage: DC +5V
Communication interface: RS232 (three-wire TX, RX, GND)
Color:As Shown
Material:PC

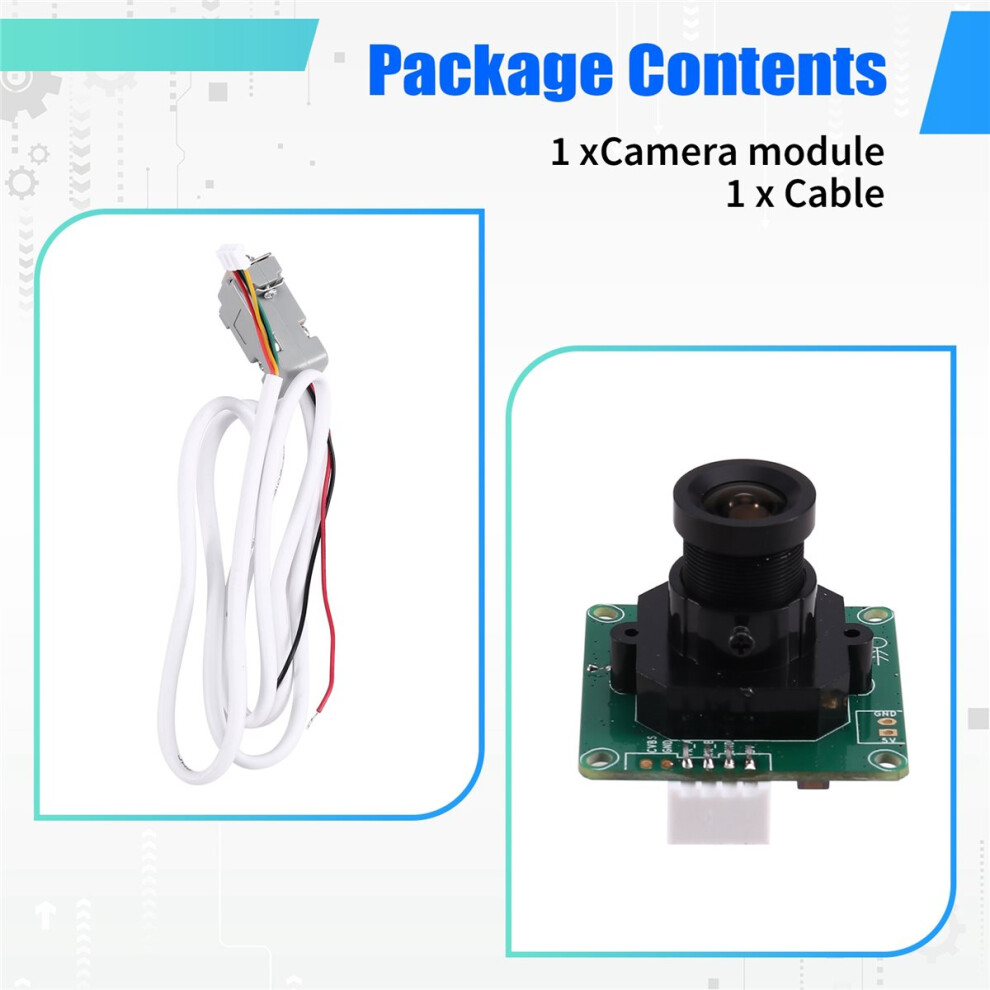

Package Contents:
1 * Camera module
1 * Cable

Only the above package content, other products are not included.
