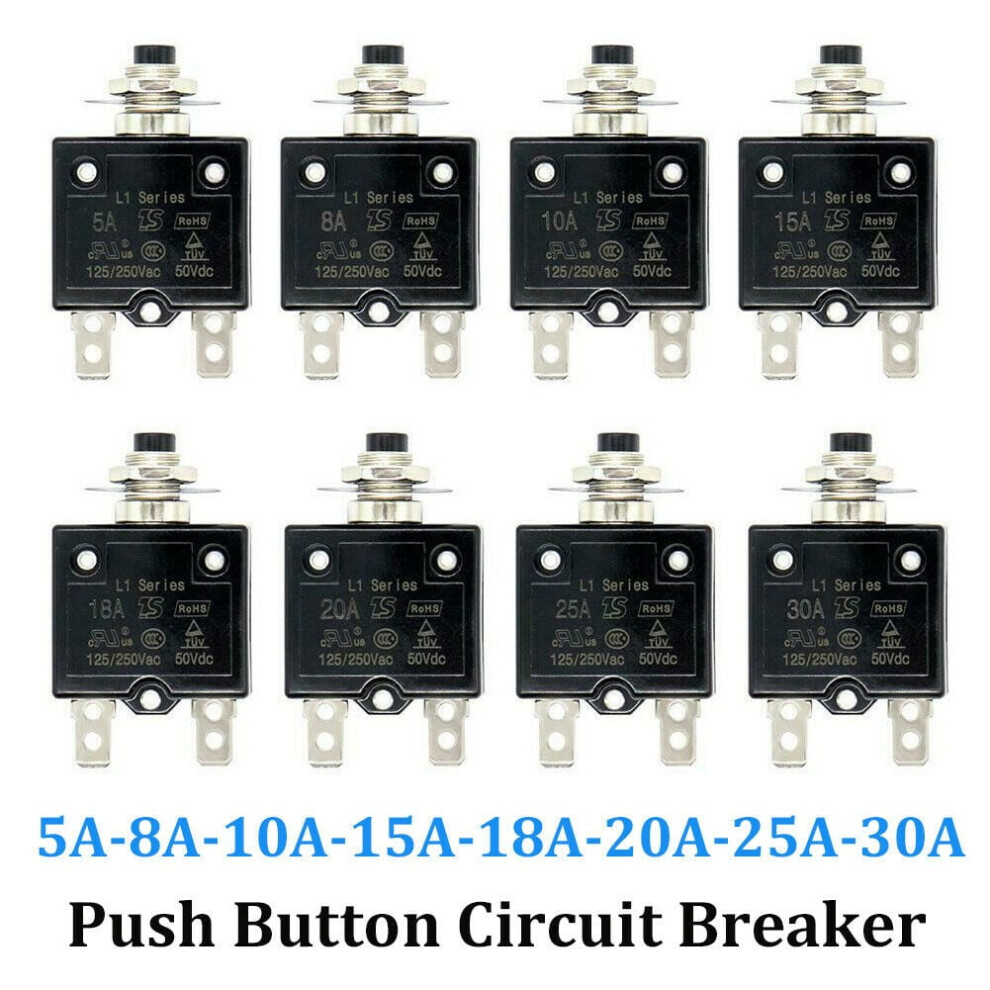

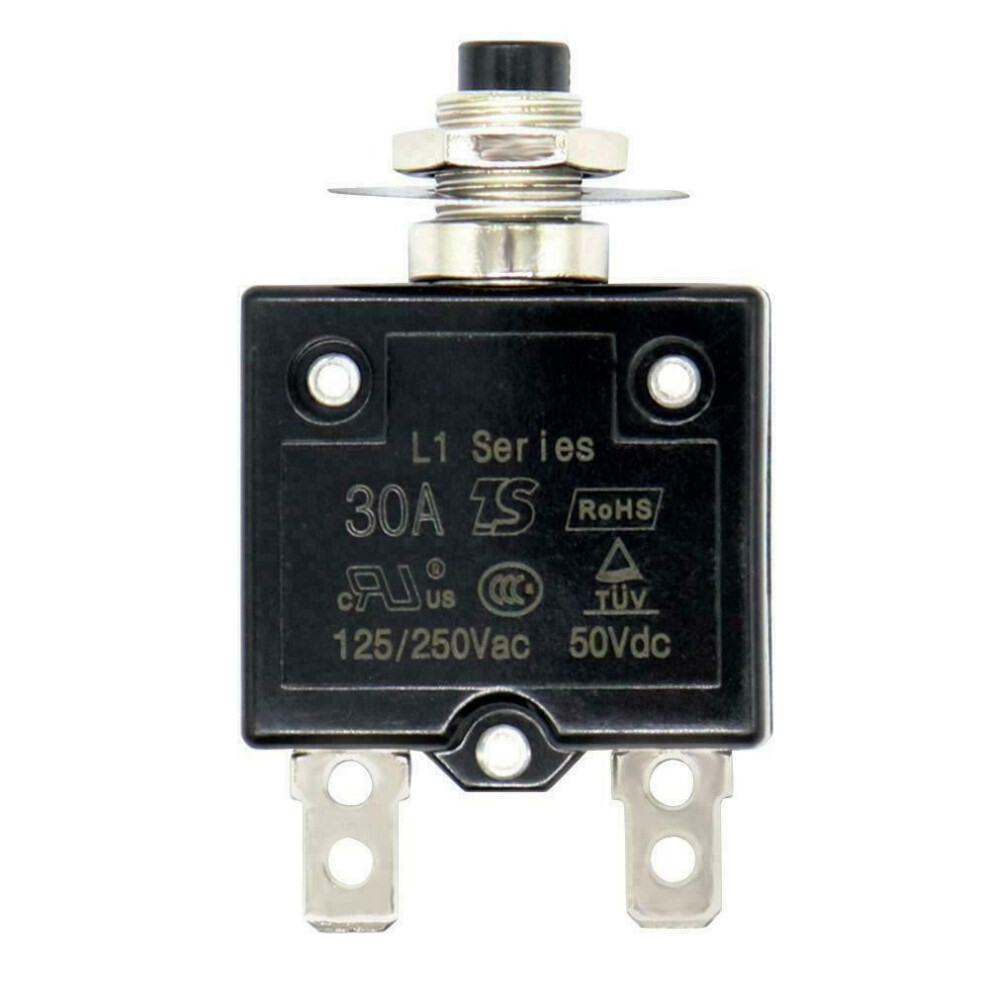

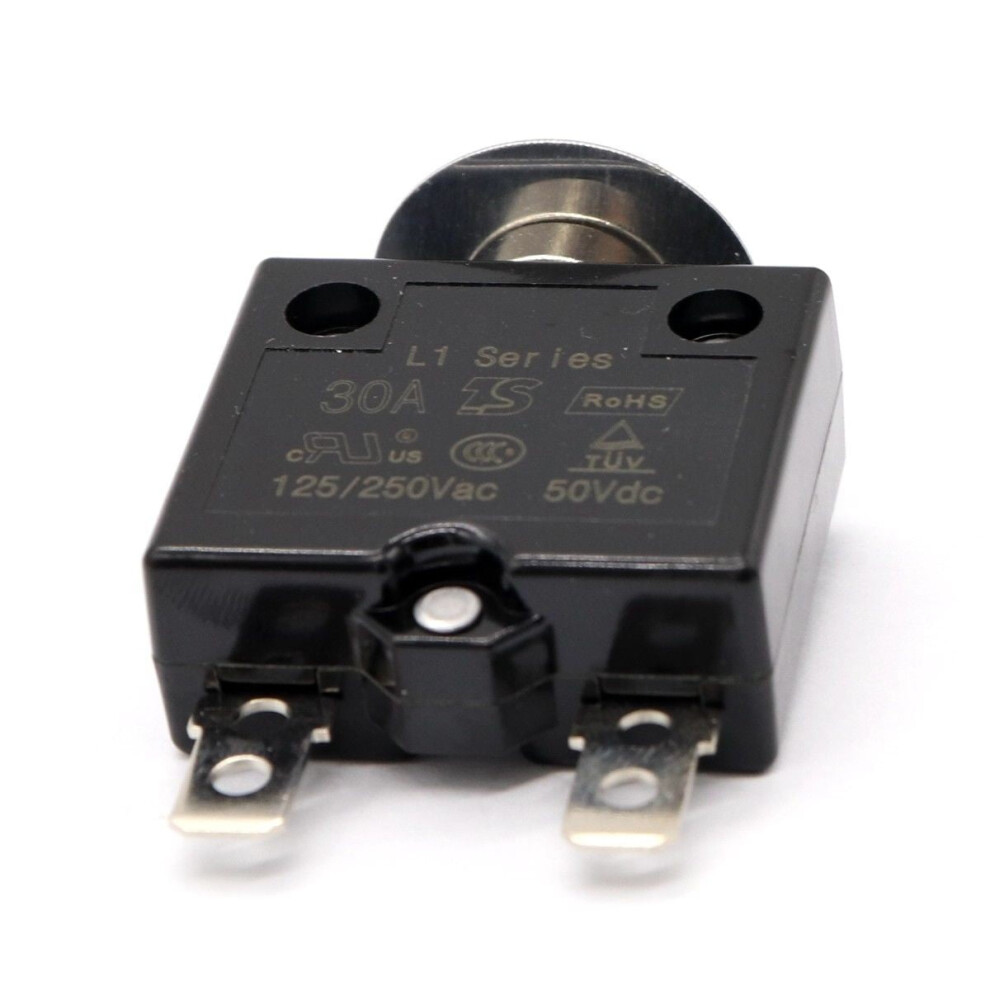

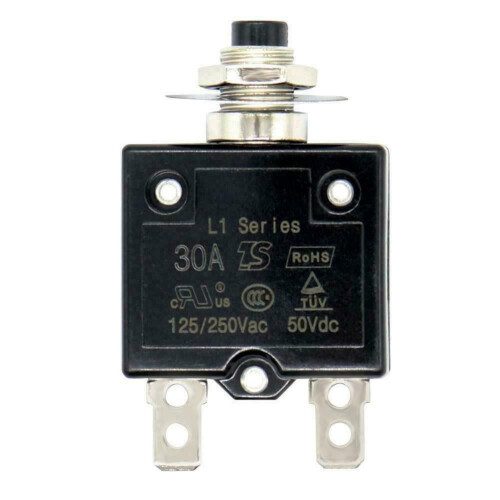

Push Button Circuit Breaker Thermal Overload Protector

Push Button Circuit Breaker Thermal Overload Protector Description

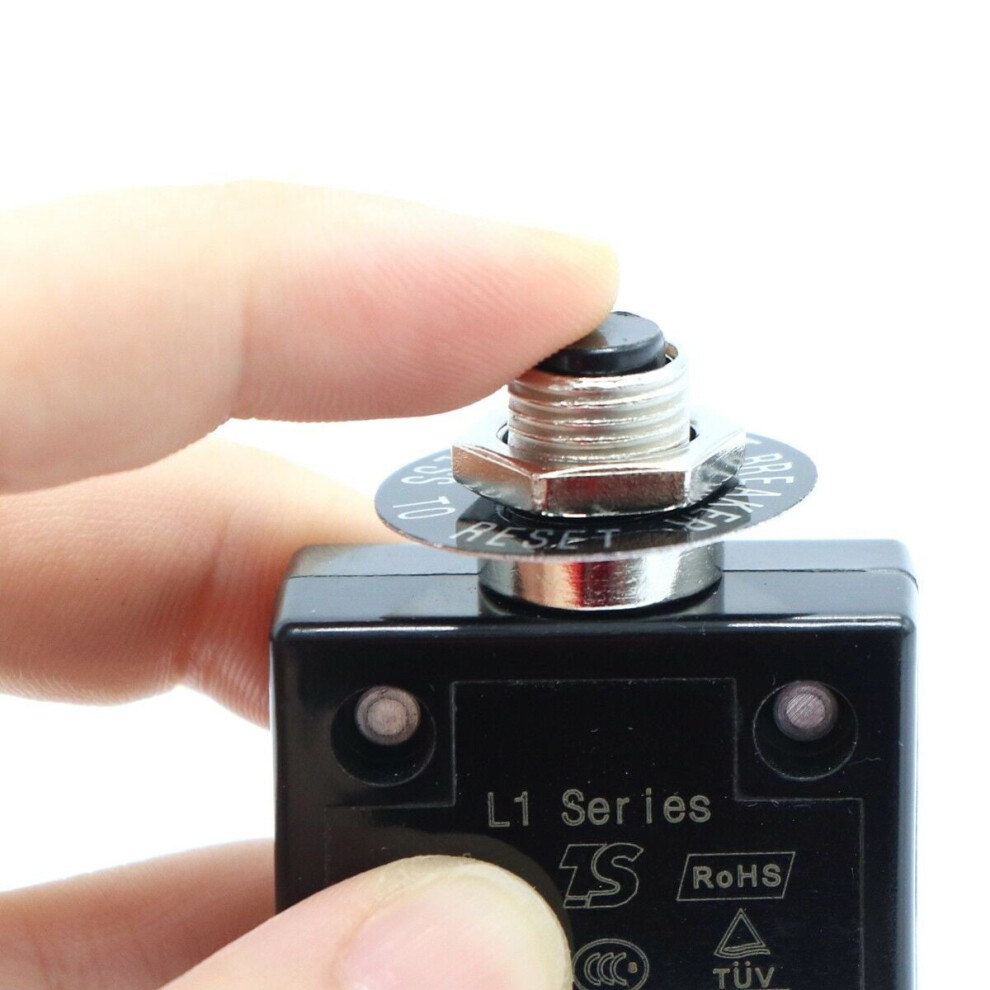

Features: brand new and high quality Made of high-quality materials, Circuit breaker waterproof button transparent cover with manual reset DC50V AC125-250V, with quick connection terminals, including waterproof button transparent cover, can protect the components from damage. L1 is a compact single-pole push-to-reset thermal circuit breaker. Widely used in household and commercial electrical appliances, transportation, ships, telecommunications, switchboards, audio-visual, power supplies. It is installed in a 3/8 inch (10 mm) round hole. This auction is for a push button circuit breaker that can operate up to 50 volts DC or 250 volts AC. This part is not designed for push/push manual switch, but the button pops out when overloaded and is reset by pushing it back. Product parameters: Voltage: 125-250Vac; DC 50V Ampere: 3A-50A Rated current: 5A, 8A, 10A, 15A, 18A, 20A, 25A, 30A (optional) Installation: QC Reset type: T3, manual reset Working temperature: -10ºC to 60ºC Interruption capacity: 1,000 amps Dimensions: 35.0 X 31.0 X 14.6 Mm Package Included: 1 * Circuit breaker Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
