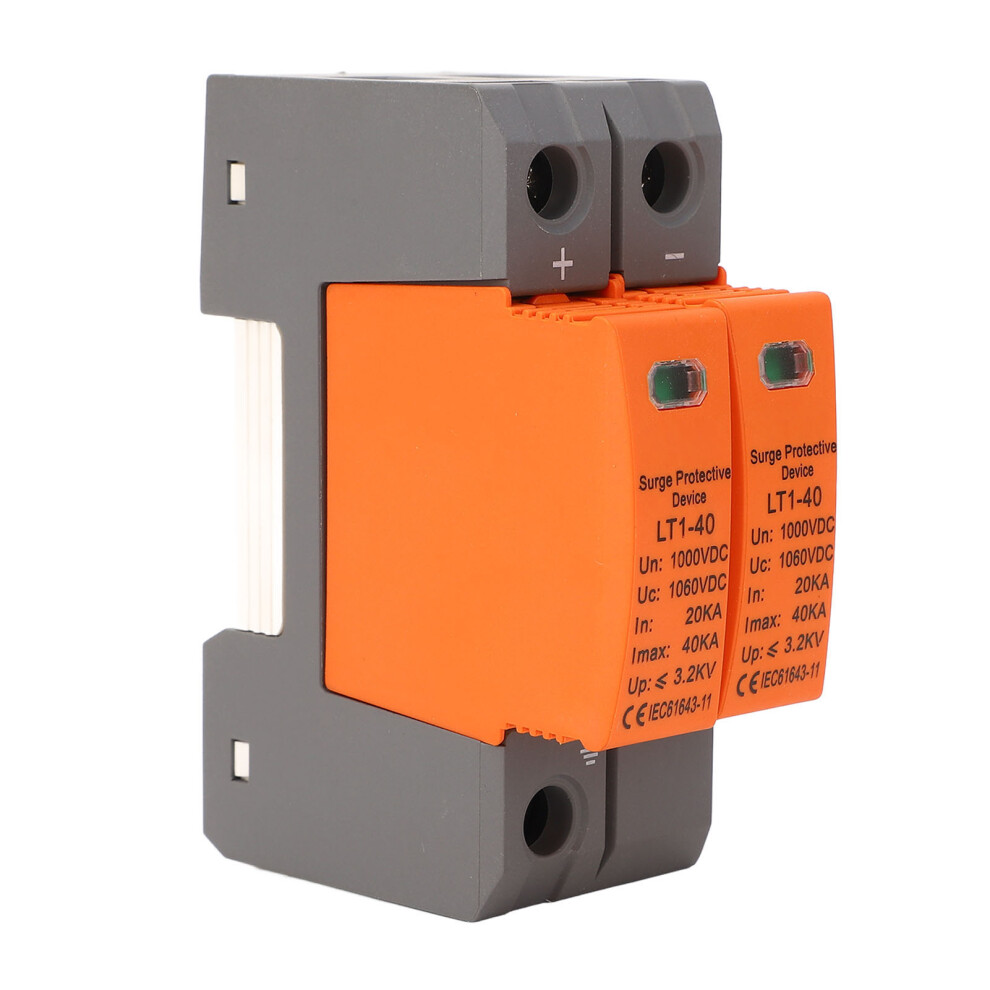

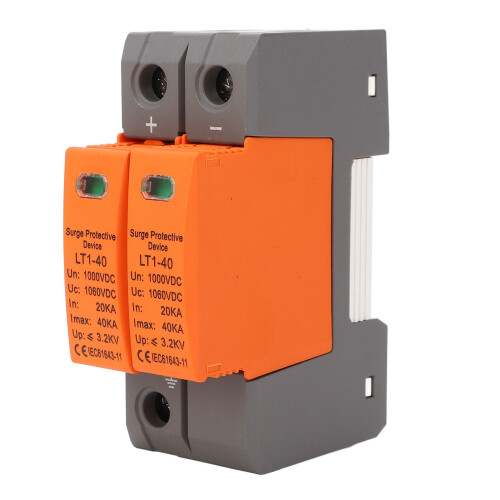

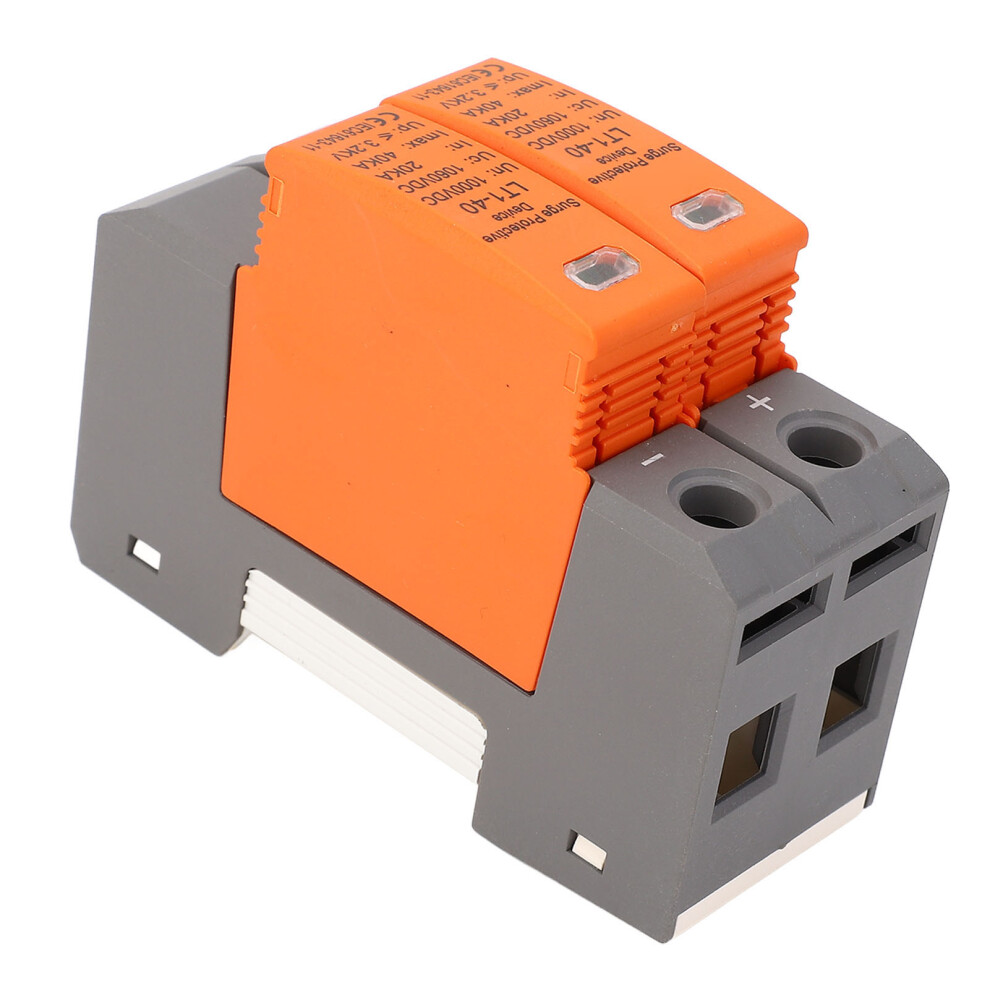

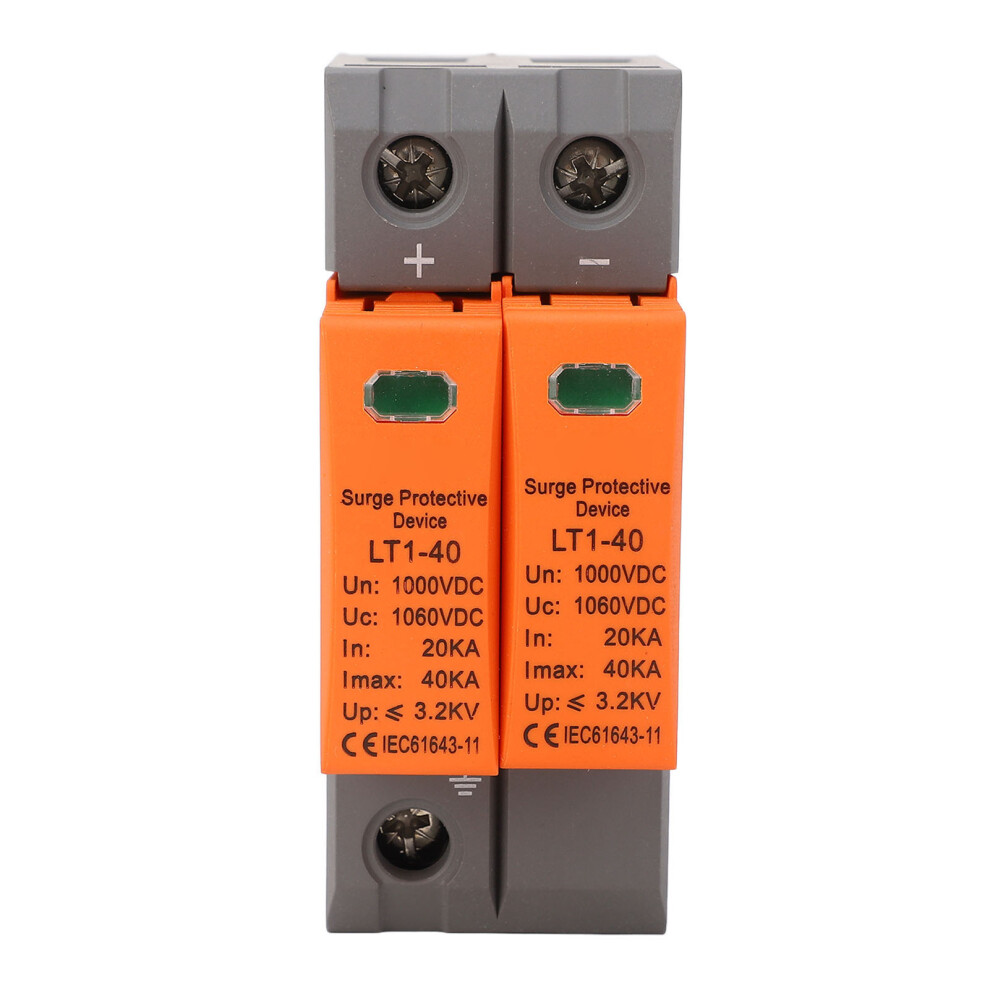

PV DC Surge Protector 2P 40KA 1000VDC PC Housing

PV DC Surge Protector 2P 40KA 1000VDC PC Housing Description

1、PC Housing: Constructed with flame retardant PC material and accuracy electronic components for a robust, erosion resistant, and stable surge protector that ensures long lasting performance. 2、Multiple Safety: Equipped with overcurrent and overvoltage safety functions, the surge protective device effectively safeguarding your DC power system against potential electrical dangers. 3、Efficient Design: The surge protector features an efficient design that enhances its performance in electromagnetic interference and thunderstorm weathers, providing a higher level of safety for your devices. 4、Easy Installation: Designed for easy installation on a 2P rail, the standard 35mm rail mounting allows for seamless integration with circuit breakers in distribution boxes, making setup a breeze. 5、Main Application: The surge protector is primarily used to defend electrical equipment and load devices from damage caused by thunderstorm strikes and power surges, ensuring the safety and longevity of your electronic devices.
Item Type: Surge Protective Device
Material: PC
Rated Operating Voltage Un: 1000VDC
Maximum Continuous Operating Voltage Uc: 1060VDC
Nominal Discharge Current In: 20kA (8/20μs)
Maximum Discharge Current Imaximum: 40kA (8/20μs)
Voltage Safety Level: 3.2kV
Indication: Green for Normal, Red for Fault
Installation: 35mm Standard Rail
Poles: 2P
1 x Surge Protector
