PWM DC Motor Speed Controller 12V/24V/36V 15A Potentiometer Overload Protector

PWM DC Motor Speed Controller 12V/24V/36V 15A Potentiometer Overload Protector Description

12V/24V/36V 15A PWM DC Motor Speed Controller Regulator Potentiometer Overload Protector

Description:


This is a simple and
easy-to-use DC motor speed controller of small size, elegant appearance
and stable performance. It is made with circuit board which
ensures a longer service life. The current can be adjusted from 1A to 10A which is quite convenient to set.






Features:



The current of this motor speed controller can be adjusted from 1A to 10A, and it is simple to set.



Suitable for motors of which voltage is 12V with power less than 120W and that is 24V with power less than 200W.


The

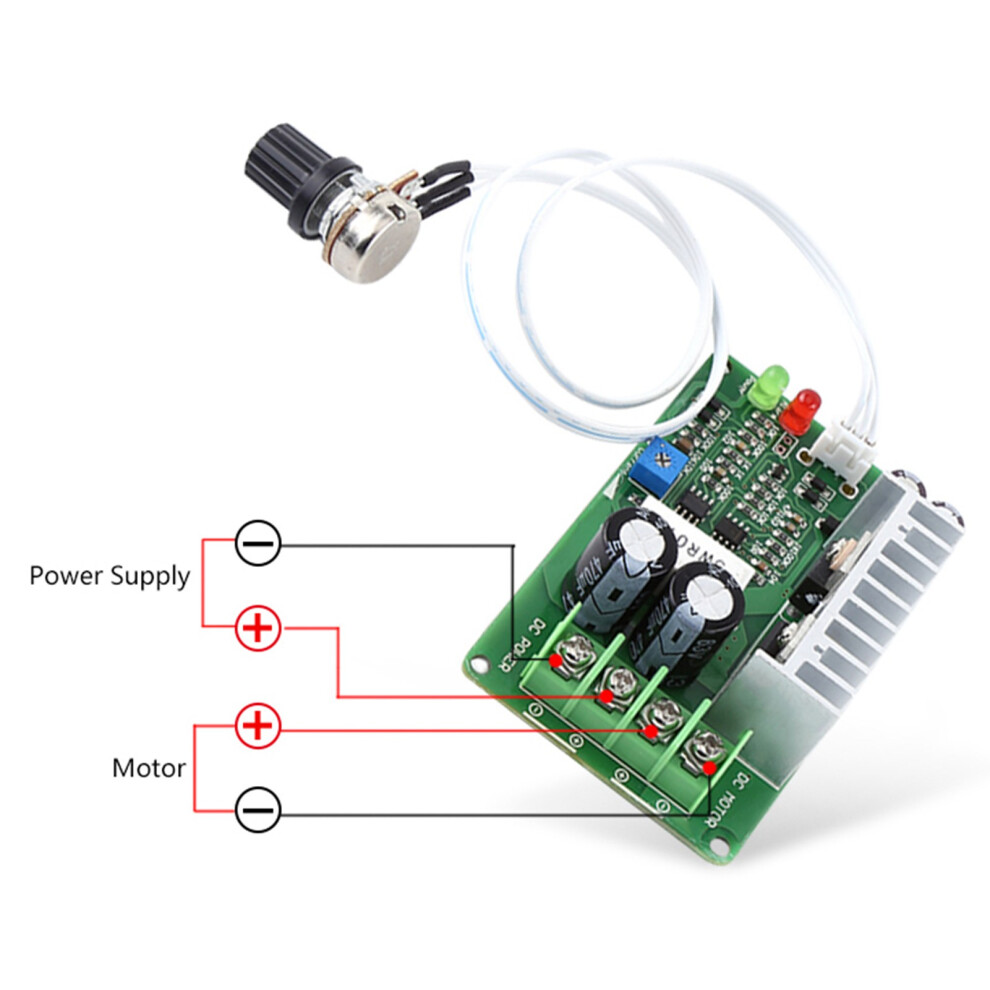

positive and negative pole of motor can be connected one way or
another. Exchange the pole when the rotation direction is not as
expected, exchange the pole.


Rotate the knob to change output so to change the revolving speed of motor.


This controller can not be connected to alternating current, or it will be burnt.


Please make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.

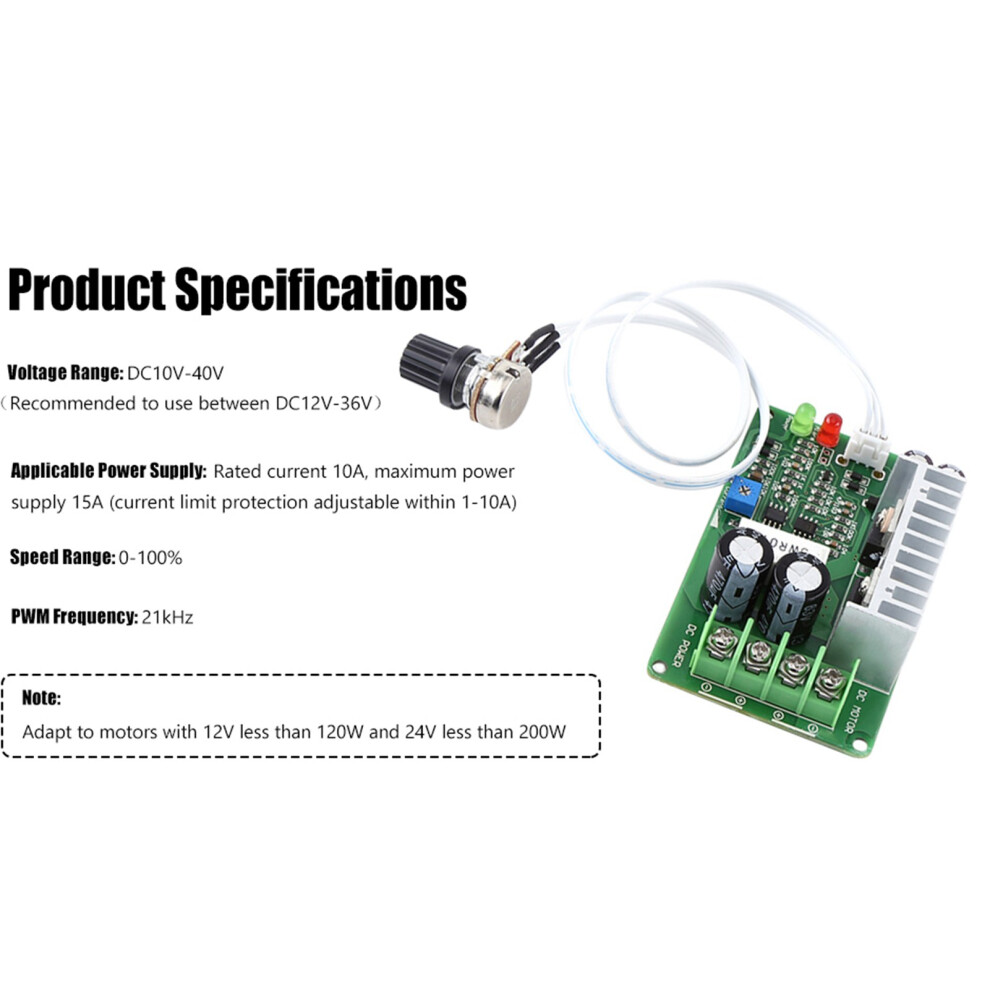

Specifications:

Resistance: 100K

Wire Length: 40cm

Voltage Range: DC10V~40V(DC12~36V suggested)

Power: 12V*10A=120W;24V*10A=200W,.....36V*10A=360W

Current: 10A(rated), 15A(Max.), adjustable from 1A to 10A

Speed Adjustable Range: 0-100%

PWM Frequency: 21kHz

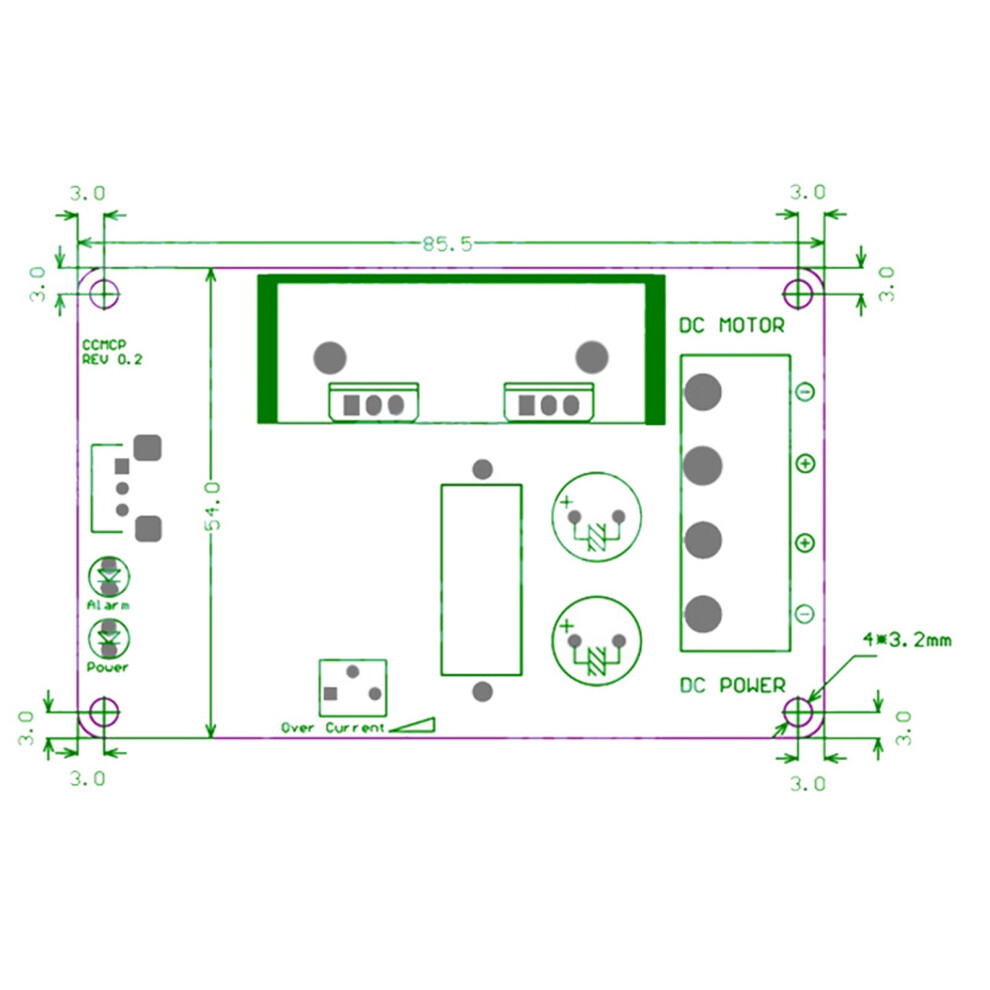

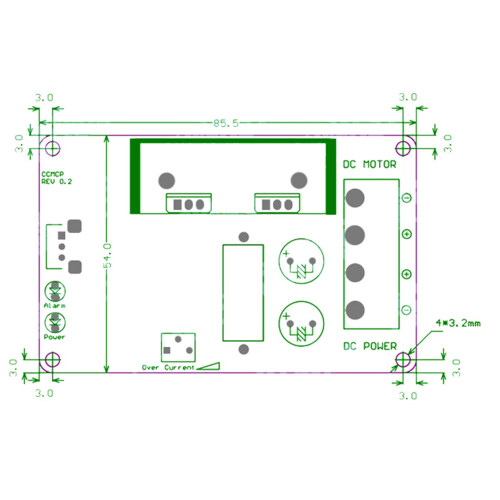

Size: 85.5mm x 54mm x 27mm / 3.36 x 2.12 x 1.06"





Package Includes:


1 x Motor Speed Controller
