PWM Servo 16Channel Controller With 3Pin Connectors For 5V Compliance Robot Projects

PWM Servo 16Channel Controller With 3Pin Connectors For 5V Compliance Robot Projects Description

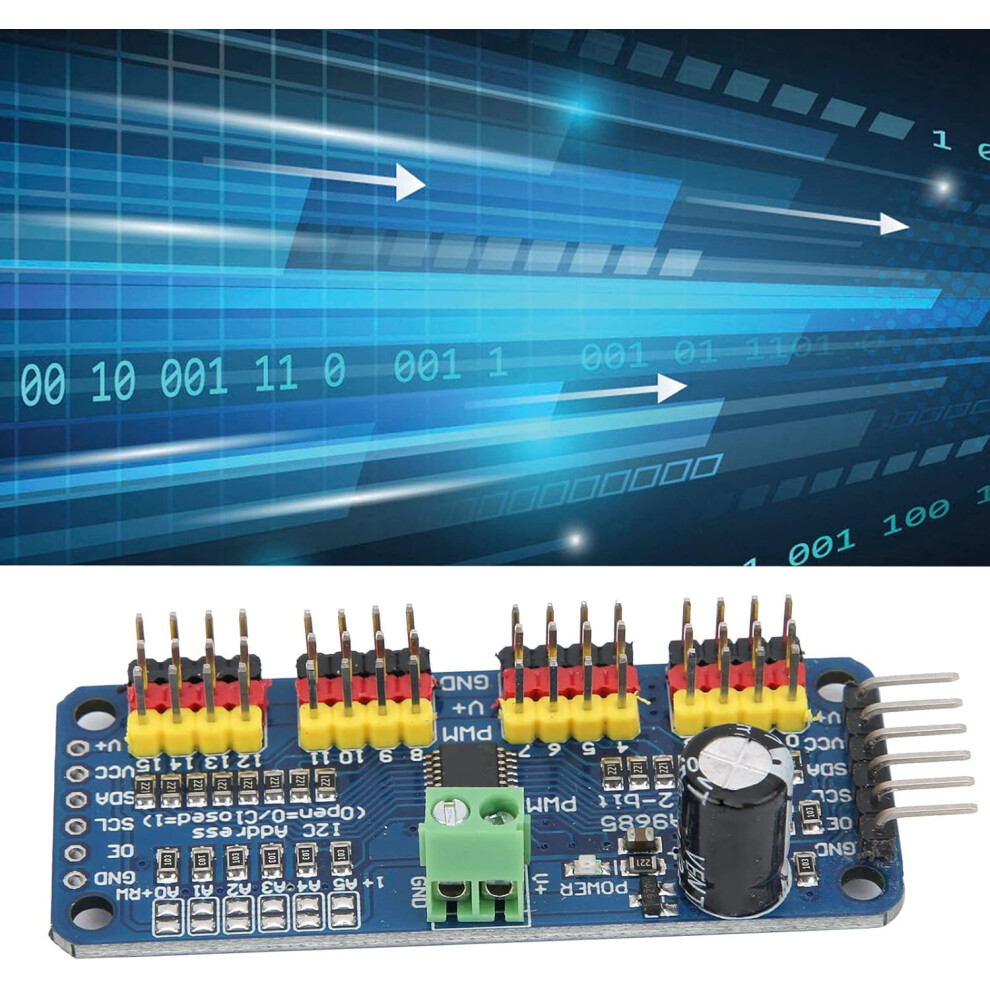

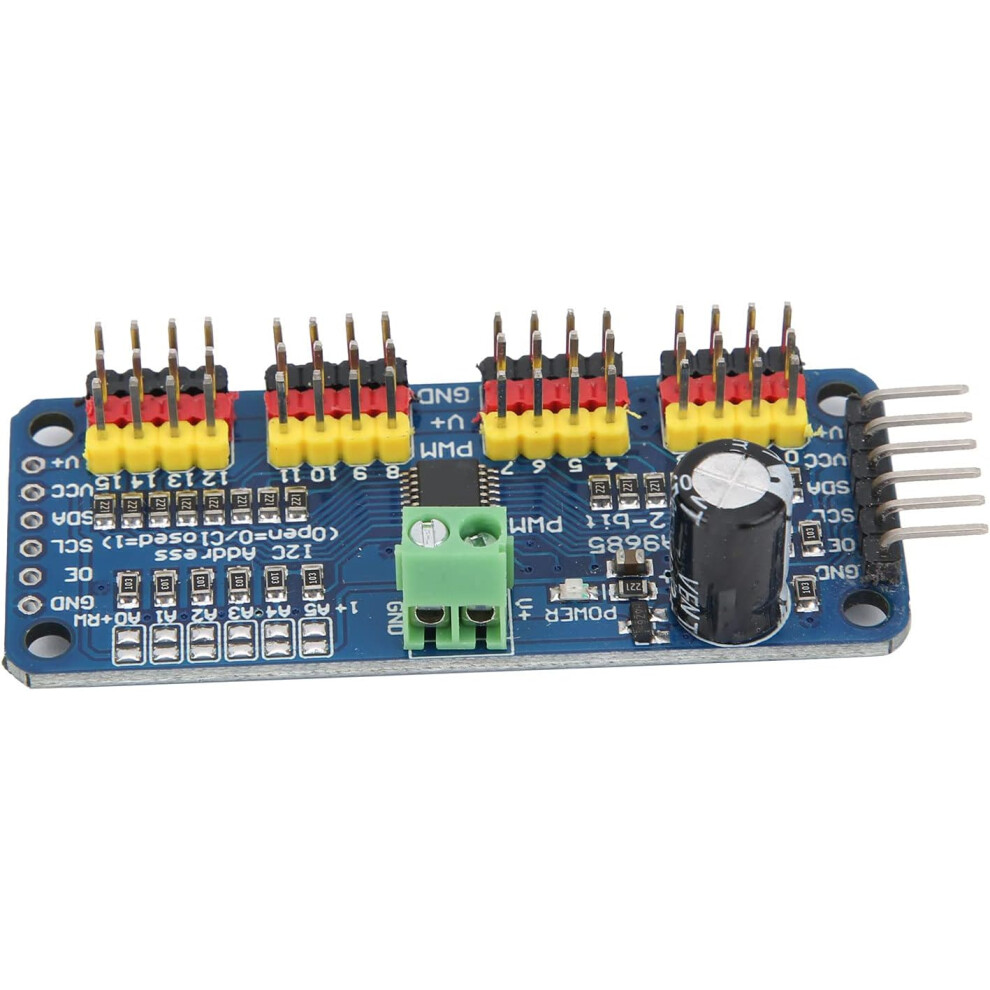

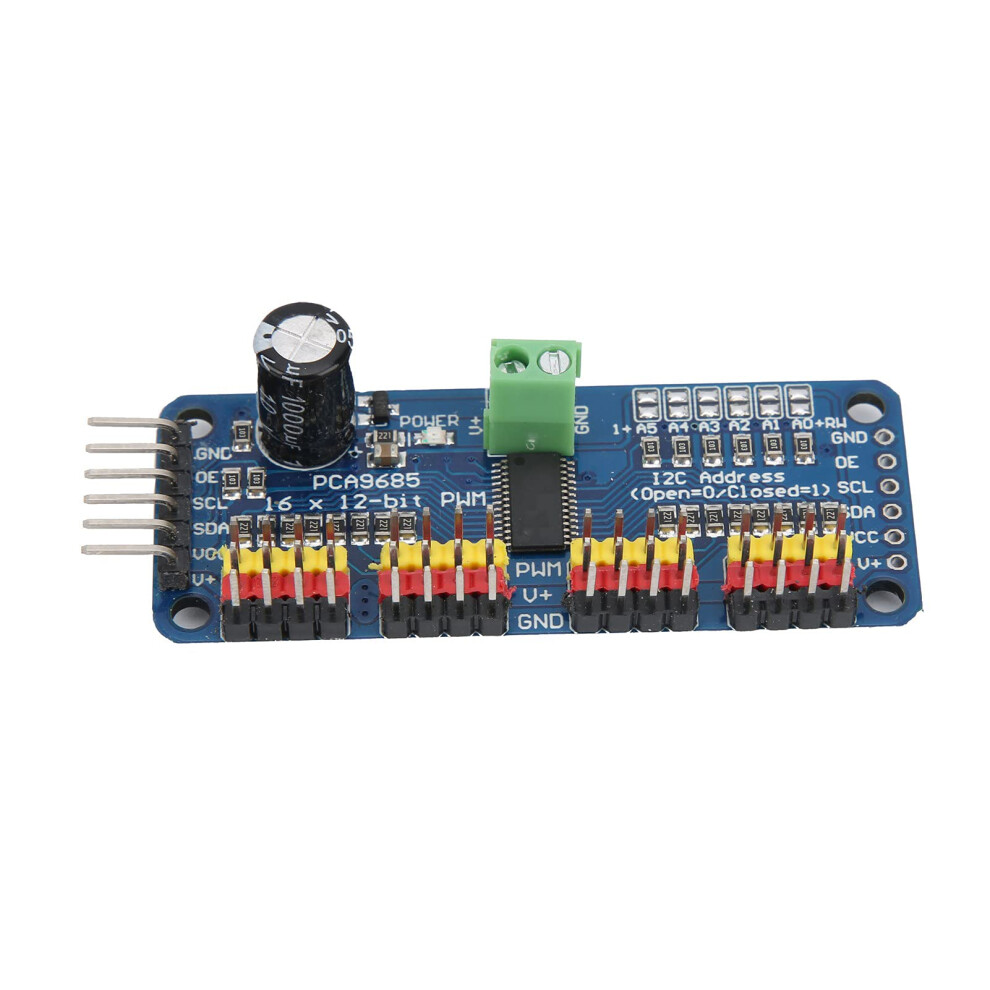

Up to 16 GO servomotors supported with 4 sets of 3pin connectors for efficient, organized wiring. Stable voltage for reliable performance: includes a 10 V 1000uF capacitor to help maintain a stable external input voltage for constant servomotor yield. Overload protection: 220 ohm resistors integrated in the PWM output lines guard against overloads and ensure reliable operation during LED conduction. Flexible control: can be driven by a 3.3 V microcontroller and deliver safely up to 6 V, offering broad compatibility and straightforward integration. Key specifications at a glance: supports GO servomotors up to 16 units; wiring via 4 x 3pin connector groups; external supply with a 10 V 1000uF capacitor; PWM lines include 220 ohm resistors for protection; control input compatible with 3.3 V microcontrollers; output voltage safe up to 6 V. Physical and compatibility notes: size and material details are not specified in the description; the information provided focuses on function, compatibility with GO servomotors, and protection features. Use scenarios: Robotics prototyping: control a multiservo robotic arm or small robot using a 3.3 V microcontroller while maintaining stable servo performance from a shared supply. Educational projects: teach PWM, servo coordination, and power management with a single, scalable servo hub. Demonstrations and hobby builds: synchronize multiple servos for motion sequences in demos, model builds, or light automations that require organized wiring and protection.
