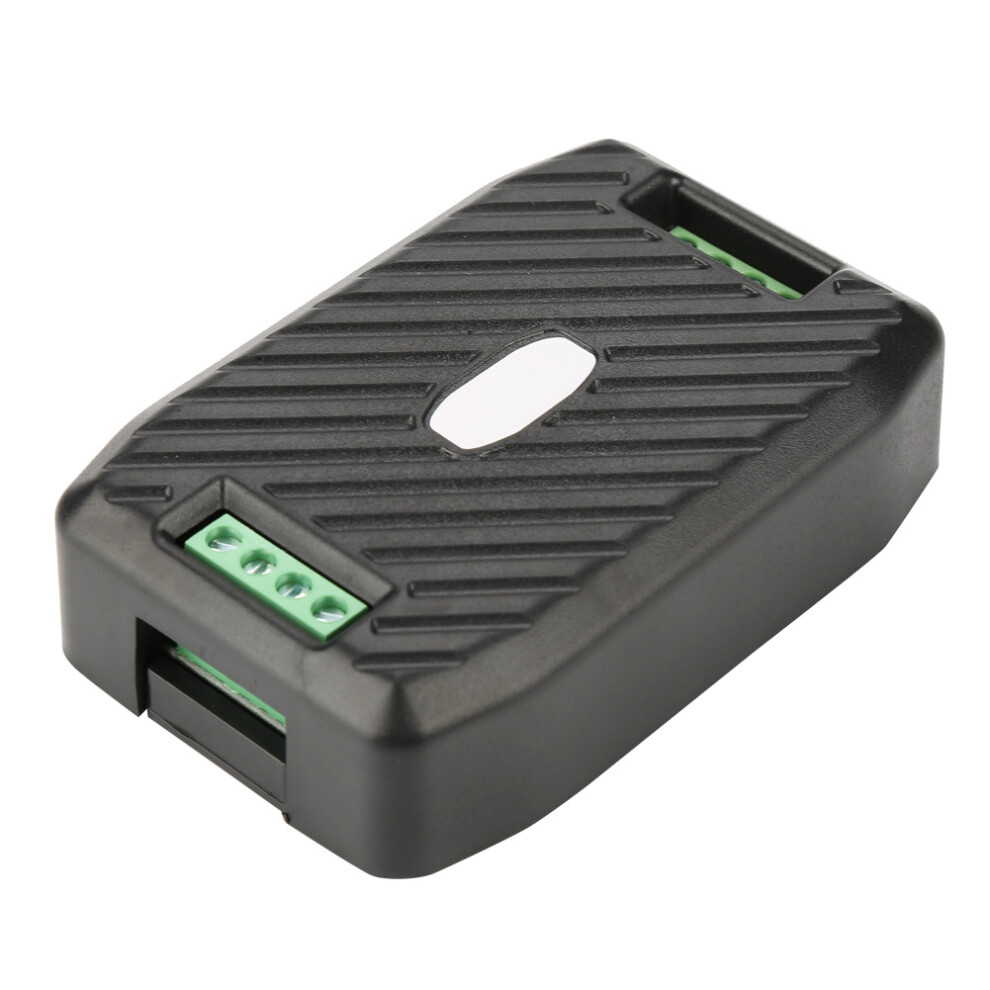

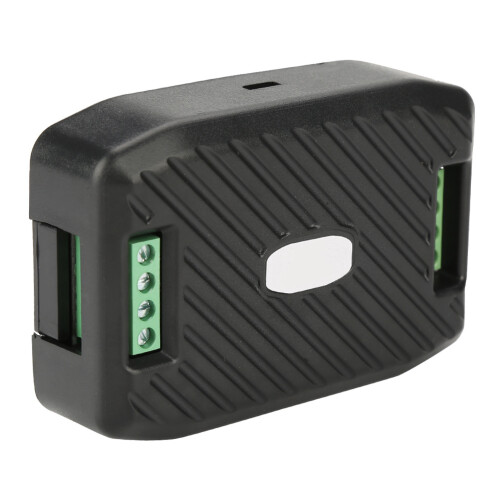

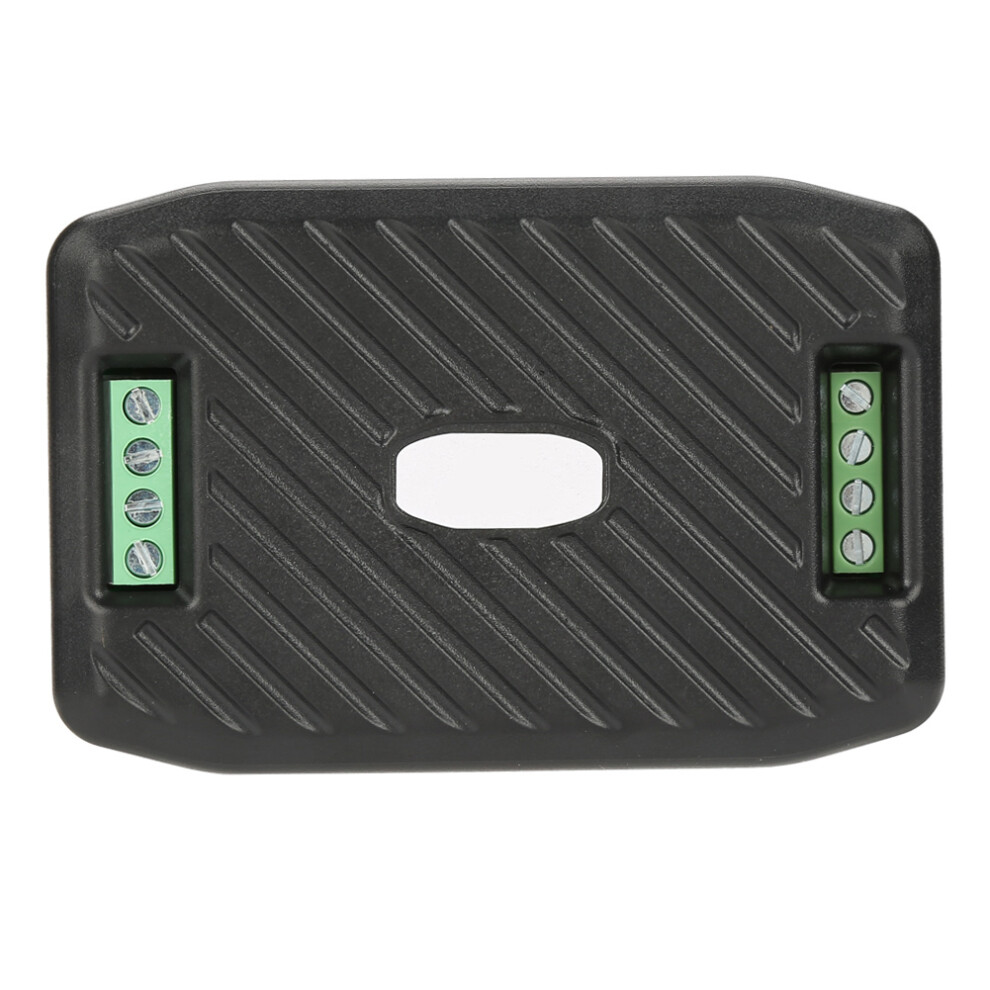

PZEM-017 DC Voltage Current Power Meter 300A RS485 Module

PZEM-017 DC Voltage Current Power Meter 300A RS485 Module Description

PEACEFAIR PZEM-017 DC Voltage Current Power Energy Consumption Meter Communication Module (#2)

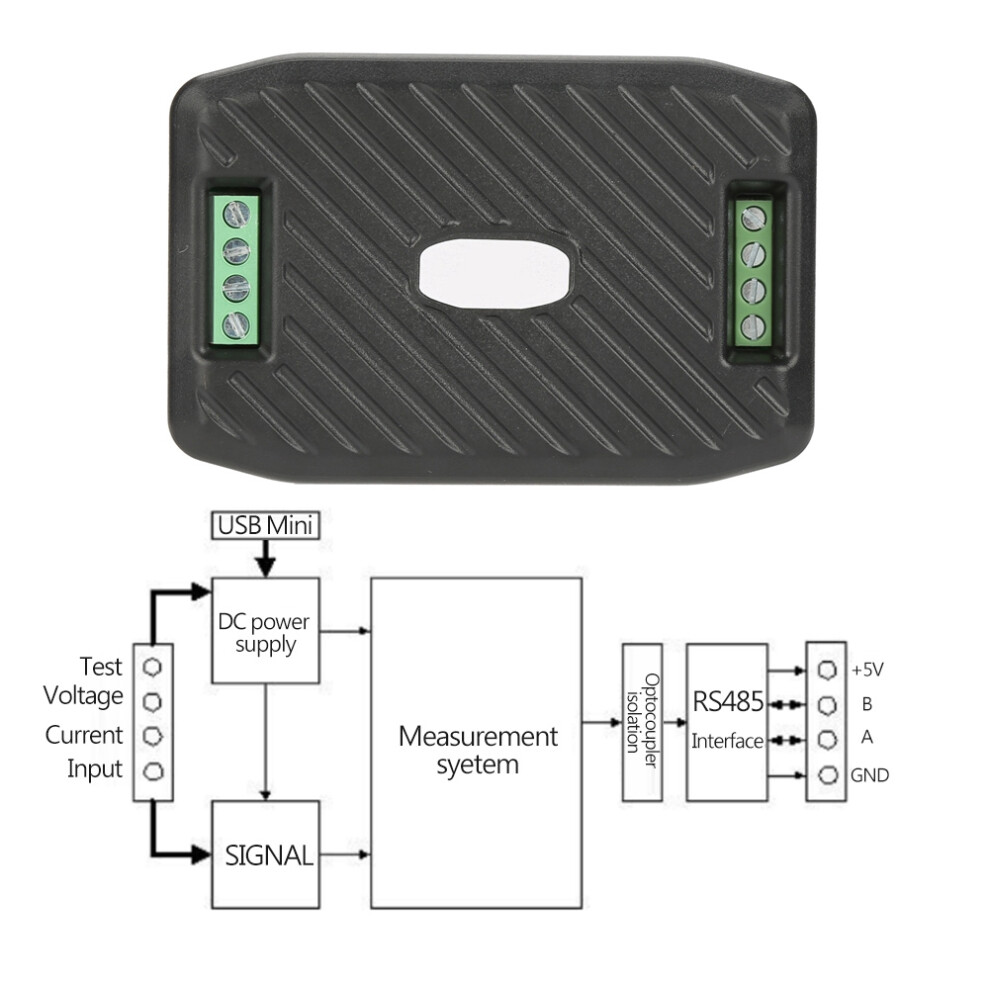

This module is mainly used for measuring DC voltage, current, active power, frequency and energy consumption, the module is without display function, the data is read through the RS485 interface.


Features:



It is mainly used for measuring DC voltage, current, active power, frequency and energy consumption.


The current measure range is 50A, 100A, 200A, 300A depend on the external shunt specification.


There are 10 different kits to choose, enough to meet your various need.

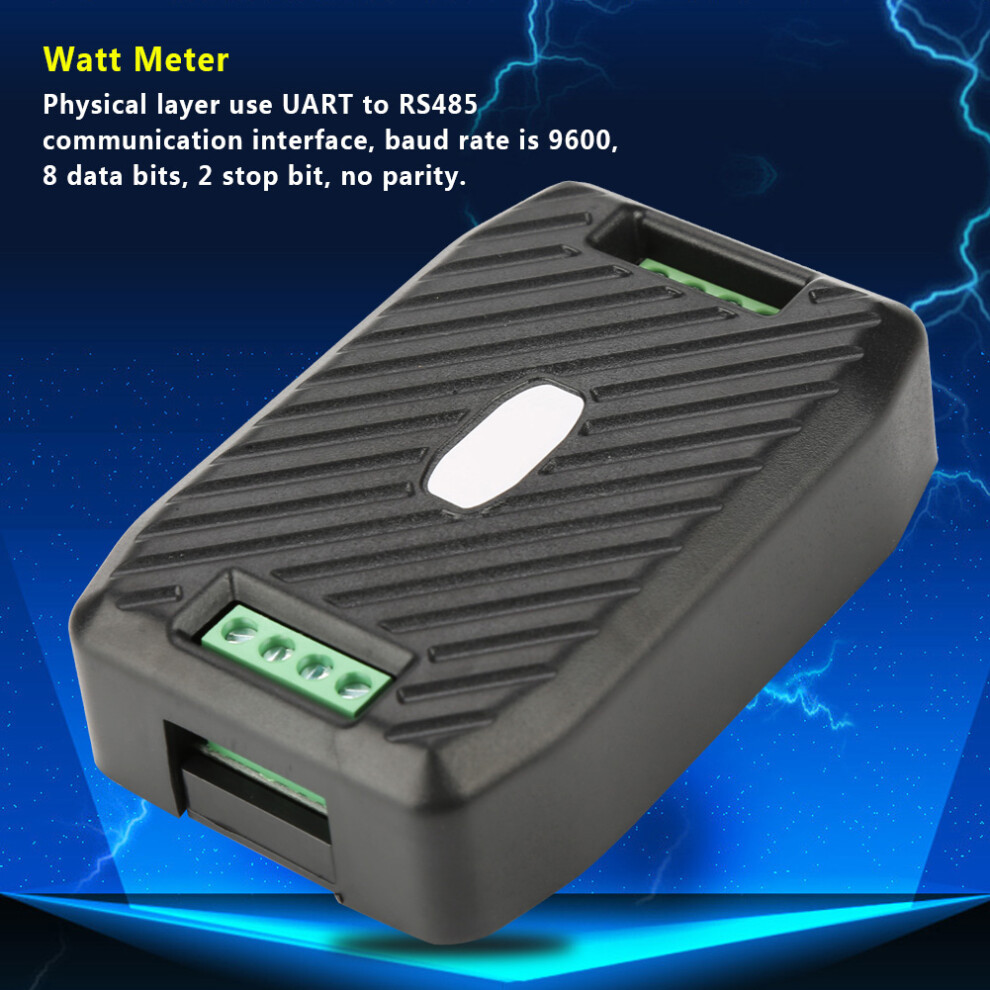

Physical layer use UART to RS485 communication interface, baud rate is 9600, 8 data bits, 2 stop bit, no parity.


The application layer use the ModbusRTU protocol to communicate, it only supports function codes such as 0x03, 0x04,0x06, 0x41, 0x42, etc.


Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm.



Specification:

Brand: PEACEFAIR

Model: PZEM-017

Voltage:



Measuring Range: 0.05-300V (When the test voltage is 7V, please use the independent power supply mode)


Resolution: 0.01V


Measurement Accuracy: 1%


Current:



Measuring Range: 0.02-300A (Can be matched with 50A, 100A, 200A, 300A four kinds of shunt)


Resolution: 0.01A


Measurement Accuracy: 1%


Power:



Measuring Range: 0.2-90kW


Resolution: 0.1W


Measurement Accuracy: 1%


Energy Consumption:



Measuring Range: 0-9999kWh


Resolution: 1Wh


Measurement Accuracy: 1%


Reset Energy: Use Software to Reset

Over Voltage Alarm:



Default High Voltage Threshold: 300V


Default Low Voltage Threshold: 7V


Communication Interface: RS485 Interface

Working Temperature: -20~60

Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch

Weight: Approx. 77g~287g / 2.7oz~10.1oz





Register address


Description


Resolution




0x0000


Voltage value


1LSB correspond to 0.01V




0x0001


Current value


1LSB correspond to 0.01A




0x0002


Power value low 16 bits


1LSB correspond to 0.1W




0x0003


Power value high 16 bits




0x0004


Energy value low 16 bits


1LSB correspond to 1Wh




0x0005


Energy value high 16 bits




0x0006


High voltage alarm status


0xFFFF is alarm,0x0000 is not alarm




0x0007


Low voltage alarm status


0xFFFF is alarm,0x0000 is not alarm













Register address


Description


Resolution




0x0000


High voltage alarm
threshold(5~350V),

default is 300V


1LSB correspond to 0.01V




0x0001


Low voltage alarm
threshold（1~350V）,

default is 7V


1LSB correspond to 0.01V




0x0002


Modbus-RTU address


The range is

0x0001~0x00F7




0x0003


The current range


0x0000: 100A

0x0001: 50A

0x0002: 200A

0x0003: 300A














Optional
Kit




#1


1 x DC Consumption Meter




#2


1 x DC Consumption Meter

1 x RS485 B Cable




#3


1 x DC Consumption Meter

1 x 50A Shunt




#4


1 x DC Consumption Meter

1 x 100A Shunt




#5


1 x DC Consumption Meter

1 x 200A Shunt




#6


1 x DC Consumption Meter

1 x 300A Shunt




#7


1 x DC Consumption Meter

1 x RS485 B Cable

1 x 50A Shunt




#8


1 x DC Consumption Meter

1 x RS485 B Cable

1 x 100A Shunt




#9


1 x DC Consumption Meter

1 x RS485 B Cable

1 x 200A Shunt




#10


1 x DC Consumption Meter

1 x RS485 B Cable

1 x 300A Shunt





Note:

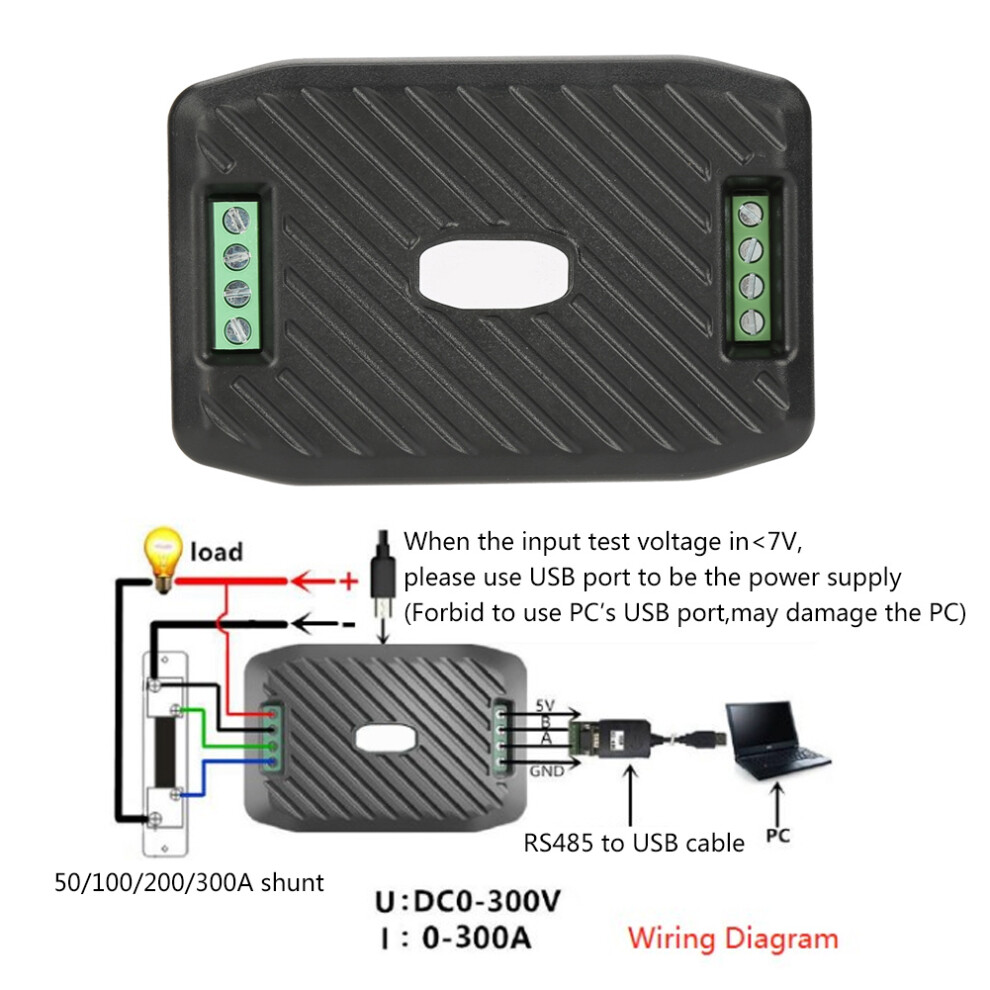

RS485 interface is passive output, need external connect 5V power supply and the external power supply should 100mA.


When the input test voltage is less than 7V, it must supply 5V independent work voltage through USB port.


Do NOT use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC.
