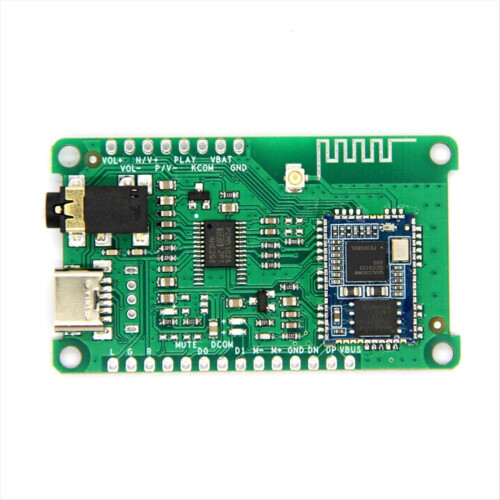

QCC5125 Stereo Audio Module APP Name Change Password EQ Bluetooth 5.1 APTXLL APTXHD LDAC QCC5125 Decoder NO Call

QCC5125 Stereo Audio Module APP Name Change Password EQ Bluetooth 5.1 APTXLL APTXHD LDAC QCC5125 Decoder NO Call Description

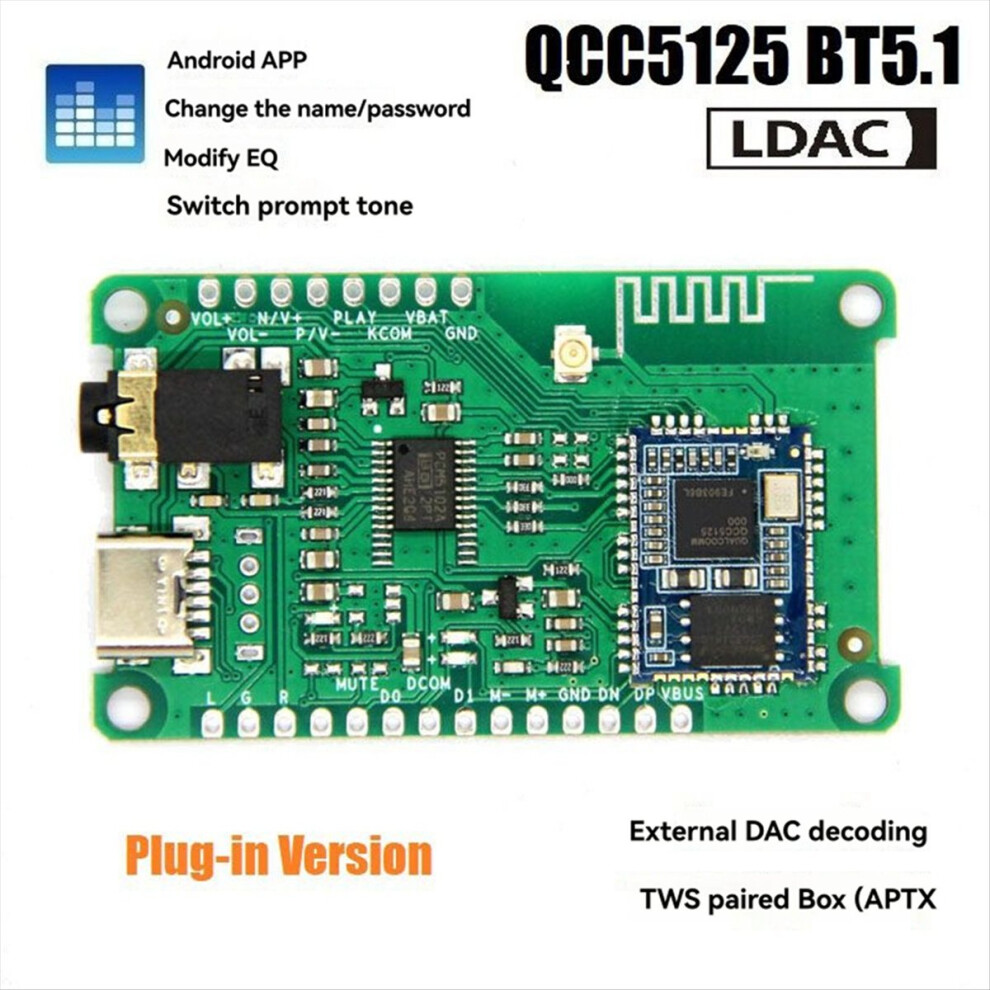

Plug-in version,The plug-in version is powered directly from the Type-C port. The plug-in version turns on and off, supports pairing, supports generation 1 antennas, has maximum default volume, and supports phone volume synchronization.
QCC5125/QCC5124 supports /AAC//APTXLL/APTXHD/LDAC 5124 VM-32/80MHz -2x120MHz 5125 VM-32MHz -120MHZ. The 5124 has a higher clock speed than the 5125, and its dual-core offers higher performance, but the sound quality is the same.

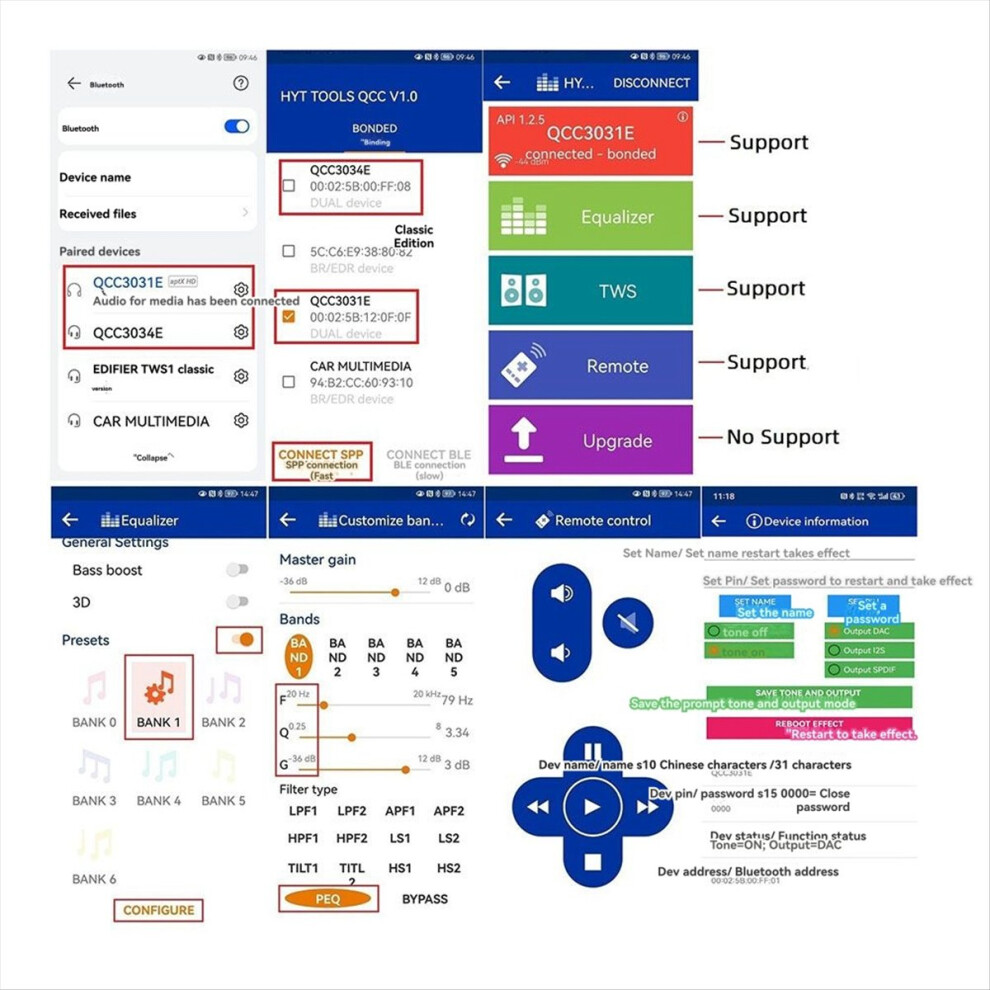

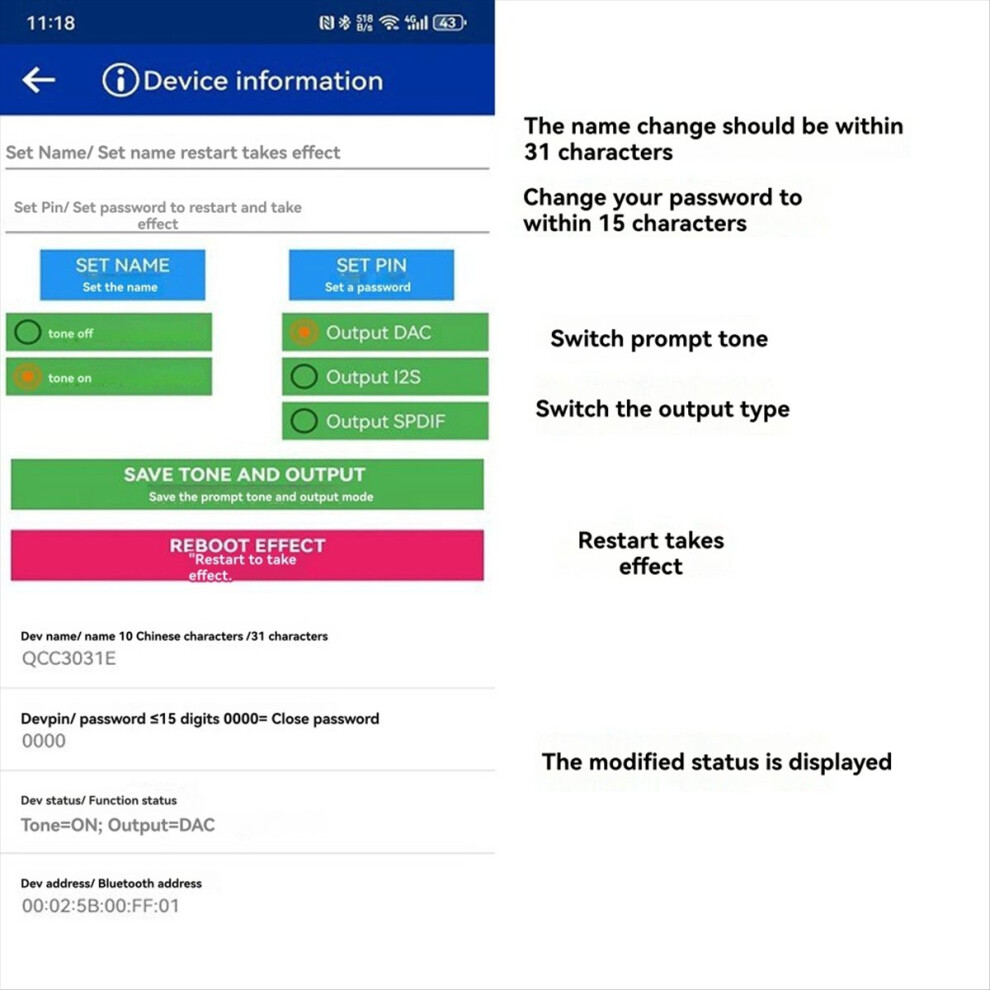

Android app allows you to change the Bluetooth name (supports any language), pairing password, custom EQ, power on/off notification tone, and call support (select within the category).
When using with a speaker: Use the highest protocol (optimizes connection stability). Clear pairing information: Use the highest protocol LDAC (default for 5125/5124).

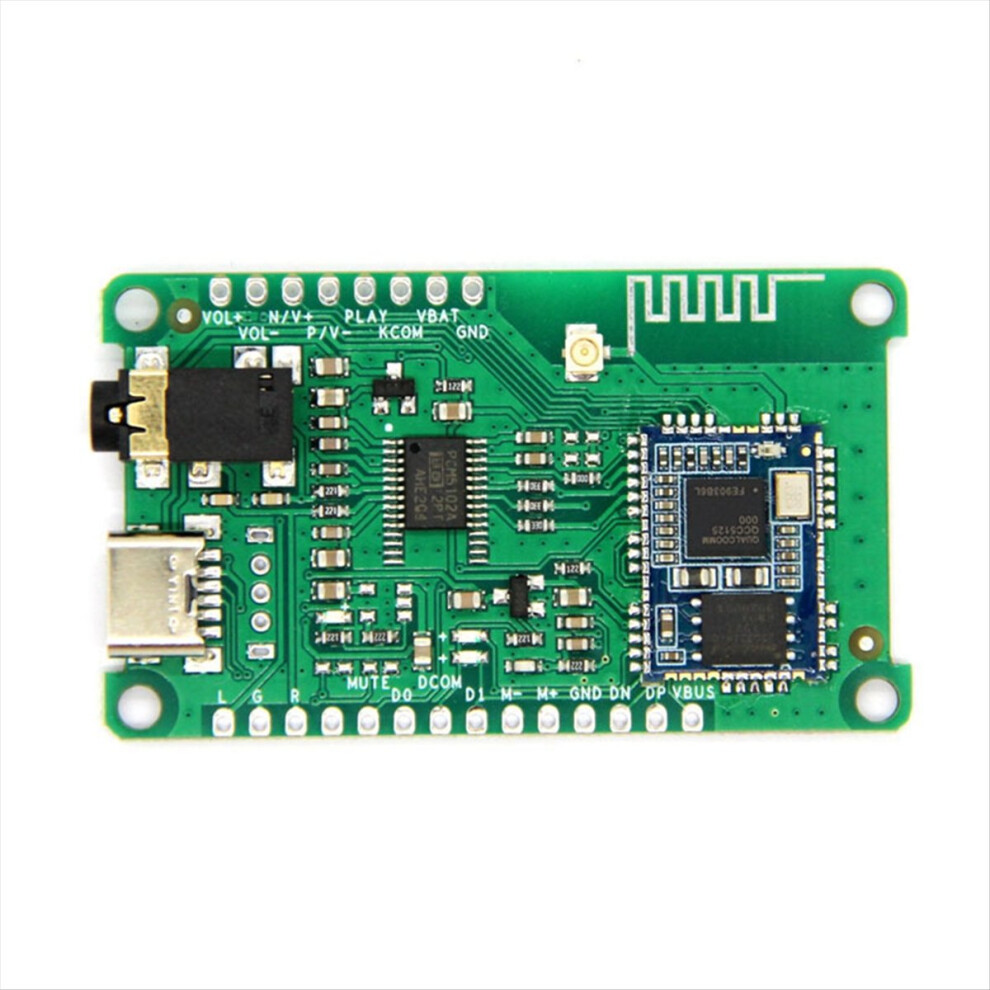

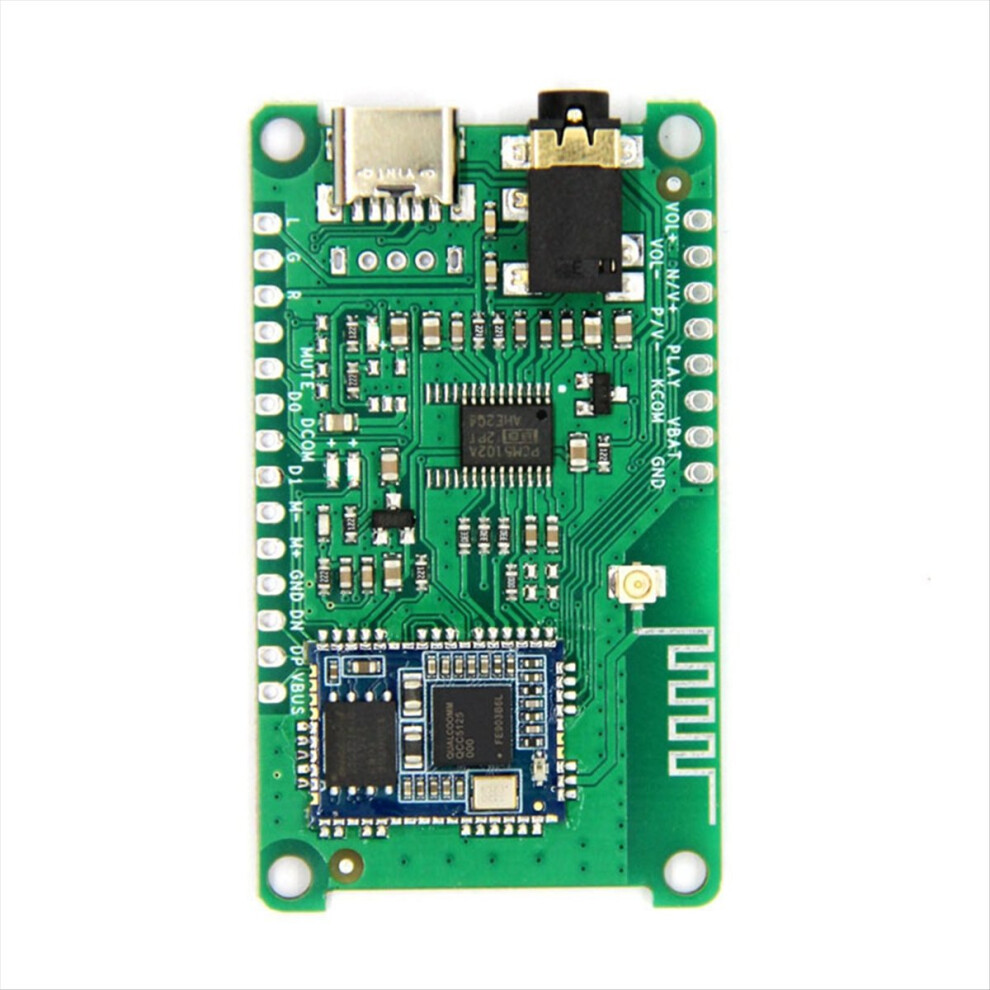

3.6-5.5V power supply (select plug-in or rechargeable version within the category). VBAT, GND: Power supply (3.6-5.5V). L, G, R: Audio output.

M+, M-: Microphone positive and negative terminals.
DCOM, D0, D1: DCOM is the common terminal for the common anode dual-color LED.
MUTE: Outputs 3V3 when sound is present, 0V when no sound is present.
P5: Outputs 3V3 when Bluetooth is connected, 0V when disconnected.

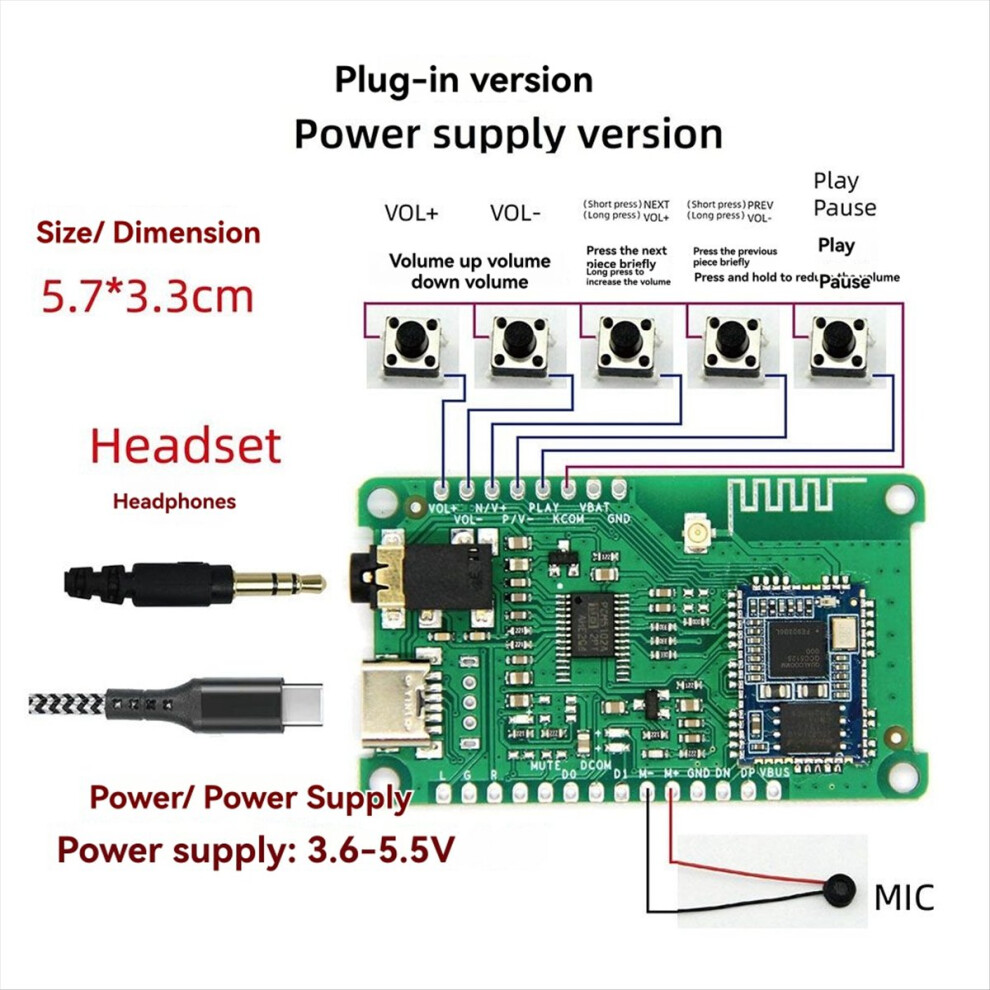

Button Description:
"VOL+": Short to increase volume, long to increase volume
"VOL-": Short to decrease volume, long to decrease volume
"+": Short to go to track, long to increase volume
"P/V-": Short to go to the previous track, long to decrease volume
"PLAY": Short to play/pause/answer/end call, long to reject call
Special Functions:
"PLAY": and hold for 3 seconds to force pairing mode, and hold for 6 seconds to clear pairing mode Pairing List
"PLAY" + "VOL+": and hold simultaneously for 1 second to enter master mode and search for (beep sound)
"PLAY" + "VOL-": and hold simultaneously for 1 second to enter slave mode and search for (beep sound)
"VOL+" + "VOL-": and hold simultaneously for 1 second to disconnect
"+" + "P/V-": and hold simultaneously for 6 seconds and then release to clear pairing information and password, resetting (beep sound)
Color: Green
Material: PCB
style: NO Call

Package Contents:
1 x Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
