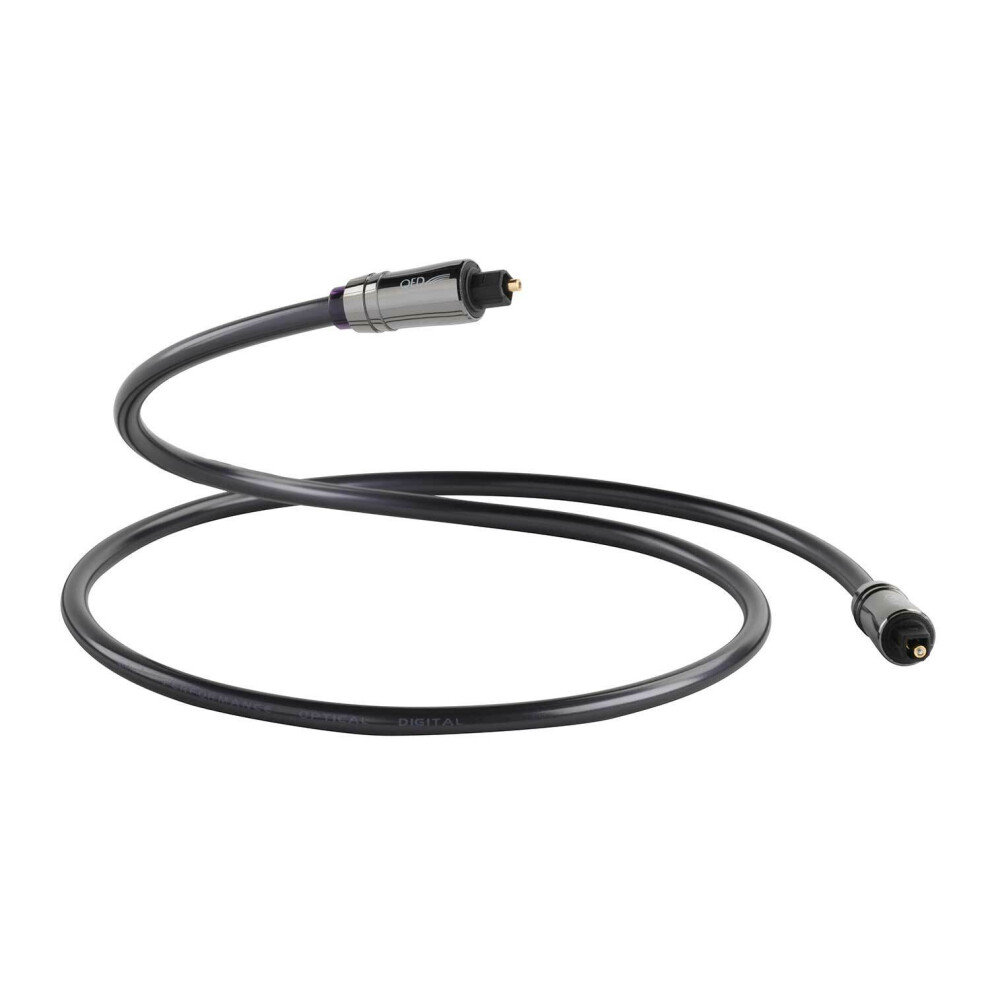

QED Performance Graphite Optical Digital Interconnect Toslink Cable 1.5m

QED Performance Graphite Optical Digital Interconnect Toslink Cable 1.5m Description

Frooition QED Performance Graphite Optical Digital Interconnect Toslink Cable 1.5m Item Description

a lifetime guarantee.

Performance Optical Graphite

QED's multi-award winning Toslink Optical digital audio cable

Performance Optical uses a polymethyl methacrylate (PMMA) acrylic glass optical fibre to comfortably transmit the higher bandwidth signals demanded by today's multi-channel digital audio links. The cable is optimised for a 'very low jitter' design to reduce digital errors, making for a cleaner audio data transmission.

FEATURES AND BENEFITS Polymethyl Methacrylate (PMMA) acrylic glass optical fibre This new optical fibre boasts half the signal attenuation per metre of the previous Performance model, which means 'Performance Graphite' comfortably transmits the higher bandwidth signals for multi channel audio. OVERALL PERFORMANCE Very Low Jitter

Jitter is the undesired deviation from true periodicity of an assumed periodic signal in electronics and telecommunications, often in relation to a reference clock source. A cable displaying very low jitter has been measured at typically 50ps.

QED have identified jitter or distortions caused by errors in the light transmission as a major factor in the deterioration of the audio signal. By incorporating precision cladding techniques jitter is reduced enabling a cleaner signal with better dynamics and a wider sound stage. Very Low Loss Very Low loss < 0.15dB attenuation per metre Specifications

• Plastic Optical Fibre (POF) core of acrylic glass
• Stepped refractive index
• Fluorinated Polymer Cladding Material
• 24K gold plated Toslink connectors
• Precision engineered plug with
• integrated grip
• Attenuation < 0.15dB/m (650nm)
• Numerical Aperture 0.5
• Minimum bend radius 9 mm

CABLES MATTER

The optical fibre boasts half the signal attenuation per metre of the previous model, which means 'Performance Graphite' comfortably transmits the higher bandwidth signals demanded by today's multi-channel digital audio links.

The cable features a stepped refractive index core that together with precision cladding techniques minimises light absorption and modal dispersion of single mode optical signals at the fibre boundary.

This reduces the angle of incidence at which total internal reflection occurs so that more rays can propagate along the cable, which in turn makes for decreased jitter and improved audio data transmission.
