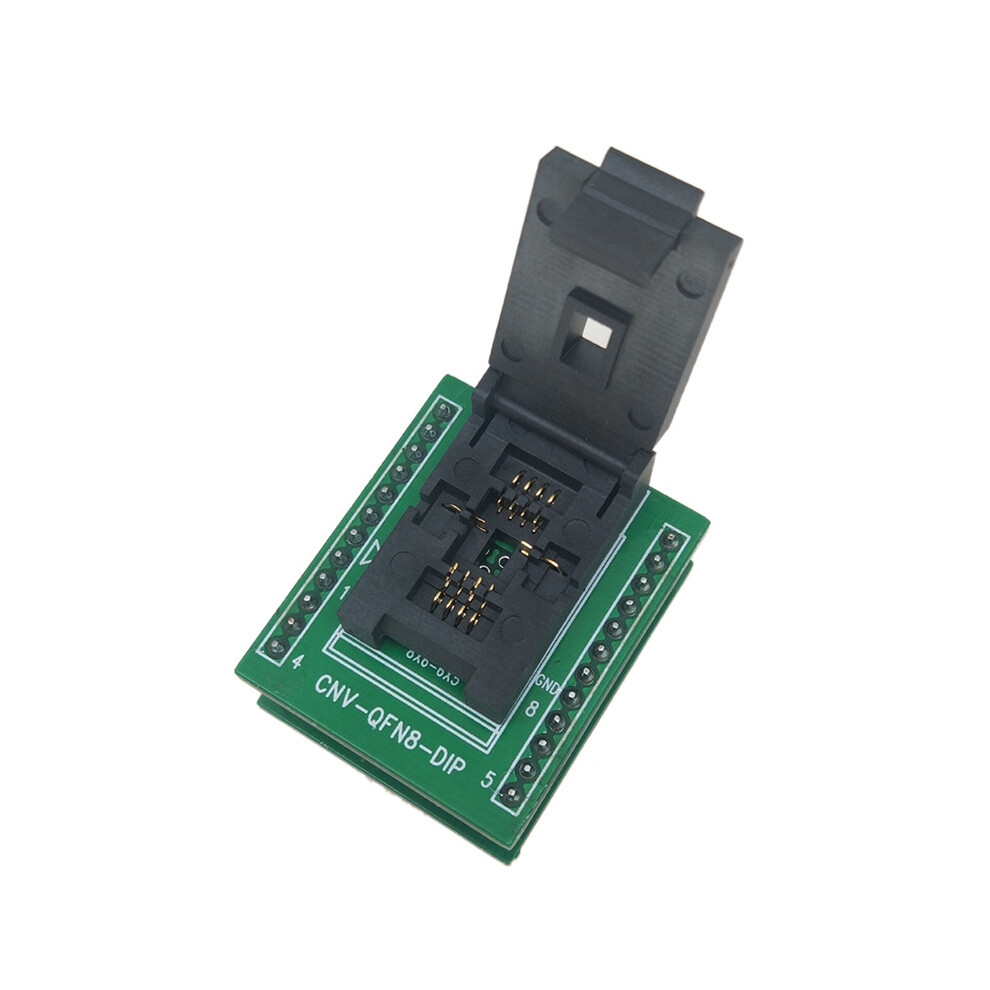

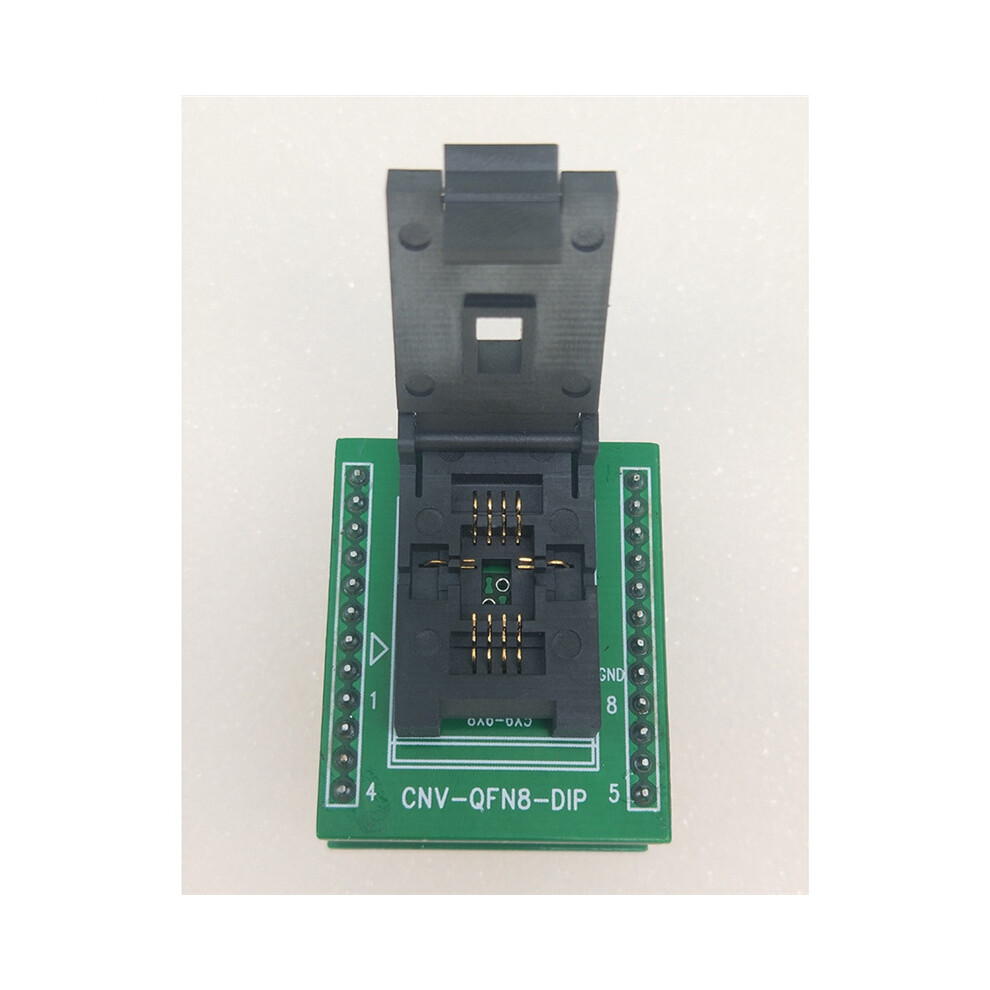

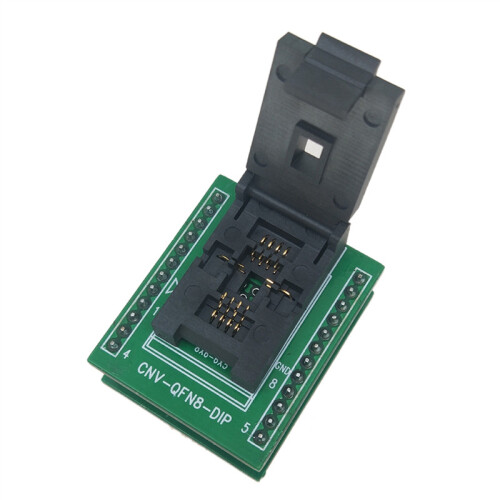

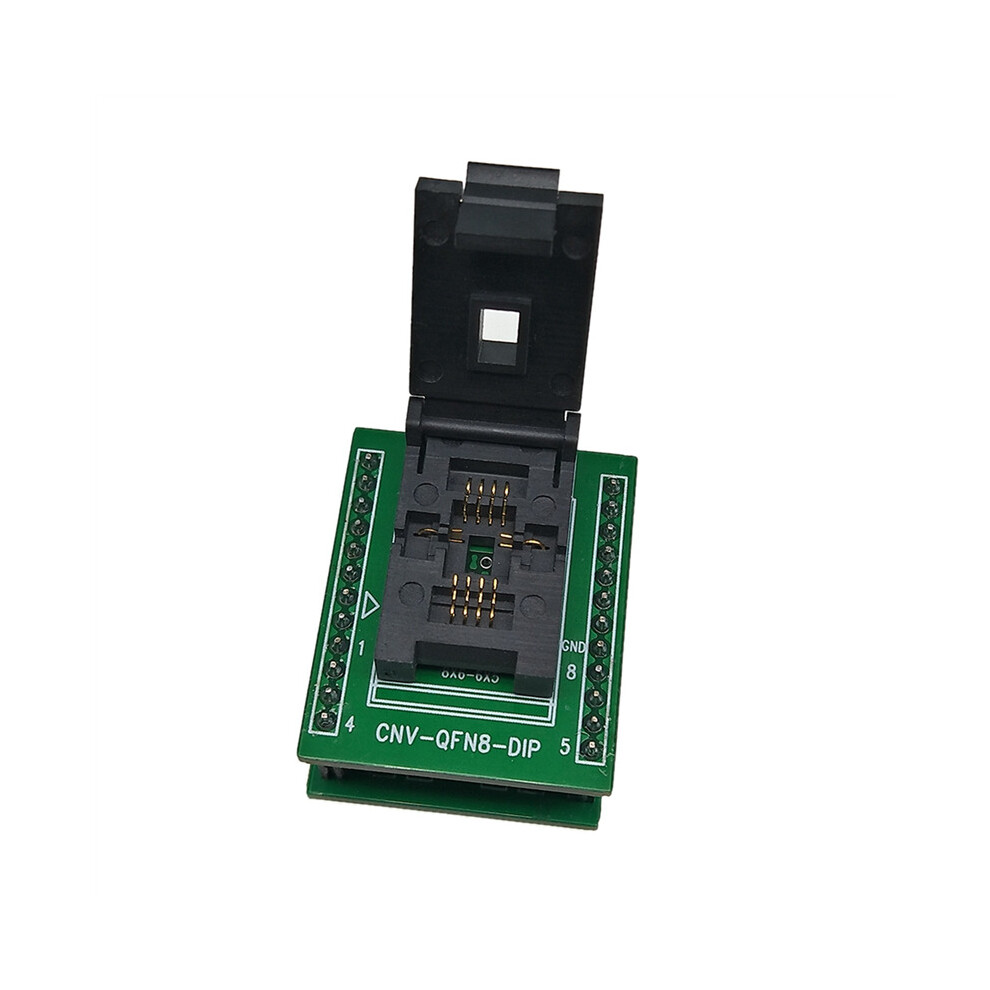

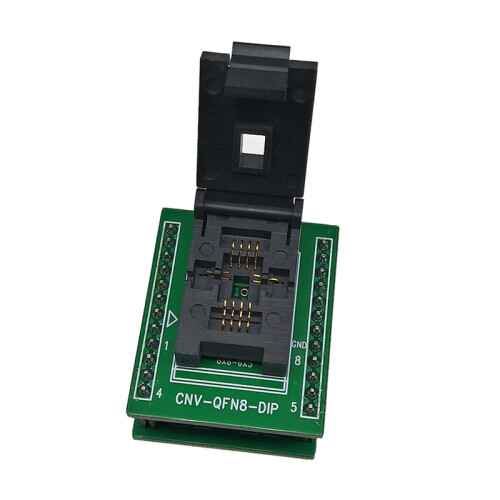

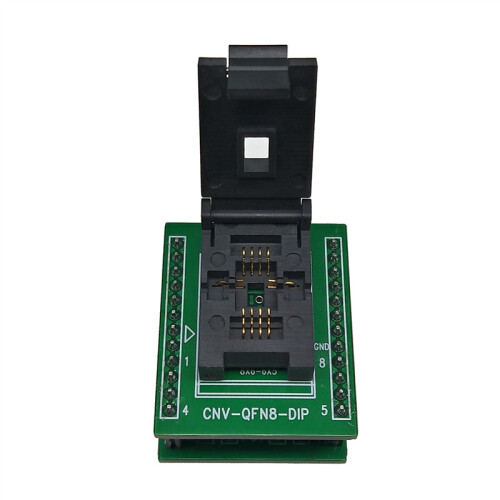

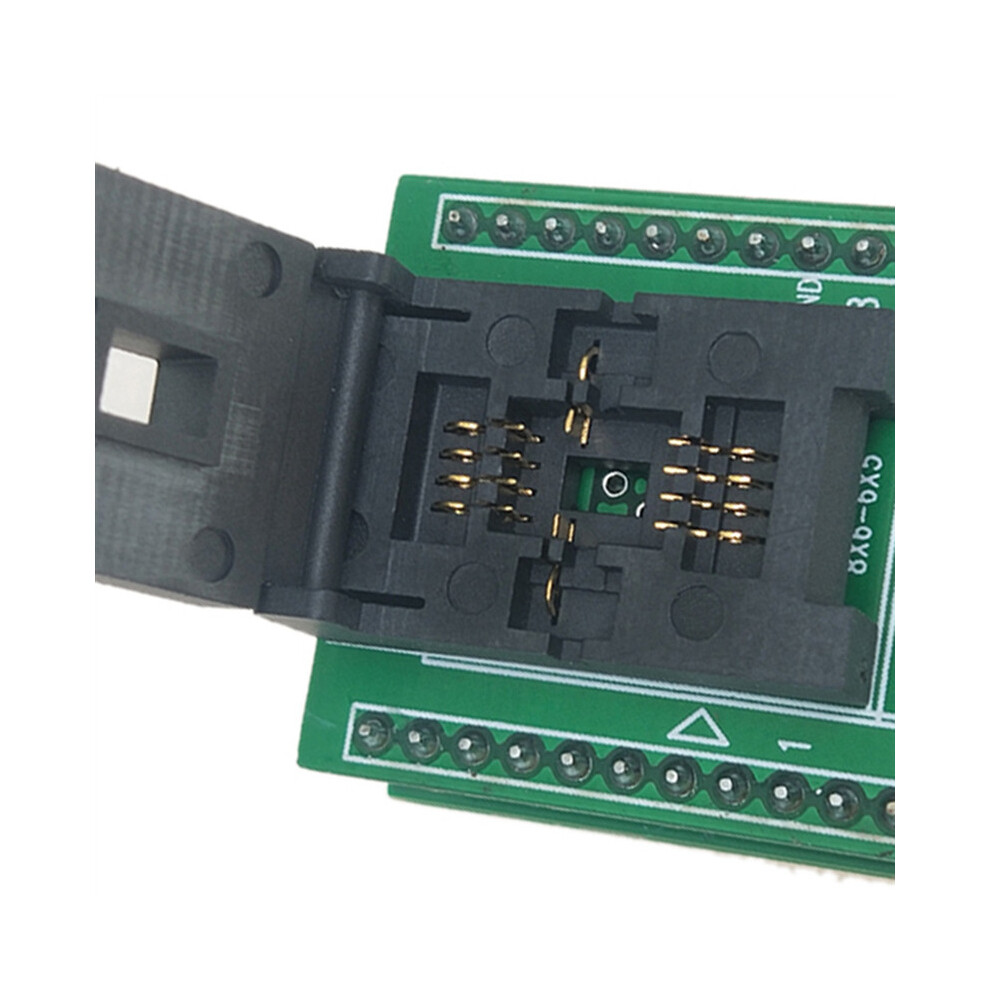

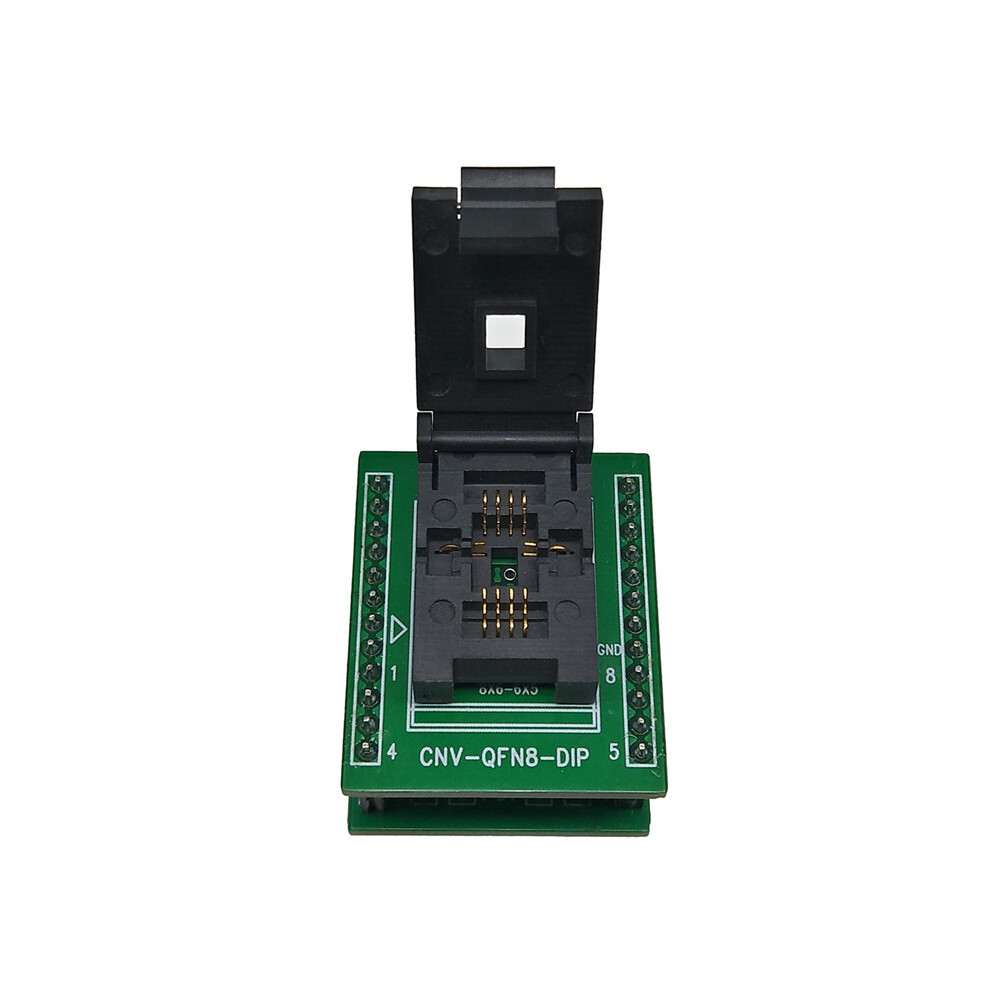

QFN8 DFN8 WSON8 Programming Socket Pin Pitch 1.27mm IC Body Size 6X8 mm Clamshell Test Socket ZIF Adapter Kelivn Socket

QFN8 DFN8 WSON8 Programming Socket Pin Pitch 1.27mm IC Body Size 6X8 mm Clamshell Test Socket ZIF Adapter Kelivn Socket Description

Clamshell structure socket
Adopting engineering material for socket structure, Strength is high ,lifetime is long
Adopting import BeCu material for socket contact Spring ,thickening gold-plating surface ,impedance is small elasticity is good
For 1.27mm pitch package

socket Body: PEI
Contacts:Beryllium Copper Alloy
Contact Plating:Gold over Nickel
Operation Force:2.0KG min, the more PINs the greater force
Contact Resistance:50m? max
Dielectric:700V AC for 1 minute
Insulation Resistance:1,000M?500V DC
Max Current Capacity : 1A
Temperature Rating:-55Celsius~+175 Celsius
Life Span 15,000 Times (Mechanical)
Colour:As shown
Material:PC+Metal+Plastic

Package Contents:
1 x QFN8 Programming Socket

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
