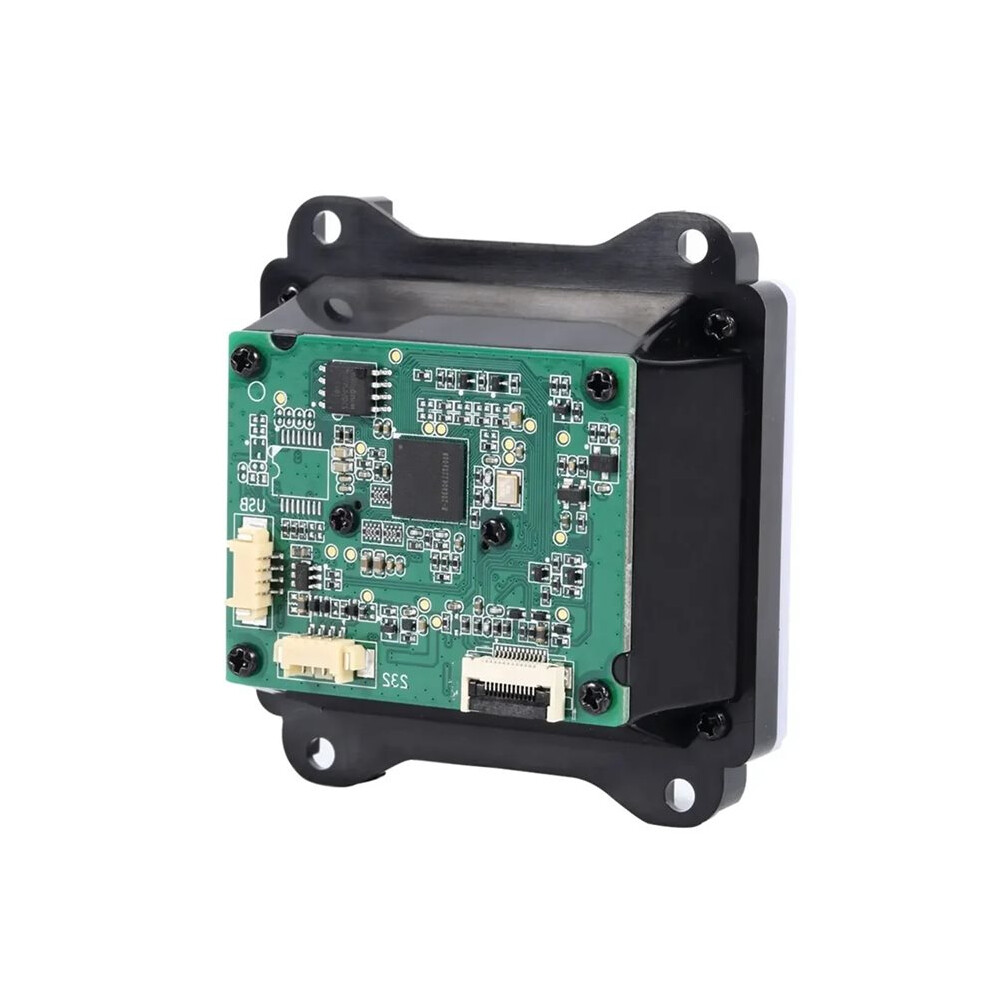

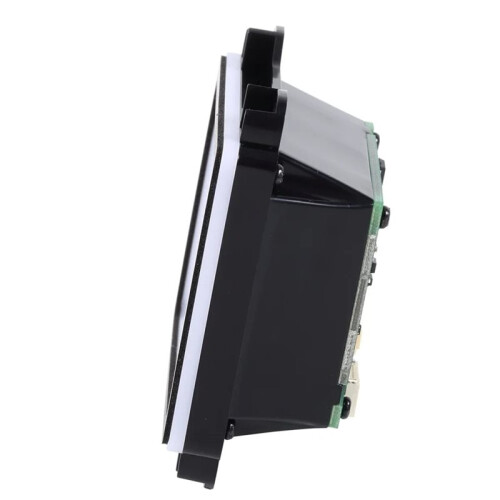

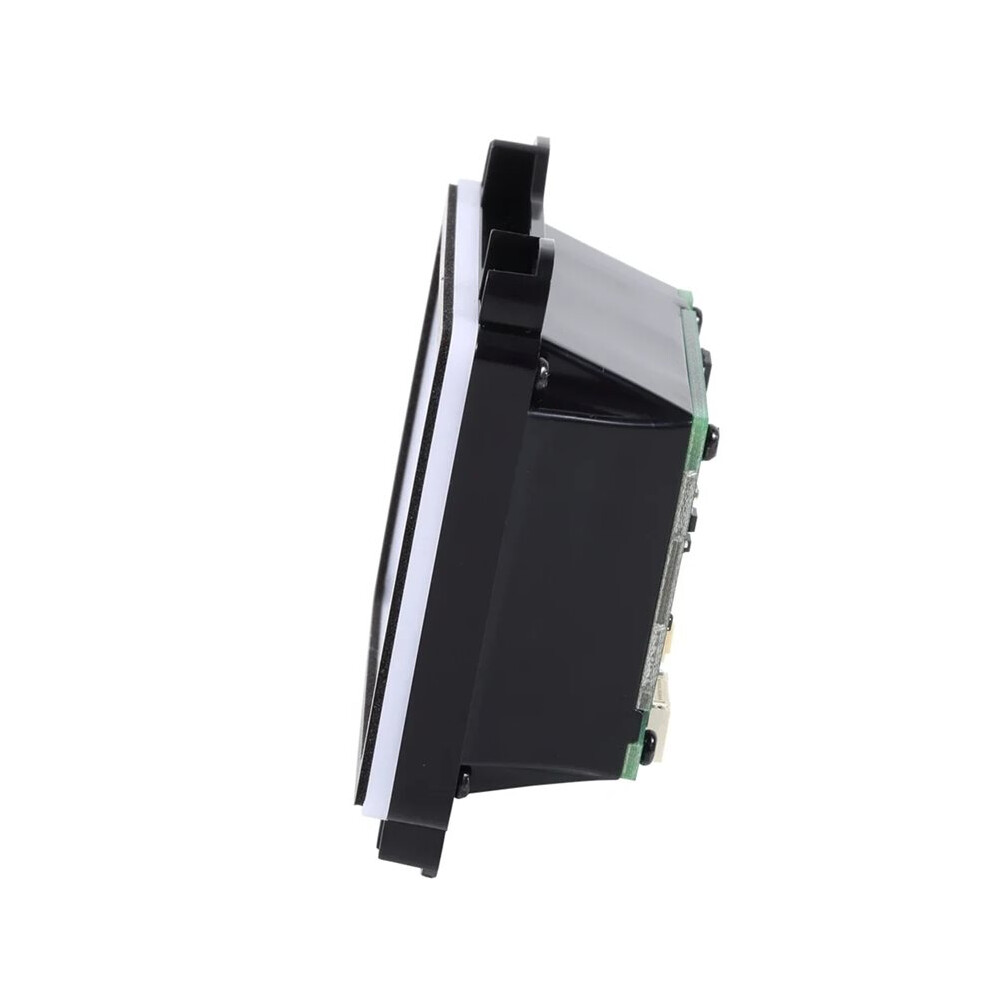

QR Code and 2D Barcode Scanner Module Efficient 1D/2D Reader Module for Scanners Genre

QR Code and 2D Barcode Scanner Module Efficient 1D/2D Reader Module for Scanners Genre Description

Performance Image Sensor 640 * 480 CMOS
Light Source White LED
Supports a wide range of symbologies including 2D PDF 417, QR Code, Data Matrix, and various 1D codes.
Typical Depth of Field for EAN-13 is 25mm-110mm, ensuring versatility in scanning distances.
Operating temperature range of -40 to +60, making it suitable for various environments.

Performance Image Sensor 640 * 480 CMOS
Light Source White LED
Symbologies 2D PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, Code, Micro PDF417 Code, Code One
1D EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
Resolution 5mil
Typical Depth of Field EAN-13 25mm-110mm (13mil)
PDF 417 35mm-50mm (6.7mil)
Data Matrix 15mm-40mm (10mil)
QR Code 0mm-90mm (15mil)
Symbol Contrast 30%
Scan Angle** Roll: 360, Pitch: 40, Skew: 45
Field of View Horizontal 68, Vertical 51, Diagonal 84.8
Mechanical Interface TTL-232, -232, USB
Electrical Power Adapter DC5V power adapter to power the NLS-EVK with -232 cable.
Current 3.3VDC Operating 335mA (typical), 479mA (max.)
Idle 93mA
Dimensions 61.5(W)x65.5(D)x31.9(H)mm (max.)
Weight 33g
Environmental Operating Temperature -40~+60
Storage Temperature -40~+75
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Color: As Shown
Material: plastic

Package Contents:
1*QR Code Scanner
