Quartz Wall Clock Movement Diy Mechanism Parts Wall Clock Movement

Quartz Wall Clock Movement Diy Mechanism Parts Wall Clock Movement Description

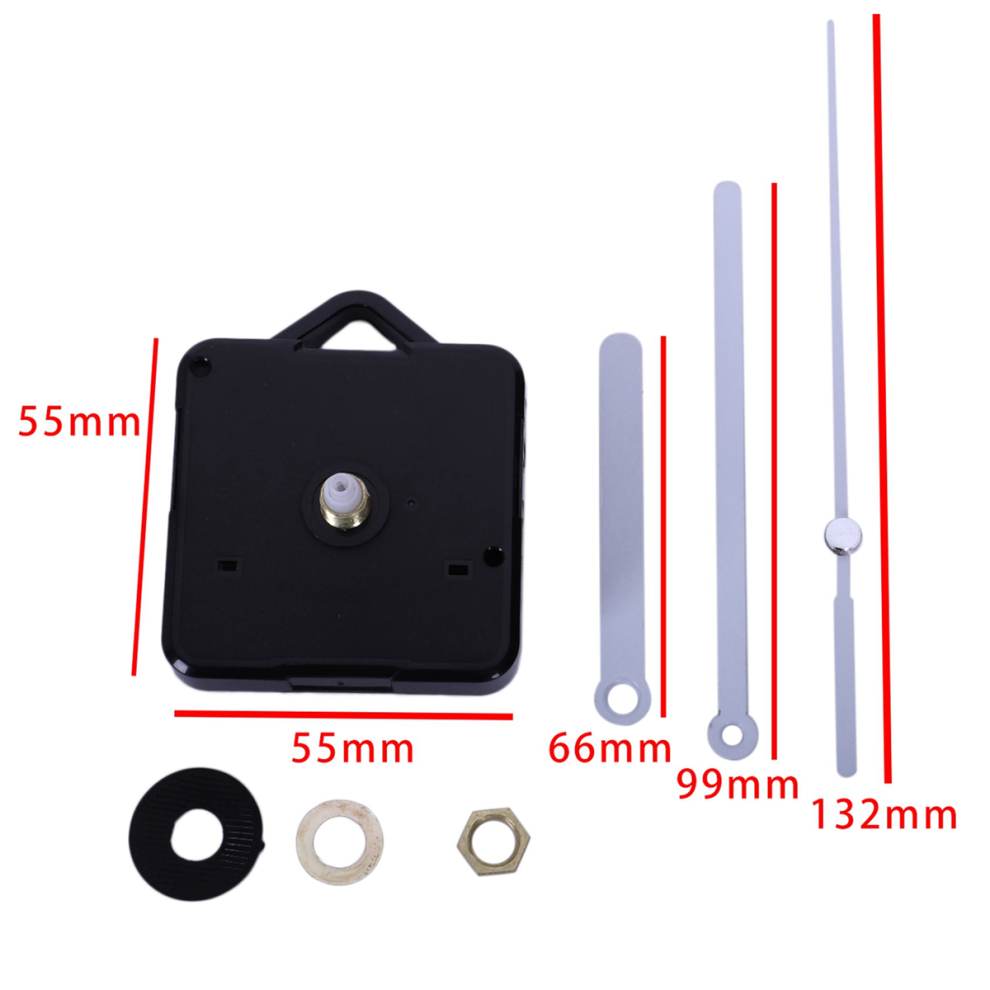

Motor Size: 55x55mm/ 2.17x2.17inch
Hour Hand Length: 66mm/2.6inch
Minute Hand Length:99mm/ 3.9inch
Seconds Hand Length: 132mm/ 5.2inch
Spindle Length: 13mm (6mm thread), Fit up to 3mm thick clock plate

Power Supply: 1 x AA Battery (Not included)
Crystal Frequency: 32.768KHz
Average Daily Difference: 2 sec/day at 1.5V, 24
Operating Voltage: 1.25V to 1.7V
Working Temperature: -10 to 50
Circumferential Output Frequency: 0.5Hz
Second Hand Output Torque:greater or equal to 1.5gf-cm (1.5V)
Minute Hand Output Torque:greater or equal to 30gf-cm (1.5V)
Average Current Consumption: Under 160uA at 1.5v
perfect for repairing most types of clocks
Color: black + white
Material: metal + plastic

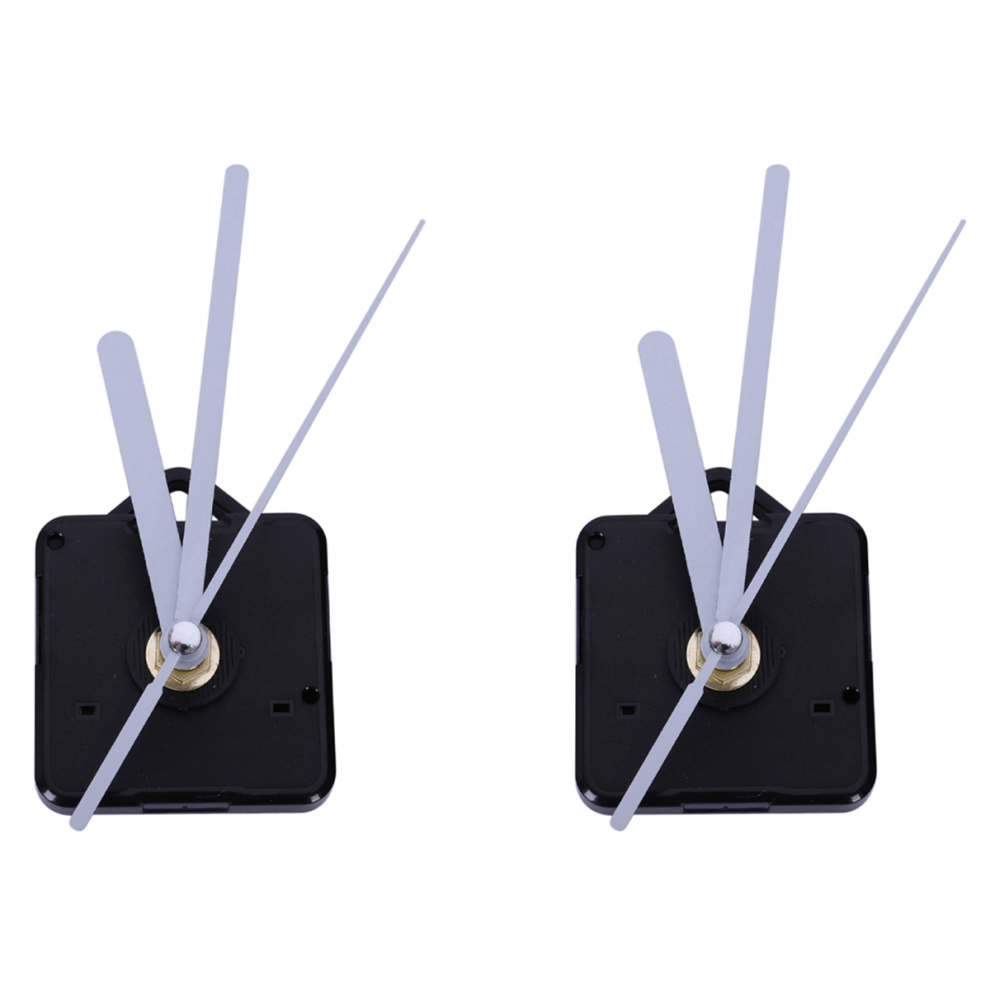

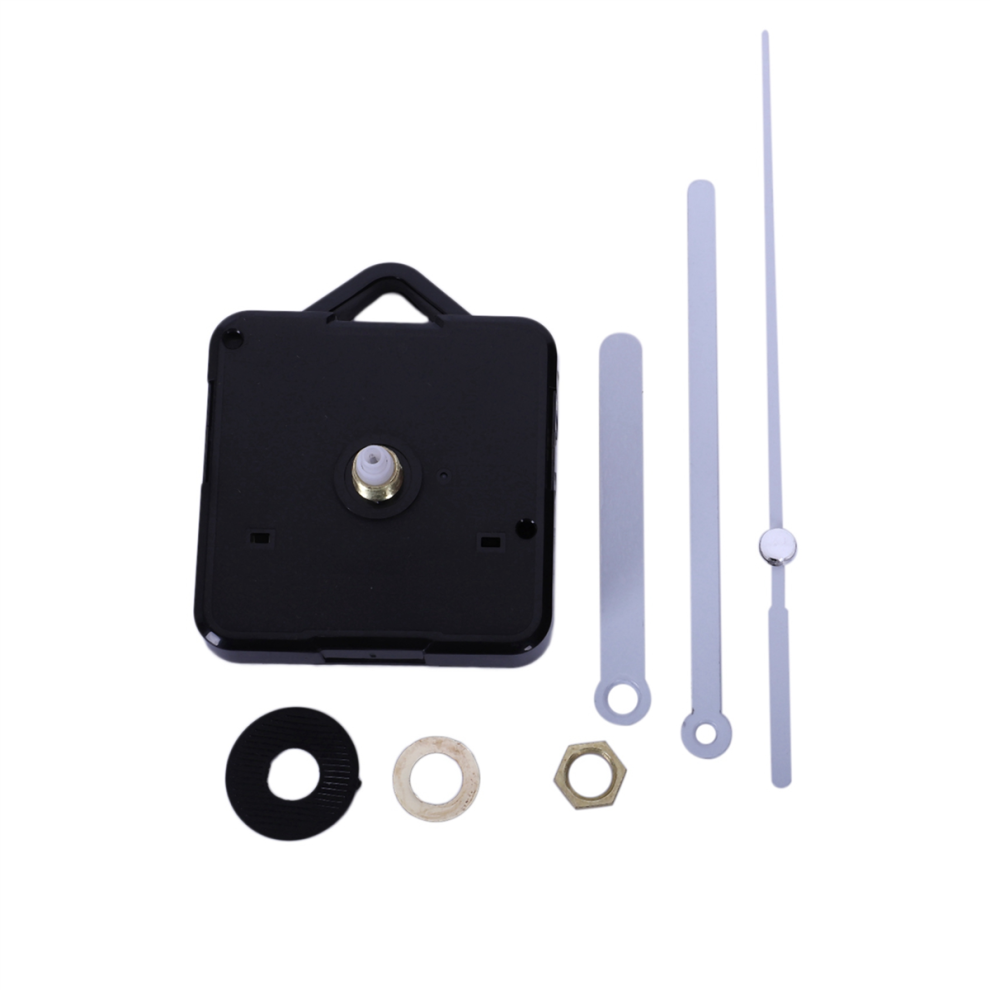

Package Contents: 2 * quartz clock movement motor (without battery)
2 * hour hand
2 * minute hand
2 * second hand
2 * accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
