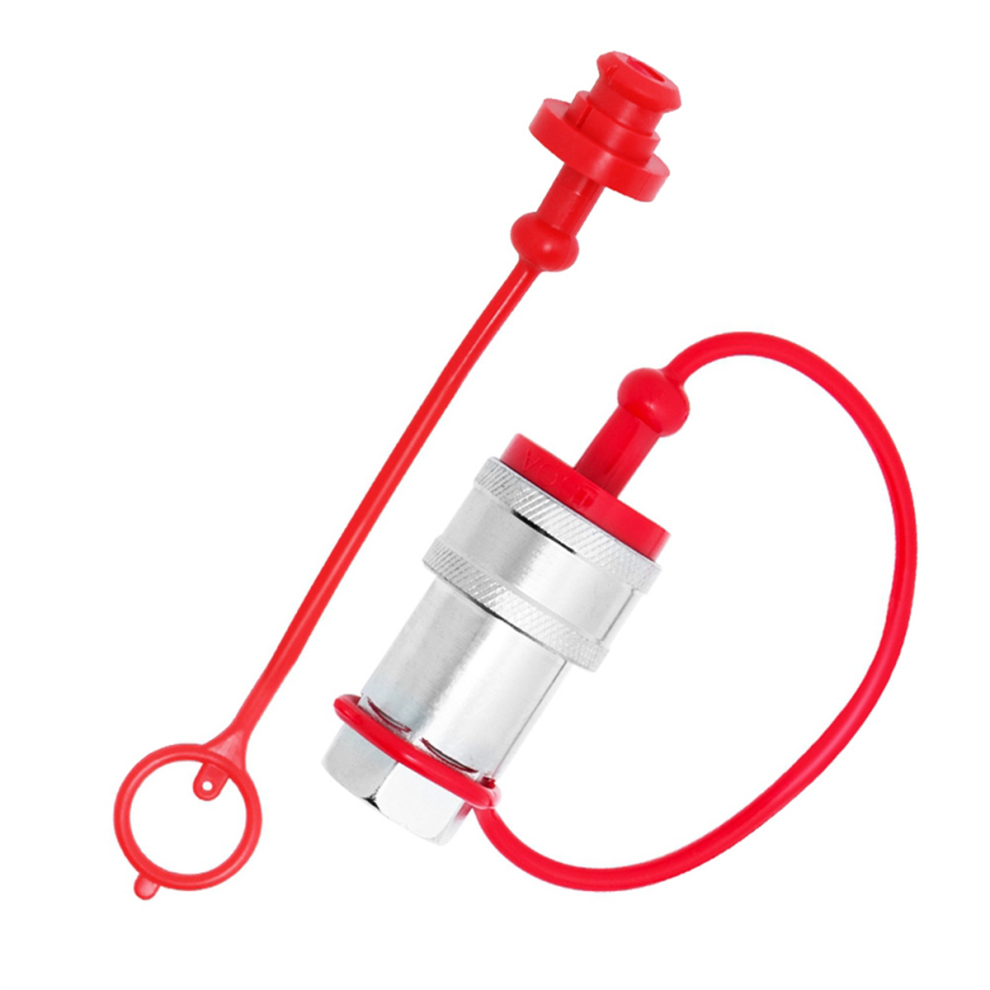

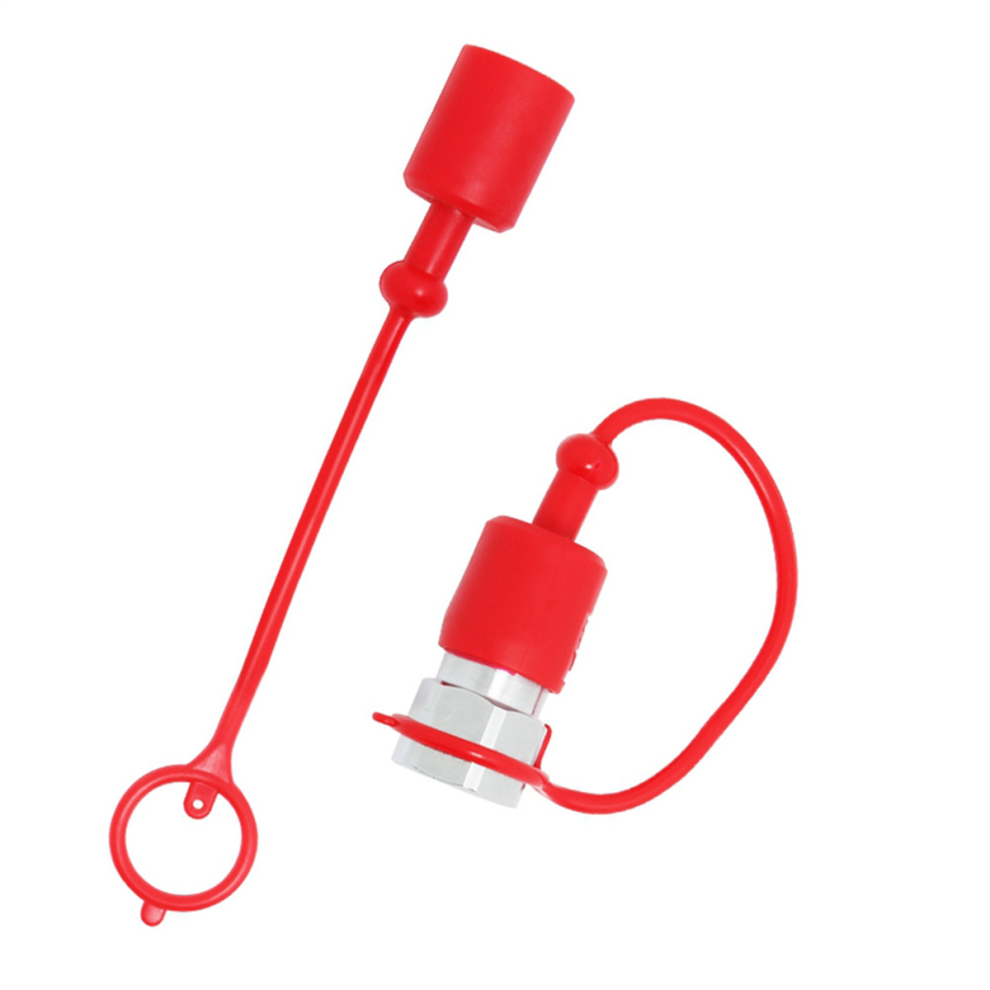

Quick Release Fitting ISO7241-A NPT Hydraulic Coupling Connector

Quick Release Fitting ISO7241-A NPT Hydraulic Coupling Connector Description

Made of high quality materials,
Suitable for ISO series "A" quick release couplings, complete with male and female threads, available in NPT thread sizes.
The quick release ISO A coupling is used for quick connection and disconnection of hydraulic lines. During coupling in the zero or low pressure range, valves that release or block flow automatically start.

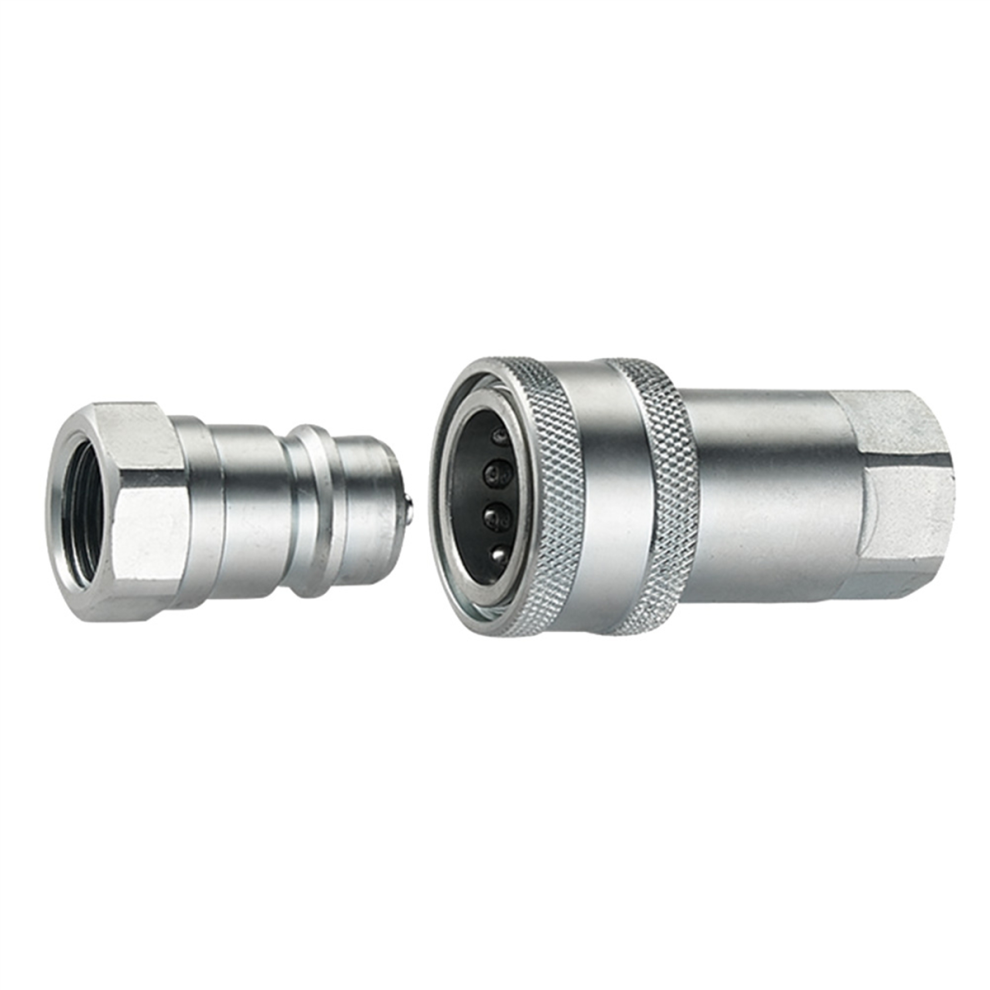

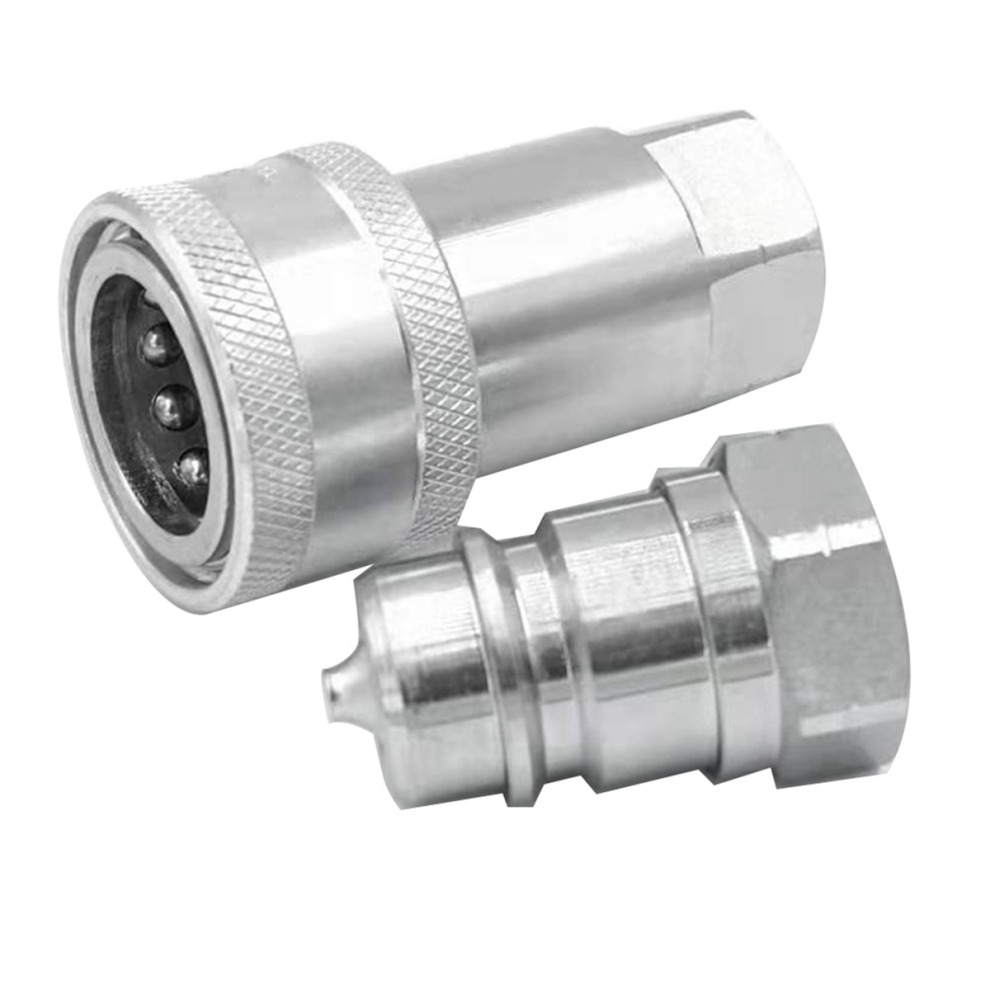

The quick release coupling consists of a coupling plug and a coupling socket, which are connected by pushing the sleeve. This ensures a flush connection between the two coupling halves.
Purpose: For agricultural and forestry equipment, such as , trailers, harvesters; Construction equipment and multipurpose vehicles, such as excavators, skid loaders, and hydraulic tools; Mining rigs and industry. If there is pressure in 1 or more hydraulic lines, use suitable under pressure connectors and mining rigs.

new and high quality
Installation form: quick change interface
Type: Through
Model: ISO7241-A
Scope of application: agricultural machinery and industrial equipment
Nozzle diameter: 10 (mm)
Pressure resistance: 40 (MPa)
Thread type: internal thread
Specification: NPT1/2,
Temperature range: - 30 C to+120 C
Operating pressure: 270 - 350 bar (depending on size)
Colour:silver
Material:Metal

Package Contents:

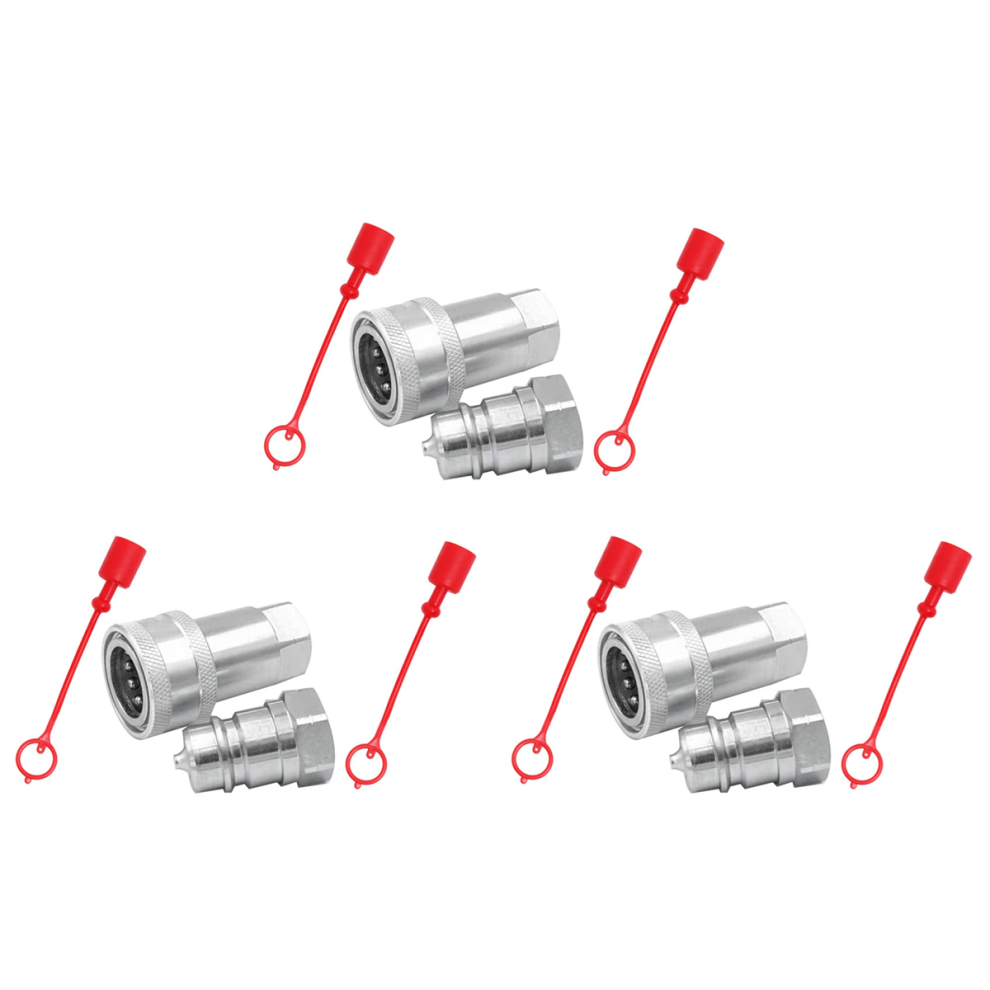

3 set x Quick Release Fitting

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
