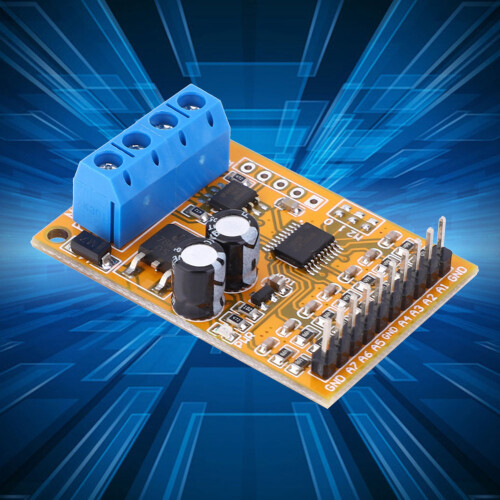

R4AVA07 7-Channel RS485 ADC Modbus RTU
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
£8.15
£15.51
47% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 10th - Tue 15th Sep
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- R4AVA07 7 Channel RS485 Voltage Analog Collector ADC Modbus RTU 03 06 Function Code
R4AVA07 7-Channel RS485 ADC Modbus RTU Description
1、The A1 / 2/3/4 channel voltage measurement range is 0-5V, while the A5 / 6/7 channel voltage measurement range is 0-10V. 2、The drive capability of the voltage source under test must be greater than 1MA, otherwise the measurement will be inaccurate (the MCU IO voltage cannot be measured). 3、The voltage measurement accuracy is 1%, and if the error is greater than 1%, calibration can be performed. 4、In addition to the computer serial super port input, the MODBUS RTU command can also be input via the PLC. 5、In the MODBUS RTU command mode, up to 247 devices can be used in parallel. 6、The MODBUS RTU instruction supports the 03 06 function code.
Item Type: Voltage Analog Collector
Working Current: 10-15MA
Size: Approx. 45 x 30 x 15mm / 1.8 x 1.2 x 0.6in
1 x Voltage Analog Collector
Details
| OPC | PMCJRF8 |
|---|---|
| Codes | 610830925444 (UPC) |
