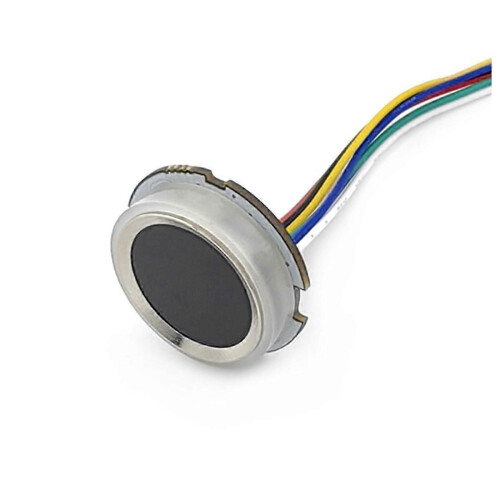

R502S Fingerprint Module Fingerprint Recognition Module Capacitive Fingerprint Module Sensor Scanner

R502S Fingerprint Module Fingerprint Recognition Module Capacitive Fingerprint Module Sensor Scanner Description

Seven-color lights, freely set
Multiple communication interfaces to meet more application needs
150 fingerprints
Image pixels are 160 x 160
Quick identification, accurate comparison
Working voltage: DC 3.3V
Standby current (finger detection): Typical touch standby voltage: 3.3V Average current: 2uA
Working current (fingerprint collection): 20mA
Power-on start time: 50ms
Image size: 160 x 160 pixel
Collection area: 15.5mm diameter
Image resolution: 508 dpi
Template size: 2KB
Time to generate feature points: Less than 500 ms
Comparison time: 1:NLess than 10ms/fingerprint
Storage capacity: 150 pieces
False acceptance rate (FAR): 0.001%
False rejection rate (FRR): 51%
Working temperature: -20 ~+60
Storage temperature: -40 ~+75
Working humidity: 10%~85% (no condensation)
Storage humidity: Less than 85% (no condensation)
Material: Alloy
Color: As shown
Package Contents:
1 x Fingerprint Module
1 x Connection Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
