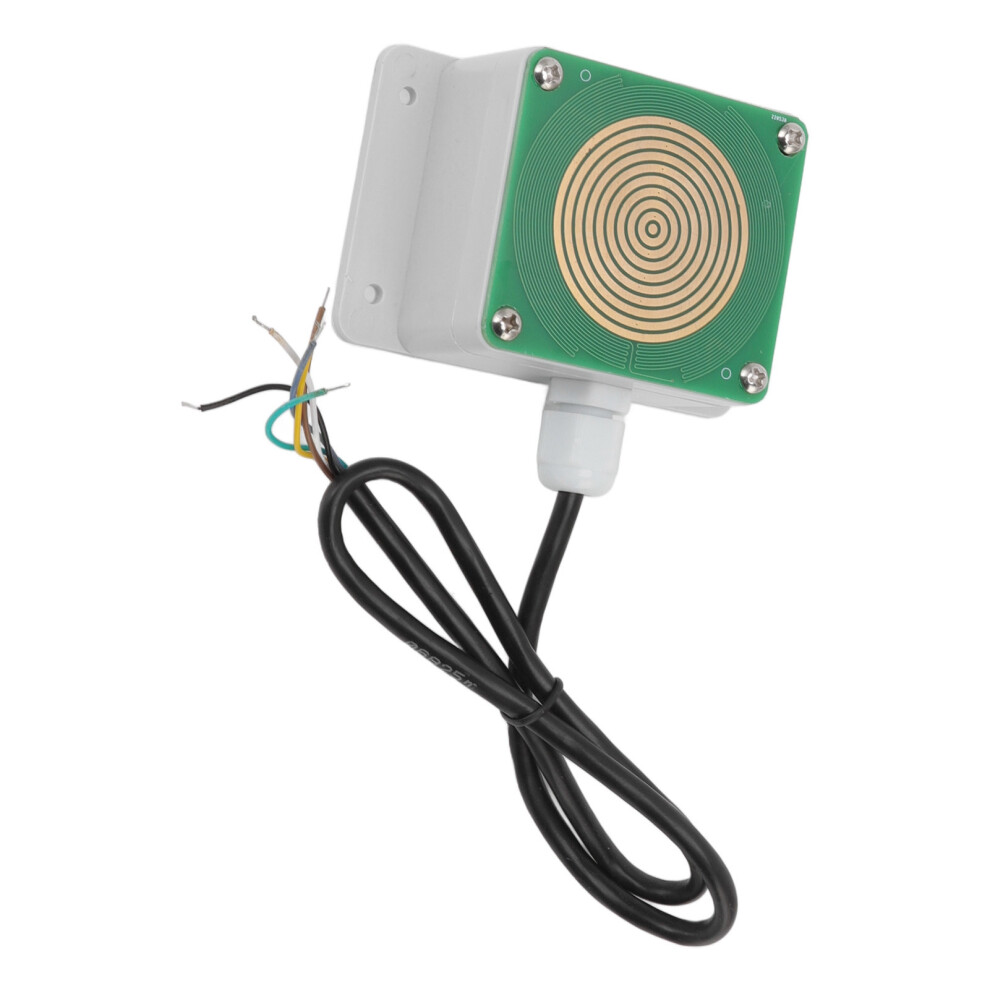

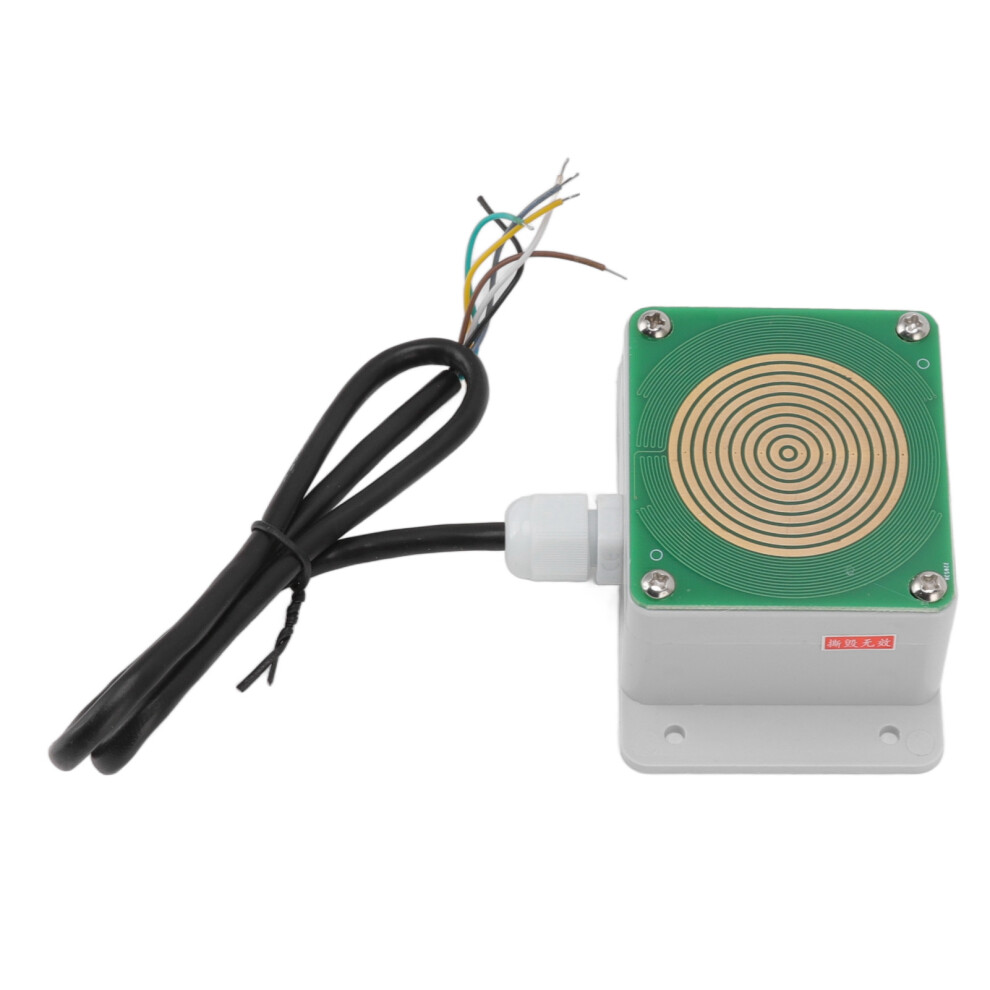

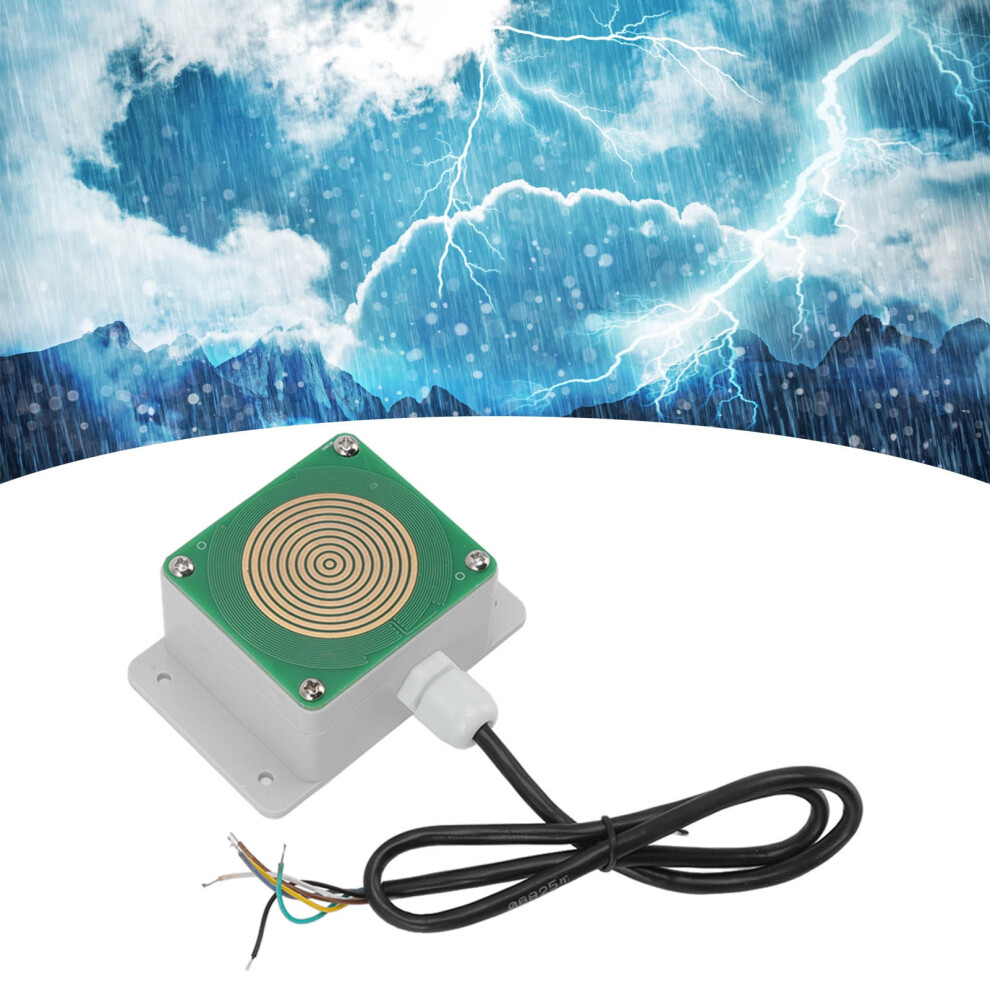

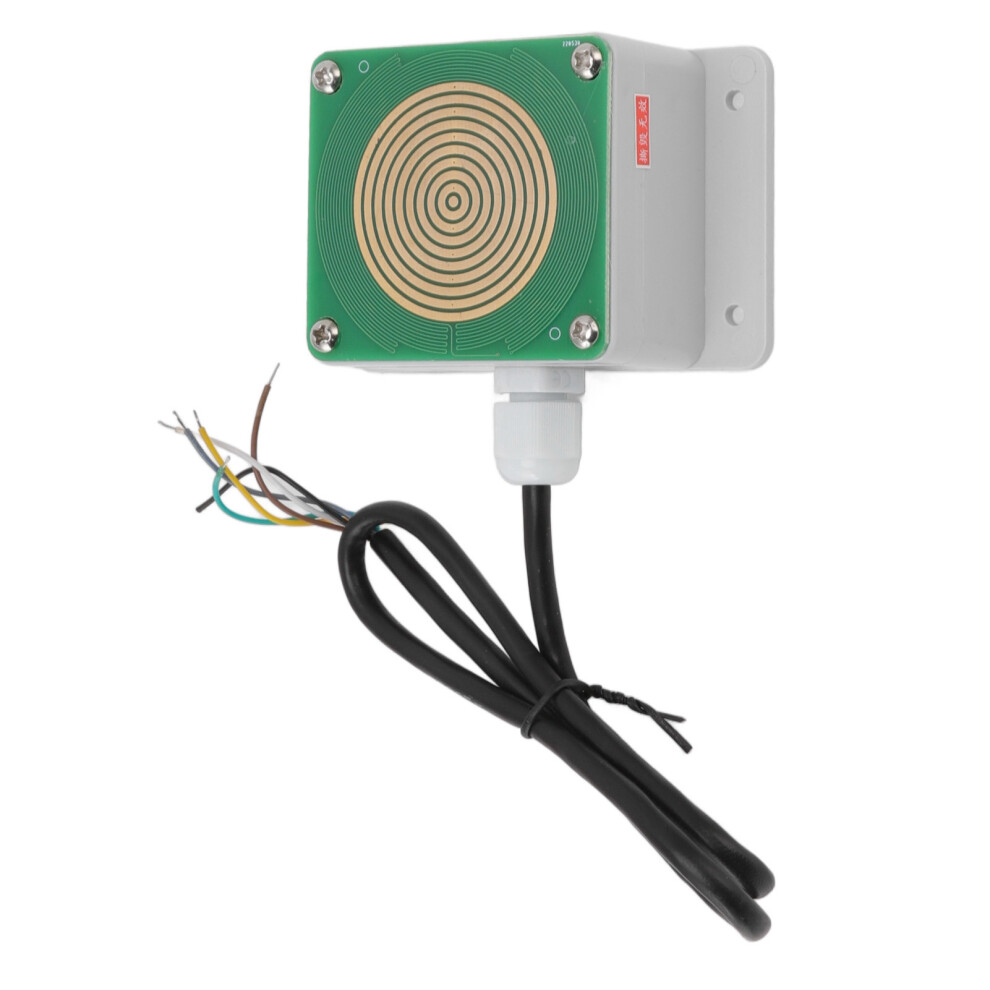

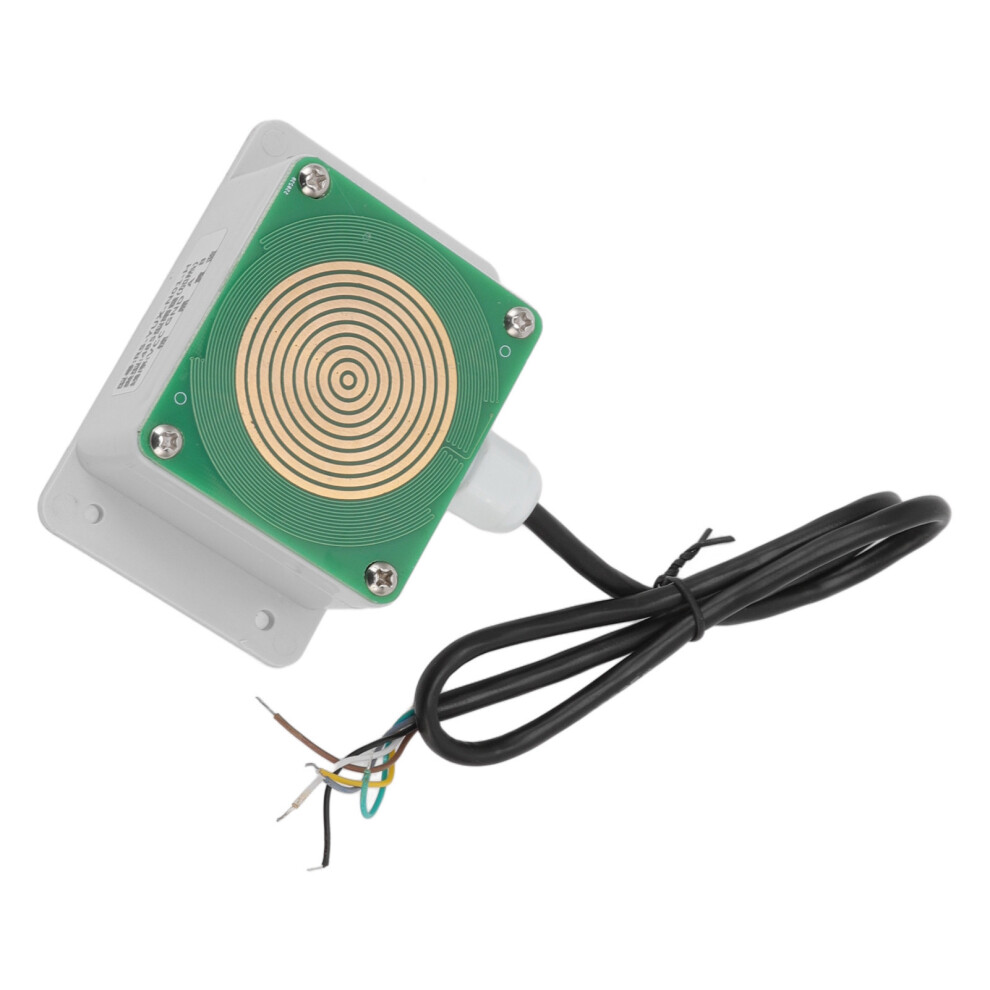

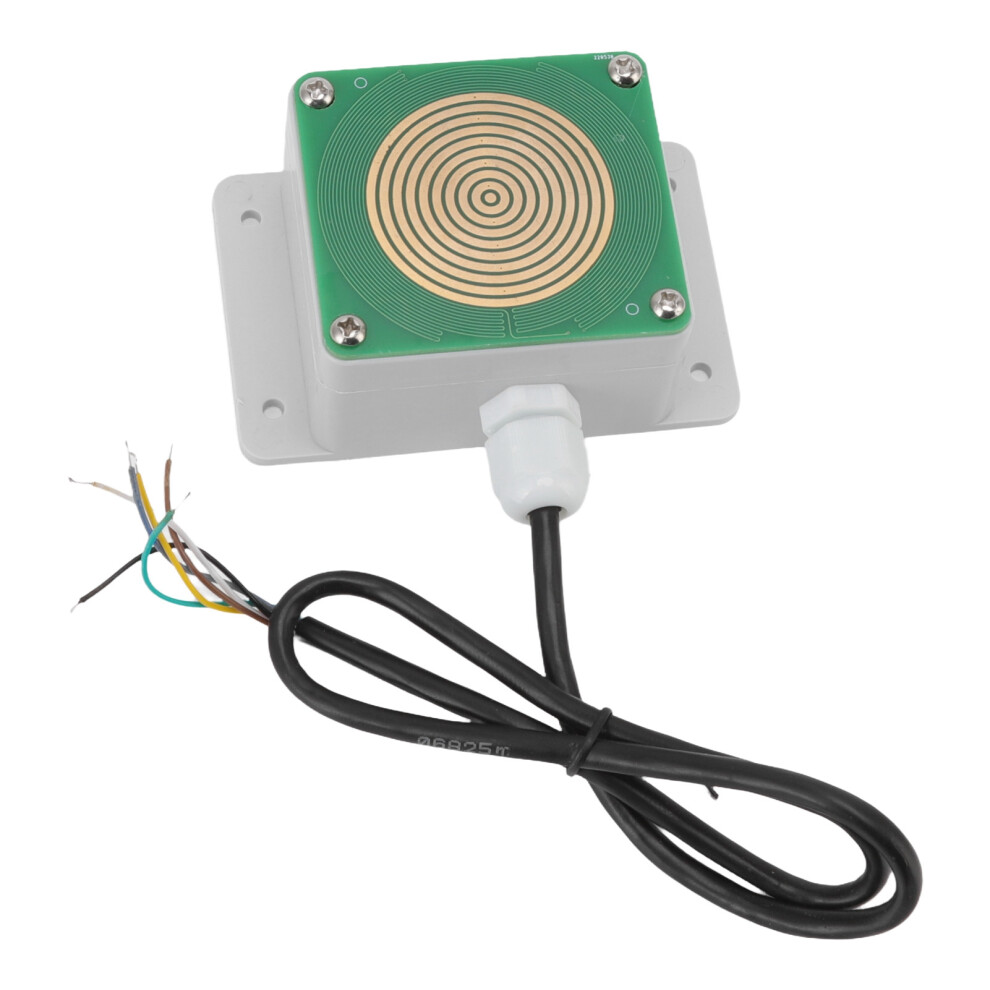

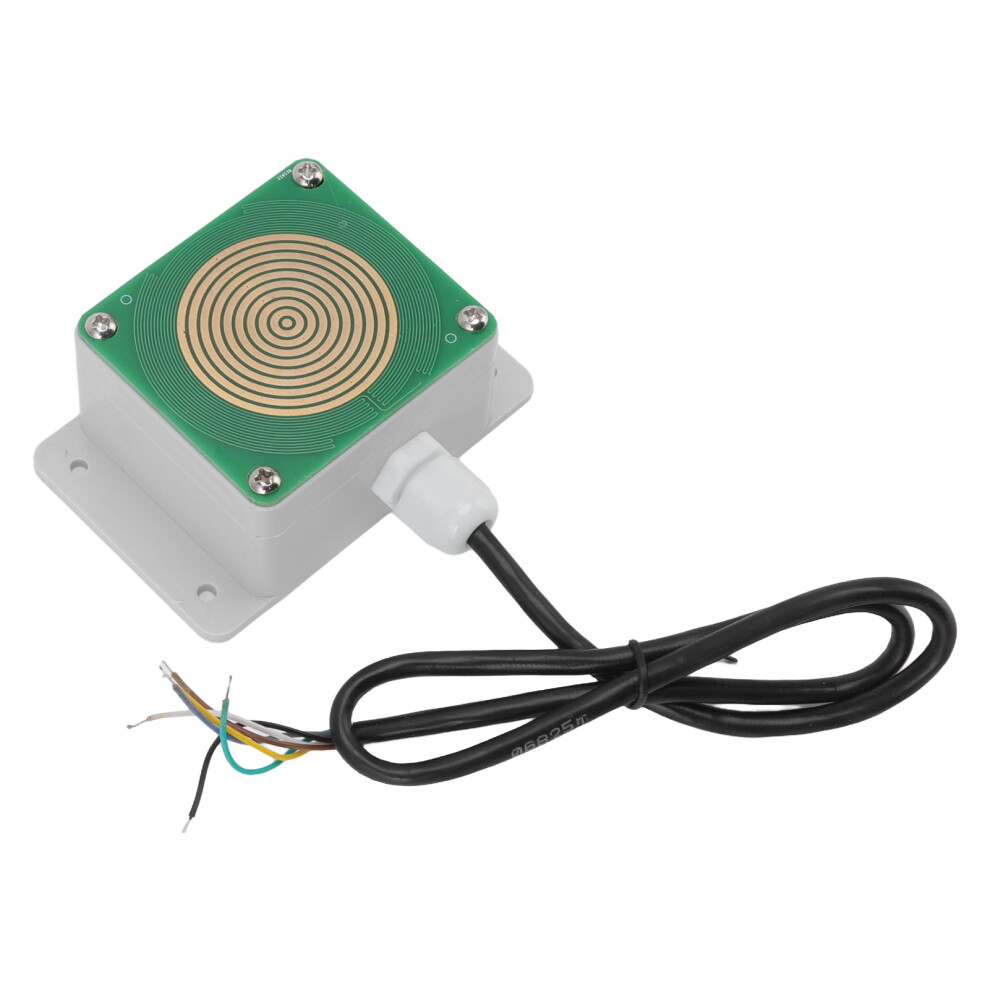

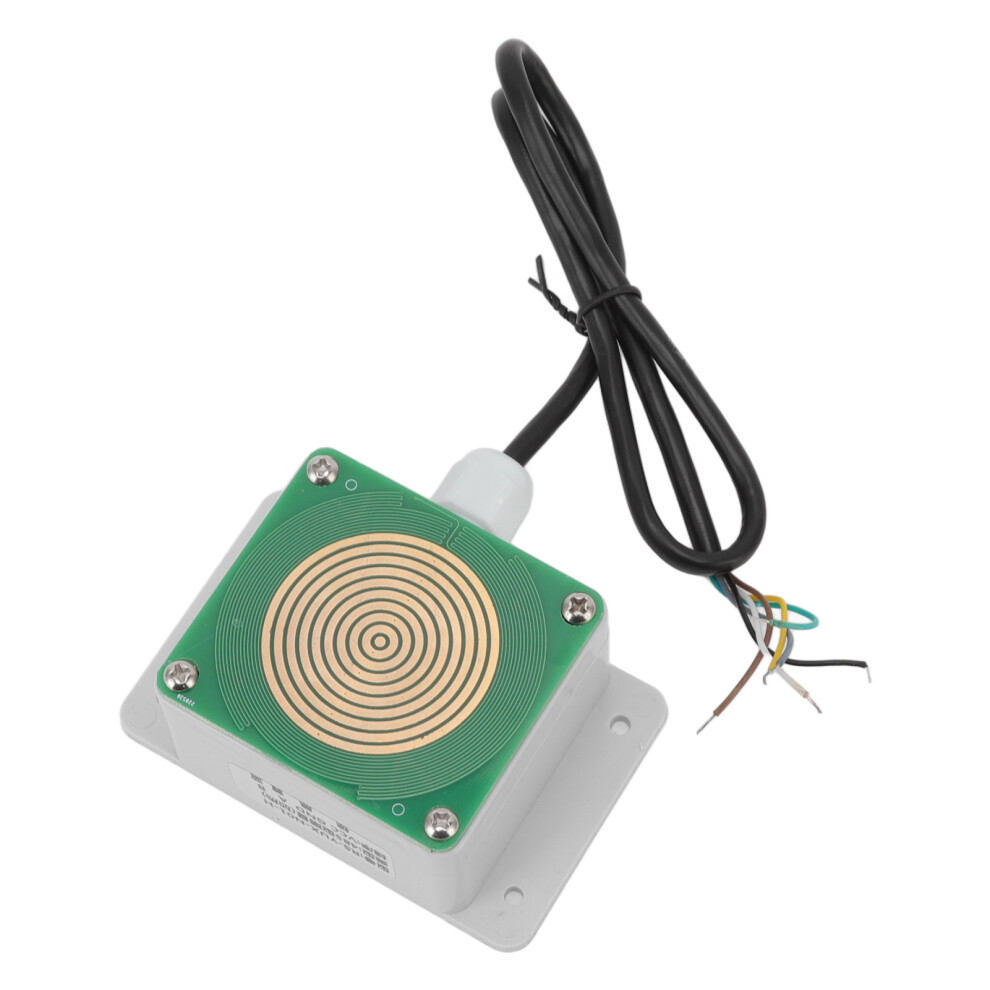

Rain and Snow Sensor Relay Output 485 Wind and Rain Transmitter for Greenhouse Aquaculture Buildings

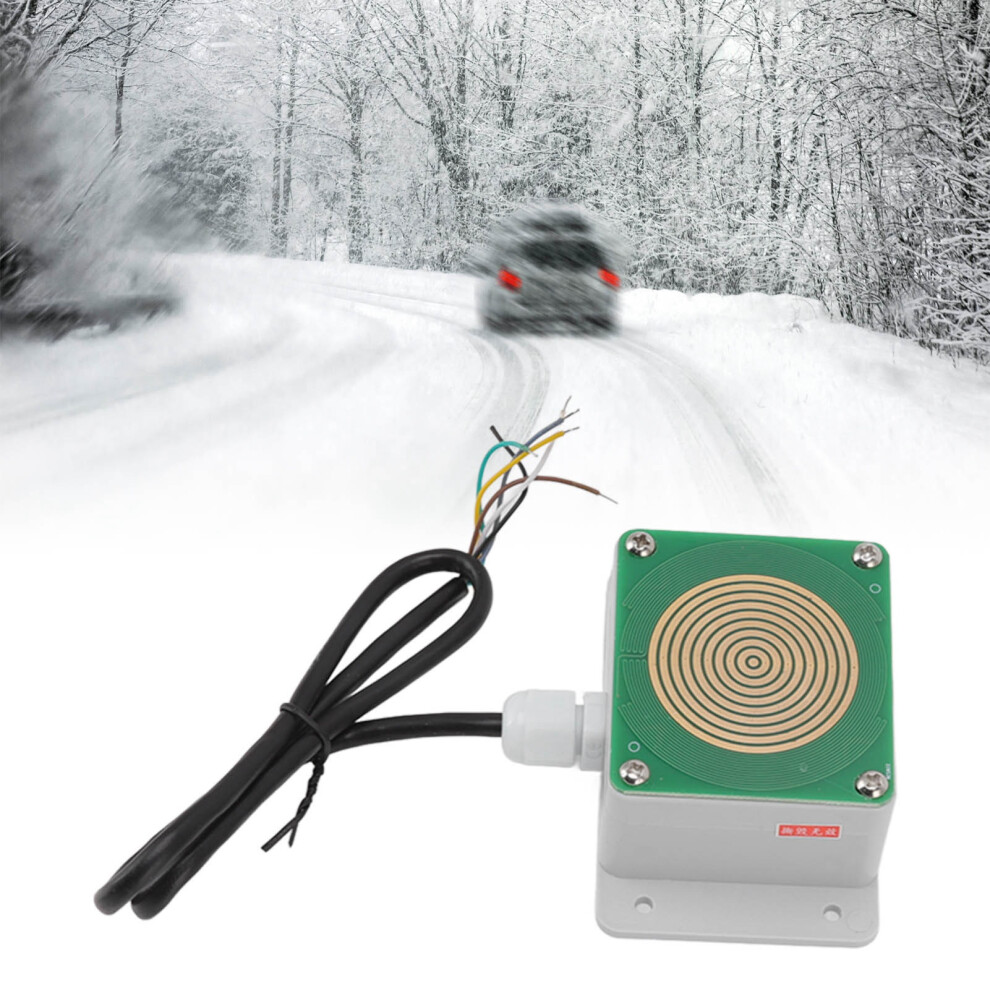

1、Measure Whether: Rain and snow sensor is a qualitative measuring device, which is used to measure whether it rains or snows outdoors or in the nature. 2、Safe and Sensitive: The rain and snow sensor is safe, reliable, beautiful and easy to install. The sensitivity of the sensor is adjustable for more flexible use. 3、AC Measurement Technology: The unique AC measurement technology prevents the oxidation reaction of the sensing plate and ensures long term sensitivity. 4、Automatic Heating: The automatic heating function can be used for snow detection to prevent freezing and condensation when the temperature is lower than 0 for a long time and the humidity is high. 5、Heating Temperature Range: The temperature during heating shall be strictly controlled within 40 C (default value) to prevent excessive oxidation caused by dry burning and prolong the service life. 6、Response Time and Alarm Reset Delay: The response time of rain and snow measurement is less than or equal to 0.5s. Alarm and reset delay can be set to avoid frequent field alarms. 7、IP68 Protection Level: The rain and snow transmitter is designed with IP68 protection level, and can work outdoors for a long time.

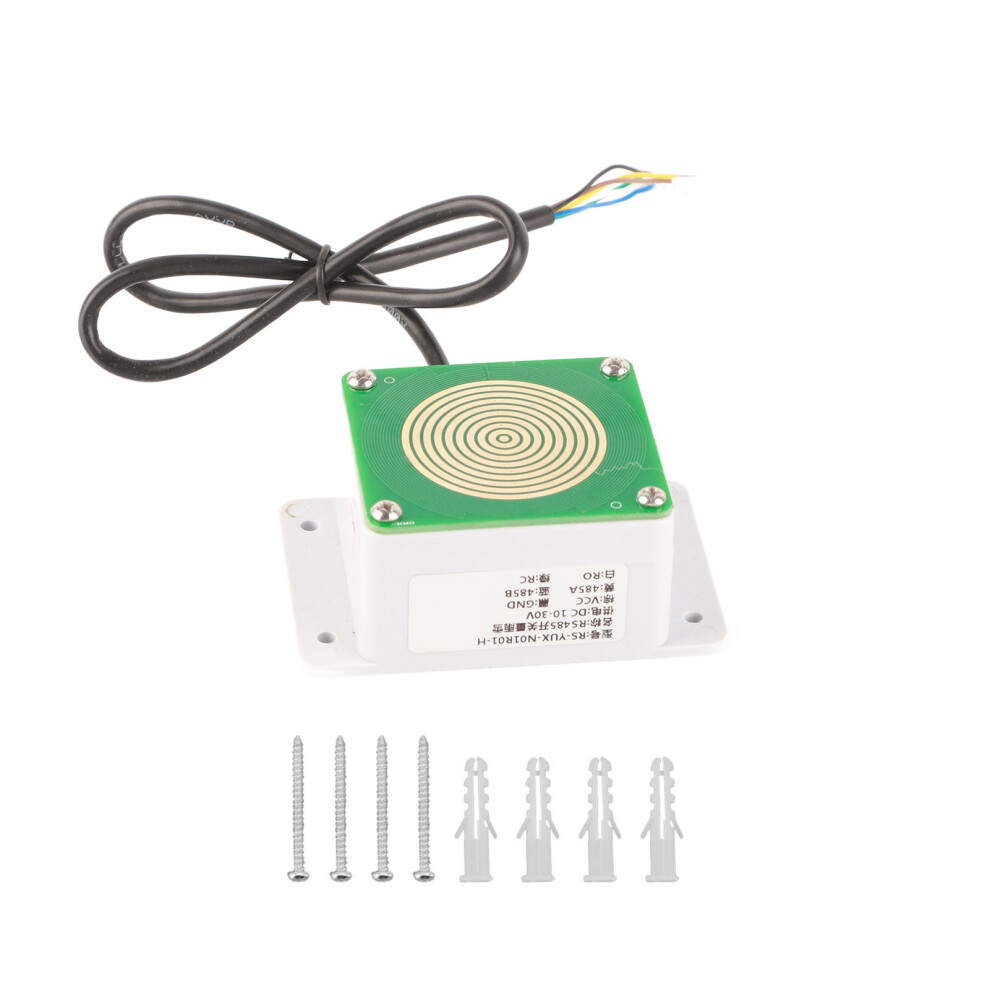

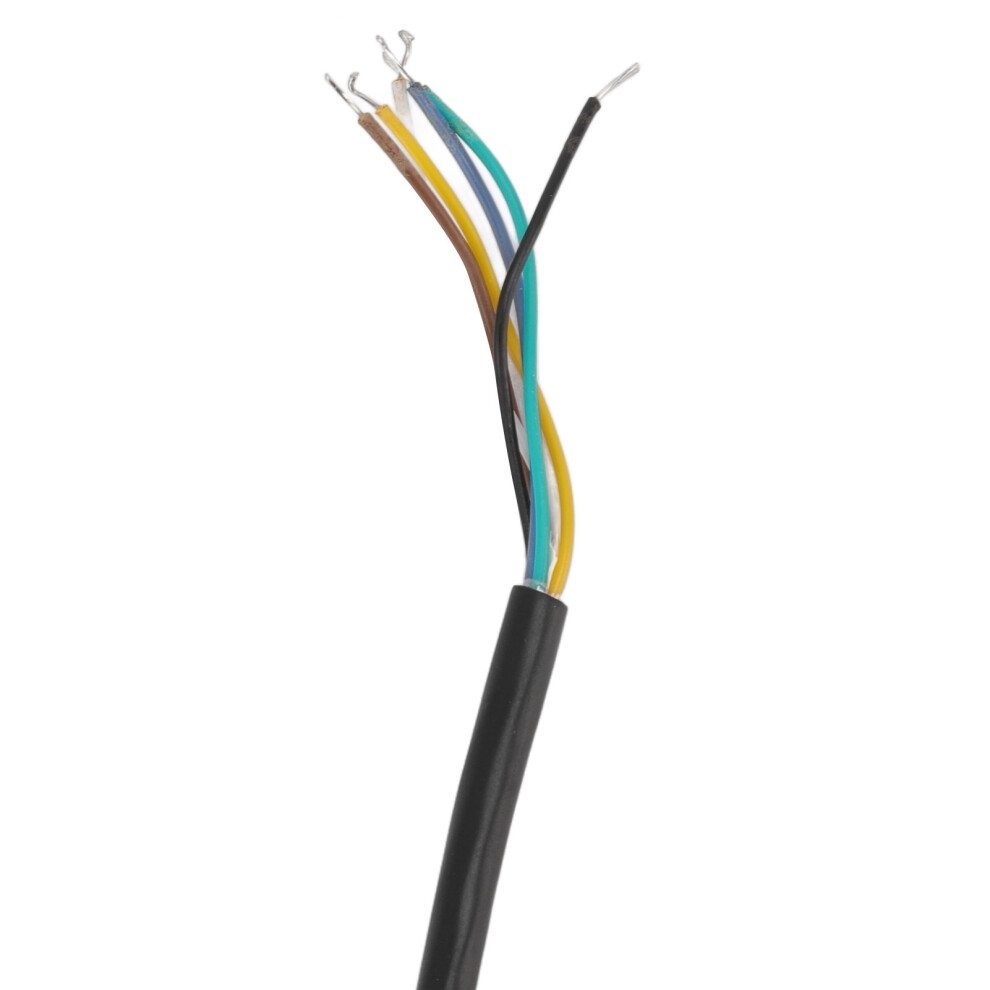

Item Type: Rain and Snow Transmitter Material: Plastic Color: As Pictures Shown Weight: Approx. 153g / 5.4oz Power Supply: 10~30V DC Normal Working Power: 0.4W Storage Environment: -40~80 Output Signal: 485 Relay Parameter Configuration: Software Setting Default Address: 01 Support Function Code: 03, 06 Maximum Heating Temperature: 40 (Default) Load Capacity Output Relay: 250V AC 1A, 30V DC 1A Product Size: Approx. 89x64x38mm / 3.5x2.5x1.5in Model RS-YUX-N01R01-H Type Switching Value + 485 + Automatic Heating Function Line Sequence VCC GND A B RC RO Brown Black Yellow Blue Green White Ambient Temperature for Heating Start:
