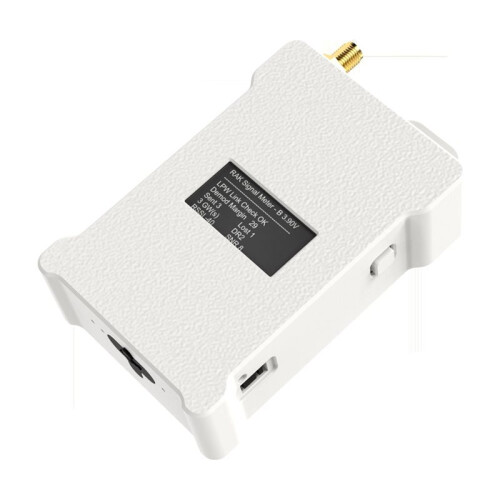

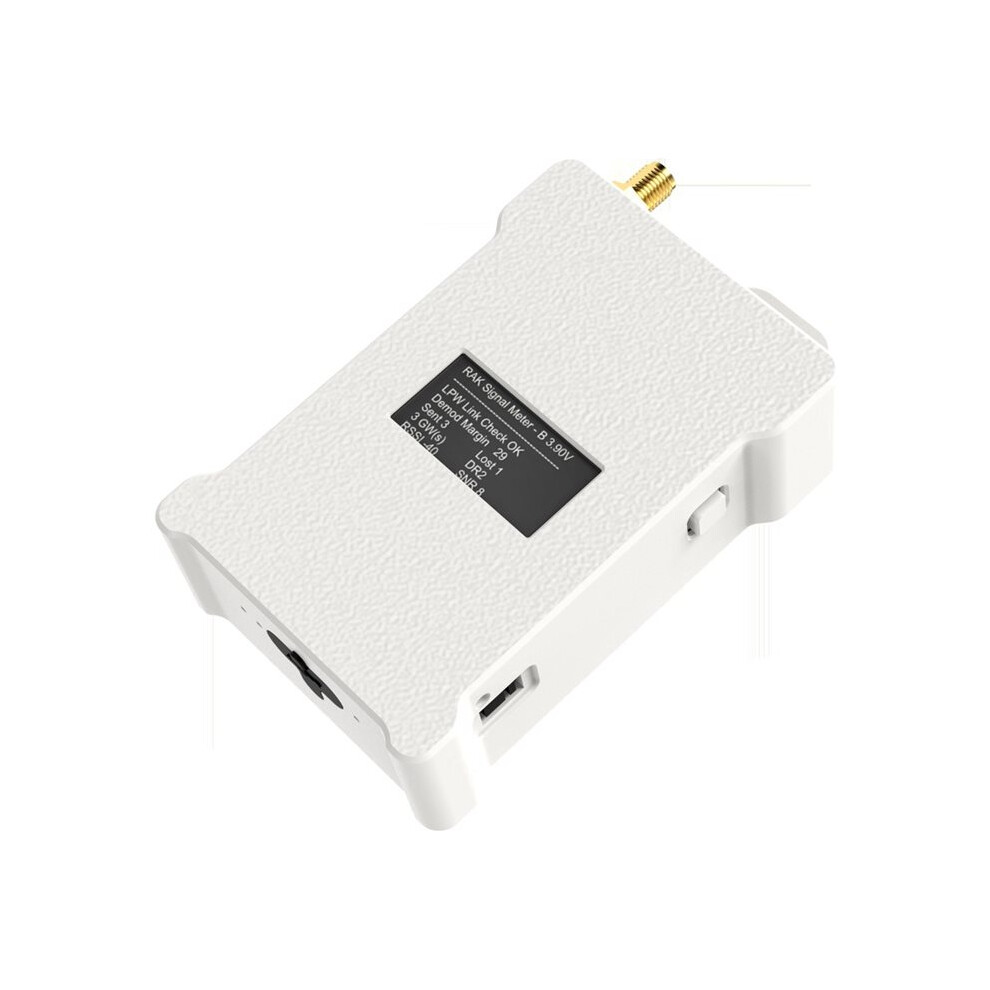

RAK10706 Signal Meter LoRa LoRaWAN with 1.3" OLED Display Helium Support LoRa P2P Data Packets 868MHZ

RAK10706 Signal Meter LoRa LoRaWAN with 1.3" OLED Display Helium Support LoRa P2P Data Packets 868MHZ Description

For LoRa P2P coverage tests it supports both receiving and sending of LoRa P2P data packets and the option to use custom payloads, which can be setup through AT commands. It provides the RSSI and SNR value of the received P2P packet
In addition, basic functions of the Helium/LoRaWAN field tester are implemented. This function requires a cloud backend to receive and process the information of packets send out
The device setup can be changed in the field without the need to connect with a computer. An easy-to-use settings UI can be controlled with the single user button of the device. A battery that disconnects the battery from the electronics ensures minimal self-discharge of the battery while not in use

The RAK10706 is a low-cost LoRa and LoRaWAN coverage tester. Small, equipped with a low-power 1.3" OLED display and a 3200mAh battery, it provides a long use without the need to recharge. It provides coverage tests for LoRaWAN with any LoRaWAN server that supports LinkCheck (LoRaWAN standard function). There is no need for a cloud-based backend. It will provide the number of gateways in range, the RSSI and SNR value of the received downlink, and the demodulation margin, which is the link margin in dB of the received LinkCheckReq command.
Note: card and RTC module not included.
The product contains battery accessories, Please keep the product out of reach of children to avoid accidental ingestion!
Color: As Shown
Material: ABS
Specification: 868mhz

Package Contents:
1*LoRaWAN Signal Meter
