Raspberry Pi Digital Audio Card with I2S Interface – PiFi DIGI DAC for 3B/2B

Raspberry Pi Digital Audio Card with I2S Interface – PiFi DIGI DAC for 3B/2B Description

I2S Interface PiFi DIGI DAC + HIFI DIGI Digital Audio Card for Raspberry PI 3 Model B / 2B / B
Description:

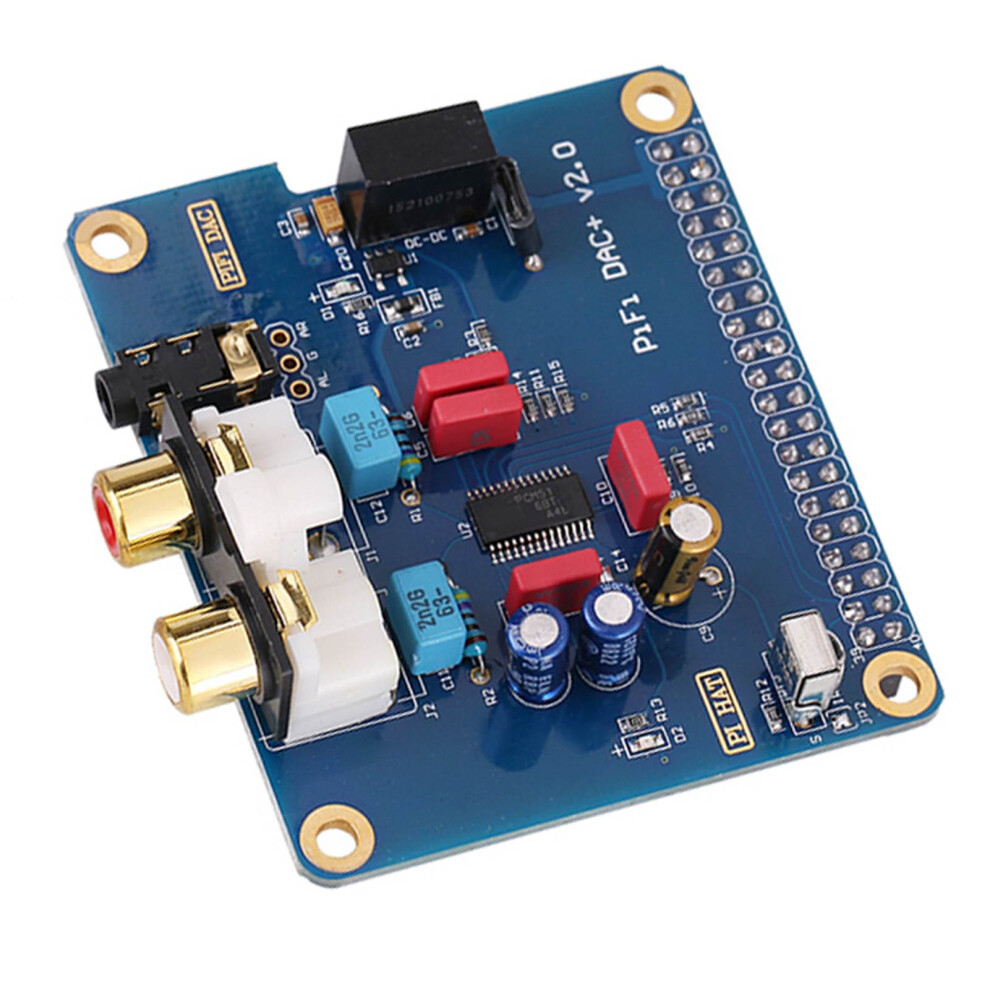

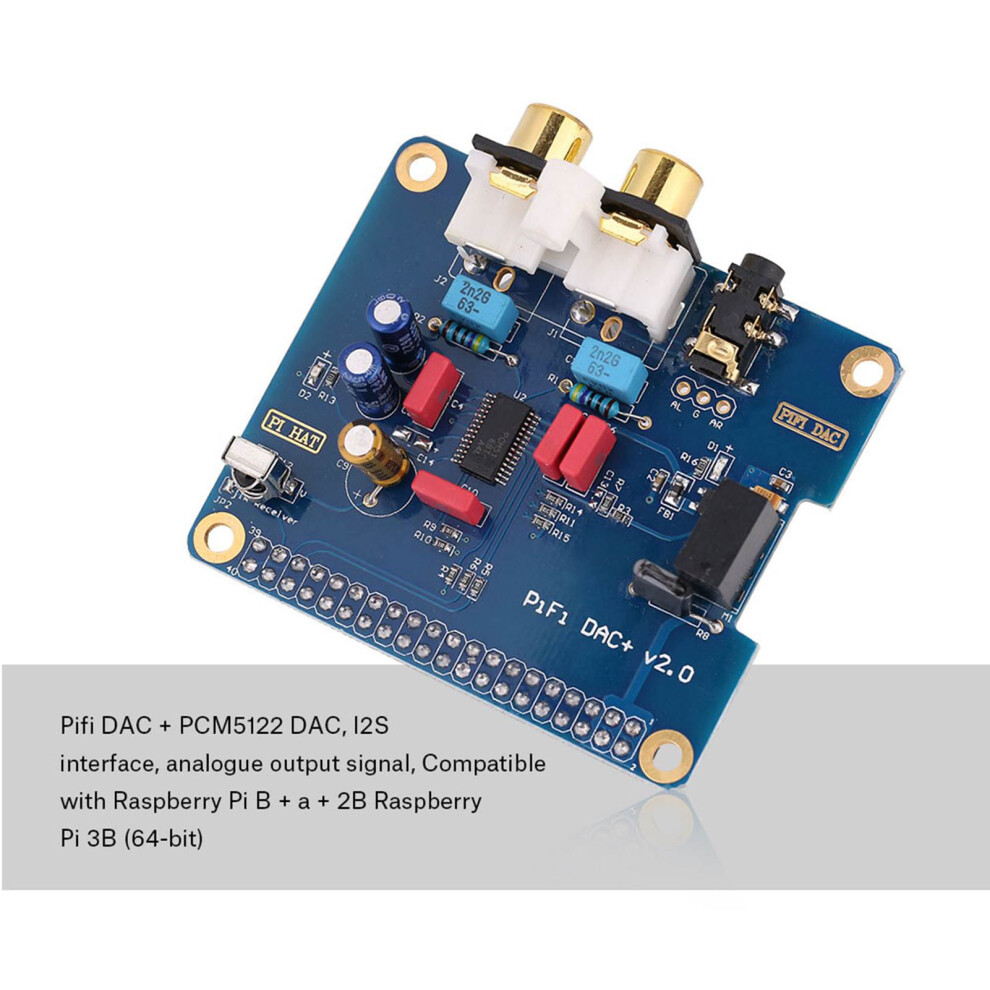

This item is clude Pifi DAC + PCM5122 DAC, I2S interface, analogue output signal, Compatible with for Raspberry Pi B + a + 2B Raspberry Pi 3B (64-bit).




Features:




 Pifi DAC + PCM5122 DAC, I2S interface, analogue output signal, Compatible with for Raspberry Pi B + a + 2B Raspberry Pi 3B (64-bit).

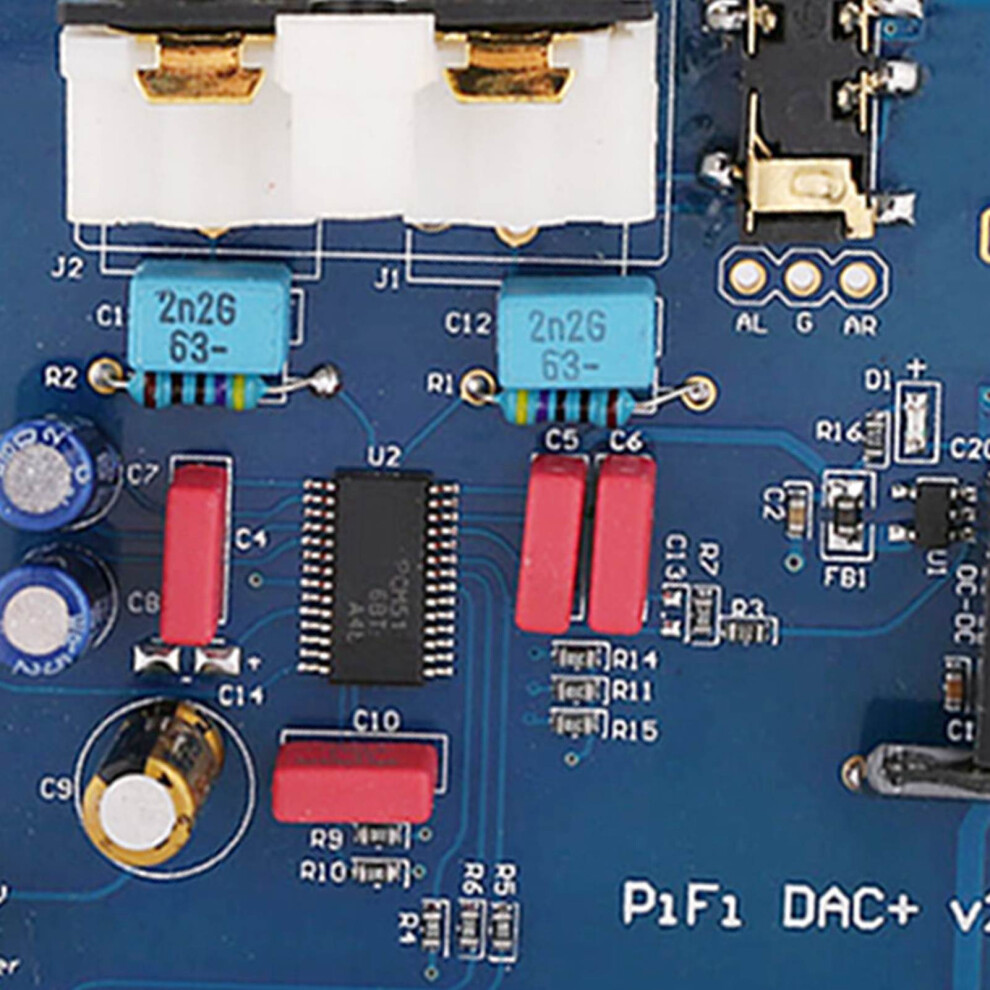

PCM5122 also integrated negative charge pump, the output without DC blocking capacitor; 2.1 Vrms ground center output; ability to suppress very good band noise. Due to the load support low to 1K, PCM510xA can drive a multitude of parallel products.

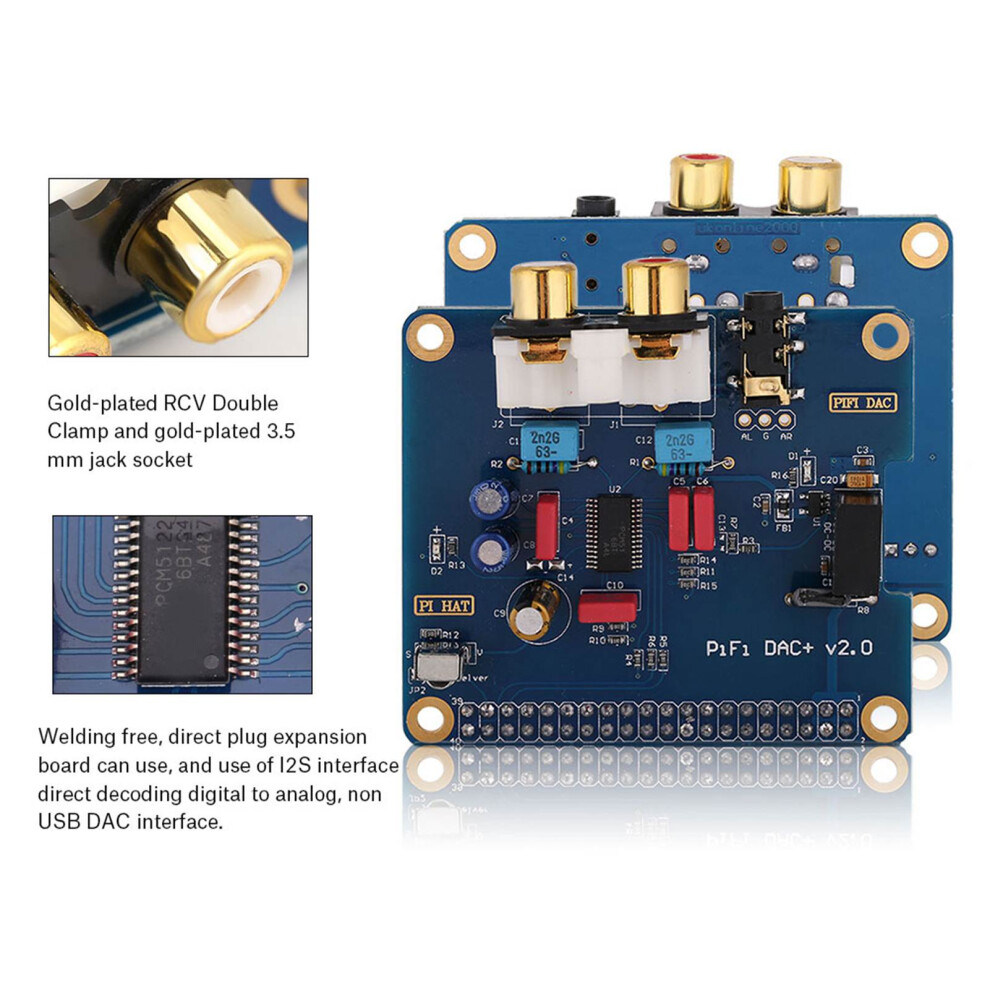

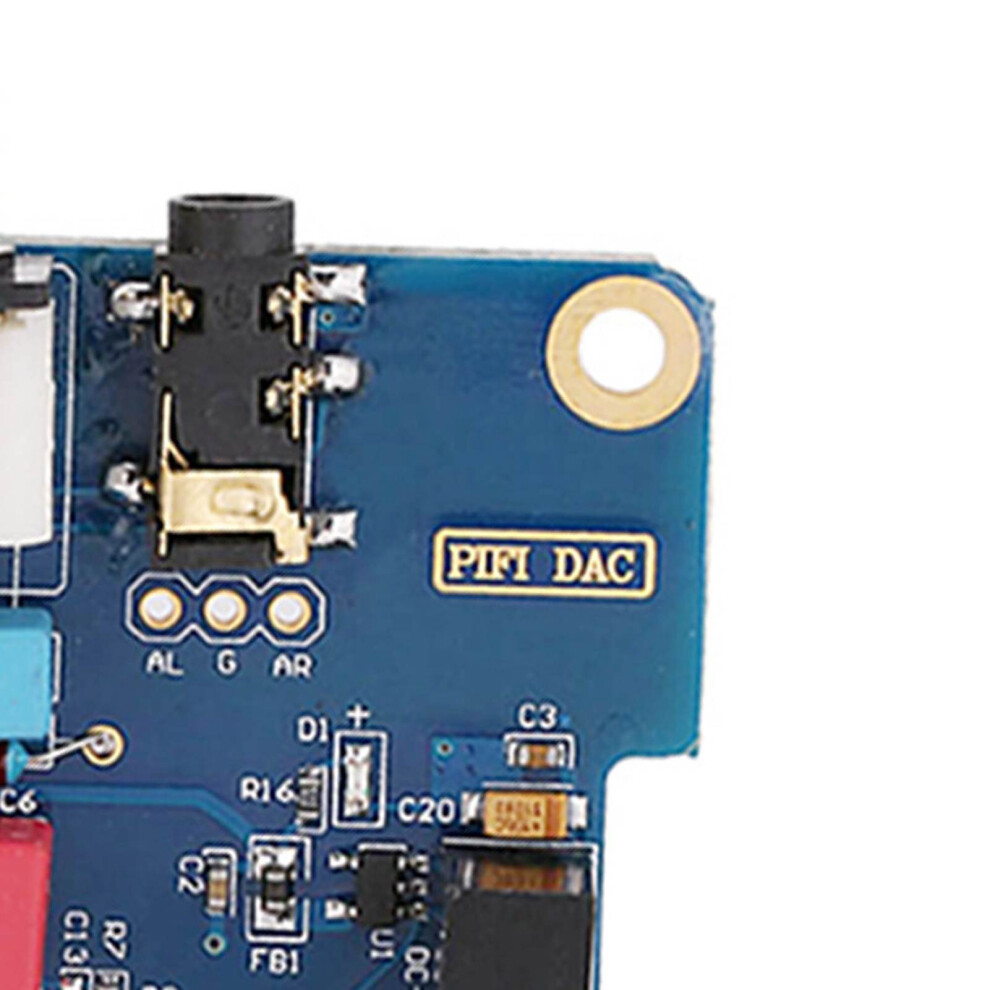

Gold-plated RCV Double Clamp and gold-plated 3.5 mm jack socket (Recommended via Amplifier).


The insulated power supply design, make the raspberry pie nutrition
and DAC part of the independent power supply isolation, and by the bead
completely without mutual interference, get rid of the current sound.


Increase for double color LED provides state display, red for DAC
power indicator (power normal bright), the green light for the condition
of DAC lamp (decoding and bright, stop or does not work out), better
understanding of DAC work.

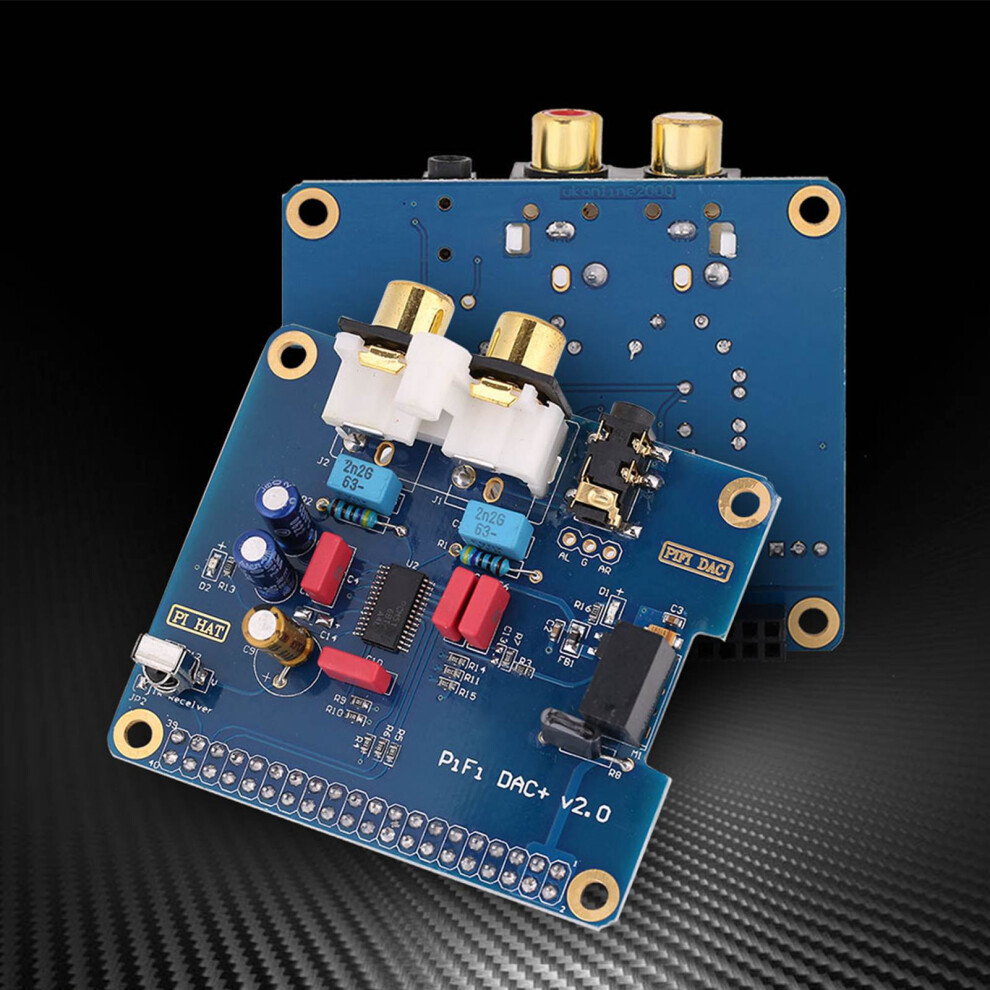

Perfect compatibility raspberry pie official PI HAT size, gold plating
process of tall based on circuit board, arc wire (high-end HIFI DAC
adopts arc wire), better guarantee the impedance of the signal
continuity, reduce the signal reflection and refraction.

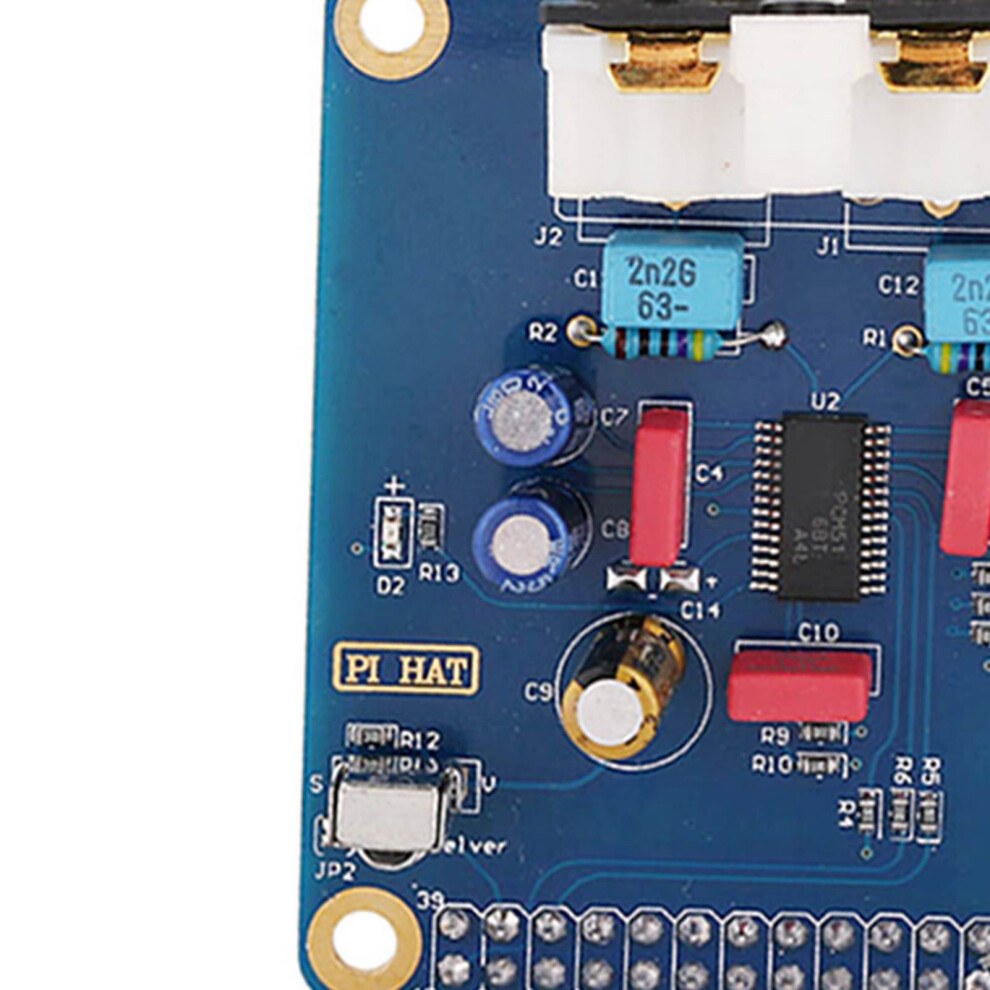

Provided with an infrared receiver interface.



Specification:

Condiiton:


Sampling Frequency:384KHz

- Resolution (Bits) :16-32

- Digital Audio Interface :I2S

- SNR :120dB

- THD:-93dB

- Dynamic range :112dB

- Supports for Raspberry Pi B+, Raspberry Pi 2 Model B,Raspberry Pi 3B (64-bit)






Package Included:

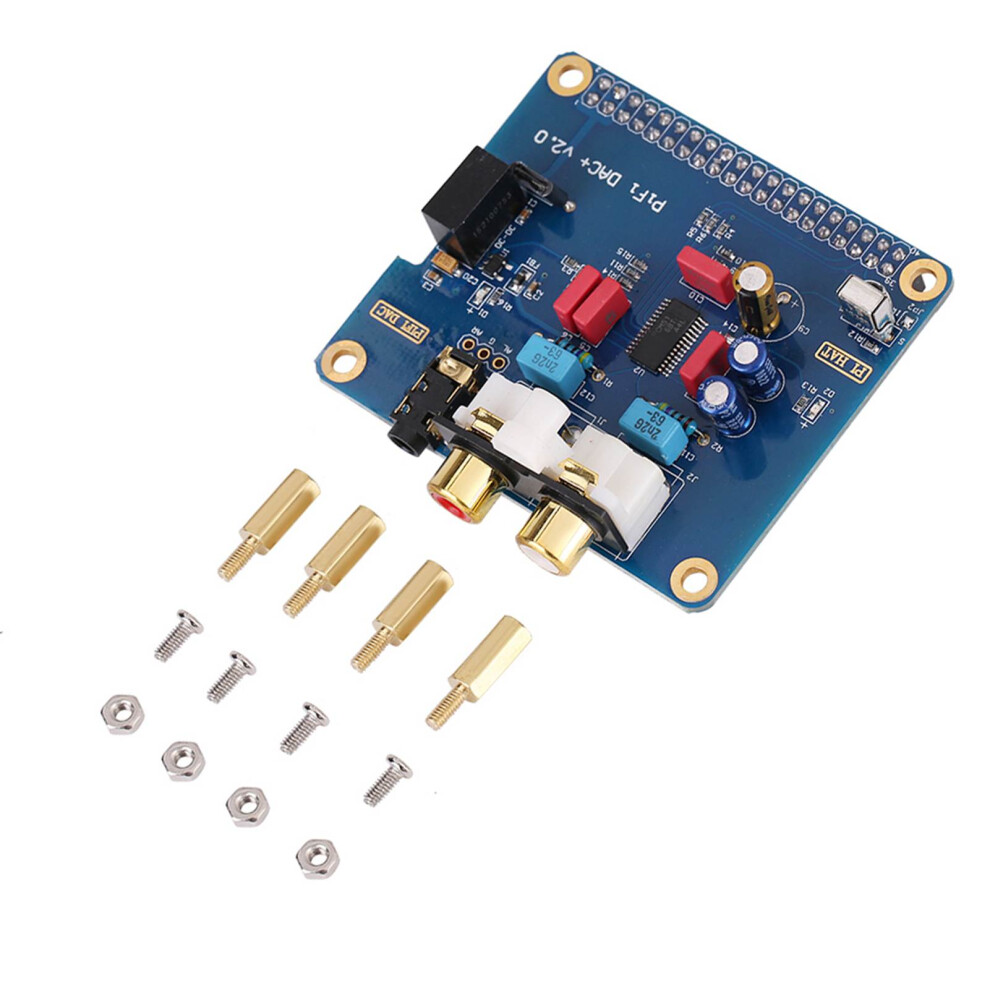

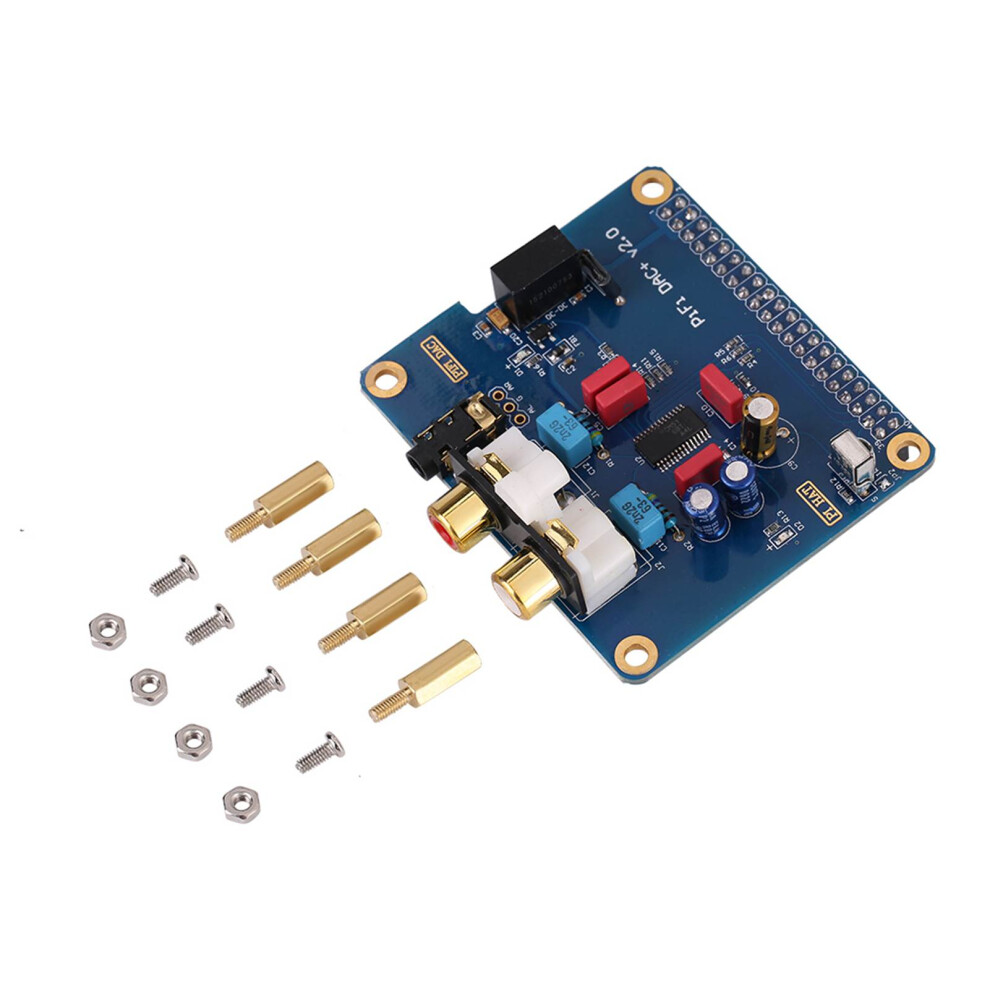

1 x  Digital Audio Card for Raspberry PI



1 x HIFI DAC for Raspberry PI







Notice:

Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.

Please understand that colors may exist chromatic aberration as the different placement of pictures.
