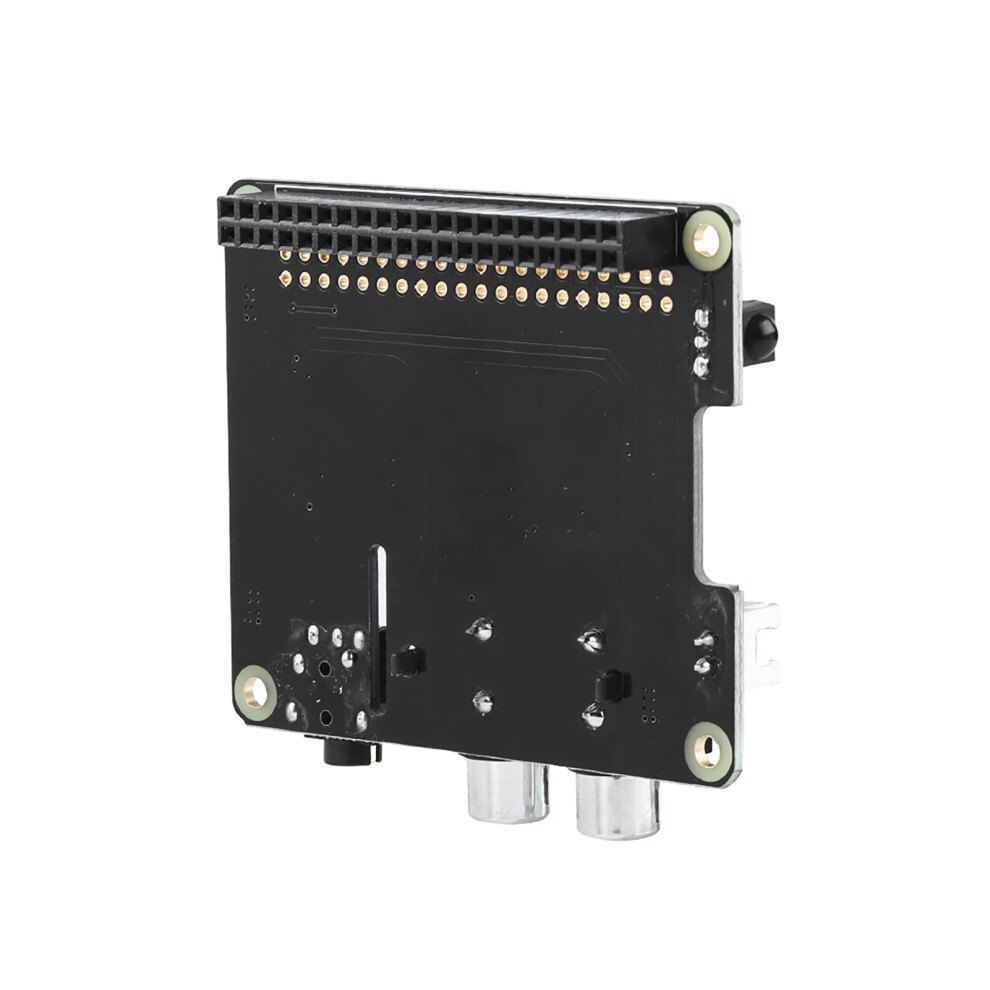

Raspberry Pi Expansion Board for 3B 2B B+ A+ Zero W

Raspberry Pi Expansion Board for 3B 2B B+ A+ Zero W Description

1、With DAC All‑function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect PiFi / DAC+ / HIFI / Full‑HD audio expansion board for Raspberry Pi 3 Model B/ 2B / B+; 2、After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network. 3、X920 is available with RCA, 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838); 4、Full-HD audio - up to 24-bit/192kHz playback and Class leading audio (112db SNR, and -93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance. 5、Powered by for Raspberry Pi, no external power requirements, Conforms to the for Raspberry Pi hardware‑attached‑on‑top (HAT) specification.
Features:
1.With DAC All-function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect PiFi / DAC+ / HIFI / Full-HD audio expansion board for Raspberry Pi 3 Model B/ 2B / B+.
2.After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.
3.X920 is available with RCA, 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838).
4.Full-HD audio: up to 24-bit/192kHz playback and Class leading audio (112db SNR, and -93db THD) function, Integrated hardware volume control with TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance.
5.Powered by for Raspberry Pi, no external power requirements, Conforms to the for Raspberry Pi hardware-attached-on-top (HAT) specification.
Specification:
For Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND)
Output Ports: 1 x 3.5mm phone jack, 2 x RCA connectors
Analog audio output level: 2.0VRMS
Resolution/Sampling Rate: upto 24bit / 192KHz (for Raspberry Pi I2S)
IR receiver: GPIO17, 38KHz
Operating System:
Moode Audio Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, RuneAudio
Support: Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.
Full-HD audio: up to 24-bit/192kHz playback
Built in audiophile TI Burr Brown DAC (TI PCM5122)
Class leading audio: 112db SNR, and -93db THD
Integrated hardware volume control
TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance
Built in IR receiver :Vishay TSOP34838)
Available with RCA and 3.5mm phone jack output connectors
Powered by for Raspberry Pi, no external power requirements
Conforms to the for Raspberry Pi hardware-attached-on-top (HAT) specification
Access to GPIO pins on HAT
Packing List:
1 x Expansion Board
1 x Installation Package
