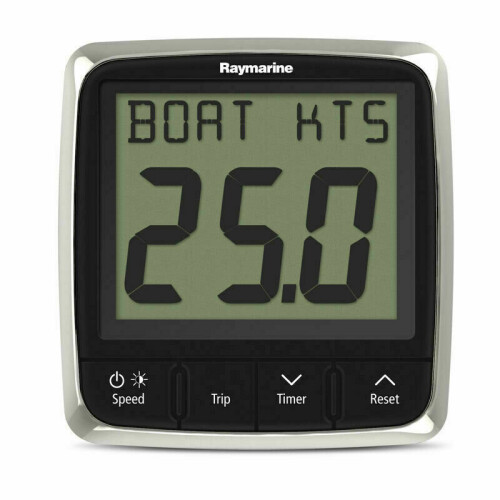

Raymarine i50 Speed Instrumentation Extra Large Digital Display for Marine Use

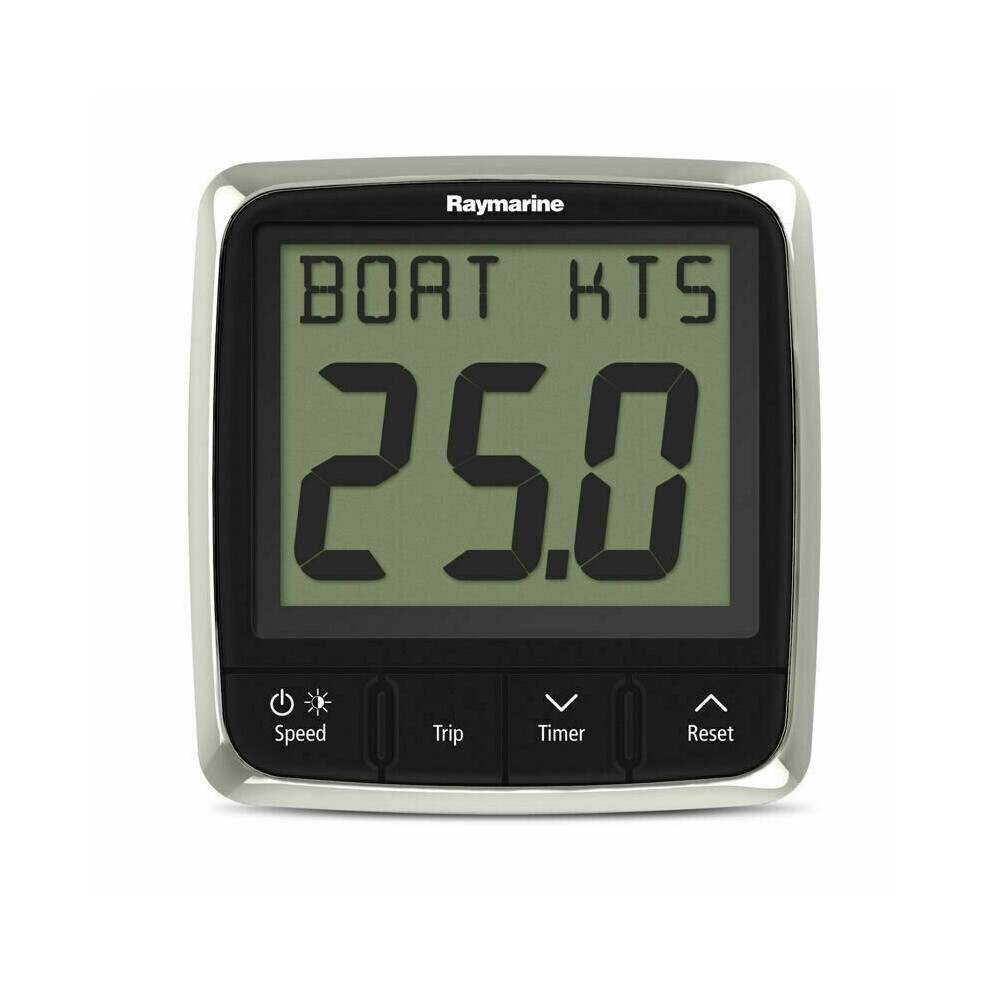

Raymarine i50 Speed Instrumentation Display - Digital
Part Number: 705-E70058

The i50 instruments are designed to complement Raymarine's latest generation multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and RIBs. The i50 range consists of 3 digital displays: speed and depth displays with extra-large digits and a multi-line tridata unit. Excellent viewing angles for both day and night conditions and simple, push-button controls make i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Specification: Nominal Voltage 12V DC Operating Voltage Range 10 - 16V DC Power Consumption typically <1W (display only) and 2.4W maximum with transducer connected Current Consumption 45 to 65mA (display only) and 200mA maximum with transducer connected Operating Temperature range -20ºC to +55ºC Storage Temperature -30ºC to +70ºC Relative Humidity up to 93% Waterproofing standard IPX6 Connections 2 x SeaTalkng and transducers
Compatible with marine industry CAN systems Conformance Europe 2004/108/EC
