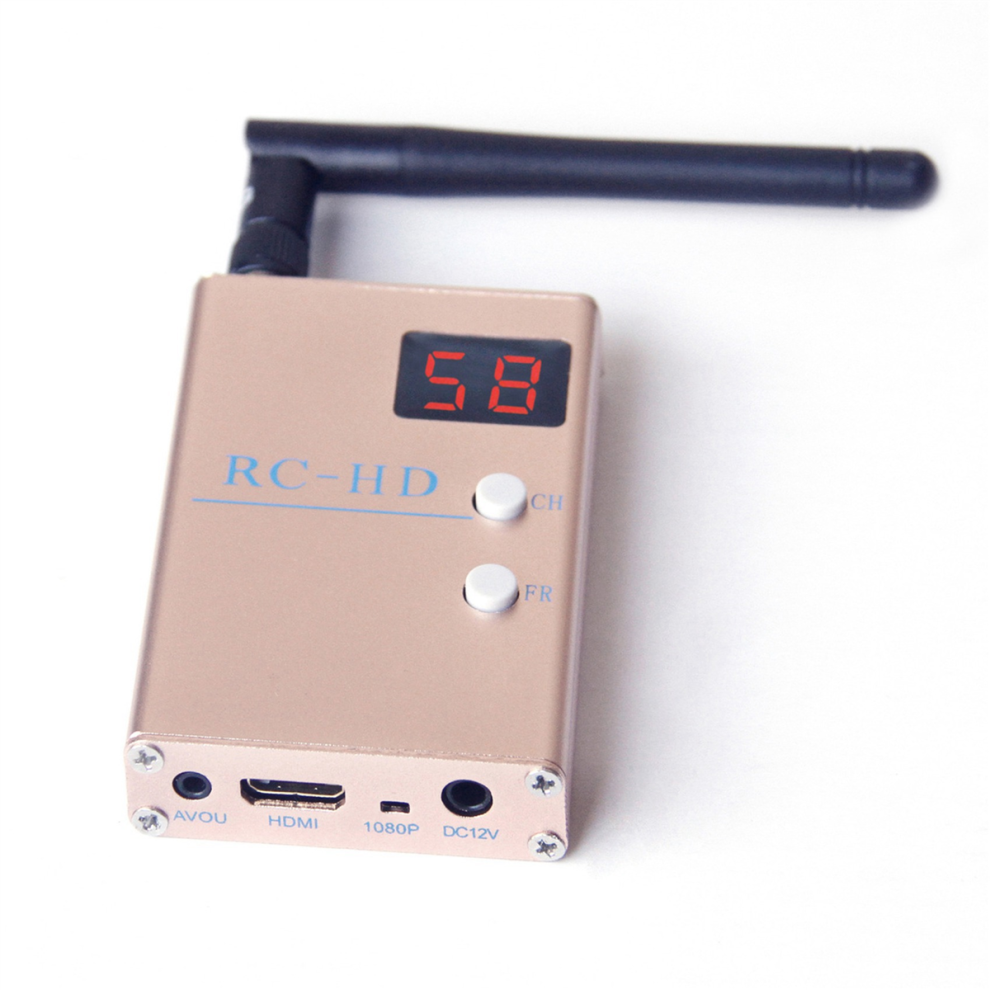

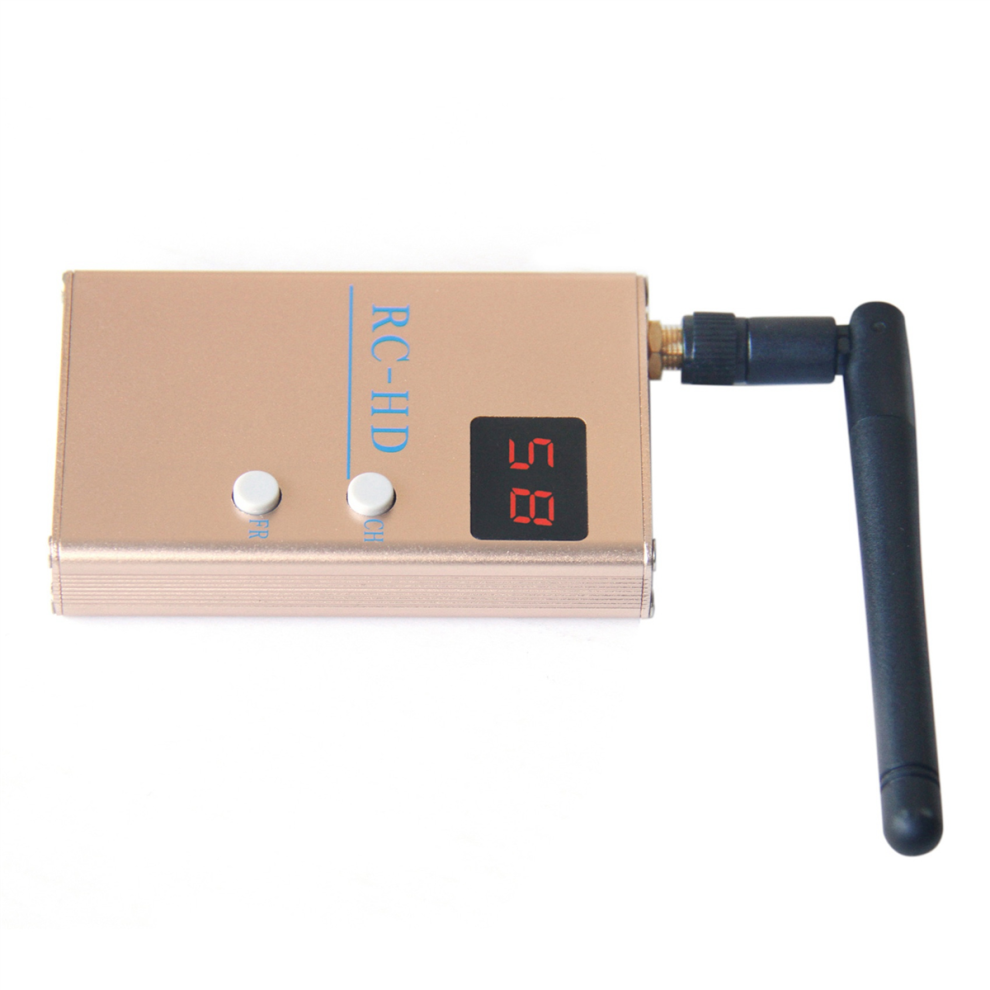

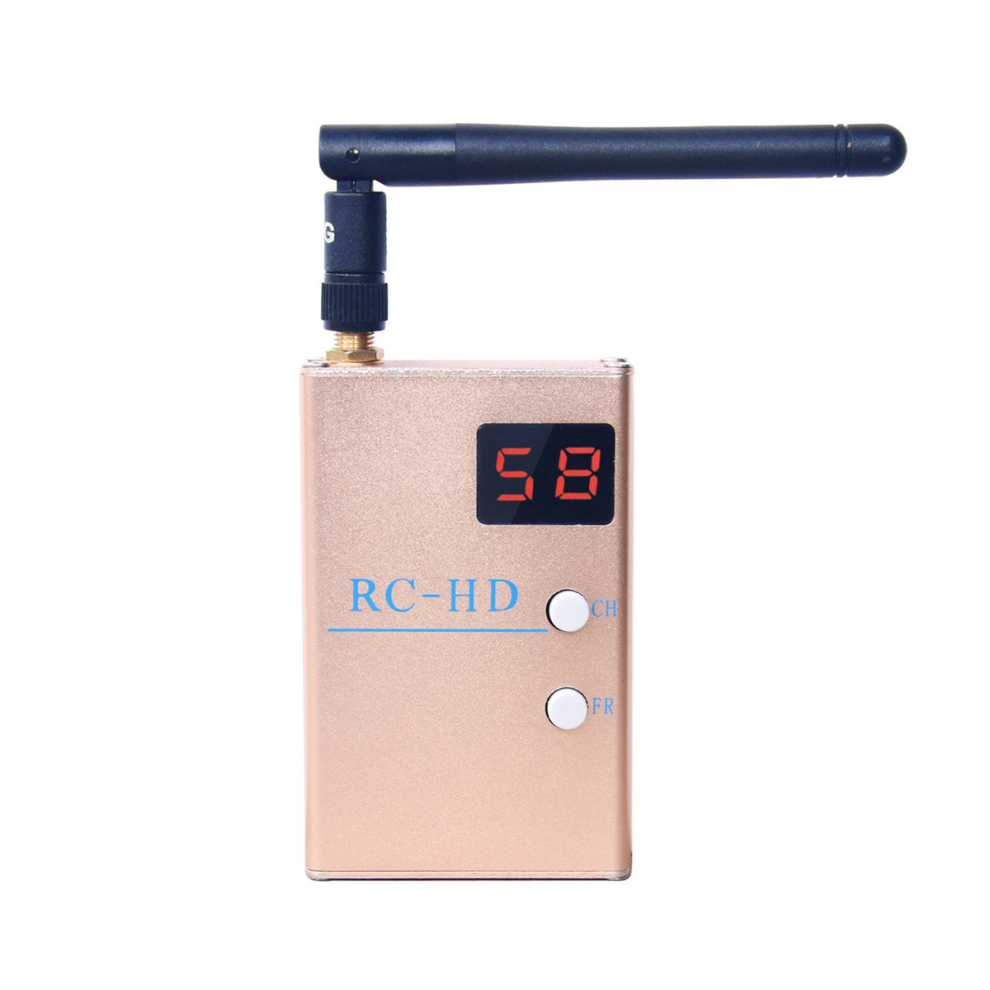

RC-HD Receiver -Compatible with Power Cables for Quadcopter F450

RC-HD Receiver -Compatible with Power Cables for Quadcopter F450 Description

48 channels: Cover A,B,E,F,Rbands and L band ( band), 6bands and all frequencies compactable.
Twoswitchingbuttons: CH button forfrequencies channels switching,FR button forfrequencies bands switching.
Two digits display: one for CH and the other for FR, real-time positioningwhichfrequency band and which channel received.
Power off memory: the very lastfrequency band and channel
video and audio signal outputs.

Channel and Digital tube display.
Power on, the "CH" button to change channel,"CH" digit display change synchronously,"CH" digit display changes cyclically from 1 to 8.
Frequentand Digital tube display
Power on, the "FR" button to change frequency band,"FR" digit display change synchronously,"FR" digit display changes cyclically from 1 to 6.
FR1 for A band,FR2 for B band,FR3 for E band,FR4 for F, FR3 for R band, FR3 for L band band( band).
Frequency and channel frequency table:
CH,FRCH (MHz)
CH1,CH2,CH3,CH4,CH5,CH6,CH7,CH8
FR,FR1(A),5865M,5845M,5825M,5805M,5785M
5765M,5745M,5725M,FR2(B),5733M,5752M,5771M
5790M,5809M,5828M,5847M,5866M,FR3(E)
5705M,5685M,5665M,5645M,5885M,5905M
5925M,5945M,FR4(F),5740M,5760M,5780M
5800M,5820M,5840M,5860M,5880M
FR5(R),5658M,5695M,5732M,5769M,5806M
5843M,5880M,5917M,FR6(L),5362M,5399M
5436M,5473M,5510M,5547M,5584M,5621M
Colour: gold
Material: metal

Package Contents:
2 * SMA Standard Type Dipole Antenna
2 * Stereo Jack to AV Output Cable
2 * Power cable
2 * Receiver

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
