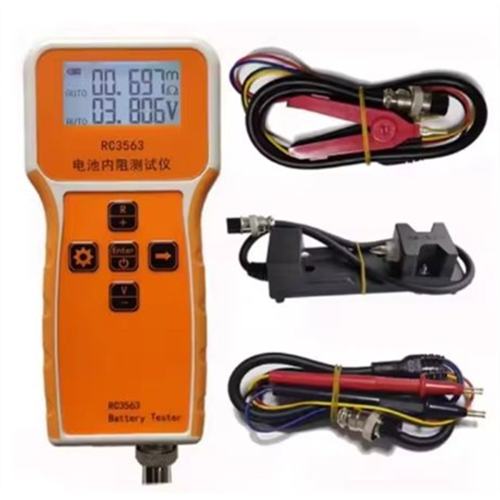

RC3563 18650 Battery Voltage Internal Resistance Tester

RC3563 18650 Battery Voltage Internal Resistance Tester Description

The battery internal resistance tester can measure the battery internal resistance and voltage at the same time.
This product adopts intelligent control, LCD display, and implanting Kalman filter mathematical algorithm, with high efficiency, low cost, light weight and energy saving.
Wide applications: This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of resistors and low-resistance high-precision resistance.
This tester adopts intelligent control and large display, also with built-in 1000mAh lithium battery to provide long service time, you can recharge it in time.
Portable size and easy to carry, you can take it with you to anywhere you want to use. This product supports serial ports, and the measuring ranges of resistance is 1μΩ~200Ω, and the measuring ranges of voltage is 0.0001V~100V direct current.

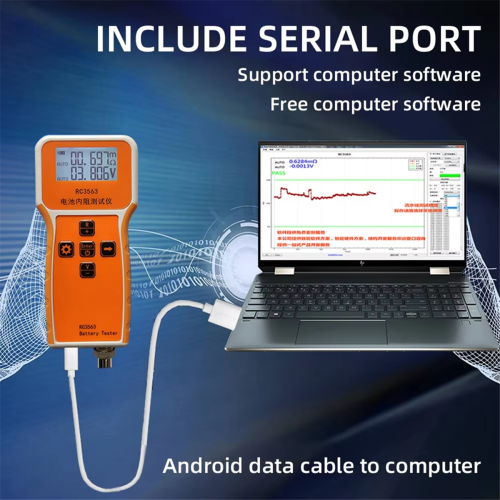

Added serial port communication function, free powerful computer analysis software. Serial port needs to be opened in the machine to be to communicate with the computer, the default is closed, the baud rate is 115200.
Battery: 1 * lithium battery, 1000mAh (included)
Speed: 5 times/second
Adjustment: Correction for resistance and voltage separately
Basic accuracy:
Resistance: 0.5%
Voltage: 0.5%
Measuring ranges:
Resistance: 1μΩ~200Ω
Voltage: 1mV~100V direct current
frequency: AC 1KHz
current: 20mΩ, 50mA; 200mΩ, 5mA; 20Ω, 0.5mA
Resistance ranges: 6 ranges automatic and manual
Voltage ranges: 3 ranges automatic and manual
Display update: 5 times / second
(The actual product has the words "battery internal resistance tester", which does not affect its use)
Color: Orange
Material: ABS

Package Contents:
1 * battery resistance meter
1 * probe
1 * Kelvin clip
1 * battery holder

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
