RC3563 Internal Resistance Detector High-Precision True 4Wire

RC3563 Internal Resistance Detector High-Precision True 4Wire Description

High Precision Measurements: The battery internal resistance tester guarantees accurate results every time with its ability to measure voltage from 0-100V and resistance from 0-200Ω with a basic accuracy of 0.5%.
User-Friendly Display: The battery tester features an easy-to-read LCD screen with backlight, providing quick updates five times per second, allowing for efficient and time-saving testing procedures.
Energy Efficient: This tester features a 10-minute delay and automatically shut down if not in use, ensuring energy conservation and extended device .
Compact & Portable: The battery internal resistance tester is designed with a compact size and structure, making it highly portable and allowing for easy transportation and convenient use in various settings.
Wide Application: This tester is capable of measuring a wide range of battery types, including lithium, lead-acid, nickel-chromium, and dry batteries. Perfect for car repairs, electric motorcycles, battery processing and testing, and more.

Item Name: Battery Tester
Basic accuracy: resistance 0.5%, voltage 0.5%
Adjustment: Resistance and voltage are corrected separately
Measuring Range: 1μΩ-200Ω(Resistance), 1mV-100VDC (Voltage)
Frequency: AC 1KHz
Current: 20mΩ 50mA, 200mΩ/2Ω 5mA, 20Ω/200Ω 0.5mA
Resistance Range: 6 range automatic and manual
Voltage Range: 3 ranges automatic and manual
Display Update: 5 times/second
Automatic shutdown: 10 minutes delay, automatic shutdown without any operation

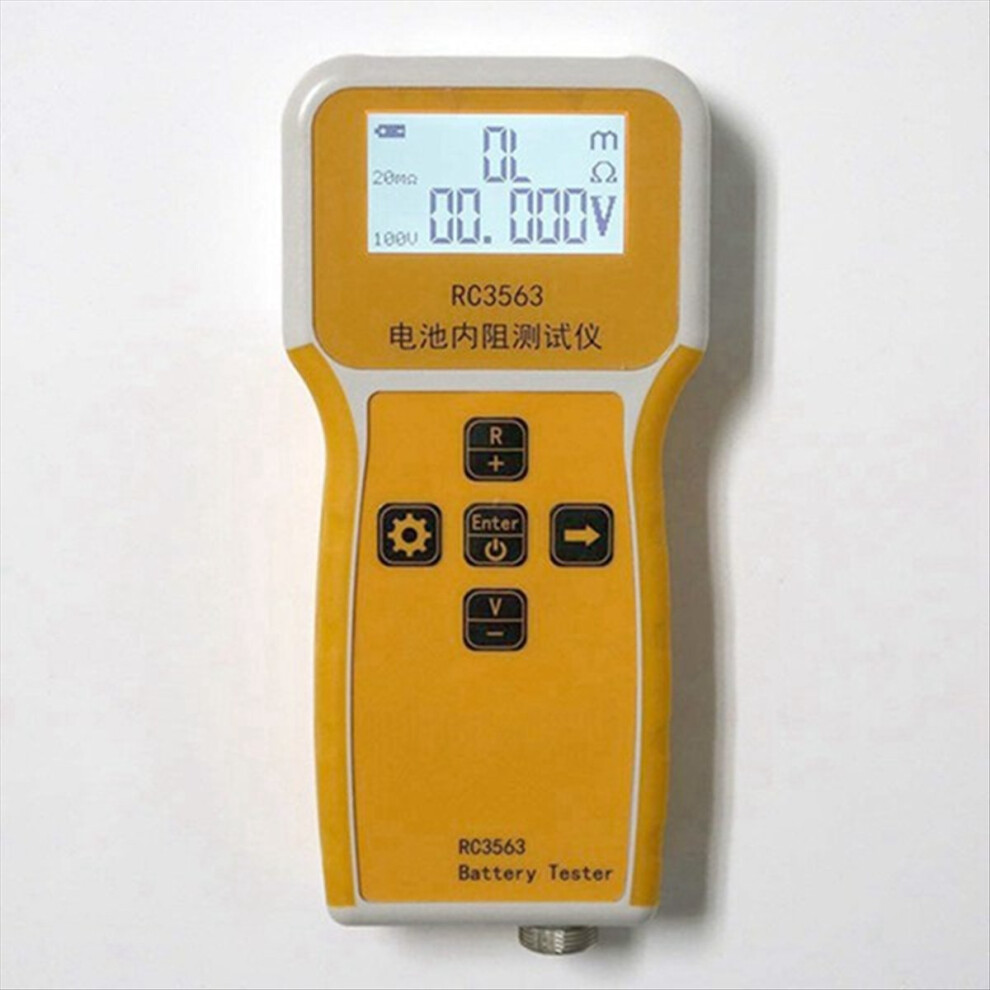

Display Result: LCD display, direct reading
Battery: built-in 1000mAh lithium battery
Language: Chinese, English
Working Environment: -10-+40, relative humidity: Less than 80%
Storage Environment: -20-+80, relative humidity: Less than 80%
Size: 16.6x8x2.8cm/6.54x3.15x1.1inch
There may be slight color difference due to different batches, but it not affect the use.
Color:As shown
Material:plastic

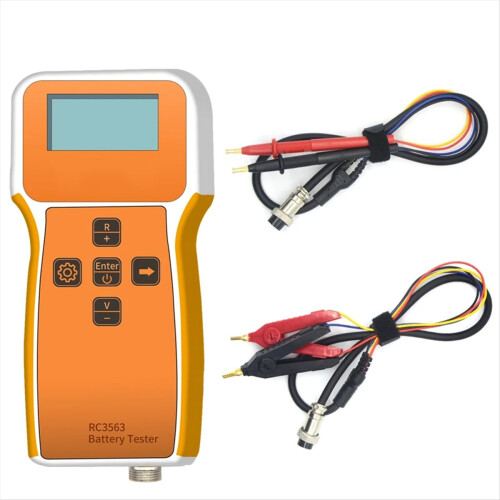

Package Contents:
1 * RC3563 Internal Resistance Detector

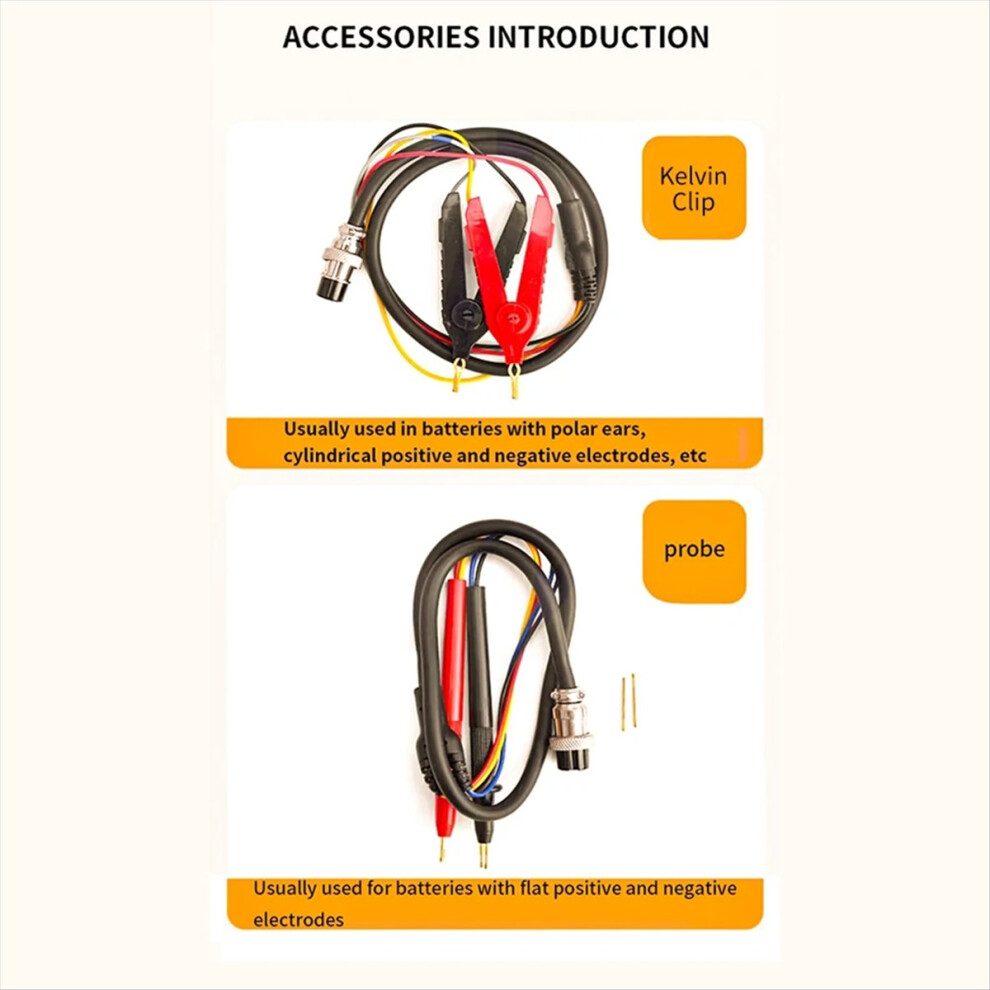

1 * probe
1 * Kelvin clip

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
