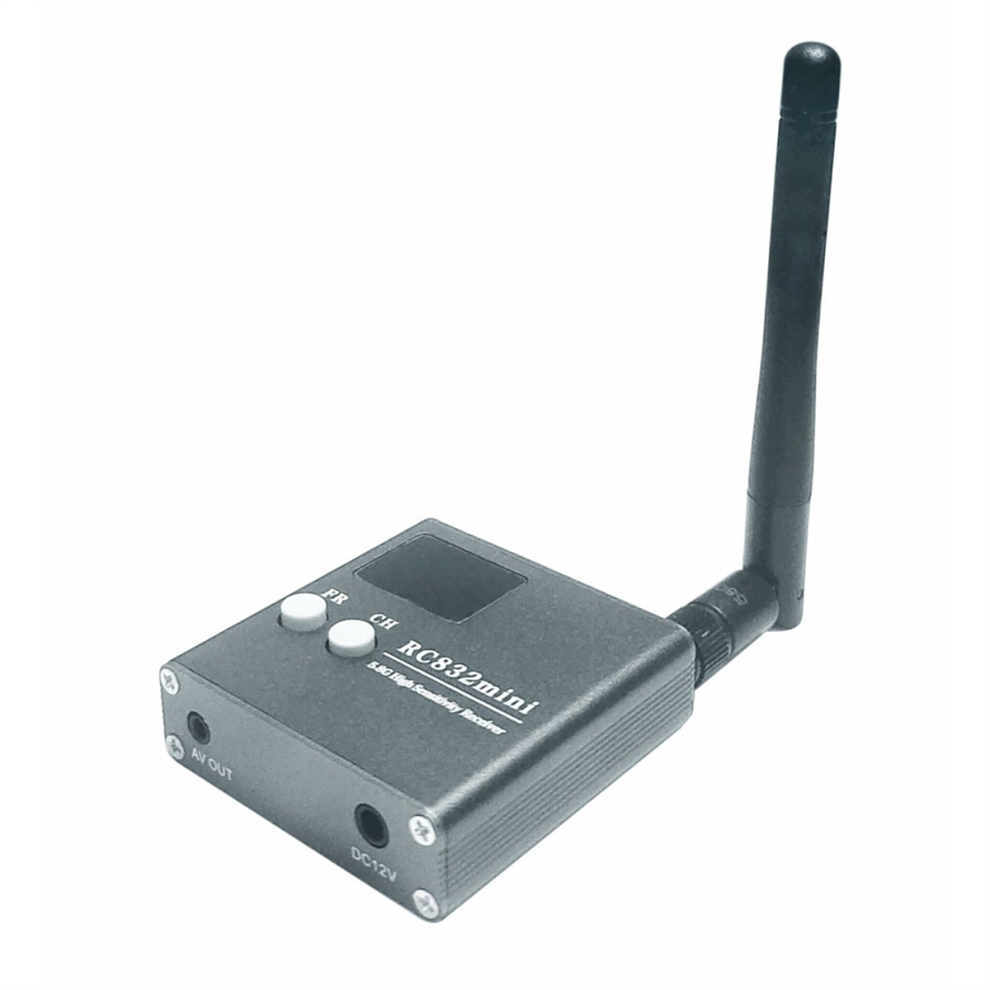

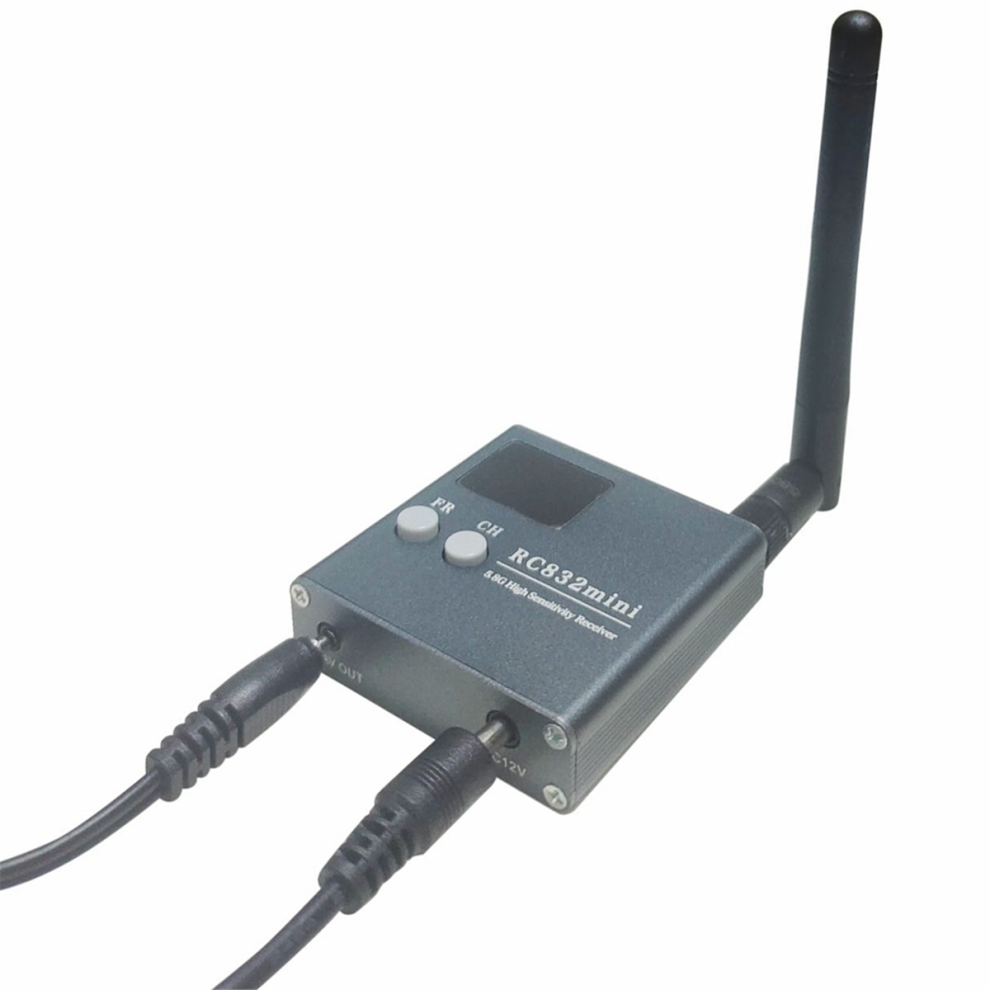

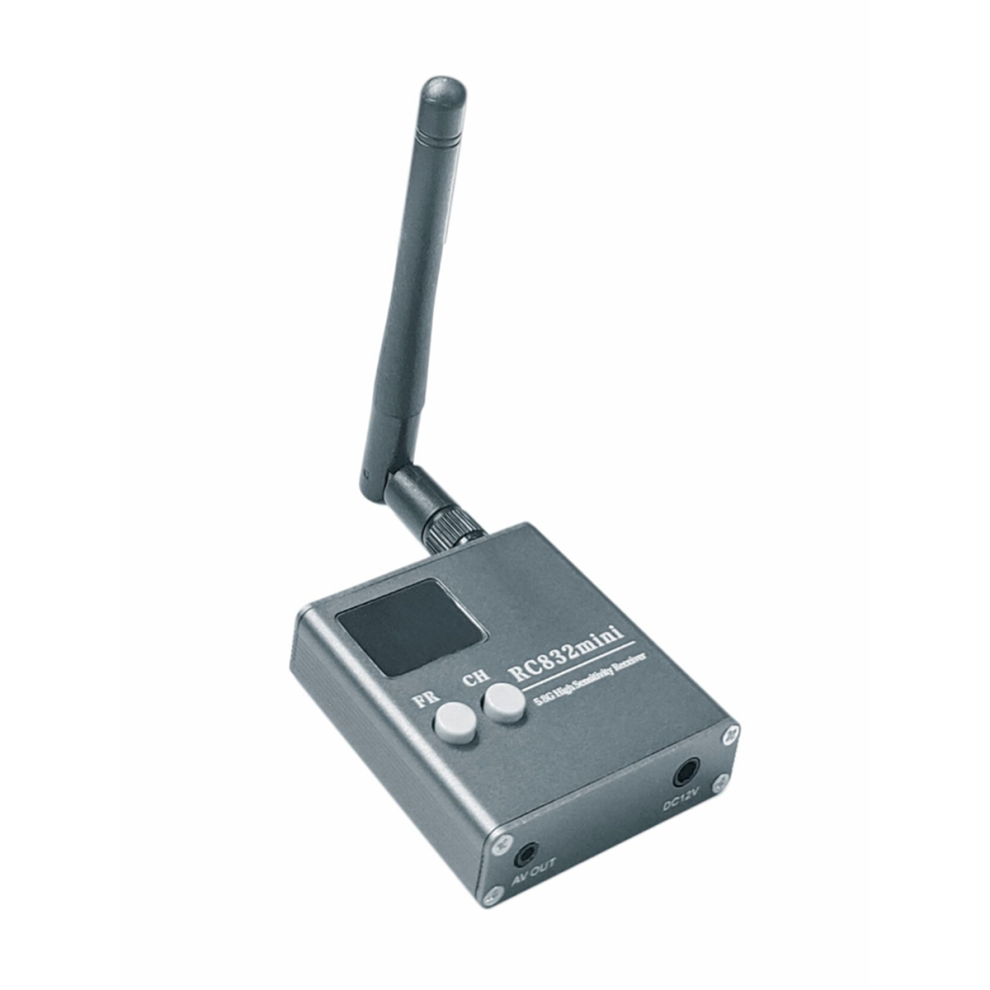

RC832Mini 5.8G 56Ch High Sensitivity Receiver Wireless Receiver

RC832Mini 5.8G 56Ch High Sensitivity Receiver Wireless Receiver Description

Supply current:130mA. input:50ohm SMA. Video output voltage:1.0Vp_p75ohm. Audio output voltage:1.0Vp_p10Kohm

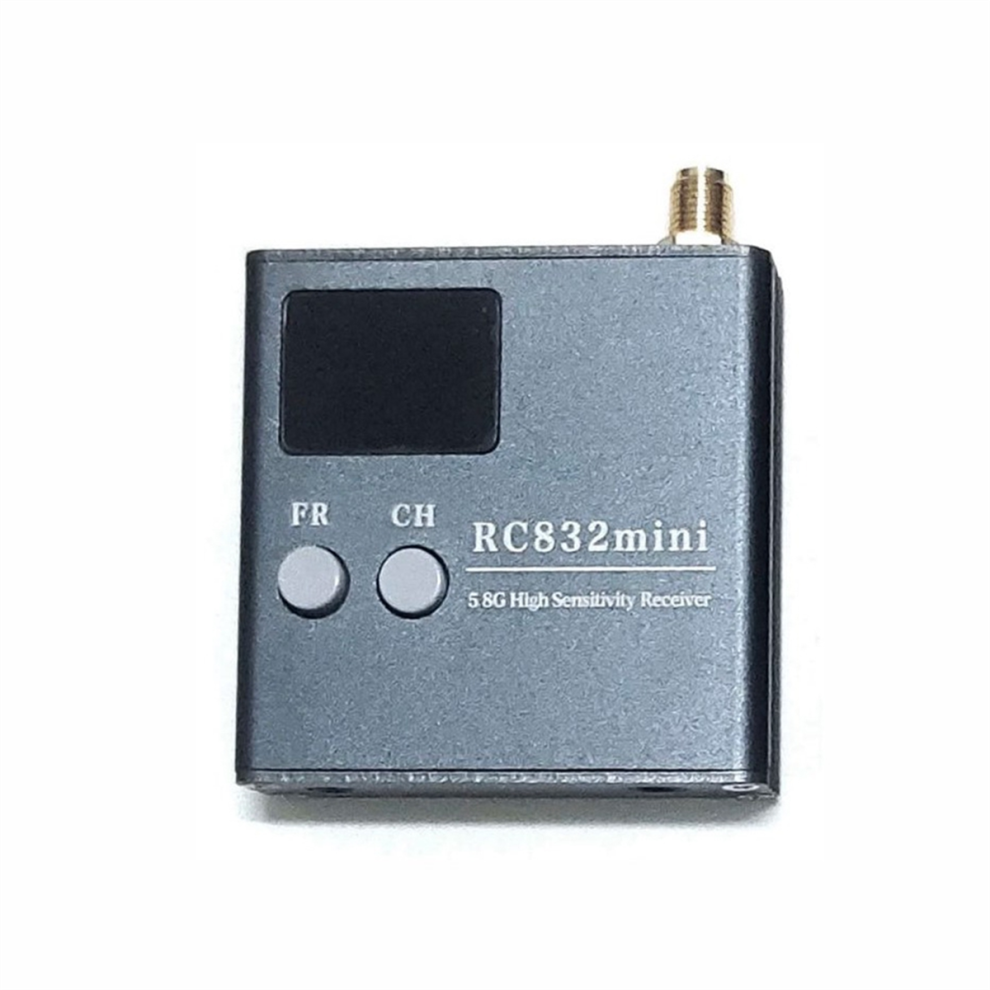

56 channels, 7 frequency band wireless receiving. Two buttons for channel and band exchange individually.
Twonumber display, timely locate the current receiving frequency and band. When power on, storage memory shows channel and frequency of the last time.
Two-way video and audio signal output (video:PAL,NTSC,CECAM; Audio:6.5MHz)
5dB sensitivity gain more than normal receivers. Wide supply 12V

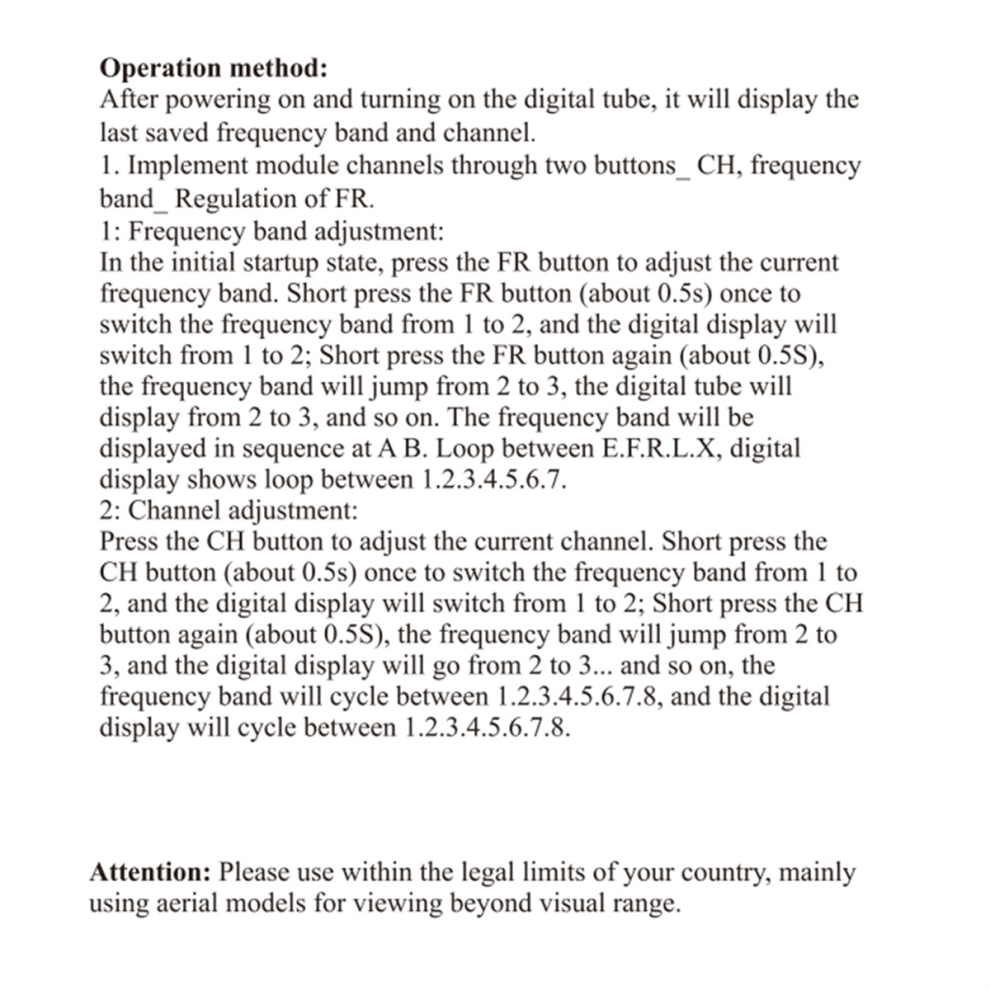

Operation method:After powering on and turning on the digital tube,it display the last saved frequency band and channel.Implement module channels through two buttons CH,frequency band Regulation of FR
1: Frequency band adjustment:
In the initial startup state, the FR button to adjust the current frequency band.Short the FR button(about 0.5s)once to switch the frequency band from 1 to 2,and the digital display switch from 1 to 2; Short the FR button again(about 0.5S),the frequency band jump from 2 to 3,the digital tube display from 2 to 3,and so on.The frequency band be displayed in sequence at .Loop between E.F.R.L.X,digital display shows loop between 1.2.3.4.5.6.7
2: Channel adjustment:
the CH button to adjust the current channel.Short the CH button(about 0.5s)once to switch the frequency band from 1 to 2,and the digital display switch from 1 to 2; Short the CH button again(about 0.5S),the frequency band jump from 2 to 3,and the digital display go from 2 to 3...and so on,the frequency band cycle between 1.2.3.4.5.6.7.8,and the digital display cycle between 1.2.3.4.5.6.7.8
NOTE:Please use within the legal limits of your country,mainly using aerial models for viewing beyond visual range
Colour:Gray
Material:Metal
Size:50x50x15mm

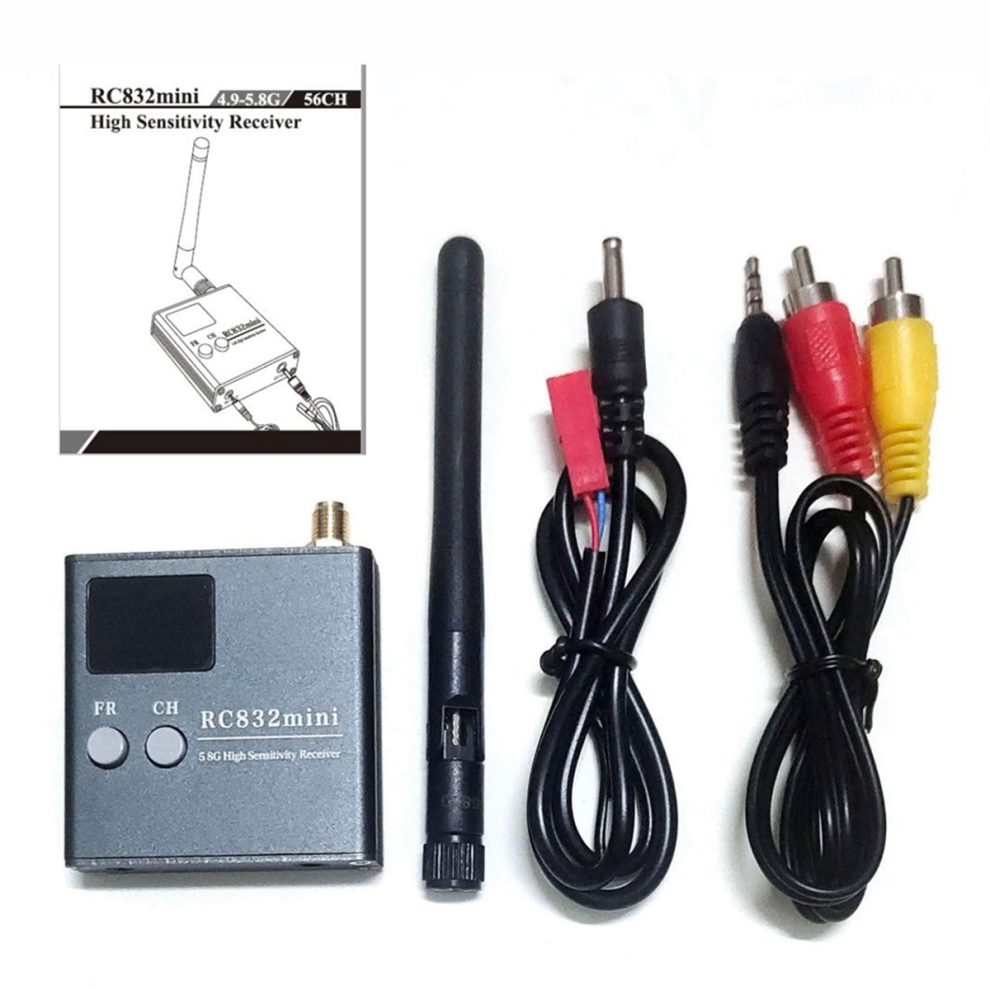

Package Contents:
1 * receiver
1 * antenna
2 * cables

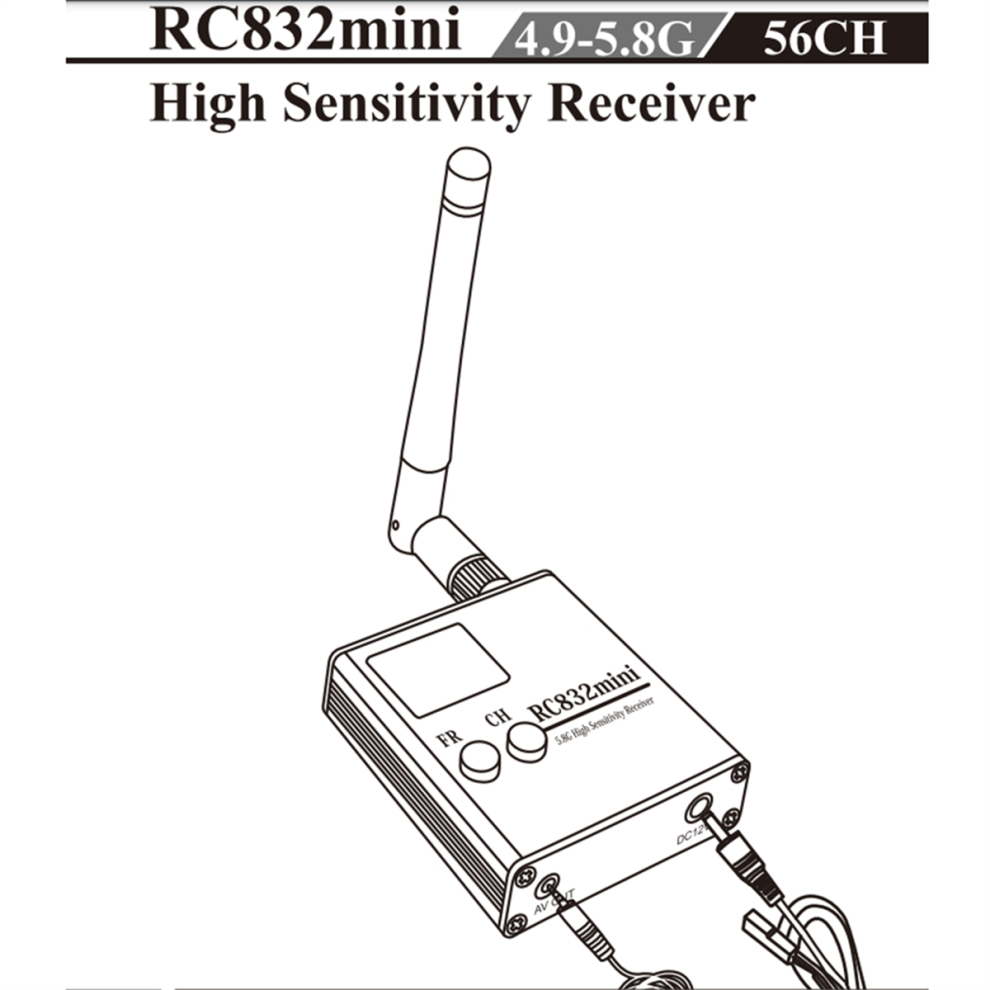

1 * English manual

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
