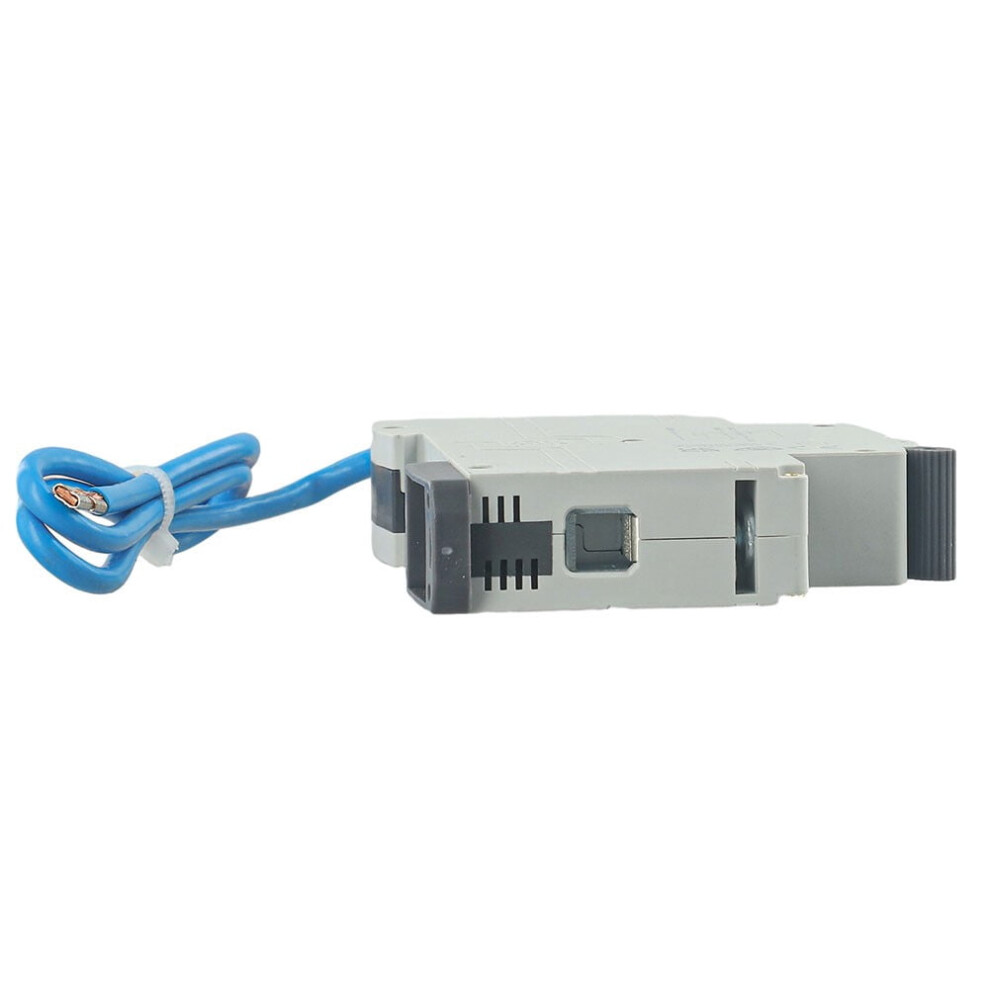

RCBO Safety Switch Earth Leakage 30mA 6kA 16A

RCBO Safety Switch Earth Leakage 30mA 6kA 16A Description

Rcbo Safety Switch for Earth Leakage 30Ma 6Ka Residual Current Circuit Breaker 16A Features: Fast Fault Activation: The RCBO Safety Switch characteristic activates within 0.1S upon detecting an earth grounding (>30mA). With ground fault/leakage current, short circuit, overload, isolation functions. Compact & Easy to Install: With screw terminal wires and 35mm DIN rail mounting, this compact and small design allows for easy installation in limited spaces for your consumer units. Visible Operation Status: Check the working status in real-time with the built-in fault tripping indication and operating test button (T) on the front panel. Wide Applications: Suitable for solar AC systems, motor homes, home power circuits, or other 50/60 Hz AC systems, this circuit breaker with a 6kA breaking capacity is versatile. Specification: Product name: Residual Current Circuit Breaker Model: GYR10N-50 Color: Gray Material: ABC Size: 18*77*85.2Mm Rated voltage: 230V/240V~ Rated frequency: 50/60Hz Rated current: 16A, 25A, 32A,40A Nominal sensitivity: 30mA Breaking capacity: 6000A Electromechanical durability: 4000 cycles Number of poles: 1P+N Terminal tightening torque: 1.2N Applicable busbar: PIN busbar Optimum working temperature: -25 to 40 Package Content: 1*Residual Current Circuit Breaker Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
