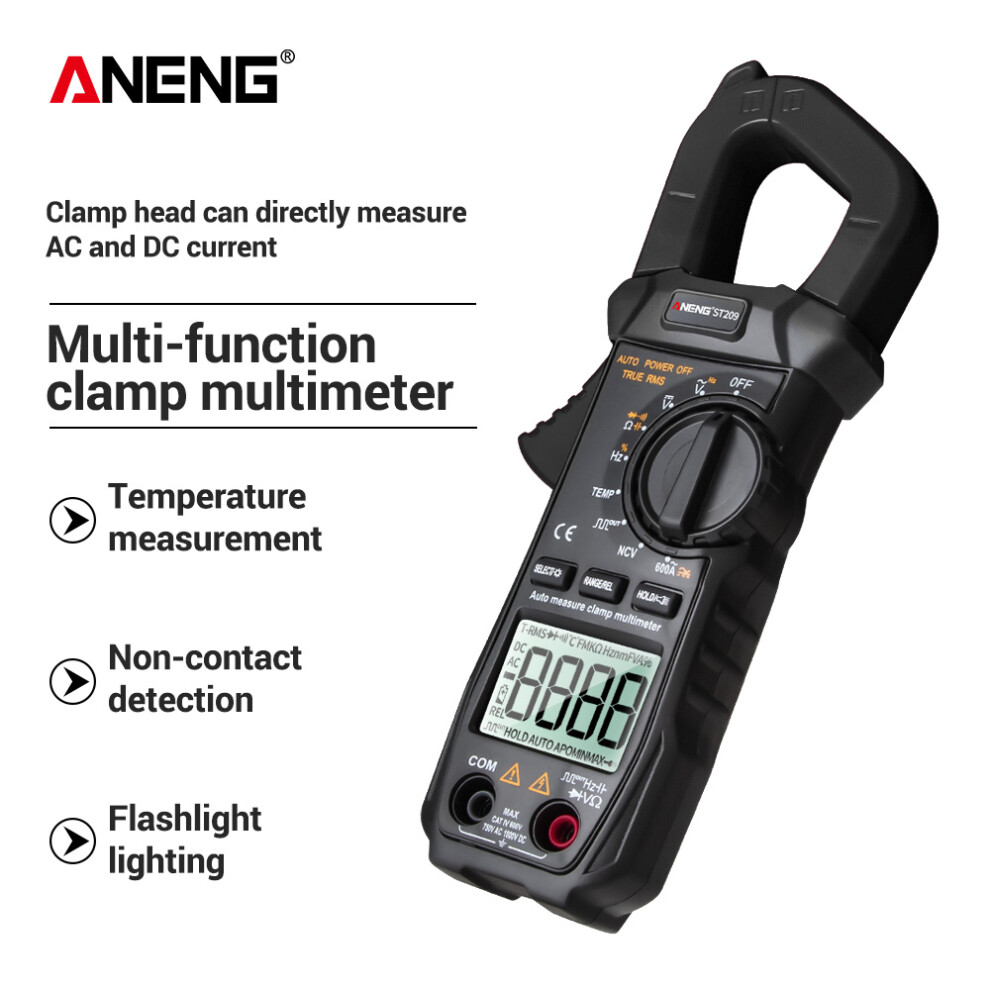

(red) High Precision Auto Range Digital Ammeter Clamp AC DC Universal Multimeter

(red) High Precision Auto Range Digital Ammeter Clamp AC DC Universal Multimeter Description

Feature:
1. Overview
This is a pocket-sized 3 5/6-digit automatic digital meter. It has stable performance, high precision, high reliability, clear reading and overload protection. Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The meter is easy to carry and is very popular among users. The instrument's backlight can be turned on and off automatically after 15 seconds. This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS. It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.

2. Safety precautions
This series of instruments is designed in accordance with IEC1010 (Safety Standards promulgated by the International Electrotechnical Commission), please read the safety precautions before use.
1. When measuring voltage, do not input a limit voltage exceeding the effective value of DC 1000V or AC 750V;
2. The voltage below 36V of the current file is a safe voltage, when measuring AC voltage higher than 36V DC and 25V AC, check whether the test leads are in reliable contact, whether they are connected correctly, whether they are well insulated, etc., to avoid electric shock;
3. When changing functions and ranges, the test pen should leave the test point;
4. Select the proper function and range, beware of wrong operation, although the series of instruments with a full-range protection, but for safety reasons, you still pay more attention;
5Safety Symbol Description: " " Exist dangerous voltage, " " Ground, " " Double insulation, " " Operator must refer to the instruction manual, " " Low voltage symbol.

3. Characteristics:
1. General Characteristics
1-1. Display: liquid crystal display (LCD)»
1-2. Maximum display: 5999 (3 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Overrange display: The highest position shows "OL";
1-6. Low voltage display: " "symbol appears»
1-7. Working environmentº(0¡«40)¡æ, relative humidity¼80%»
1-8. Power: AAA 1.5V battery;
1-9. Volume (size): about 176¡Á67¡Á33mm (L¡ÁW¡ÁH)»
1-10. Weight: about300g (including 1.5V battery)»
1-11. Attachment: One instruction manual, one certificate, one leather case, one outer packaging box, one pair of test leads, one type K thermocouple
TP01 temperature probe, two AAA1.5V batteries.
2.Technical characteristics
2-1. Accuracy (reading data of a%+ least significant digits), guaranteed accuracy environment temperature: (23¡À5)¡ãC, Relative humidity <75%, calibration guarantee period from the date of manufacture for one year.

4. Operation panel instructions:
1. The clamp head measures vertically through the center of the hole.
2. Product model label position.
3. RANGE is the manual range conversion button, which is the REL relative
 measurement function when testing the capacitance file.
4. Function selection key SELECT, long press for 2 seconds for the backlight to be turned on and off.
5. LCD display window.
6. COM input; negative input, insert black test pen.
7. Voltage, resistance, diode, capacitor, frequency, square wave output, current input port.
8. HOLD is the data hold button, long press for 2 seconds for the flashlight to turn on and off.
9. Function rotation knob.
10. Current measuring wrench.
11. Pliers opening.

Function:
DC voltage  DCV
AC voltage  ACV
DC current  DCA
AC current  ACA
Resistor / Diode / On-Off Test / Capacitor
Frequency F
Square wave output
NCV
Zero line / Fire line test
Full unit symbol
Backlight manual/Auto off
True RMS measurement
Temperature¡æ/H
Flashlight lighting

Package Included:
1 x Clamp Meter
1 x Meter pen
1 x Temperature thermocouple
1 x Carrying bag
1 x User Manual
