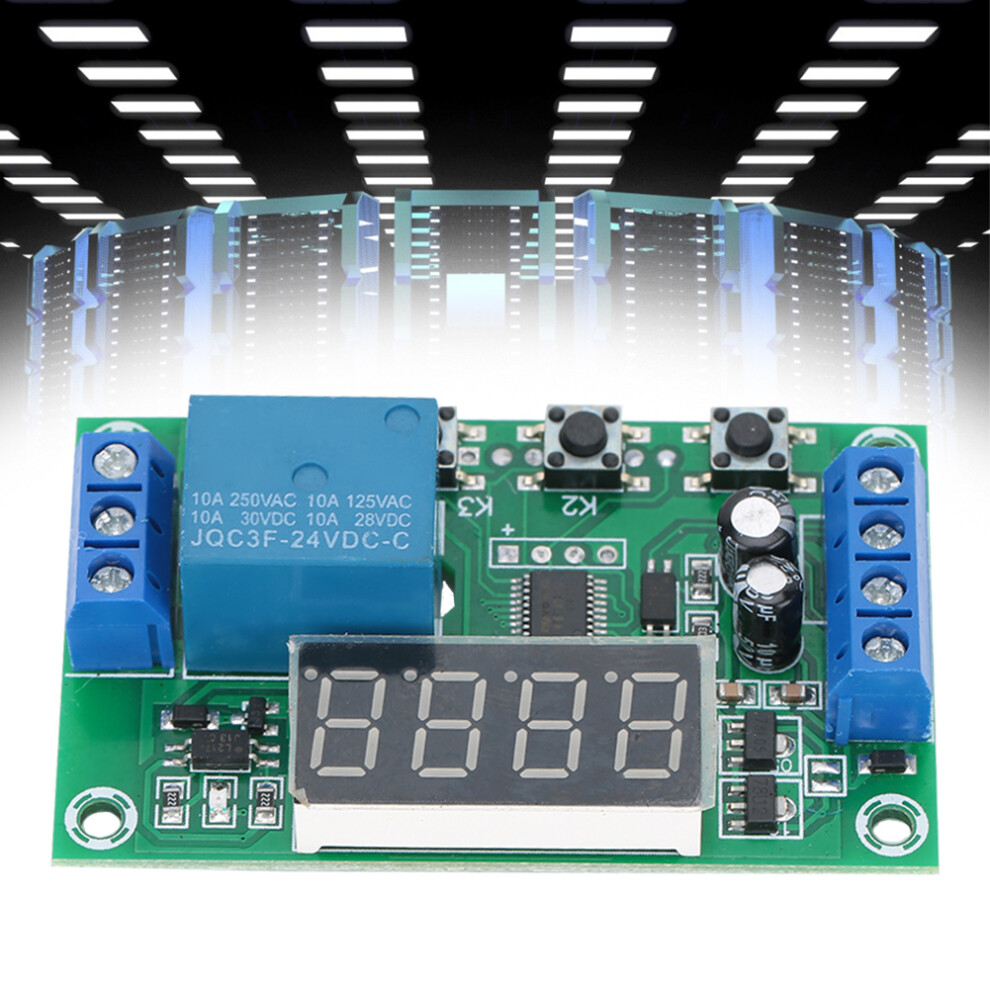

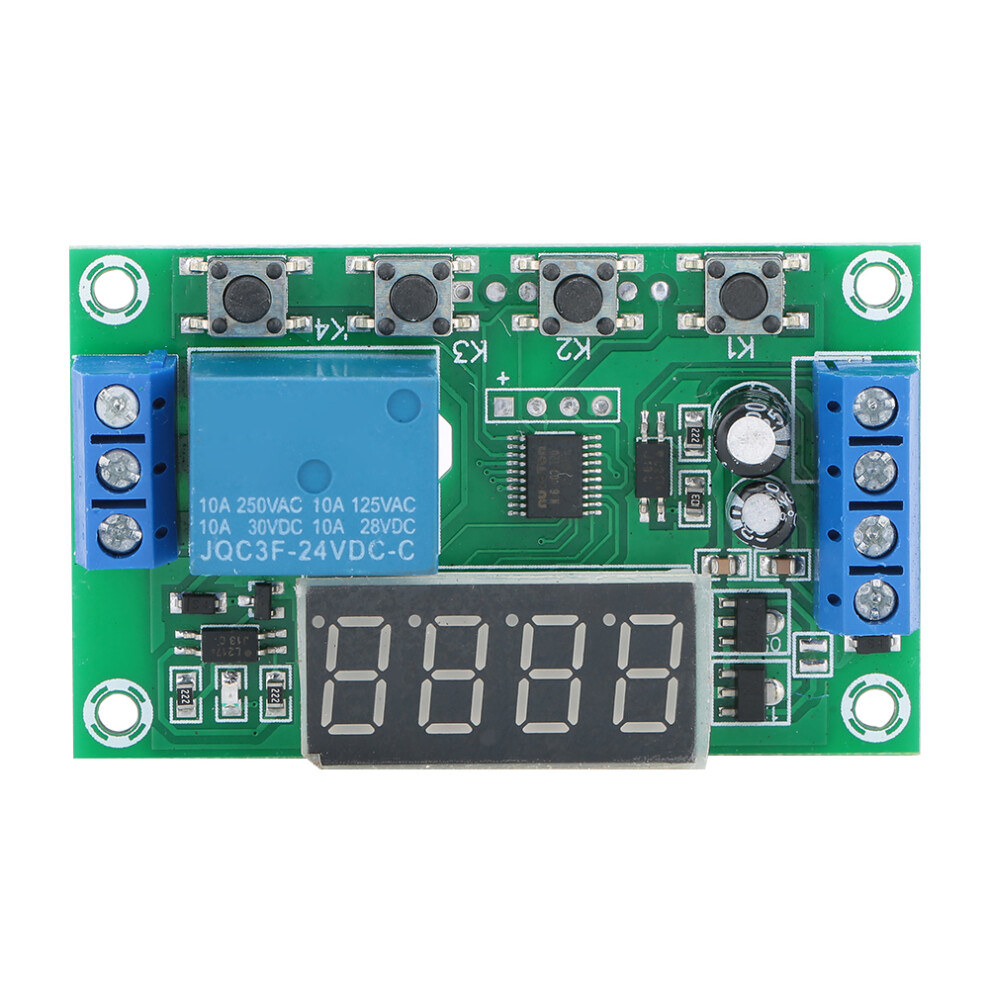

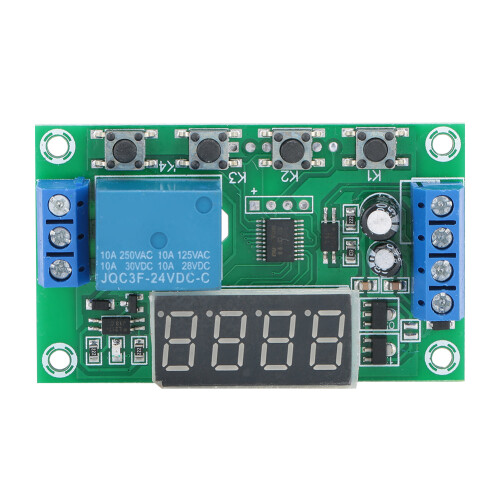

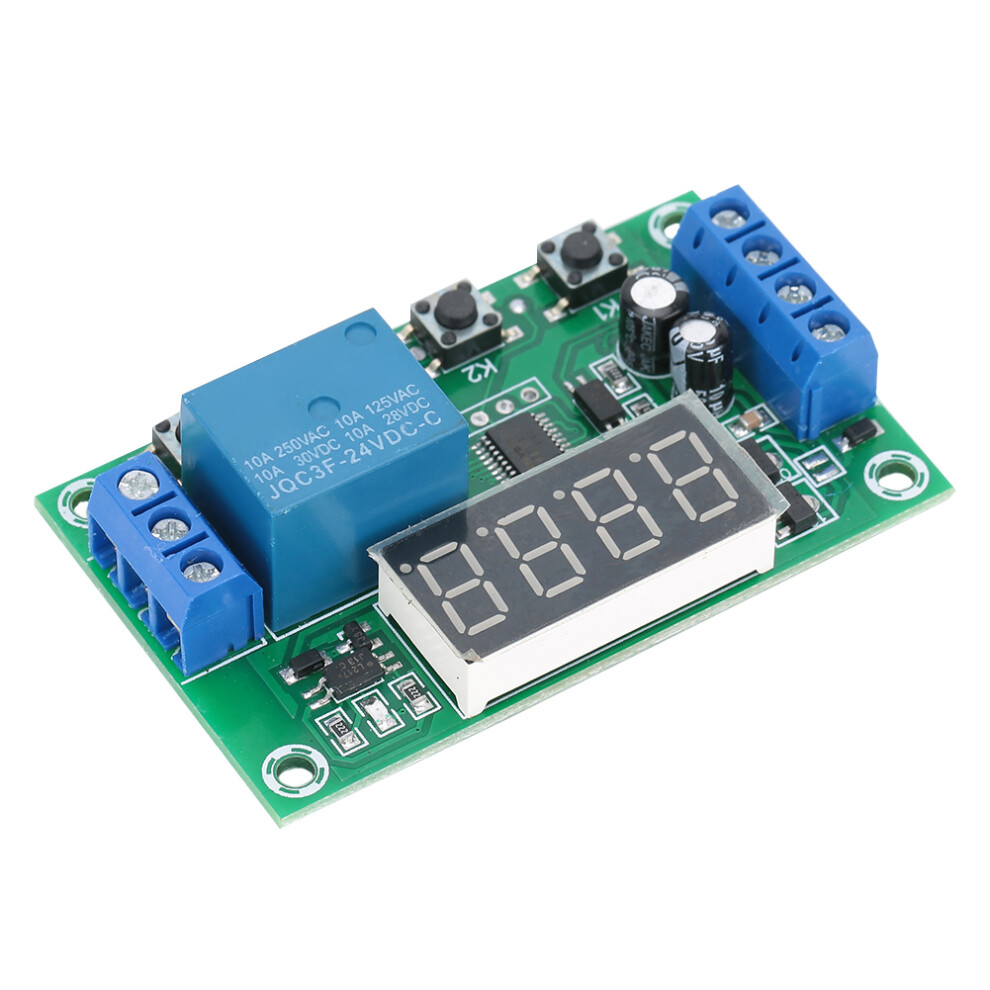

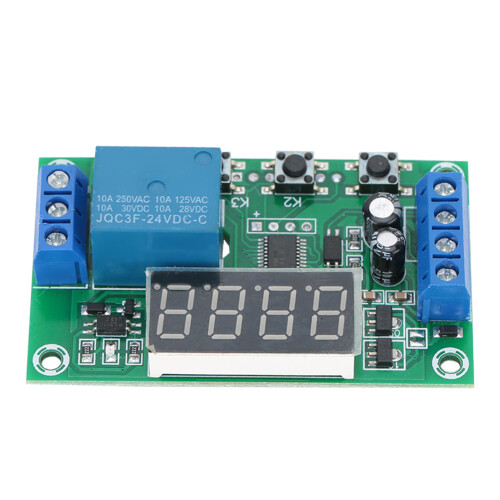

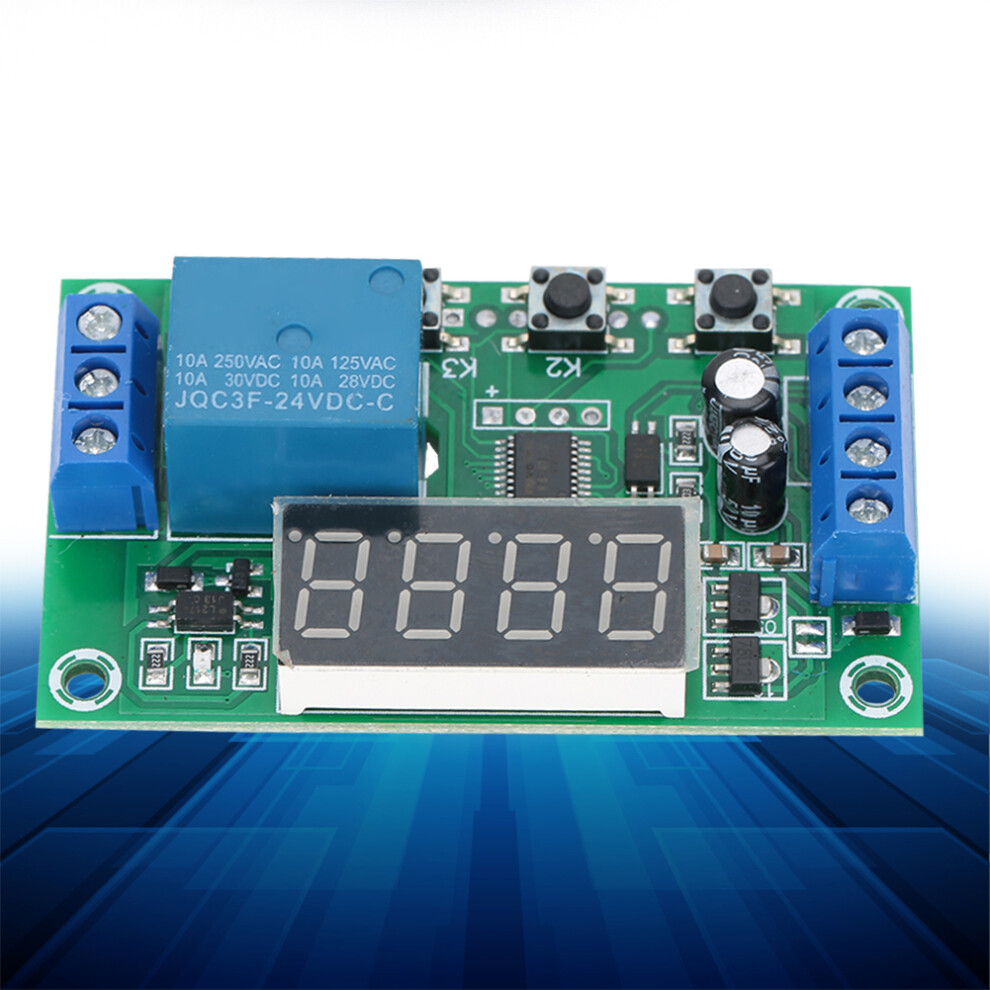

Relay Module One Channel Cycle Trigger Delay 24V

Relay Module One Channel Cycle Trigger Delay 24V Description

1、High quality material can make sure the durability and stability of the product 2、24 common functions to meet more application needs 3、Can control solenoid valves, pumps, motors and strips, etc. 4、Great workmanship, perfect replacement for the old or damaged one 5、Small body, easy to install and remove
Condition: 100% Brand new
Item Type: Relay Module
Model: YYC-2S
Output Power: can control DC or AC load within 5A
DC+ : Input DC power +
DC- : Input DC power -
IN+: signal input +
IN-: signal input -
NO: Relay normally open interface, the relay is suspended before the suction, and the short is connected with COM after the suction.
COM: Relay common interface
NC: Relay normally closed interface, and the relay is shorted to COM before the suction is closed.
Button trigger: (positive trigger: DC- and in- short circuit, DC+ and IN+ to button)
Or: (negative trigger: DC+ and in+ short circuit, DC- and IN- to button)
1 x Module
