Relay Receiver Wireless Remote Control Switch Module 433 Mhz 1CH for Cabinet

Relay Receiver Wireless Remote Control Switch Module 433 Mhz 1CH for Cabinet Description

Light Switch Receiver Module only, other accessories demo in the picture is not included!
new and high quality. Long range working voltage. Ultra low power, High sensitive response.
Application: Suitable for LED light, LED light string, Christmas tree light string, light control switch and so on.
About Working mode: Momentary: Push the remote button, the relay connects, release the remote button, the relay dis-connects. Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay dis-connects. Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
Support code format:1527 learning code. Number of stored remote controllers:less than and equal to 10. Working mode:inching, self-locking, interlock. Learning mode:for KEY Learning. Working temperature:-20-80/-4-176. Receiving Sensitivity: and equal to -107dBm

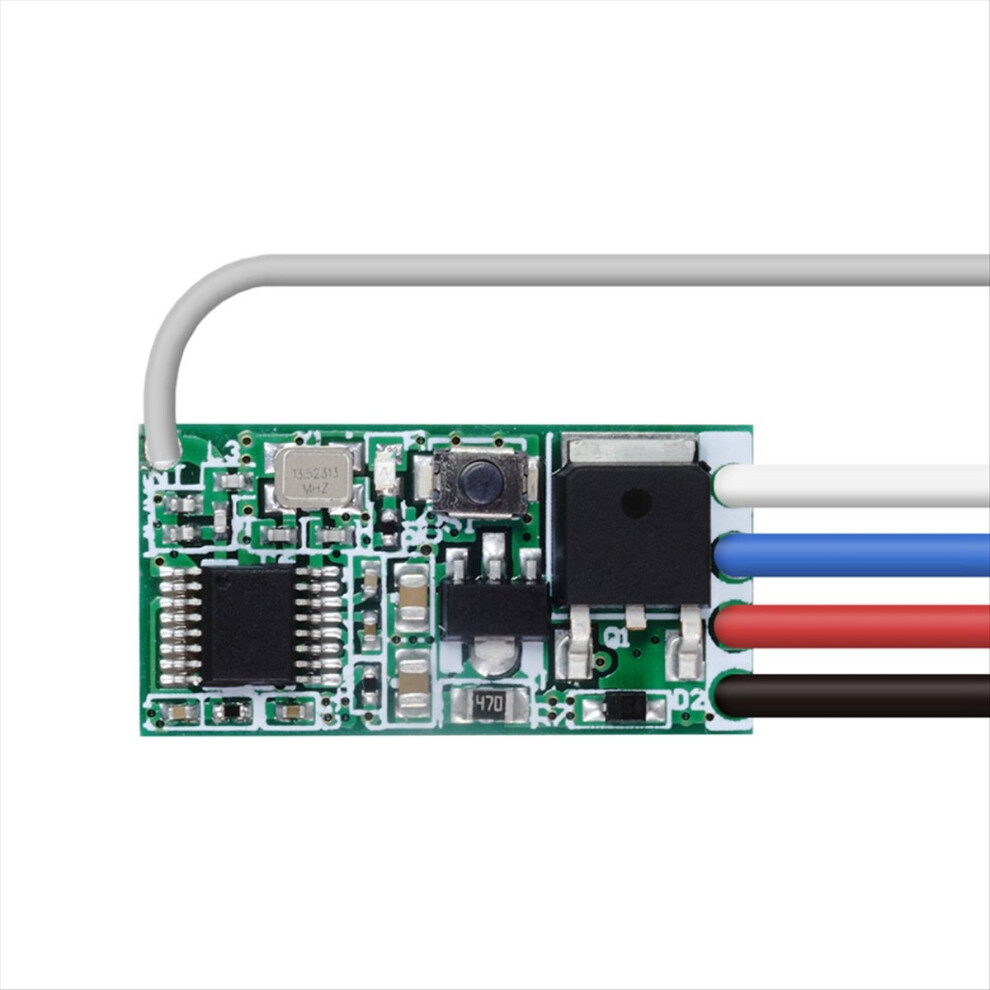

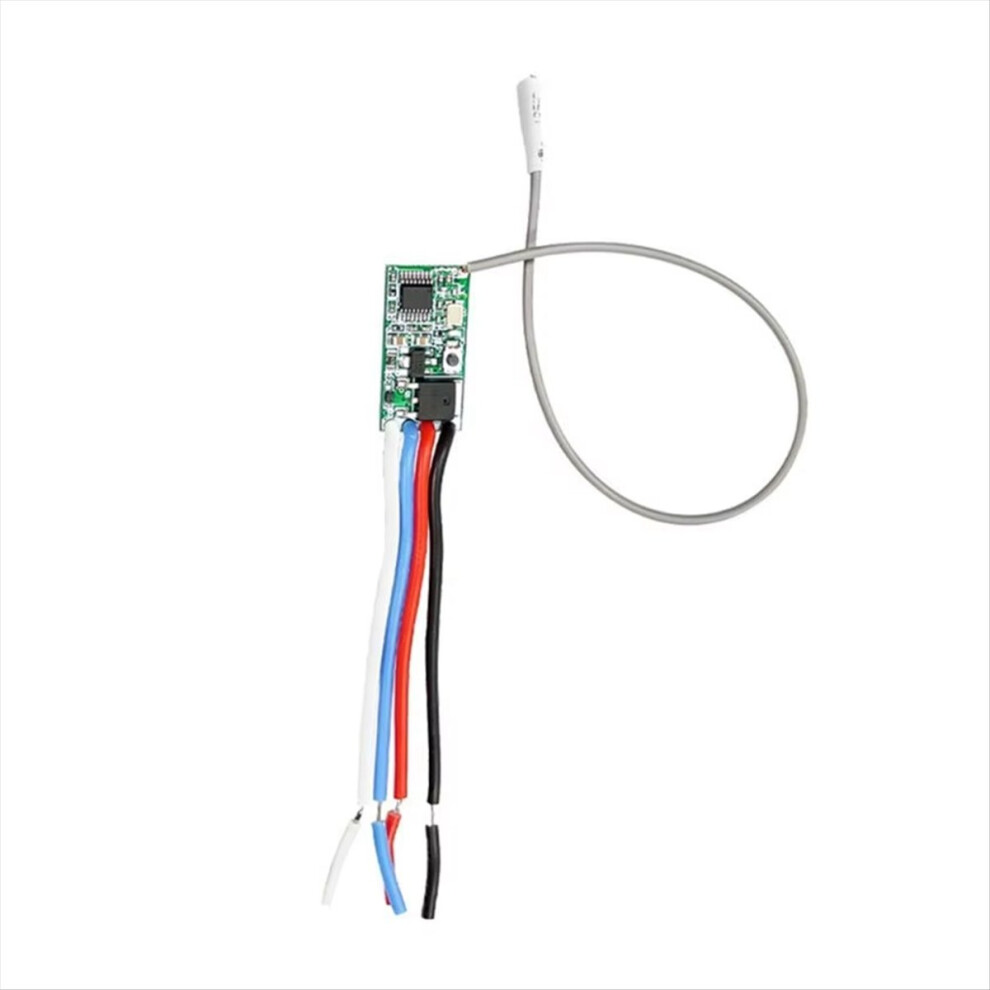

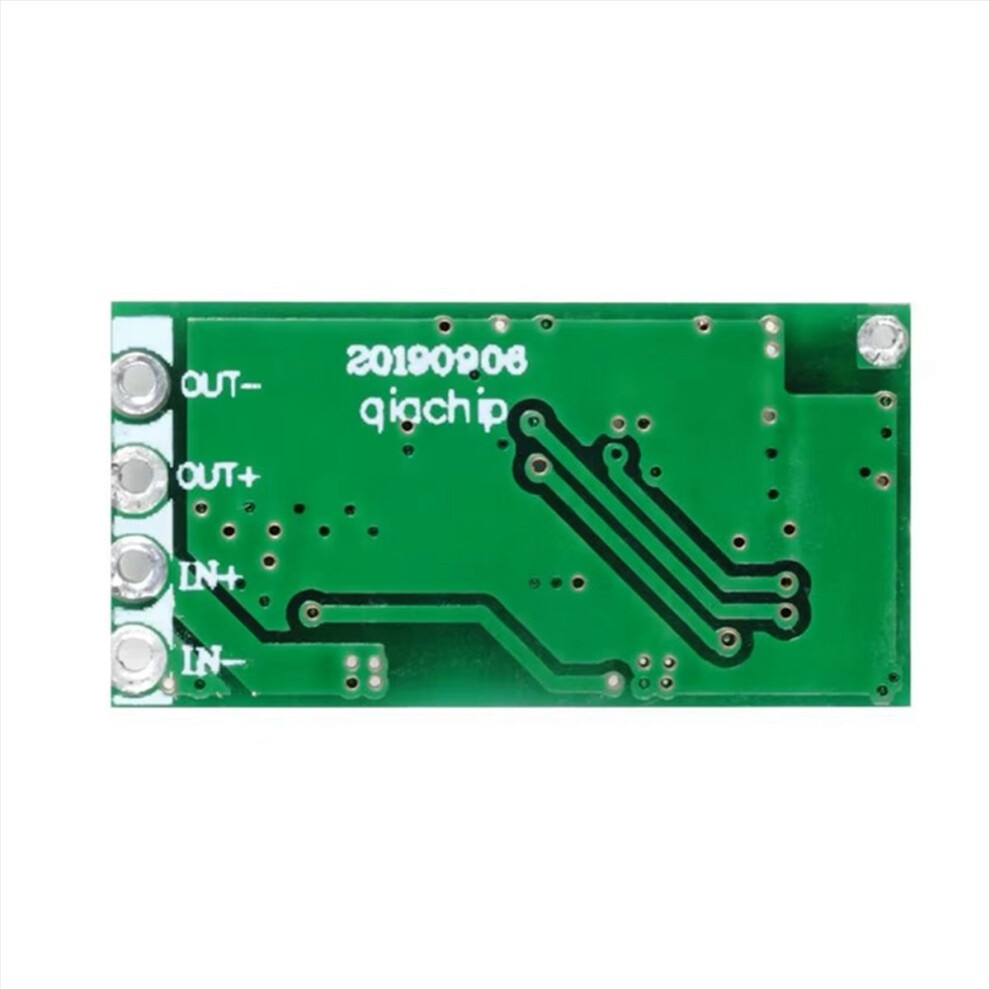

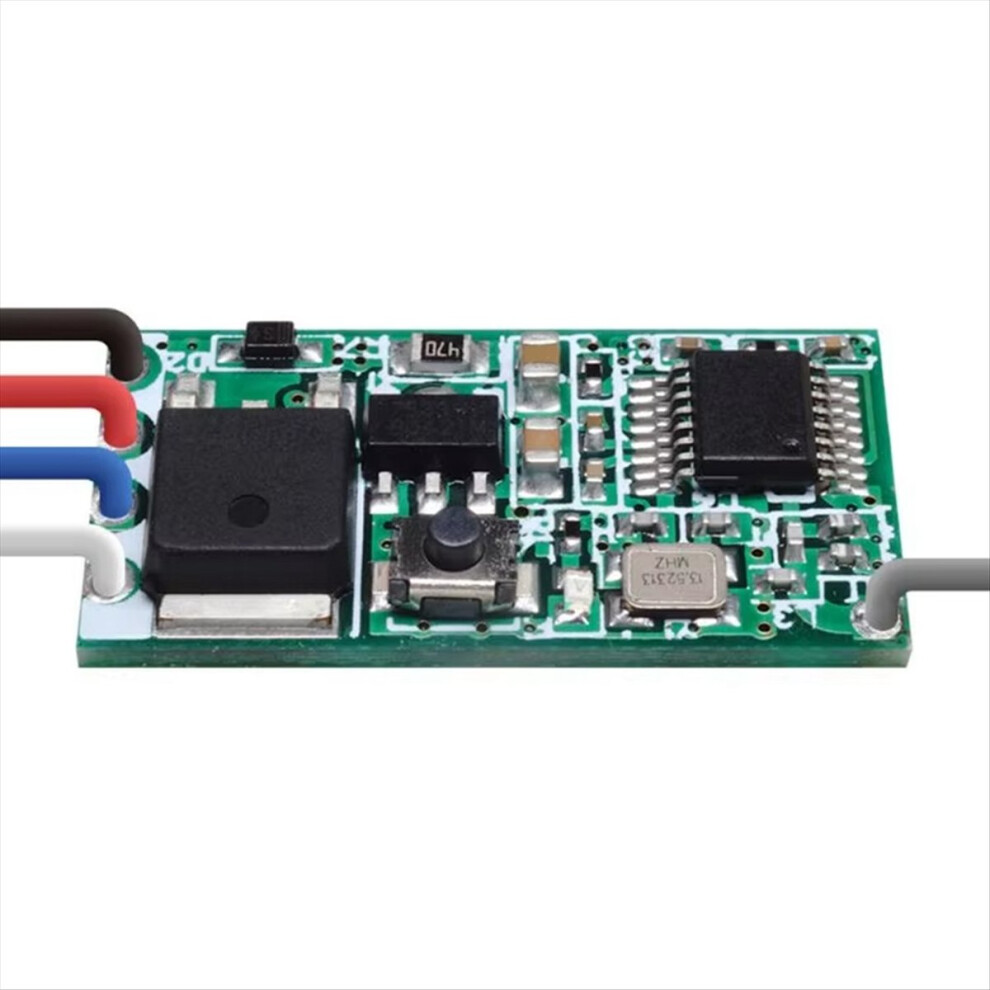

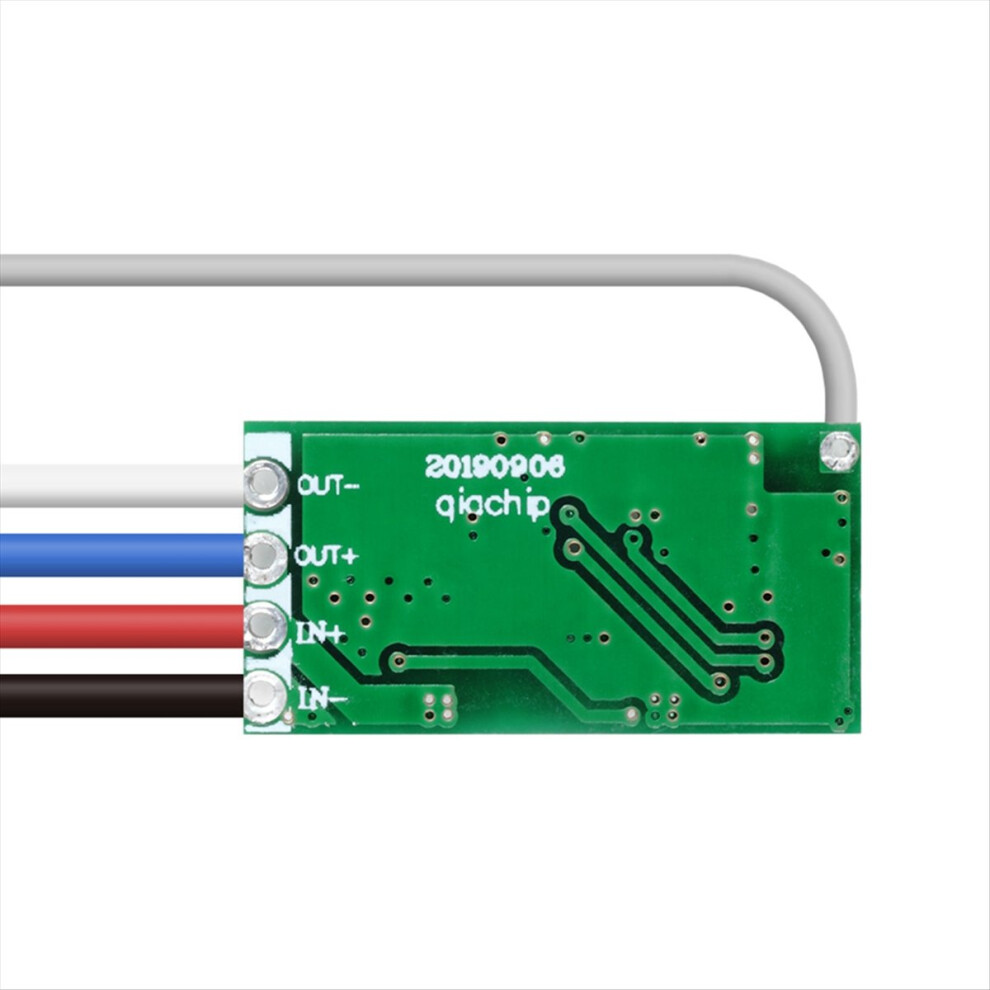

Item Type:Light Switch Receiver Module
Working Voltage:DC3.6-24V
Max Load:2A
Static Current:3.6-5.5mA
Working Frequency:433MHz
Input:DC3.6V-24V
Output:DC3.6V-24V
Modulation System:ASK

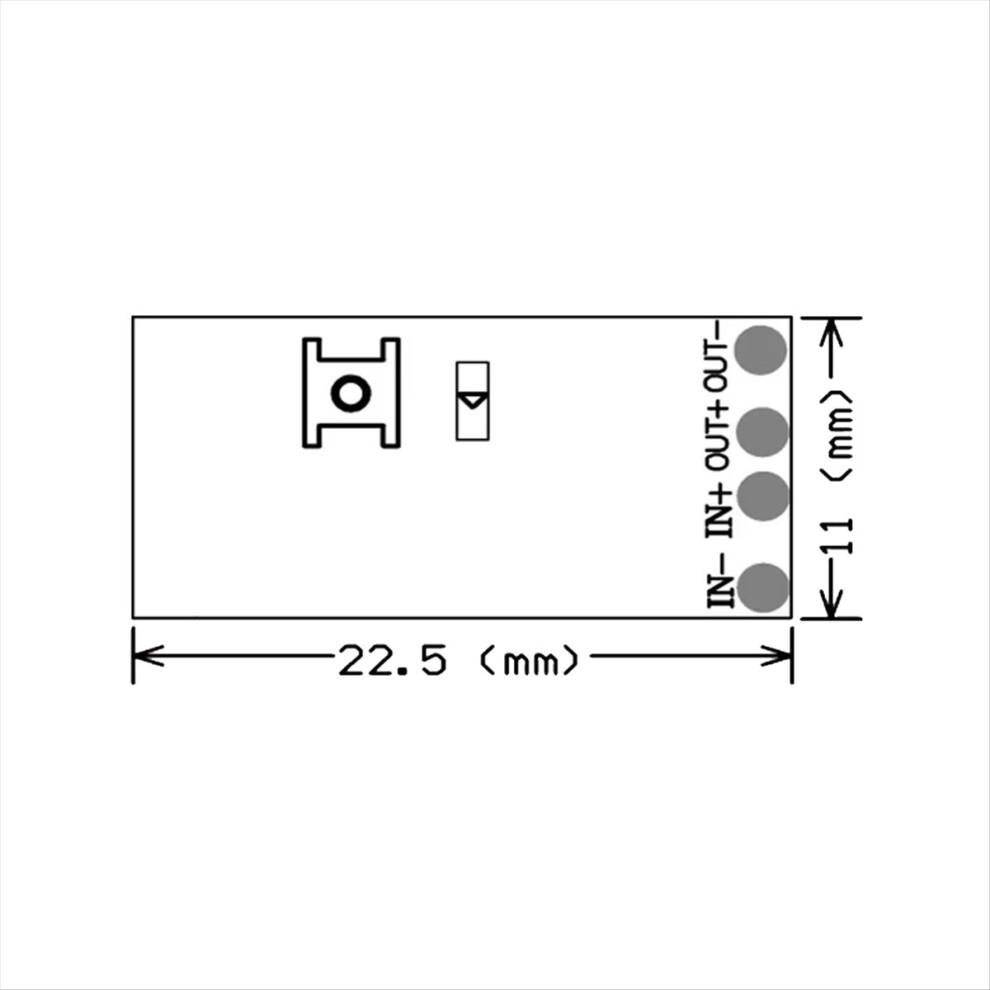

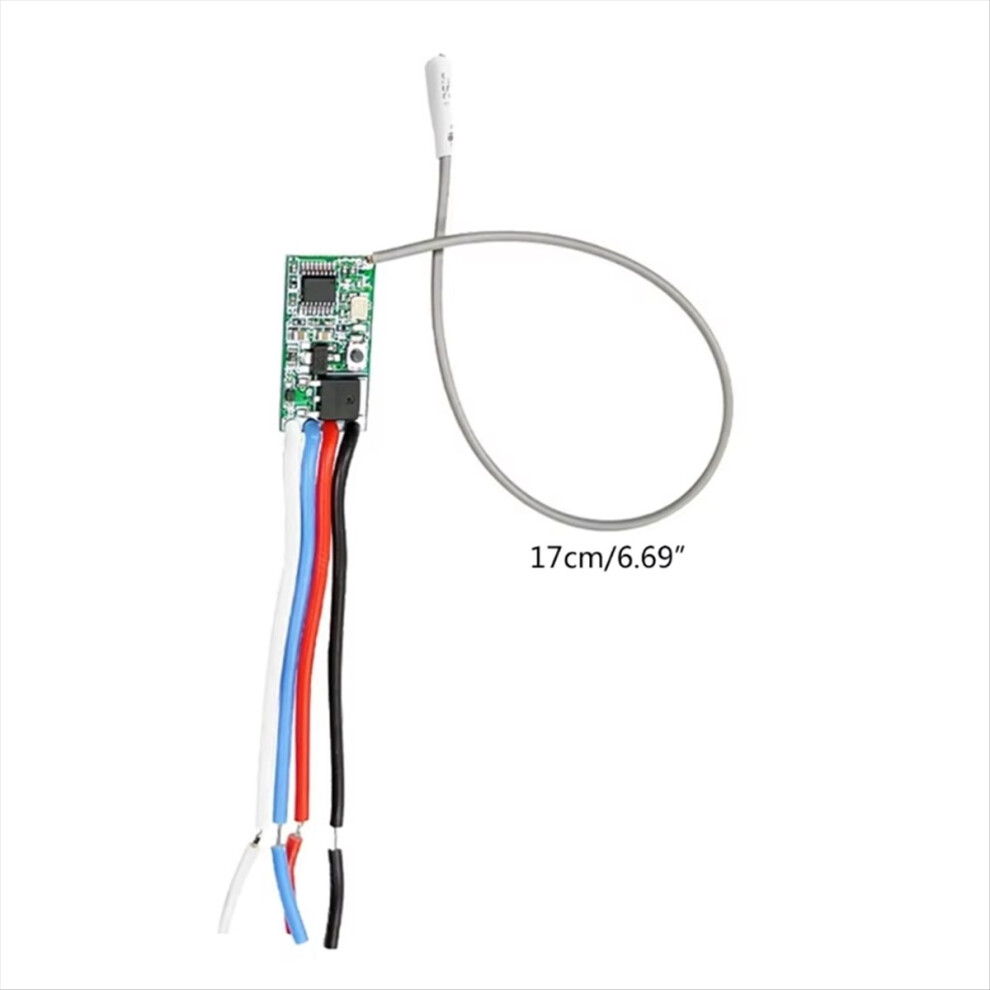

Size:Length:11.5cm/4.5in
Steps:
Clear Code: the learning button on the module 8 times continuously, and the light flashes seven times and then goes out.
Momentary Mode: Module learning button 1 for,the indicator light is for always on,then the remote control button,the indicator light flashes 3 times and then turns off , then the learning is successful;If the code is not successful,the indicator lights out of the learning state after 15 seconds.
Toggle Mode: the Module Learning button 2 times,the indicator light for always turns on;then the remote control button,the indicator lights flicker three times and then off, then the learning is successful; if the code has notbeen successful, the indicator lamp goes out of the study state after 15 seconds.
Latching Mode: the Module Learning button 3 times,the indicator light for always turns on; and then the buttons on the remote control,the indicator lights flicker three times and then off,then the learning is successful;if the code has not been successful,the indicator lamp goes out of the study state after 15 seconds.
Colour:Green
Material:Plastic

Package Contents:
1 * Light Switch Receiver Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
